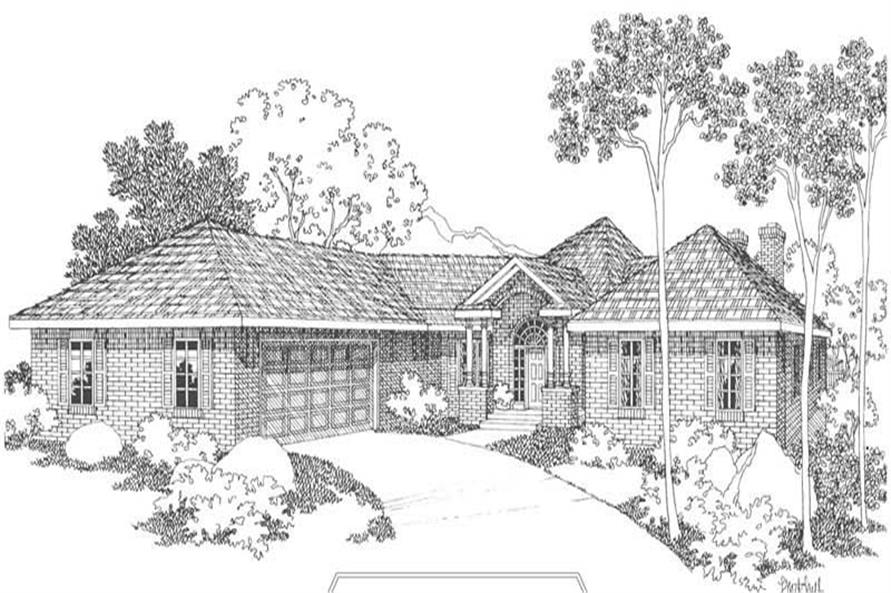

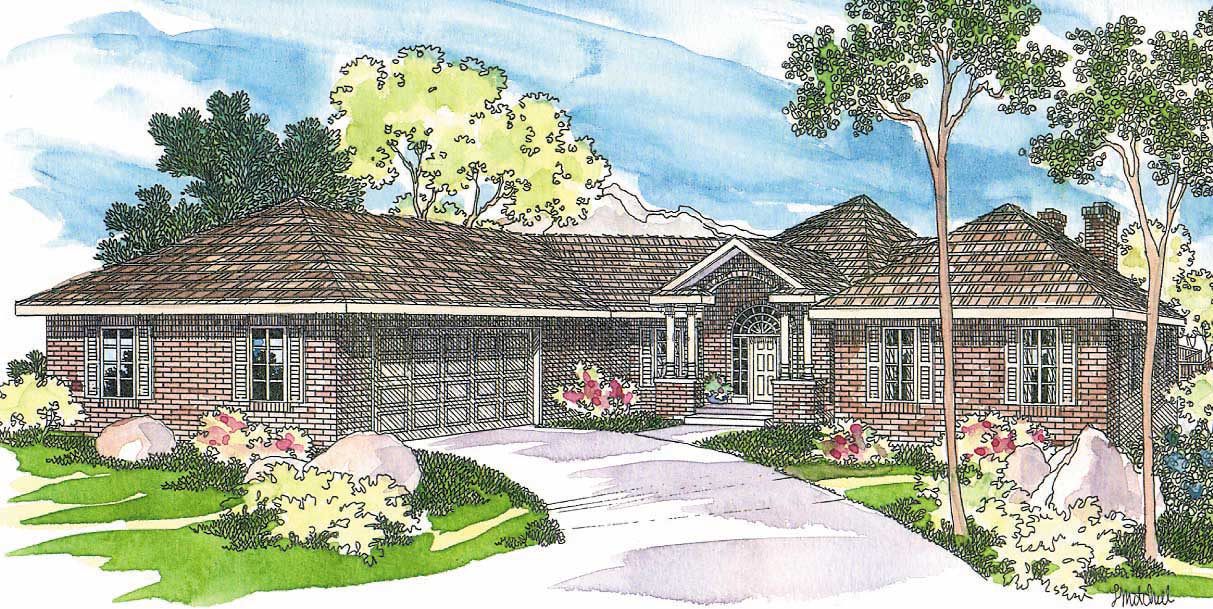

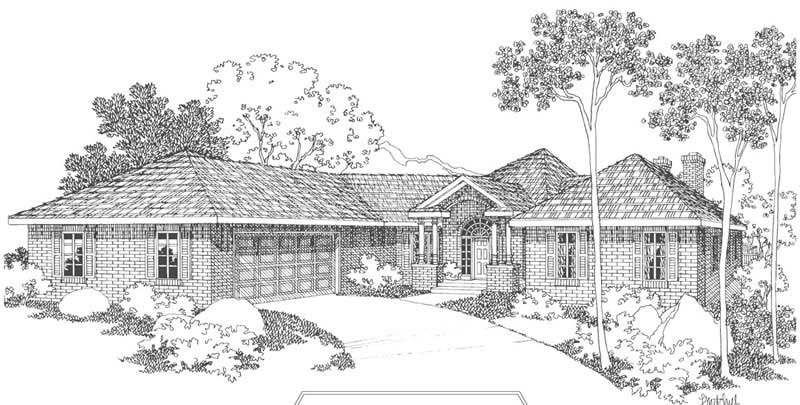

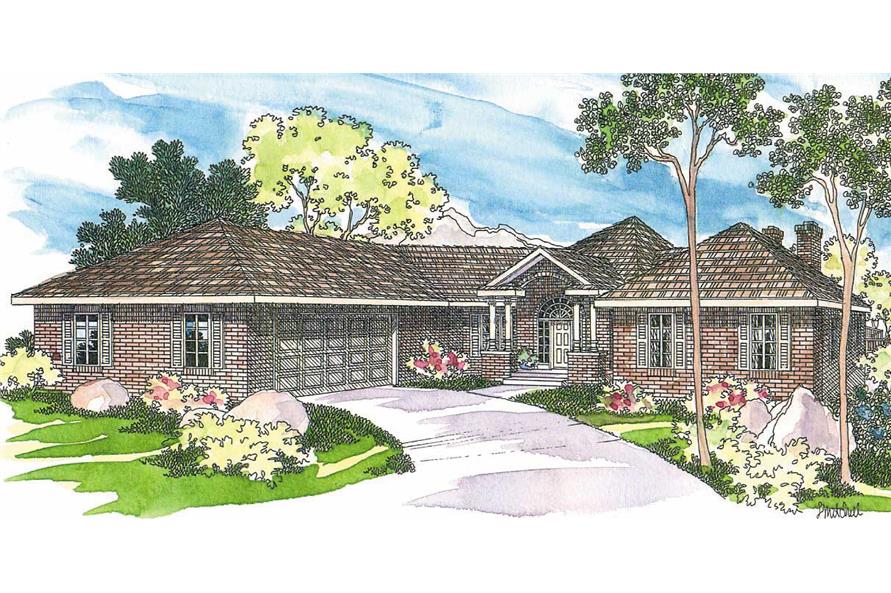

3-Bedroom, 2365 Sq Ft Ranch House Plan - 108-1492 - Front Exterior
108-1492: Home Other Image-Front View

About Plan # 108-1492

About Plan # 108-1492

2365 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 79' 0" WIDTH 70' 6" DEPTH 2 GARAGE BAY

The #108-1492 home plan is a great single story, traditional style house plan with 2365 total living square feet. This contemporary, traditional home plan features a vaulted covered porch which has an arched brick opening over double columns. The window-rich hexagonal great room has a vaulted ceiling and a brick fireplace. The elevated panoramic deck wraps across the rear above the walk-out basement.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

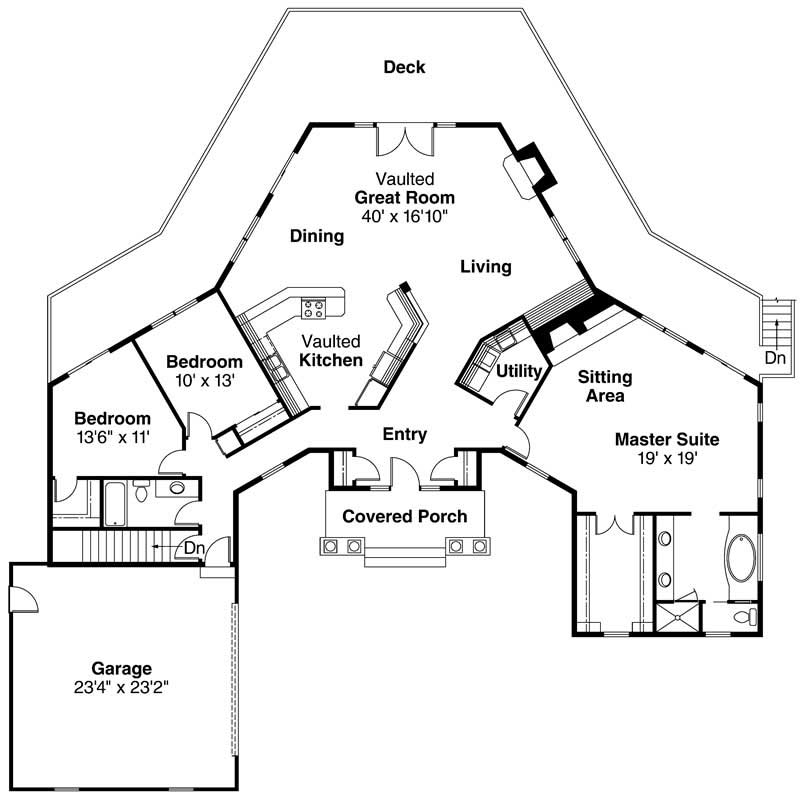

Home Plan: #108-1492 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #108-1492
