4–5-Bedroom, 2300 Sq Ft Ranch Plan with Walk-in Pantry

Ranch home (ThePlanCollection: Plan #206-1030)

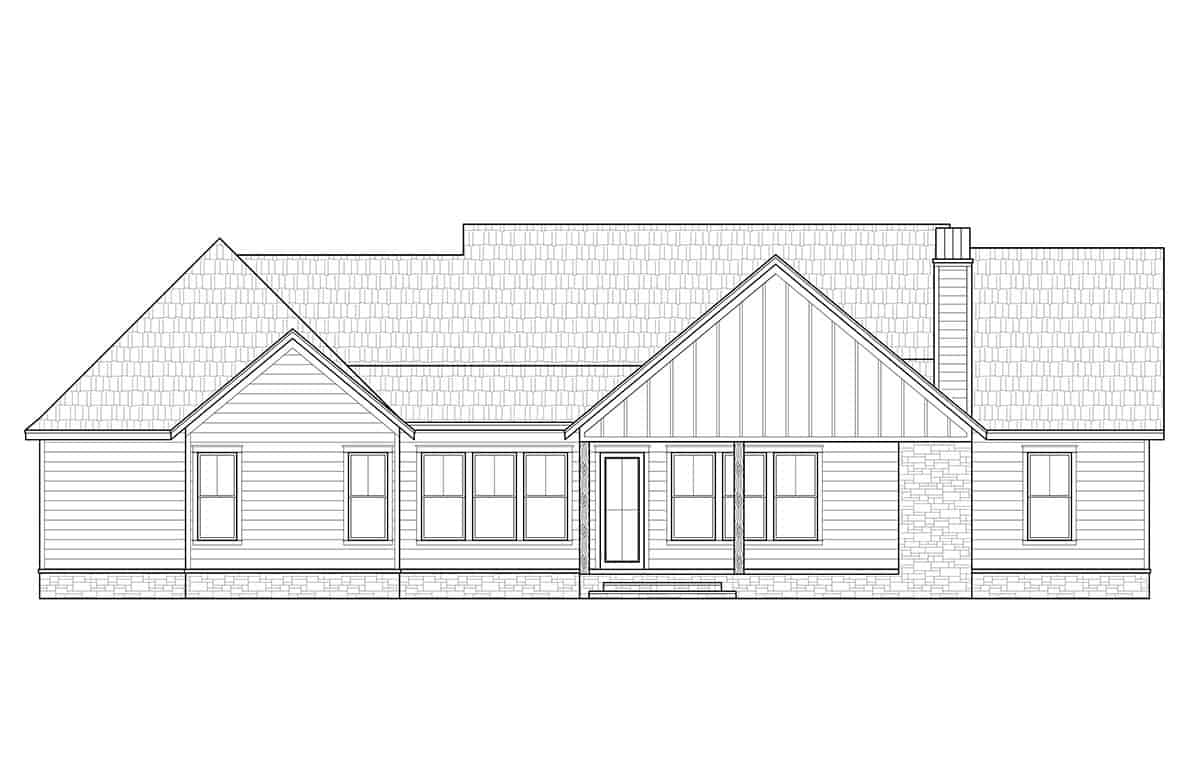

206-1030: Home Plan Rear Elevation

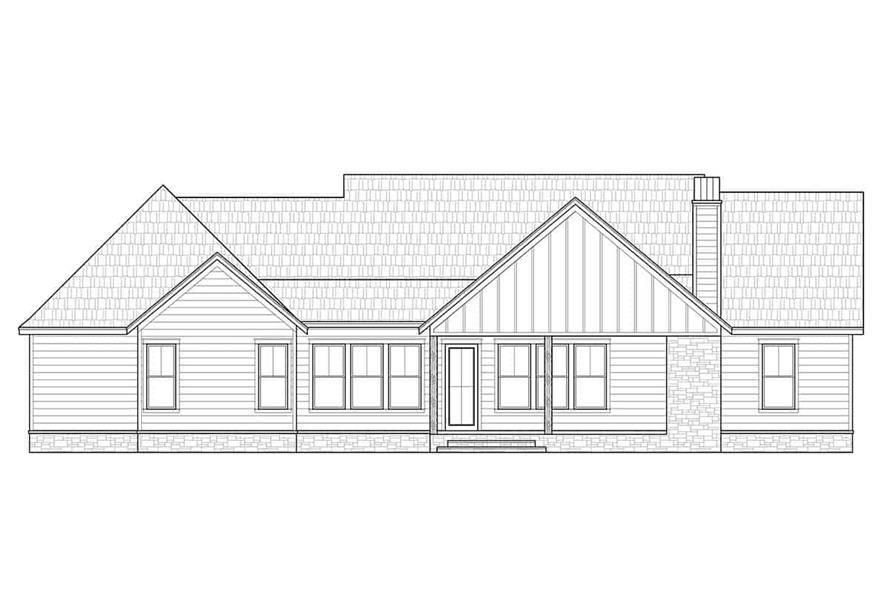

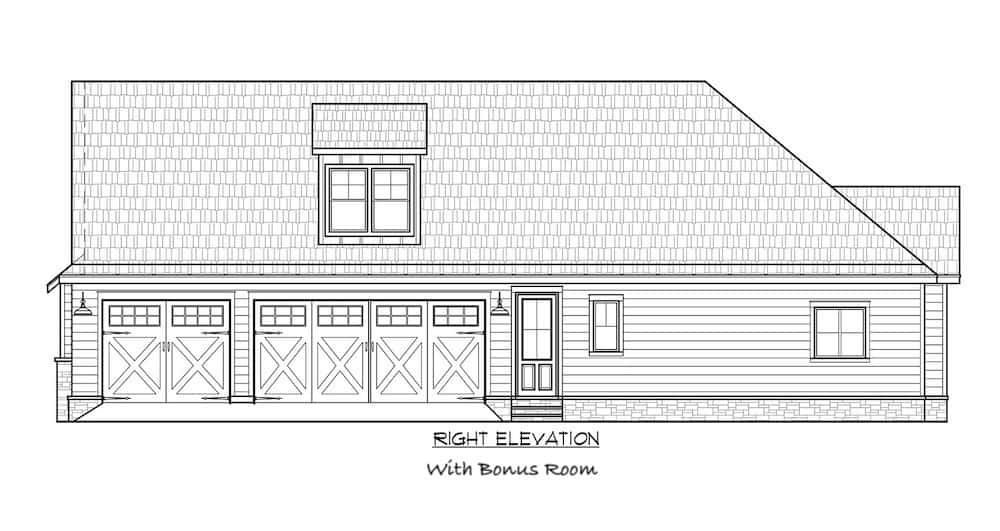

206-1030: Home Plan Right Elevation

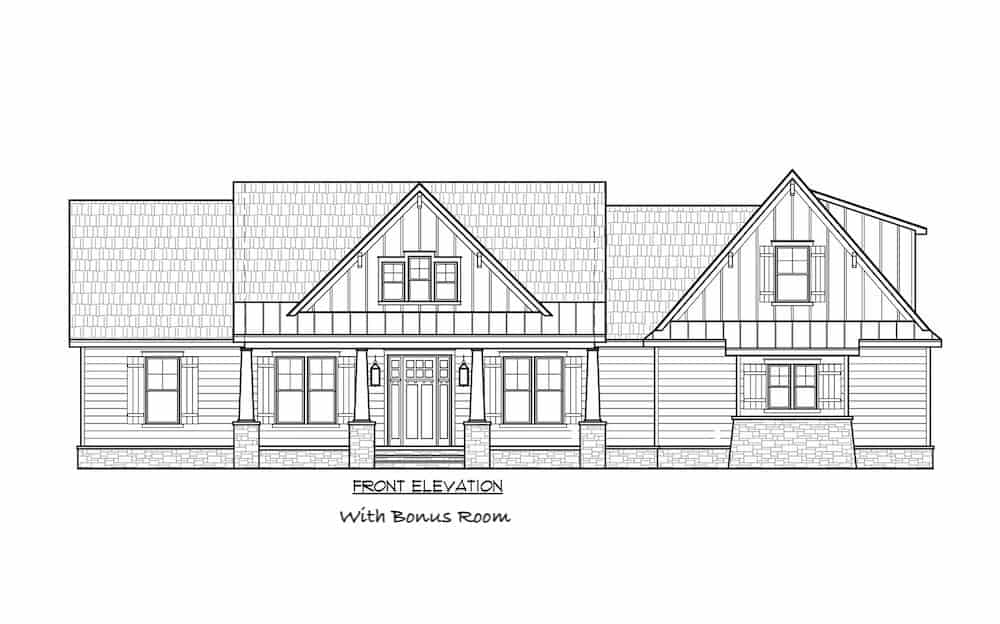

206-1030: Home Plan Front Elevation
206-1030: Home Plan Rendering-Front View
4–5-Bedroom, 2300 Sq Ft Ranch Home - Plan #206-1030 - Main Exterior
206-1030: Home Plan Rear Elevation
206-1030: Home Plan Right Elevation
206-1030: Home Plan Front Elevation
206-1030: Home Plan Rendering-Front View

About Plan # 206-1030

About Plan # 206-1030

2300 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 76' 5" WIDTH 65' 8" DEPTH 3 GARAGE BAY

Enjoy the spectacular amenities featured in this magnificent Ranch style house. The multiple gables, combined with the natural materials used in the timber and stone accents, give this house its great curb appeal. The beautiful home's 1-story floor plan has 2300 square feet of heated-cooled living space and includes 4 bedrooms and the following highlights:

• Vaulted ceiling in Great Room

• Mud room

• Large walk-in kitchen pantry with counter

• Roomy master closet with direct access to laundry room

• Fireplaces in Great Room and rear porch

• Outdoor kitchen

• Home office or possible guest bedroom

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

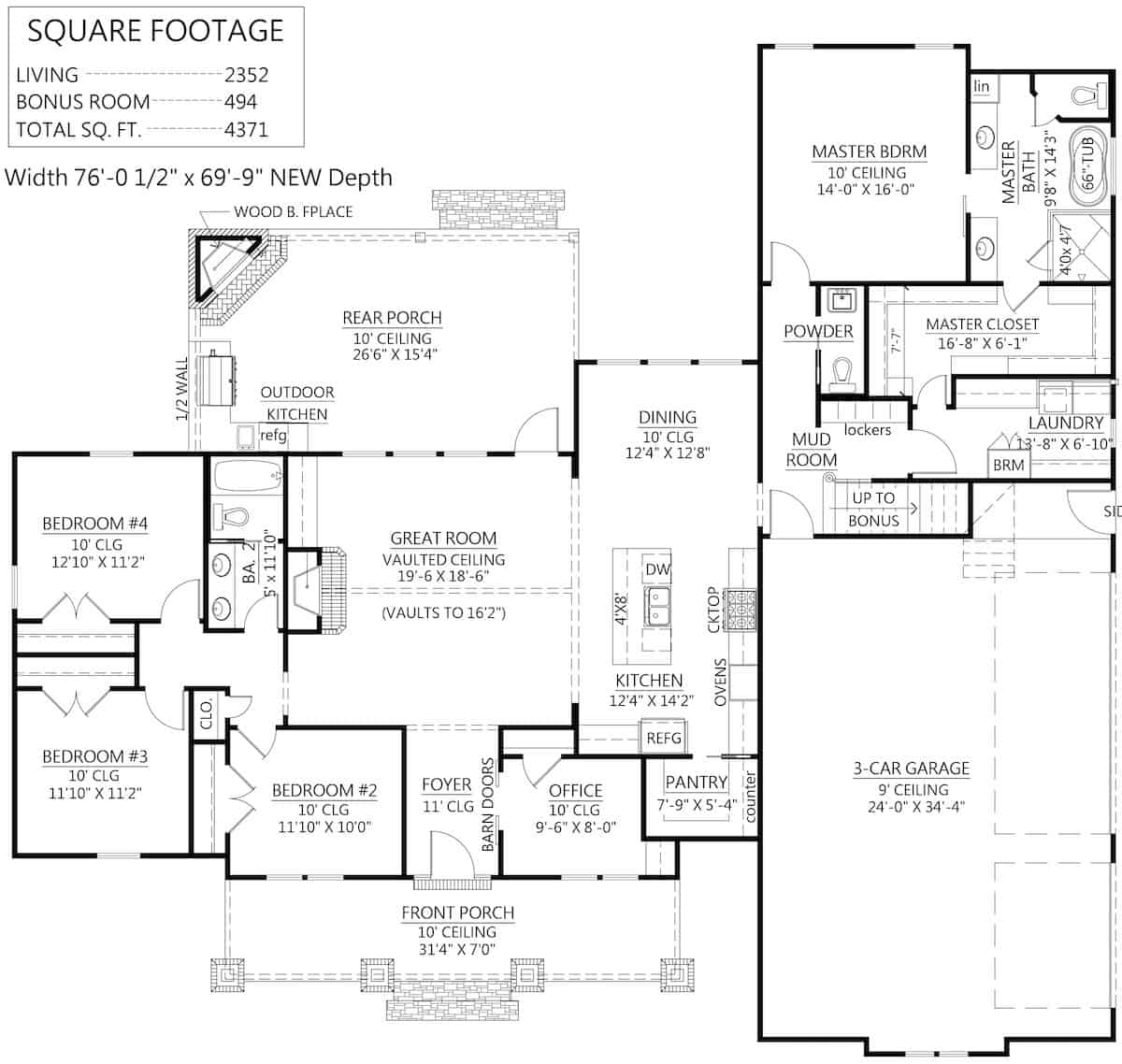

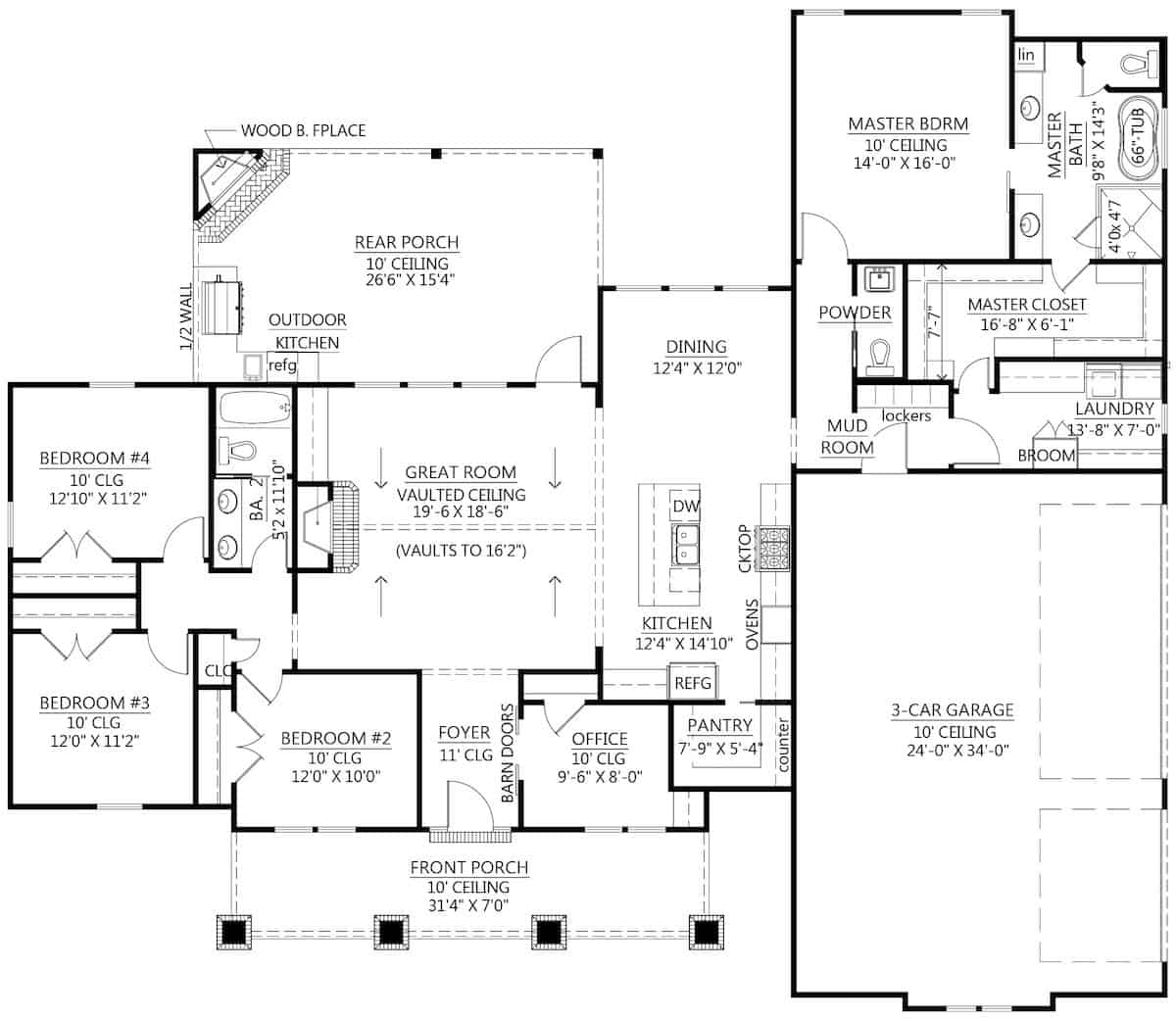

Home Plan: #206-1030 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #206-1030
#206-1030 Floor Plan First Story - alternative main level layout Main Level of Ranch Plan #206-1030

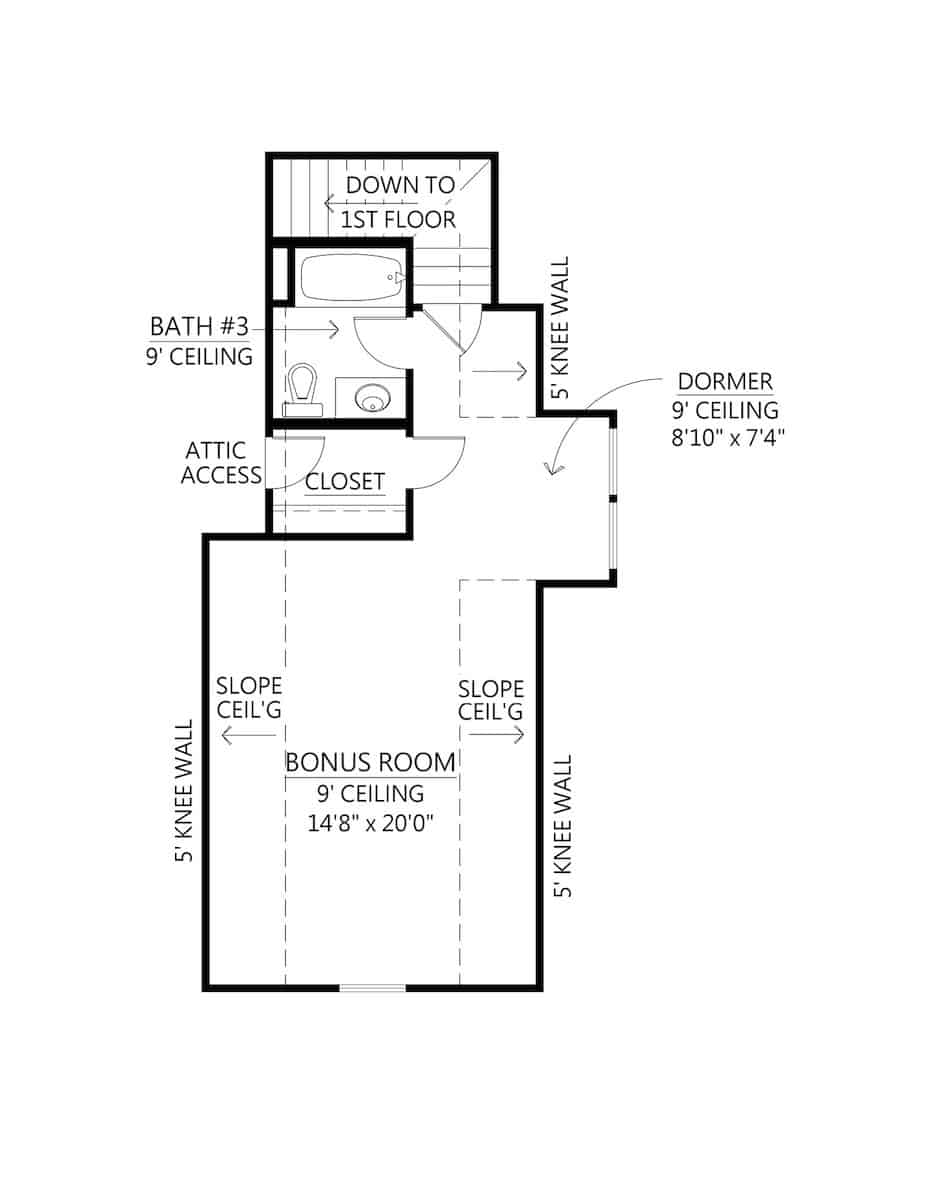

#206-1030 Floor Plan Bonus Room - bonus room Bonus Room of Ranch Plan #206-1030
