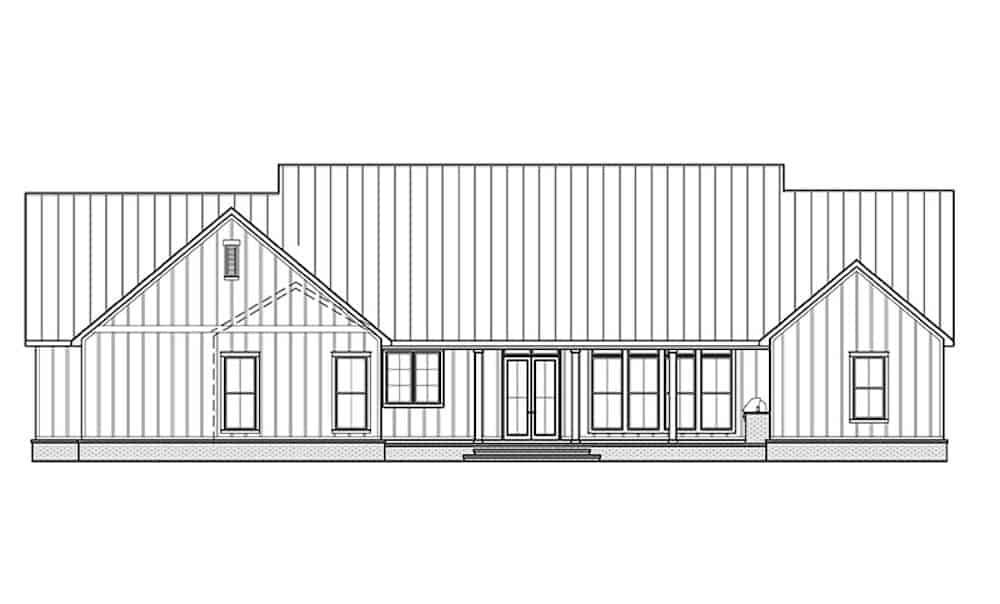

206-1040: Home Plan Rear Elevation
206-1040: Home Other Image-Kitchen
206-1040: Home Other Image-Kitchen
4-Bedroom, 2534 Sq Ft Ranch House - Plan #206-1040 - Front Exterior
206-1040: Home Plan Rear Elevation
206-1040: Home Other Image-Kitchen
206-1040: Home Other Image-Kitchen

About Plan # 206-1040

About Plan # 206-1040

2534 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 87' 2" WIDTH 56' 2" DEPTH 2 GARAGE BAY

Bursting with elegance, this Ranch style home also has Modern Farmhouse characteristics – so dynamic and vibrant in design. The twin forward-facing gables and three shed dormers, along with the wide covered-front-porch entry, give this home an interesting character and great curb appeal. The lovely 1-story home's floor plan has 2534 square feet of heated and cooled living space with 4 bedrooms, a mud room, a walk-in kitchen pantry, a wet bar, 10-foot ceilings, and vaulted ceilings in the Great Room, dining area, kitchen, and master bedroom.

Each plan set includes the following:

  • Floor plan(s)
  • Window & door schedules
  • Electrical layout
  • Exterior elevations
  • Foundation plan
  • Typical wall section
  • Foundation section details
  • Roof plans
  • Miscellaneous details
  • Kitchen & bath cabinet elevations
  • Building Cross-Section

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

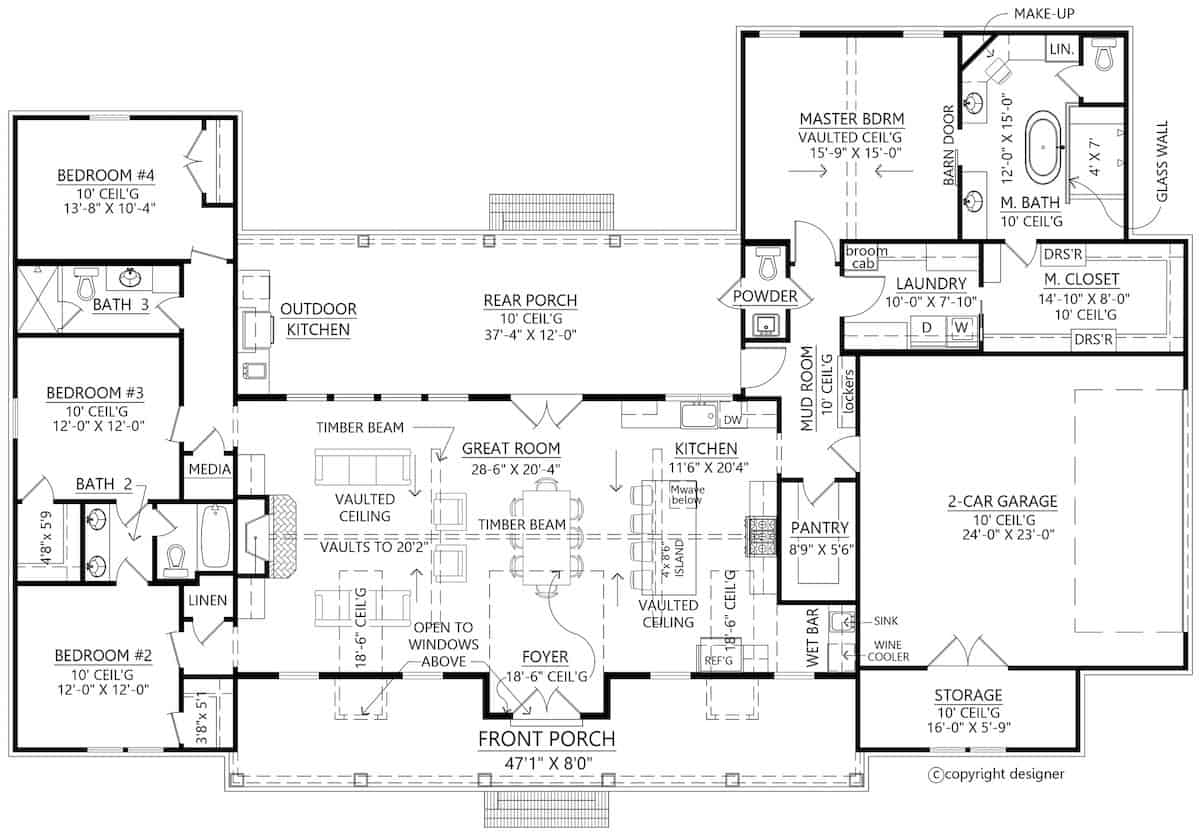

Home Plan: #206-1040 Floor Plan First Story - main level Main Level of Ranch Plan #206-1040

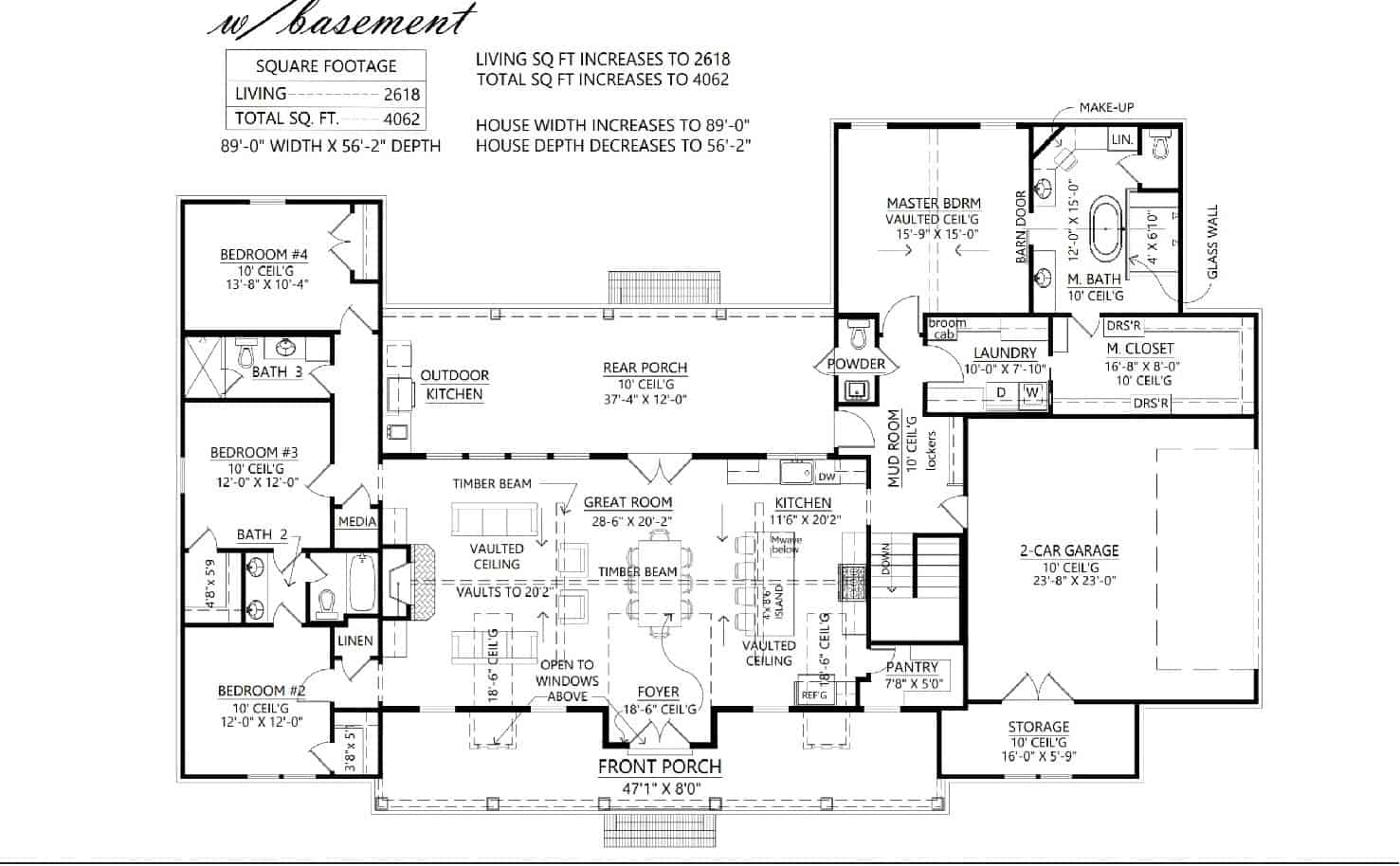

#206-1040 Floor Plan Basement - basement Basement of Ranch Plan #206-1040
Home Plan: #206-1040 Floor Plan First Story - main level Main Level of Ranch Plan #206-1040
#206-1040 Floor Plan Basement - basement Basement of Ranch Plan #206-1040
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 206-1040
Floors:
1
Bedrooms:
4
Full Baths:
3
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
2534
Main Floor:
2534
Unfinished Sq Ft:
Garage :
685
Porch :
784

Dimensions

Width:
87' 2"
Depth:
56' 2"
Ridge Height:
26' 6"

Architectural Styles

Country
Ranch
Farmhouse
Contemporary
Modern Farmhouse

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Gable
Gable/Shed Dormer

Roofing Material

Metal

Roof Pitch

12/12
10/12

Ceiling Height

10 Foot Ceiling

Special Feature

Fireplace
Mud Room
Family Room
Main Level Laundry
Split Bathroom
Storage
Vaulted Ceilings
Open Floor Plan

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Corner Lot

Kitchen Features

Kitchen Island
Walk-in Pantry
Outdoor Kitchen
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom
