3-Bedroom, 1940 Sq Ft Ranch Plan with Fireplace
Related House Plans
| 1940 SQUARE FEET | 3 BEDROOMS | 3 FULL BATH | 1 HALF BATH |
| 1 FLOOR | 56' 11" WIDTH | 72' 10" DEPTH | 2 GARAGE BAY |
This alluring Ranch Country style home offers residents a comfortable, functional living space in its well-designed open floor plan. The house's owner and family will surely love the magnificent home both inside and out. This fantastic 1-story floor plan has 1940 square feet of conditioned living space and includes three bedrooms, each with a walk-in closet, two full bathrooms – a primary bath and a shared bath with split design – and a half bath, mudroom, a large laundry room right off the primary suite, and home office.
Each plan set includes the following:
- FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
- GENERAL NOTES
- FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
- CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
- Window Specifications to e provided by Manufacturer
Write Your Own Review

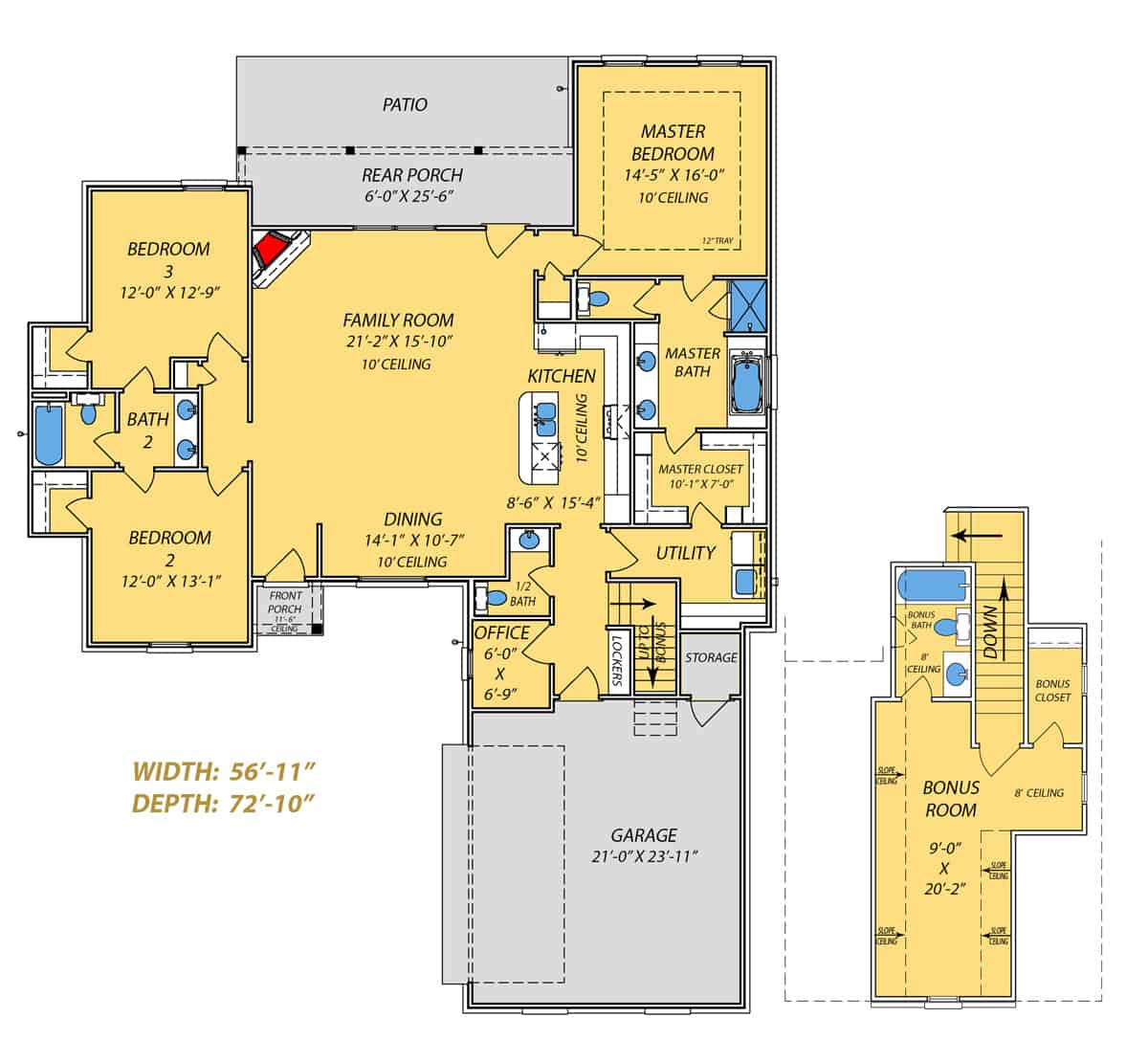

FLOOR PLANS Flip Images
