3-Bedroom, 1938 Sq Ft Ranch Plan with Main Floor Master
Related House Plans
Photographs may reflect modified designs. Copyright held by designer.
| 1938 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 70' 8" WIDTH | 49' 4" DEPTH | 3 GARAGE BAY |
Your family and friends will love the open floor plan of this traditional ranch home. Complete with extra-tall ceilings, this home features a wide-open plan that makes entertaining even a large group enjoyable. The kitchen features 9-foot ceilings and a breakfast bar the overlooks both the dining and great rooms. Just off the dining room to the right, you’ll find a hearth room, complete with its own fireplace. The master suite features a step ceiling, spacious bathroom with Jacuzzi tub and large walk-in closet. Two additional bedrooms are located to the front of the home along with a full bath. Finally, you’ll be pleased with the large main floor laundry with family lockers just off the garage.
Each plan set includes the following:
- Front, Back & Side Elevations
- Floor Plans
- Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
- Roof Plan (Birdseye view)
- Foundation Layout
- Wall & Stair Sections
- Cross Section
- Kitchen Layout
- General Notes
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and locations.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

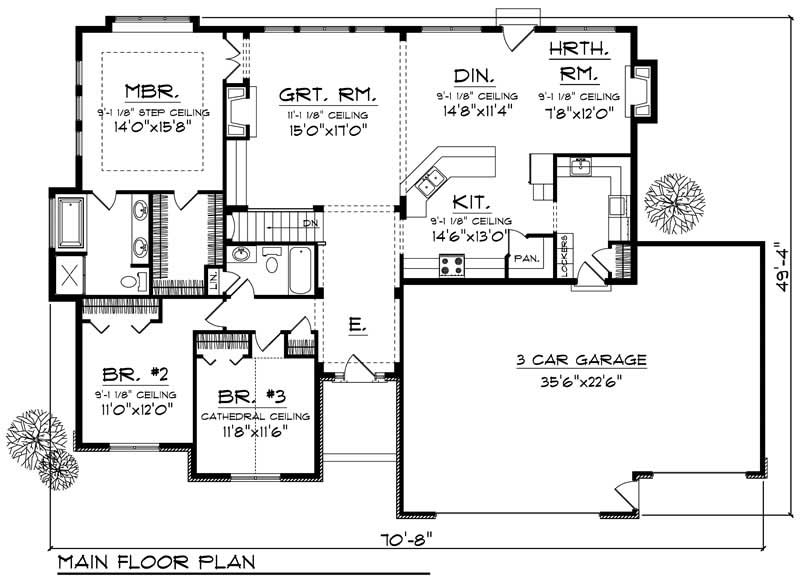

Home Plan: #101-1189 Floor Plan First Story
-
main
![Floor Plan First Story of Ranch Plan #101-1189]( "MAIN FLOOR PLAN")
Home Plan: #101-1189 Floor Plan First Story
-
main
![Floor Plan First Story of Ranch Plan #101-1189]( "MAIN FLOOR PLAN")
Special Offer
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Plan #:
# 101-1189
Floors:
1
Bedrooms:
3
Full Baths:
2
Square Footage
Heated Sq Feet:
1938
Main Floor:
1938
Unfinished Sq Ft:
Dimensions
Width:
70' 8"
Depth:
49' 4"
Architectural Styles
Ranch
Traditional
Exterior Wall Material
Vinyl Siding
Rock/Stone
Roof Pitch
6/12
Ceiling Height
9 Foot Ceiling
Special Feature
Fireplace
Dining Room
Garage Type
Attached Garage
Exterior Wall Framing
2x6
PRICING OPTIONS
Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.
Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.
A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.
For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
How much will this plan cost to build?
