3-Bedroom, 1851 Sq Ft Ranch Plan with Nook/Breakfast Area

Main image for house plan # 13404

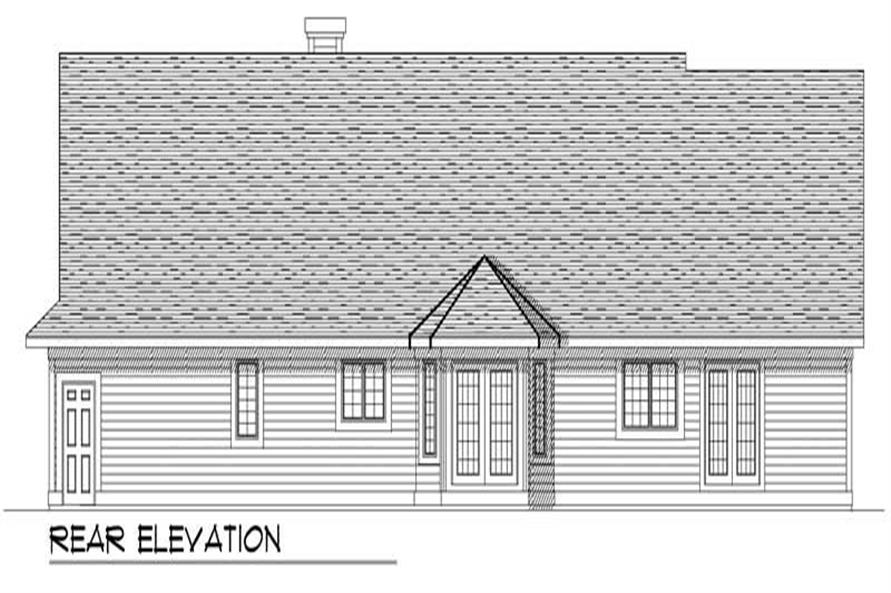

REAR ELEVATION
3-Bedroom, 1851 Sq Ft Ranch House Plan - 101-1725 - Front Exterior
REAR ELEVATION

About Plan # 101-1725

About Plan # 101-1725

1851 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 72' 0" WIDTH 41' 8" DEPTH 2 GARAGE BAY
This elegant three-bedroom ranch is perfect for a corner lot. The side-entry two-stall garage has extra space for storing outdoor equipment or setting up a workshop. From the garage you can enter the main floor laundry area with a utility closet and powder room. The large kitchen has a rear-facing window, perfect for keeping an eye on the back yard. There are plenty of cupboards and counter that includes a center island. The sunny dining area is bayed and is perfect for all your family meals. The dining and living rooms are separated by an arched soffit. The large living room has a central fireplace and is located just off the foyer. Down the hall you’ll find a full bath and two family bedrooms. The master suite is a perfect hideaway after a long day; it features a walk-in closet with plenty of shelves, a private bath, and direct access to the backyard.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

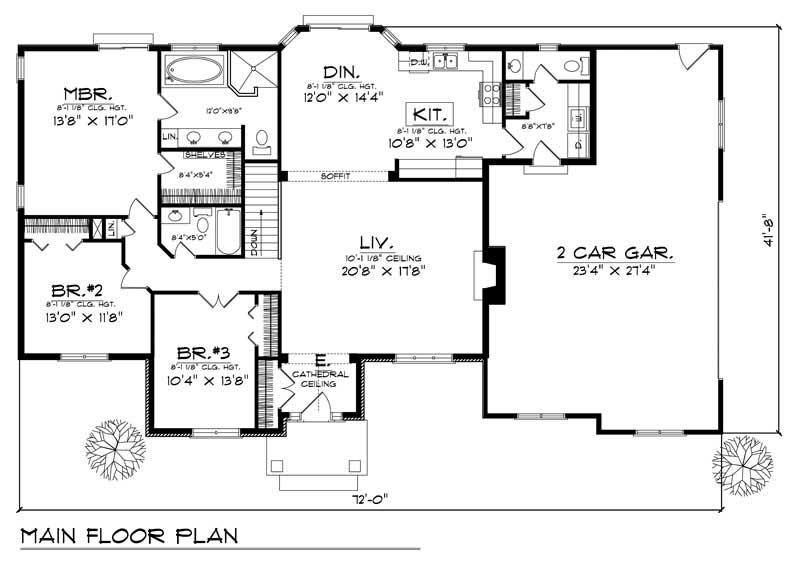

Home Plan: #101-1725 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1725
Home Plan: #101-1725 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1725
