4-Bedroom, 1835 Sq Ft Traditional Plan with Split Master Bedroom
Related House Plans
4-Bedroom, 1835 Sq Ft Traditional Plan with Split Master Bedroom
| 1835 SQUARE FEET | 4 BEDROOMS | 2 FULL BATH | 1 HALF BATH |
| 1 FLOOR | 56' 0" WIDTH | 61' 0" DEPTH | 2 GARAGE BAY |
This cozy house is a single story, traditional style house plan with 1835 total living square feet. The traditional home is in the European style and is well-suited to a family with children. The naturally bright vaulted Great Room has a gas fireplace, right at the hub of the activities. This home has a very roomy kitchen with a sunny nook and plenty of cupboard/counter space.
Each plan set includes the following:
- ARTIST'S RENDERING: An artist's drawing of the home, usually viewed from the front, and general construction notes.

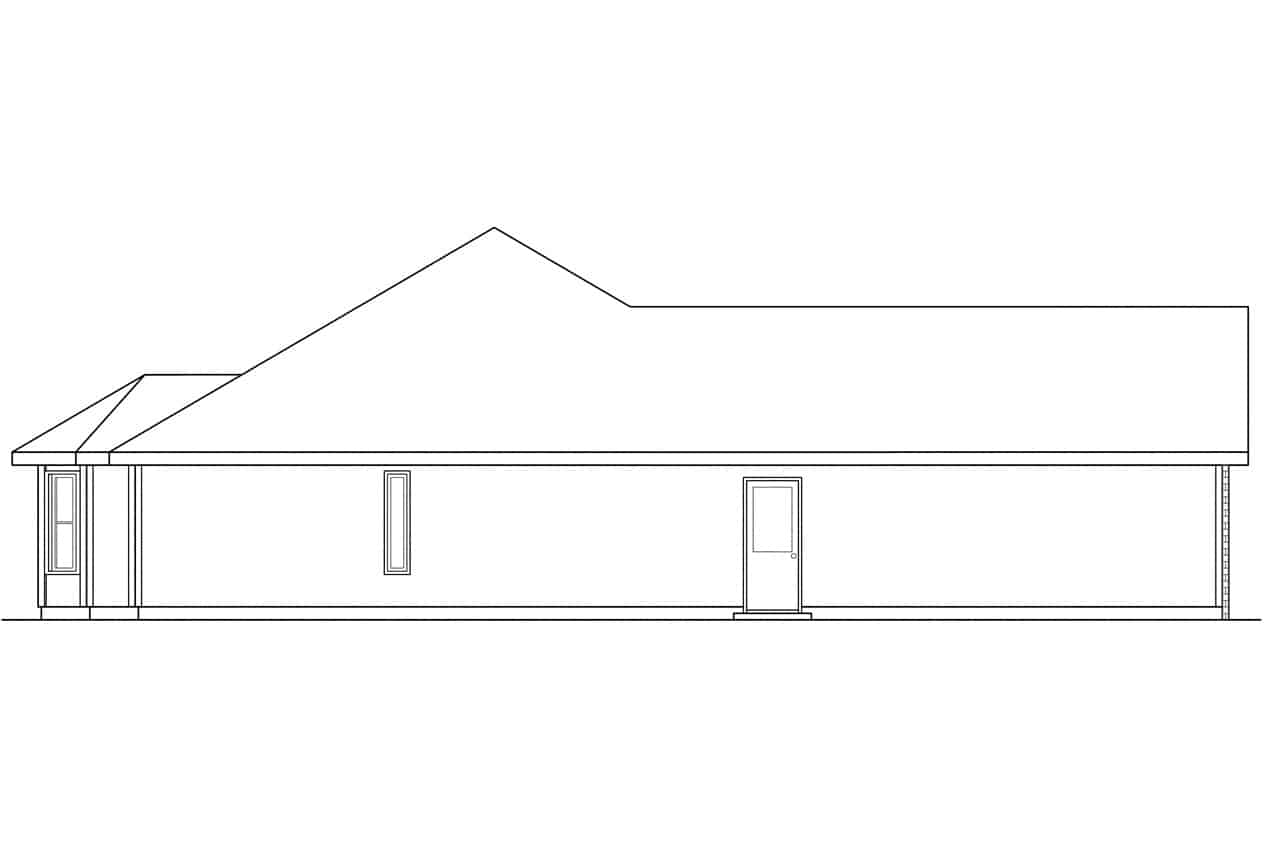

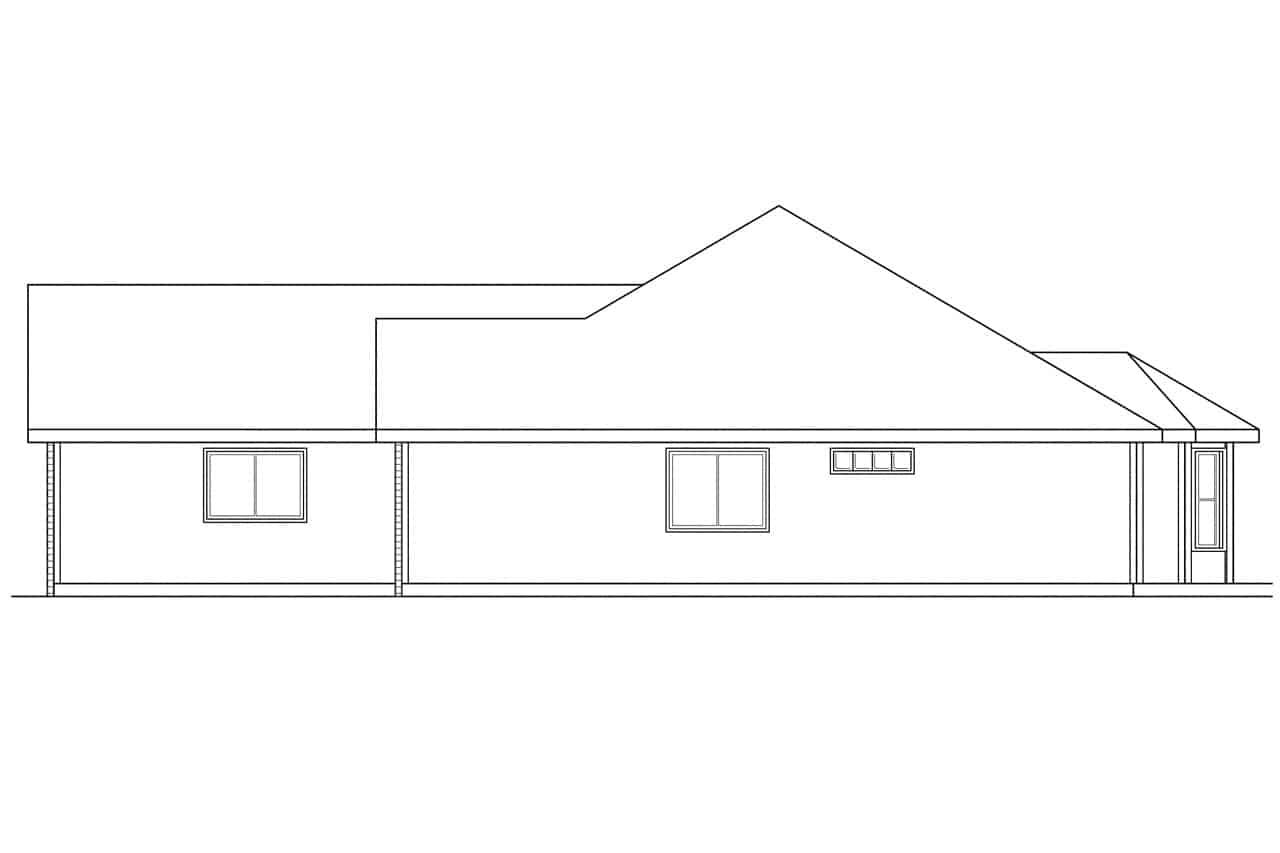

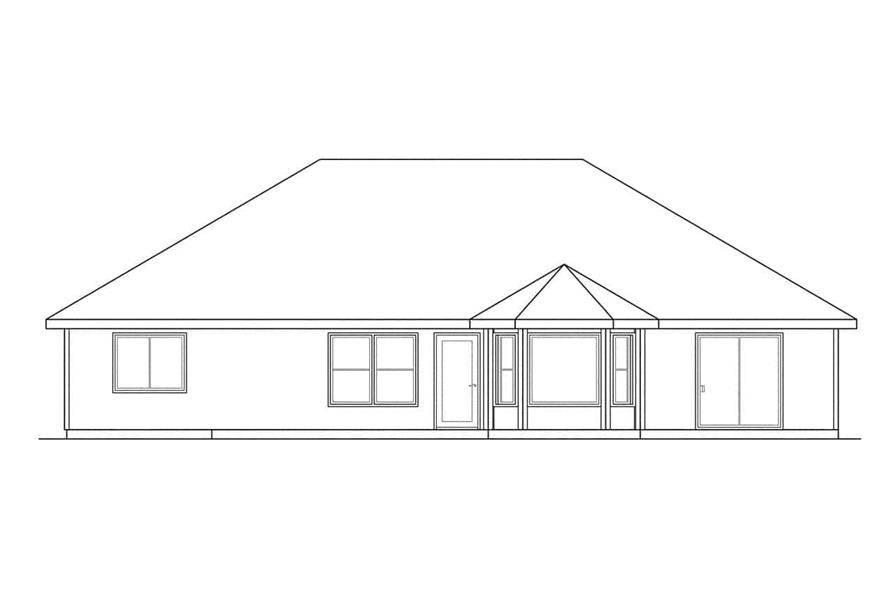

- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.

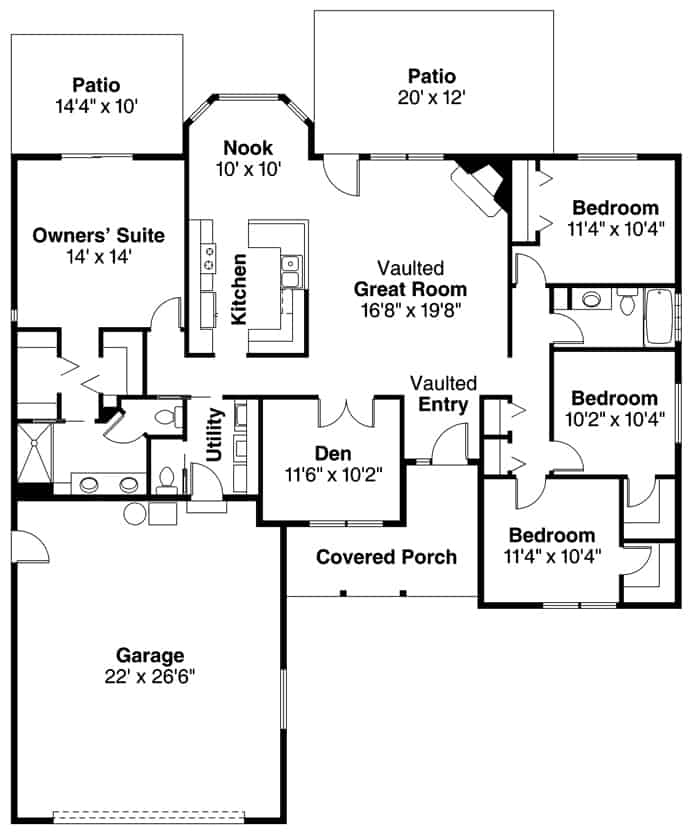

- MAIN FLOOR PLAN: Each plan set is drawn at 1/4"=1' scale. Showing the placement and dimensions of all walls, windows, and doors. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
- SECOND FLOOR PLAN (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
- FOUNDATION PLAN: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
- ROOF FRAMING PLAN: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
- SECTIONS AND DETAILS: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints. These details can be helpful for the contractor.
- ELECTRICAL PLAN: A schematic layout of all lighting, switches, and electrical outlets.
