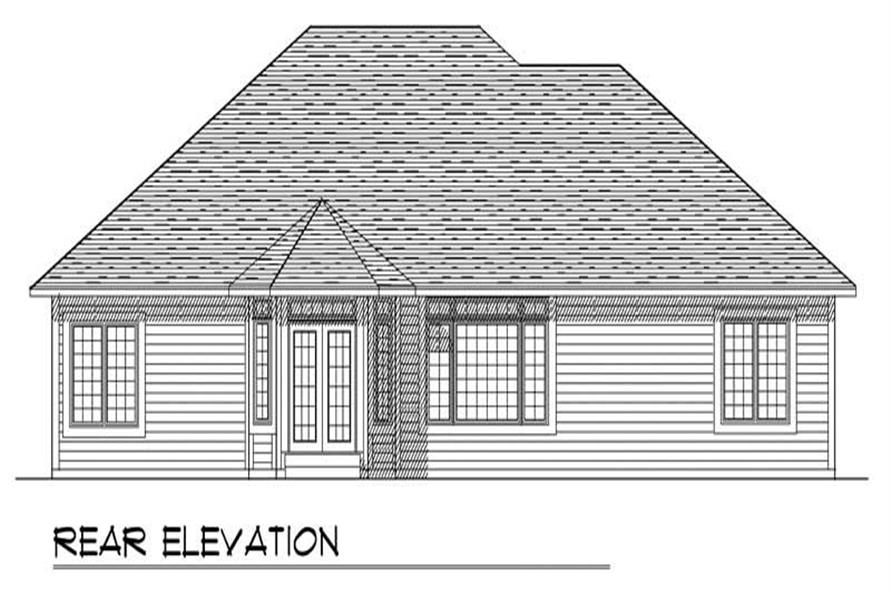

REAR ELEVATION
3-Bedroom, 1817 Sq Ft Ranch House Plan - 101-1612 - Front Exterior
REAR ELEVATION

About Plan # 101-1612

About Plan # 101-1612

1817 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 57' 0" WIDTH 56' 0" DEPTH 2 GARAGE BAY
Grand proportions and high ceilings help add a spacious feeling to this efficient design and add elegance to its dimensions. A great room with a corner fireplace connects to an open kitchen/nook that features an eating bar and a great deal of cupboard and closet space. Meals can also be served in the formal dining room, made graceful by its box-bay window. The master suite has two closets--one a walk-in--and a bath with everything you might desire. Family bedrooms are at the other end of the plan and include a full bath with double sinks. A laundry with plenty of work and storage space connects the home to the two-car garage.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

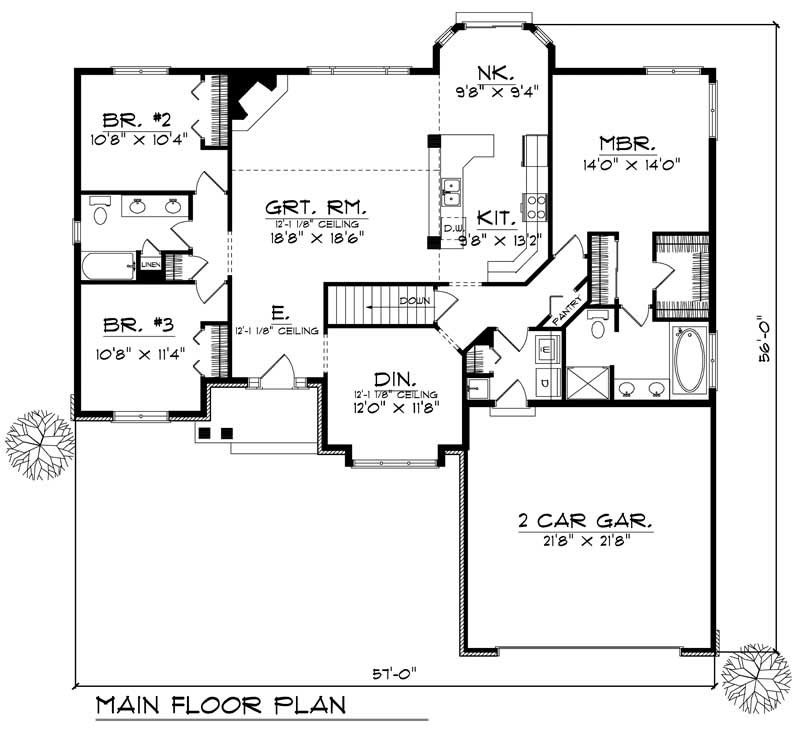

Home Plan: #101-1612 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1612
