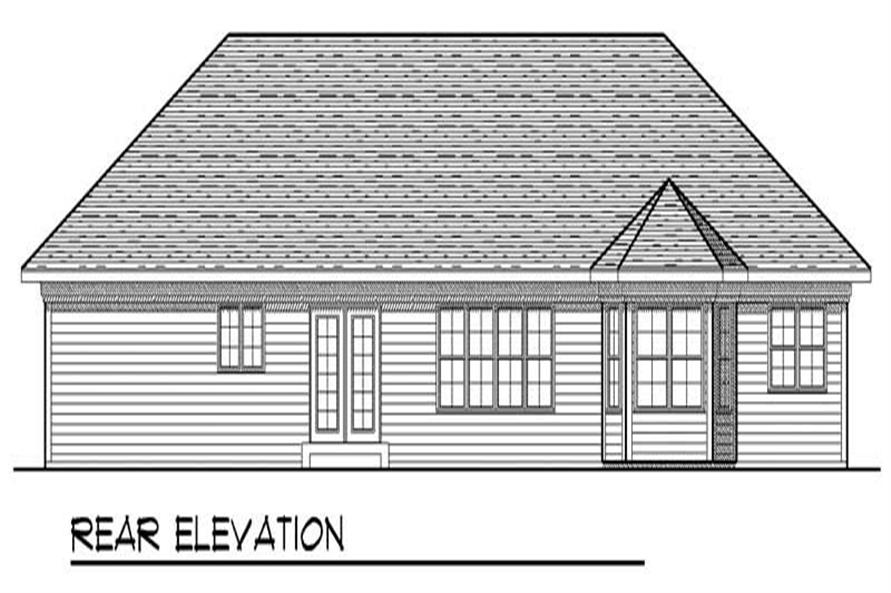

REAR ELEVATION
3-Bedroom, 1810 Sq Ft Ranch Home Plan - 101-1691 - Main Exterior
REAR ELEVATION

About Plan # 101-1691

About Plan # 101-1691

1810 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 67' 8" WIDTH 45' 0" DEPTH 3 GARAGE BAY
This spacious ranch home features an open floor plan with a separate dining room for entertaining. The kitchen, nook and living room all flow together to create a perfect space for large family gatherings. You’ll find high ceilings as well as vaulted ceilings throughout this home adding to the overall spacious feeling you get upon entering the front door. The master bedroom, with tray ceilings features a large bathroom with walk-in closet. The three-stall garage makes this the perfect home for any growing family.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

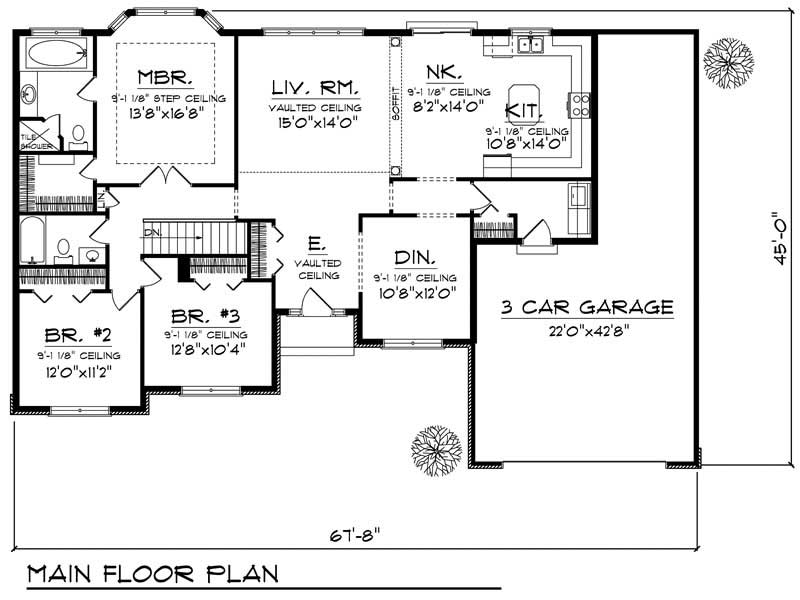

Home Plan: #101-1691 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1691
Home Plan: #101-1691 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1691
