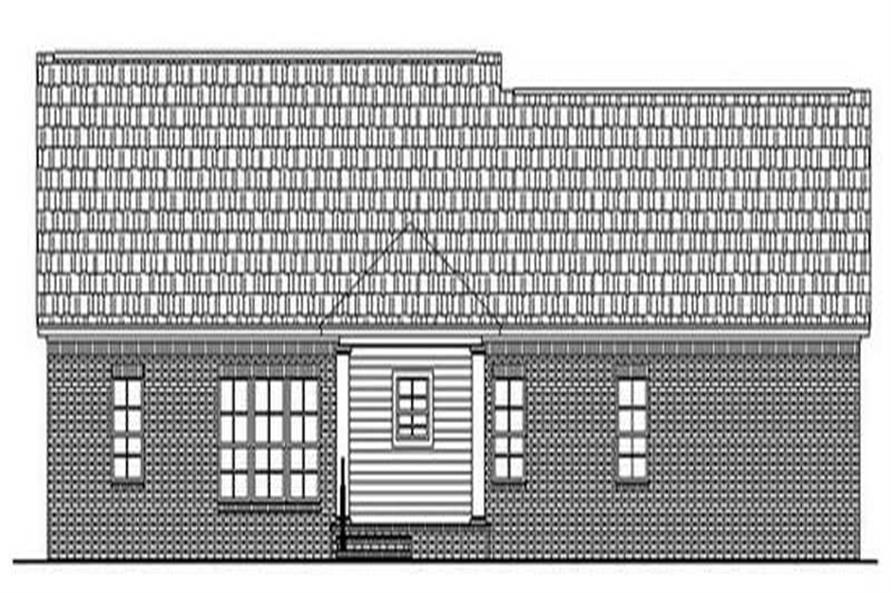

Rear Image
3-Bedroom, 1802 Sq Ft Ranch Home Plan - 141-1119 - Main Exterior
141-1119: Home Interior Photograph-Kitchen
141-1119: Home Interior Photograph-Kitchen
Rear Image

About Plan # 141-1119

About Plan # 141-1119

1802 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 65' 0" WIDTH 51' 0" DEPTH 2 GARAGE BAY

A wonderful split bedroom plan with open living spaces. Great master suite with his and her closets, media/office, jet tub, large shower. Front and rear covered porch. Gas logs and built-ins in great room. Vaulted ceiling in great room and master bedroom.

Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:

  • Cover page with rendering
  • foundation plan with typical details
  • floor plans with ceiling framing notes
  • four exterior views of exterior
  • roof plan, and rafter layout plan
  • full cross section through house, and typical wall sections
  • stair section (if there are stairs)
  • Bonus room/garage section if there is a bonus room/garage
  • Interior cabinet drawings
  • Misc. structural details
  • Electrical plan with lighting, outlets, switches, etc..

Not Included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

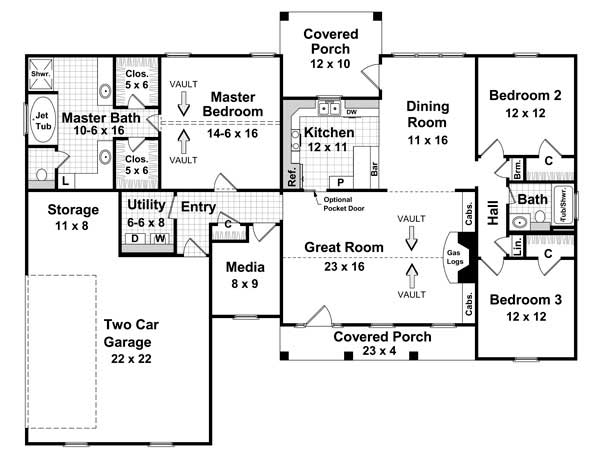

Home Plan: #141-1119 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #141-1119

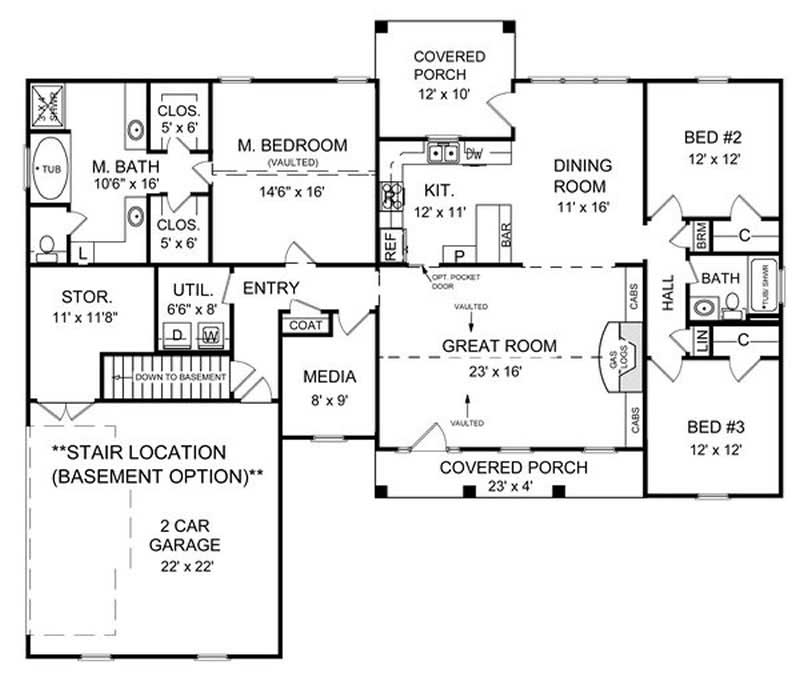

#141-1119 Floor Plan First Story - basement option stair location Floor Plan First Story of Ranch Plan #141-1119
