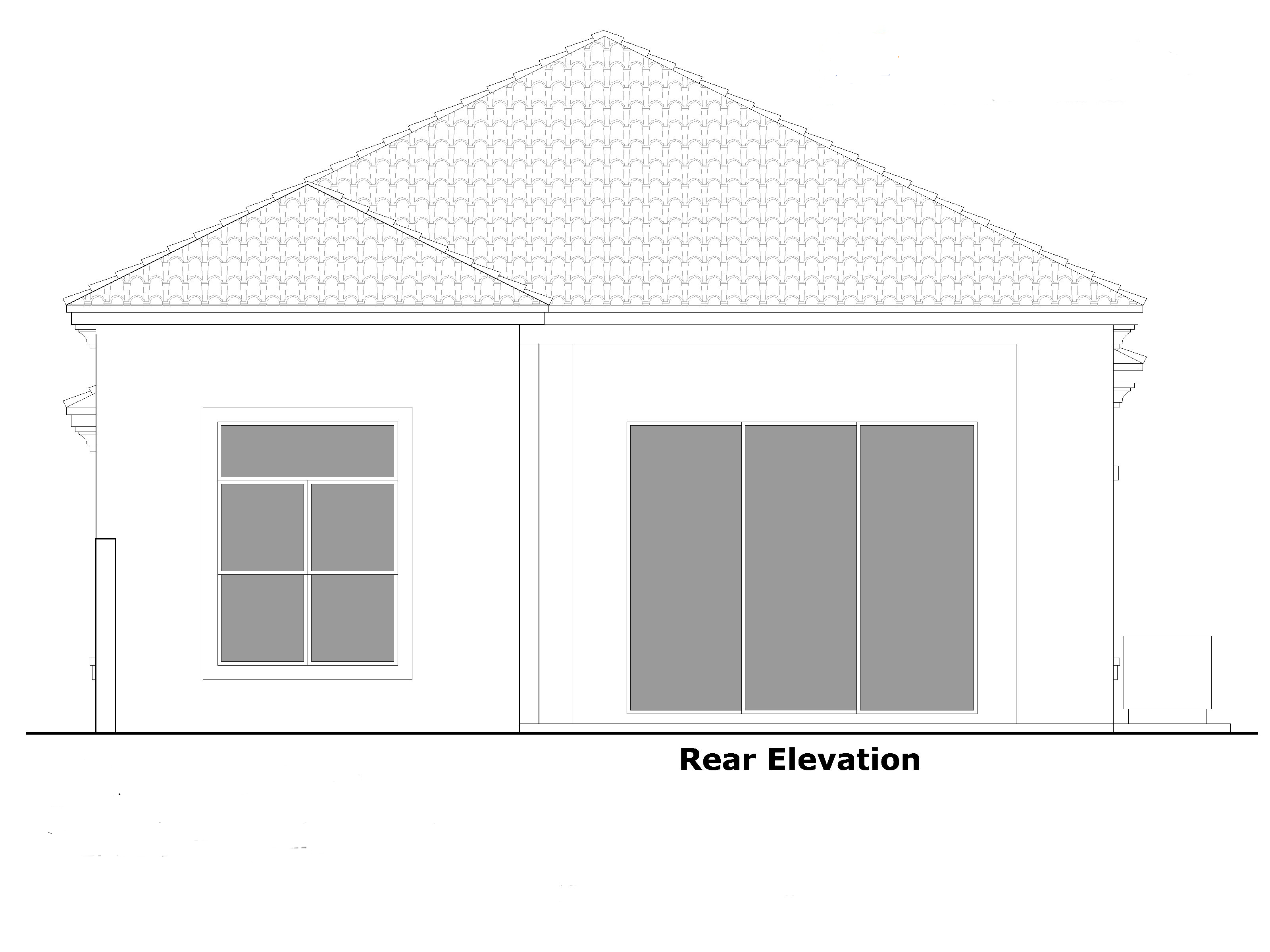

133-1057: Home Plan Rear Elevation
2-Bedroom, 1802 Sq Ft Florida Style Home Plan - 133-1057 - Main Exterior

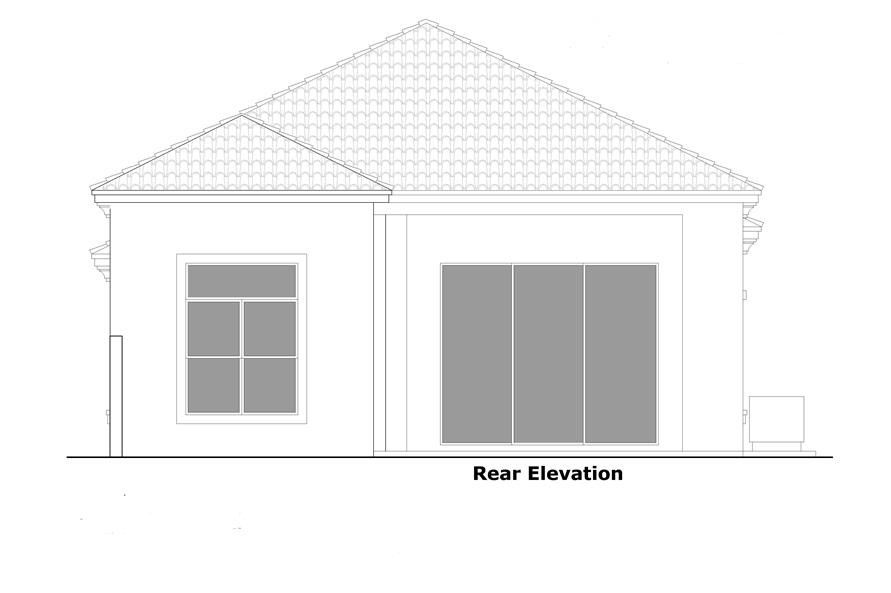

133-1057: Home Plan Rear Elevation

About Plan # 133-1057

About Plan # 133-1057

1802 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 34' 10" WIDTH 74' 10" DEPTH 4 GARAGE BAY

<p>Cute, small Mediterranean house plans designed for a narrow lot. Great retirement or empty-nester home under 2000 sq. ft. of living space. High ceilings give the illusion of spaciousness in this step-saving two bedroom plus study home with optional summer kitchen, built-ins, and wet bar. These home plans are not for sale for use in Collier County, Florida or Lee County, Florida without the consent of the designer. Please contact us if you want to build this homeplan in those areas. Concrete block exterior construction</p>

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #133-1057 Floor Plan First Story Floor Plan First Story of Florida Style Plan #133-1057
Home Plan: #133-1057 Floor Plan First Story Floor Plan First Story of Florida Style Plan #133-1057
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 133-1057
Floors:
1
Bedrooms:
2
Full Baths:
2

Square Footage

Heated Sq Feet:
1802
Main Floor:
1802
Unfinished Sq Ft:
Garage :
394

Dimensions

Width:
34' 10"
Depth:
74' 10"
Ridge Height:
23'2.5' 0"

Architectural Styles

Ranch
Mediterranean
Coastal
Spanish
Concrete Block/ ICF Design
Florida Style

Exterior Wall Material

Stucco

Roofing Material

Tiles

Roof Pitch

6/12

Special Feature

Dining Room
Home Office
Main Level Laundry
Storage
Den
Vaulted Ceilings

Garage Type

Attached Garage

Exterior Wall Framing

Concrete

Building Lot Type

Narrow Lot Design
View Lot

Kitchen Features

Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Screened in Lanai
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

Please Note that the designer's office will be closed between 8/4/22 to 8/9/2022. Any orders placed during this time will be processed once the designer resumes office after 8/9-2022.
