2-Bedroom, 1760 Sq Ft Craftsman Plan with Covered Front Porch

Front elevation of Craftsman home (ThePlanCollection: House Plan #194-1005)
194-1005: Home Plan Rear Elevation
2-Bedroom, 1760 Sq Ft Craftsman Home Plan - 194-1005 - Main Exterior
194-1005: Home Plan Rear Elevation

About Plan # 194-1005

About Plan # 194-1005

1760 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 44' 0" WIDTH 62' 0" DEPTH 2 GARAGE BAY

This lovely Craftsman style home with Country influences (House Plan #194-1005) has 1760 square feet of living space. The 1 story floor plan includes 2 bedrooms.

Each plan set includes the following:

  • COVER SHEET - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • FLOOR PLAN: Floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • FOUNDATION PLAN: Showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • ROOF PLAN: Layout with pitch markers, dimensions and notes.
  • ELECTRICAL LAYOUT: Electrical outlets, switches and light locations shown. (sometimes just the lighting is shown) NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house. Includes notes, dimensions and material designations.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Shows vertical relationships and construction plate heights, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

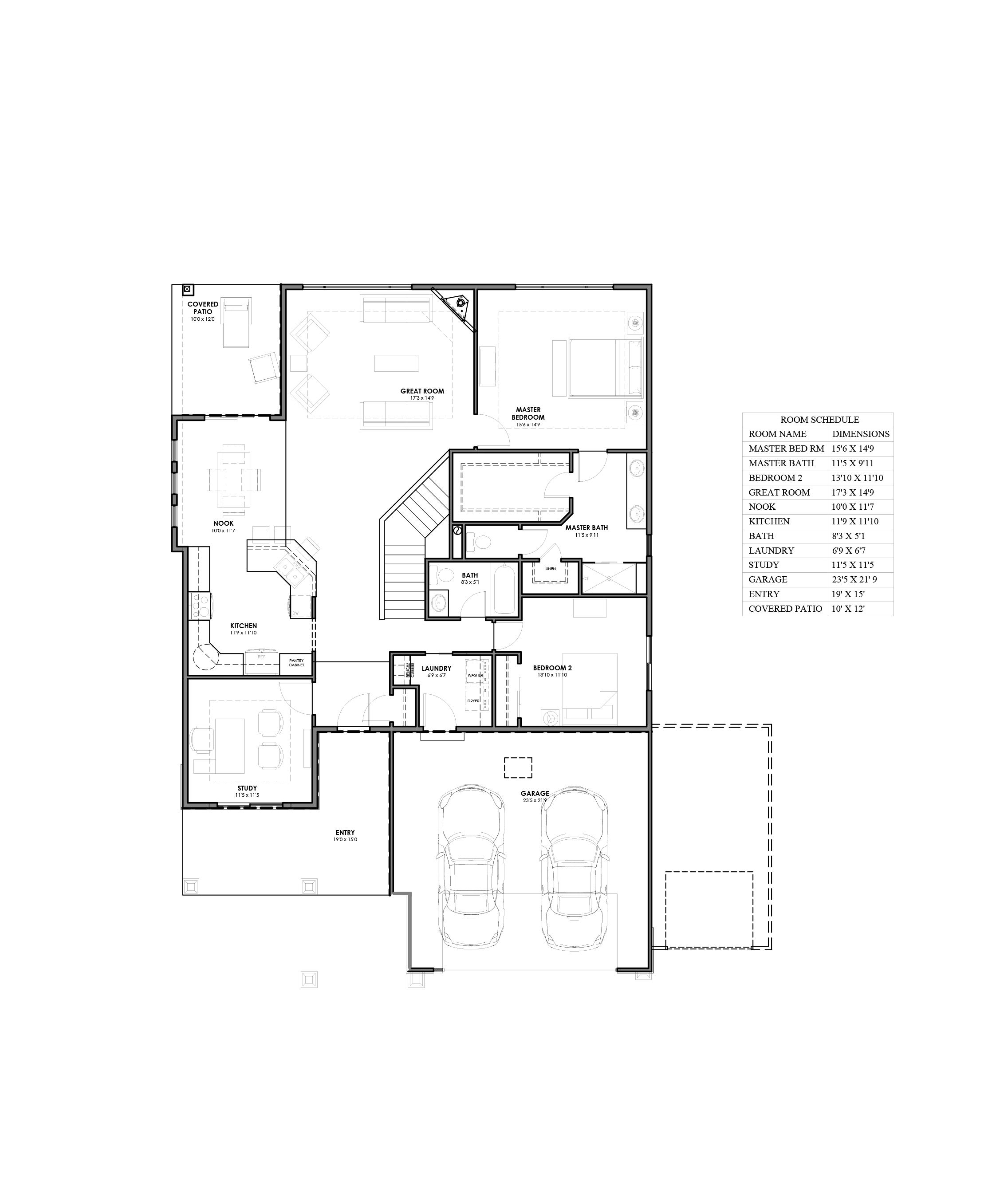

Home Plan: #194-1005 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #194-1005

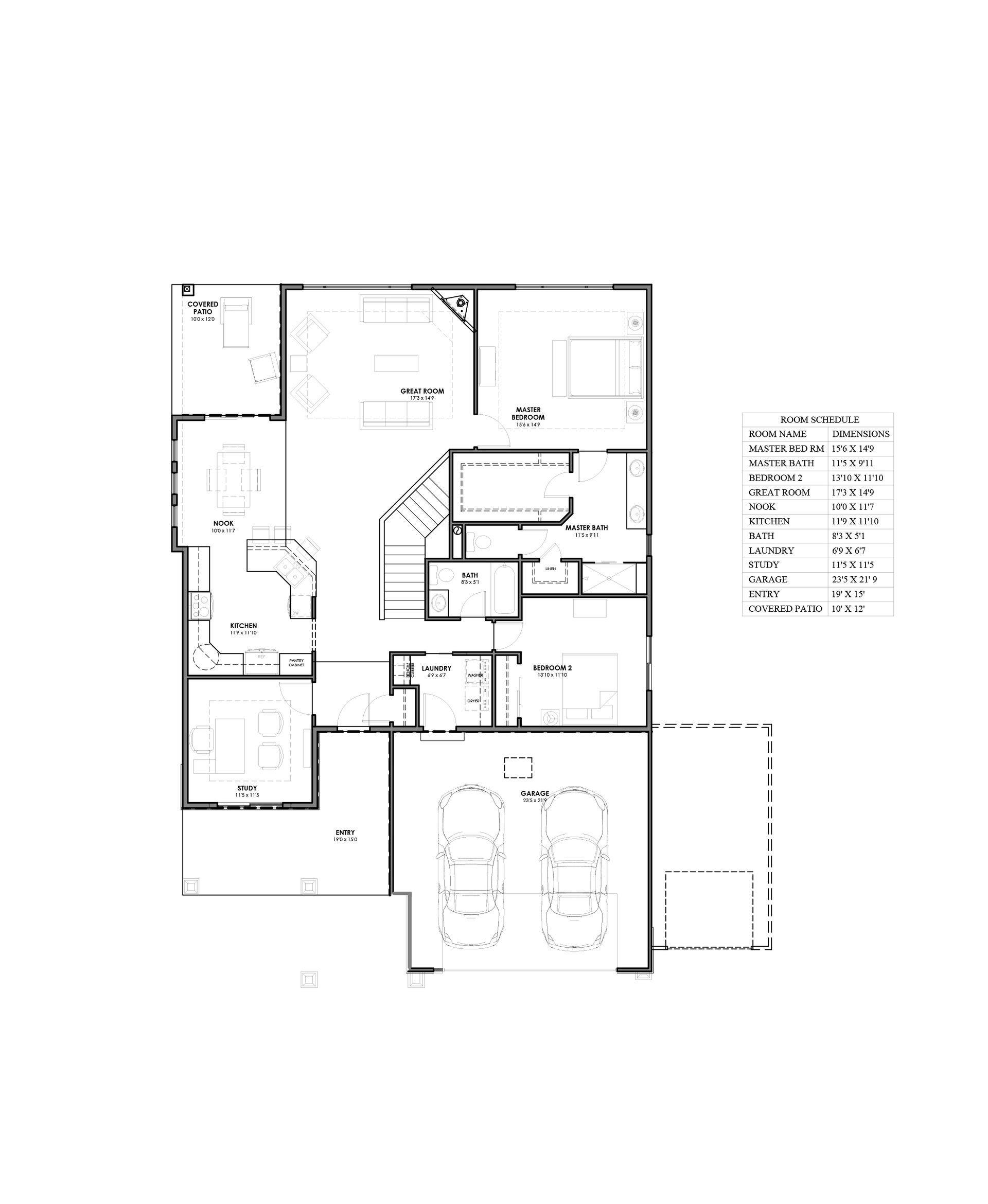

Home Plan: #194-1005 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #194-1005
