3-Bedroom, 1800 Sq Ft Ranch Plan with Eat-In Kitchen

Front elevation of Ranch home (ThePlanCollection: House Plan #141-1162)
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph

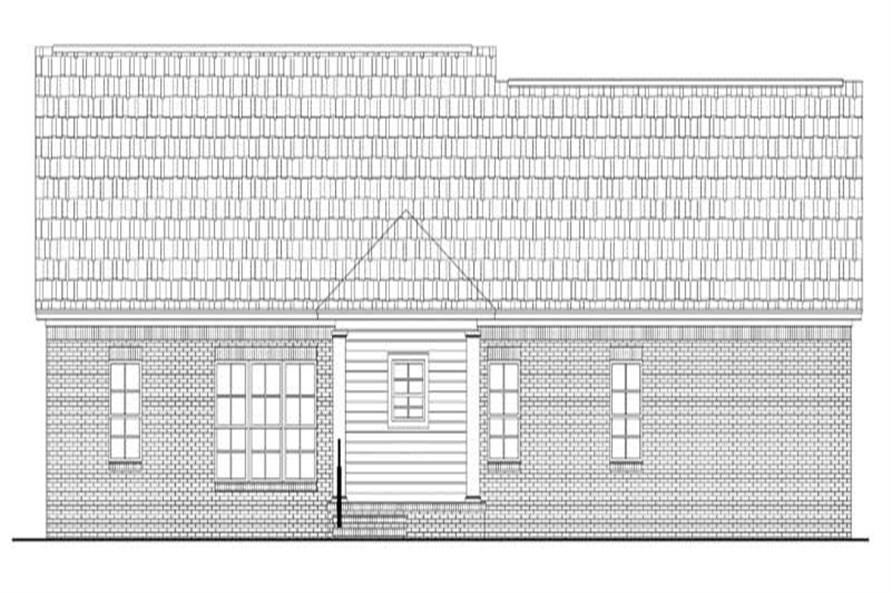

REAR ELEVATION
3-Bedroom, 1800 Sq Ft Ranch House Plan - 141-1162 - Front Exterior
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
REAR ELEVATION

About Plan # 141-1162

About Plan # 141-1162

1800 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 65' 0" WIDTH 55' 0" DEPTH 2 GARAGE BAY

This house has a great master suite with a vaulted ceiling, his and her closets, jet tub, walk-in shower, and make-up area. The great room is vaulted with gas logs and plenty of built-ins. Has covered rear grilling porch for get-togethers with family and friends. Has extra room that may be used for a computer center/nursery/hobbies/home school. Large garage and storage for 4-wheelers, bikes, lawn mowers, and/or golf cart. A great value in space planning.

Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:

  • COVER SHEET: Artist’s architectural rendering of the residence provides an idea of what the house would look like once built.
  • FLOOR PLAN(S): In general, each set includes floor plans at 1/4″ scale with a door and window schedule. Floor plans are typically drawn with 4″ exterior walls. However, details/sections for both 2″x4″ and 2″x6″ wall framing may also be included as part of the plans or purchased separately.
  • FOUNDATION PLAN & DETAILS: Dimensioned plan detailing the and construction of the foundation. Foundation types offered typically include:
    Slab: A type of foundation consisting of a structural concrete slab poured directly on the grade. No accessible space exists in slab construction. Slab foundations are popular in areas (i.e. the Southern United States) where there is a relatively high water table (i.e. the “water table” refers to the depth in the soil at which you find water). Traditionally, the slab foundation is the least expensive foundation type when building on a relatively flat lot.
    Crawlspace: A type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the homeowner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    Basement: A type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • ELECTRICAL PLAN: In general, each plan set includes an electrical plan with an electrical symbols legend which will show the locations of lights, receptacles, switches, etc.
  • ROOF DRAINAGE PLAN: In general, each plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • INTERIOR ELEVATIONS: Where applicable, each plan set includes relevant interior elevations, including cabinets, cabinet details, columns, and walls with unique conditions.
  • SECTIONS AND DETAILS: Explain certain special conditions more appropriately as needed.
  • SPECIFICATION FORM: In general, each plan set includes a blank short-form FHA/VA specifications document for your reference.
  • LICENSE TO BUILD: Each set of construction plans includes one license to build unless a multi-use license is otherwise purchased.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

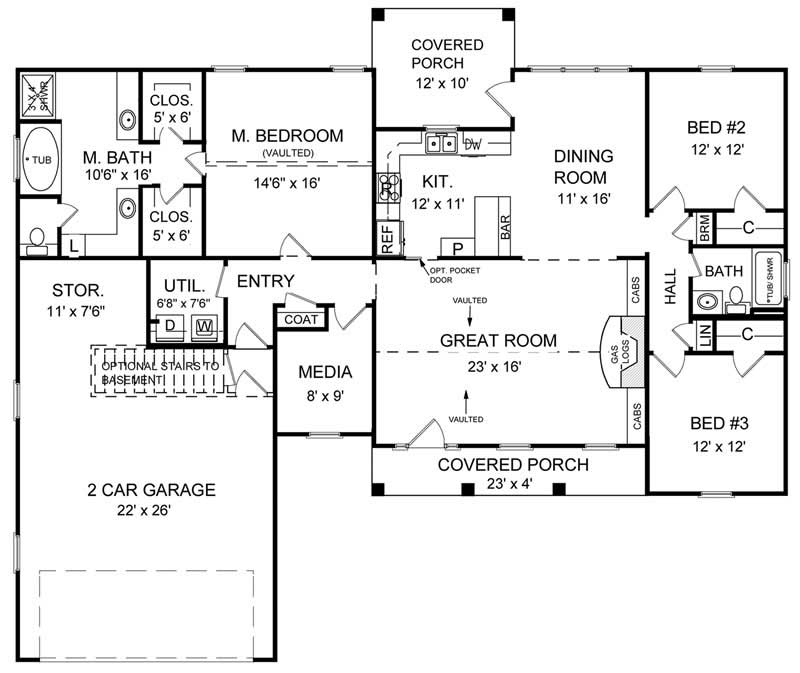

Home Plan: #141-1162 Floor Plan First Story - s Floor Plan First Story of Ranch Plan #141-1162
