3-Bedroom, 1800 Sq Ft Craftsman Plan with Master Bathroom

Main image for house plan # 13313

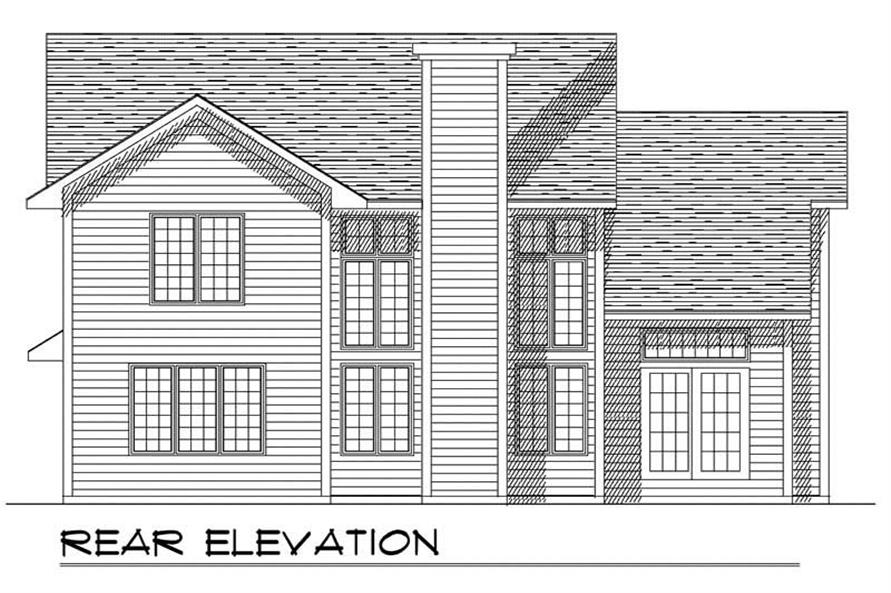

REAR ELEVATION
3-Bedroom, 1800 Sq Ft Craftsman Home Plan - 101-1102 - Main Exterior
REAR ELEVATION

About Plan # 101-1102

About Plan # 101-1102

1800 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 42' 0" WIDTH 49' 0" DEPTH 2 GARAGE BAY
From the foyer to the breakfast nook and formal dining room, this two-story home has it all. To the left of the foyer sits an elegant formal dining room. Straight ahead is the great room with a central fireplace and two large rear-facing windows that bring the outdoors in. The master suite located on the main floor offers a large walk-in closet and a private bath with a double vanity. The kitchen features lots of counter space and a large pantry and is adjacent to both the dining room and a breakfast nook, making it easy to find the perfect environment for any meal. Upstairs, two additional spacious bedrooms share a full bath and have a dramatic view of the two-story great room.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

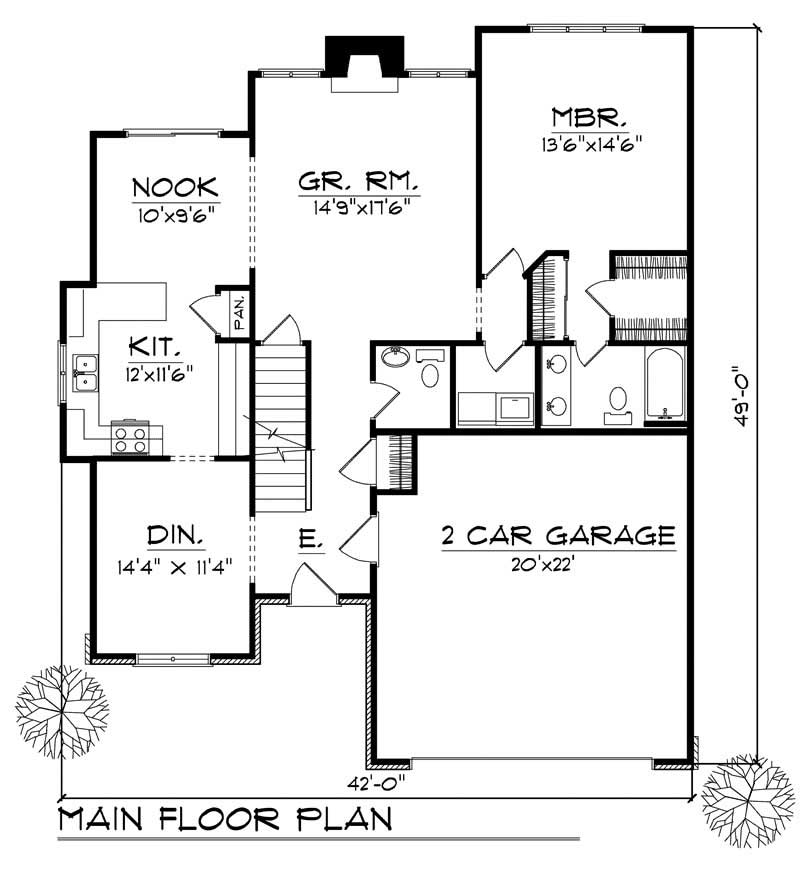

Home Plan: #101-1102 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #101-1102

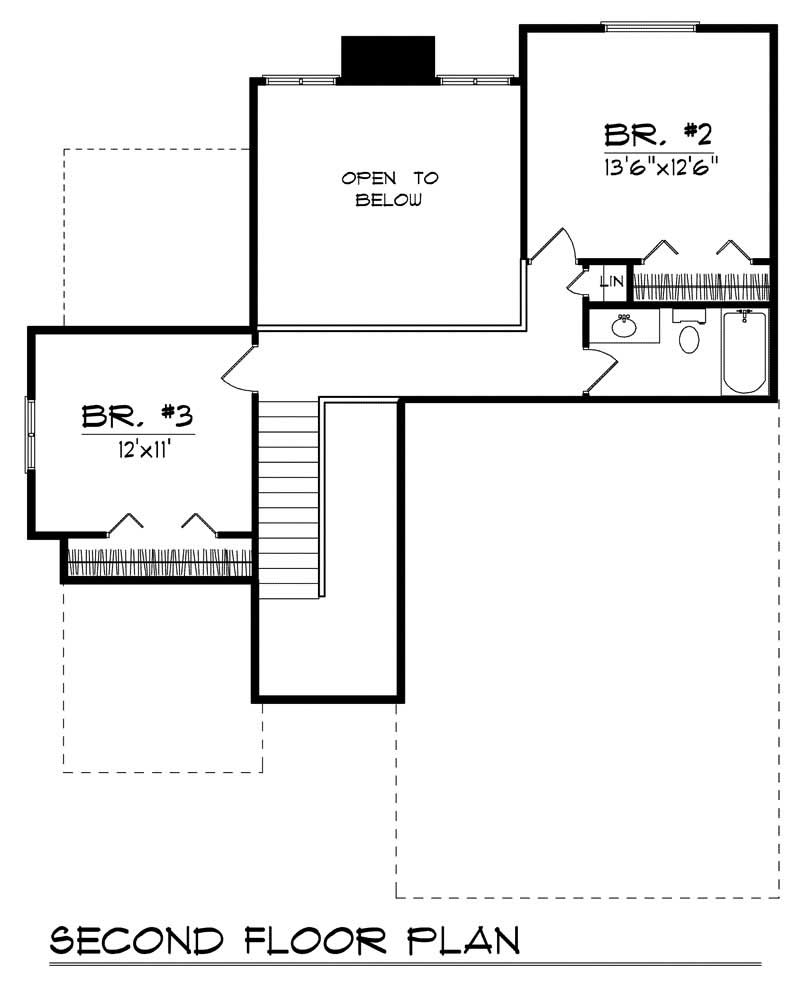

#101-1102 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #101-1102
