3-Bedroom, 1763 Sq Ft Country Plan with Screened Porch/Sunroom

Main image for house plan # 13326

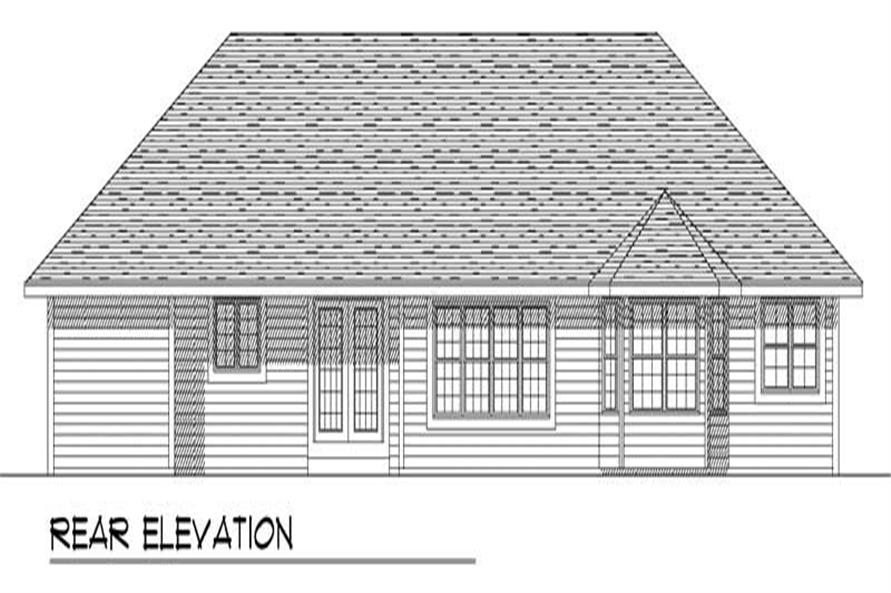

REAR ELEVATION

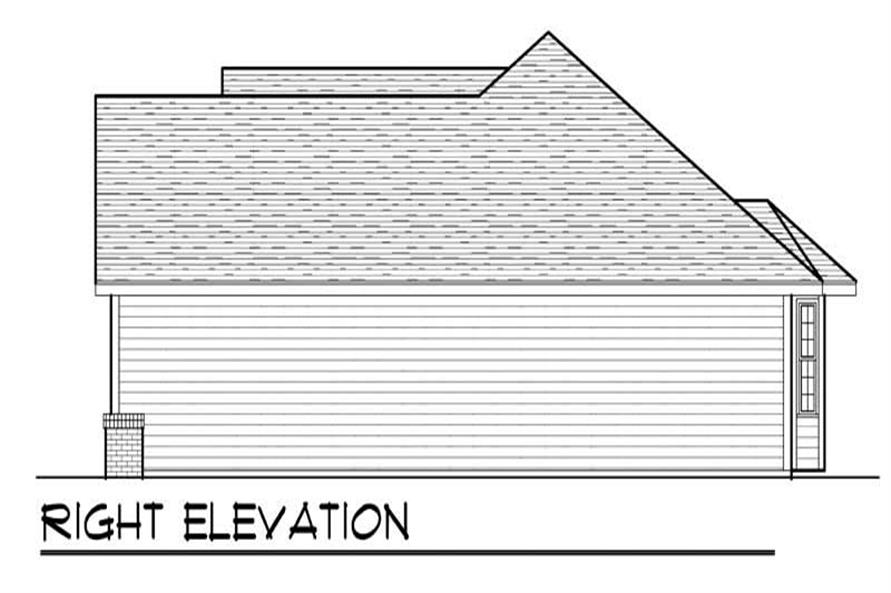

RIGHT ELEVATION

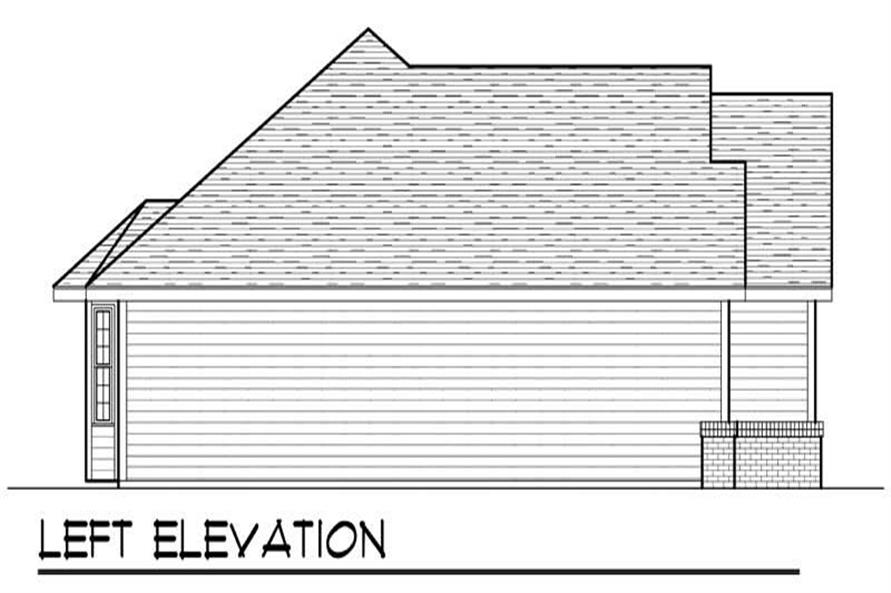

LEFT ELEVATION
3-Bedroom, 1763 Sq Ft Country Home Plan - 101-1809 - Main Exterior

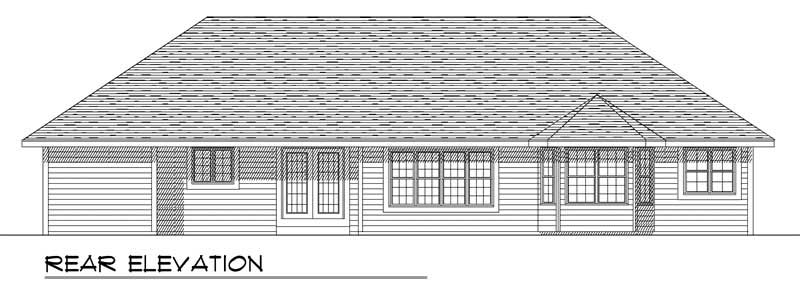

REAR ELEVATION
RIGHT ELEVATION
LEFT ELEVATION

About Plan # 101-1809

About Plan # 101-1809

1763 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 67' 8" WIDTH 43' 0" DEPTH 2 GARAGE BAY
This traditional three-bedroom ranch home will give you all the functionality you’ll need without sacrificing design. With its open floor plan and vaulted ceilings, you’ll feel like you’re living in a much larger home. The kitchen opens into a nook making this space perfect for entertaining, and the formal dining room is perfect for any dinner party. The master suite has a double vanity, Jacuzzi tub and walk-in closet while the other two bedrooms share the nearby bathroom. You’ll also love the extra storage in the garage because it’s perfect for storing bikes and the lawnmower out of the way.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

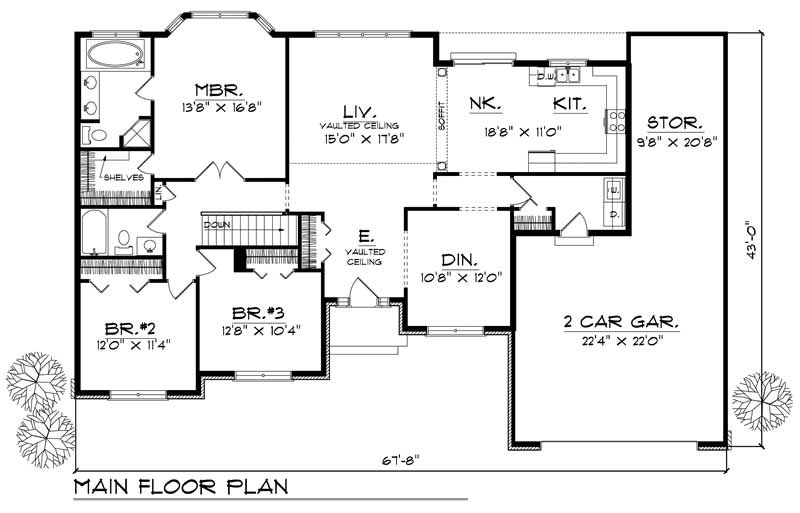

Home Plan: #101-1809 Floor Plan First Story - main Floor Plan First Story of Country Plan #101-1809
Home Plan: #101-1809 Floor Plan First Story - main Floor Plan First Story of Country Plan #101-1809
