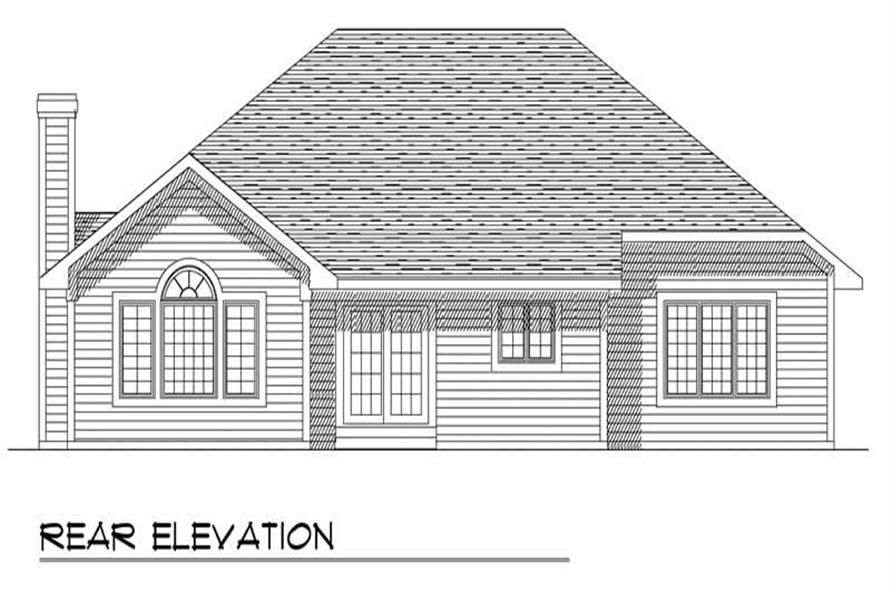

REAR ELEVATION
3-Bedroom, 1728 Sq Ft Ranch House Plan - 101-1745 - Front Exterior

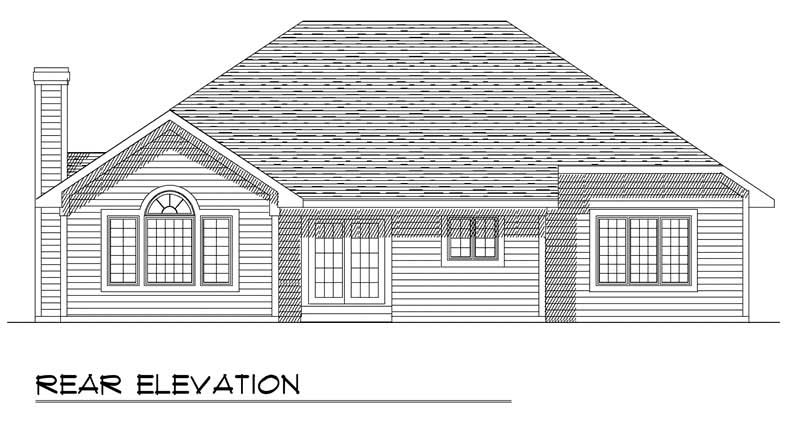

REAR ELEVATION

About Plan # 101-1745

About Plan # 101-1745

1728 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 54' 0" WIDTH 48' 0" DEPTH 2 GARAGE BAY
Brick detailing complements the shingle siding on the exterior of this three-bedroom, one-story home. Its warmth and grace are sure to last a lifetime. Cathedral ceilings on the inside help add a spacious feeling to this compact design. The living room features a fireplace and full wall of windows overlooking the backyard for those family evenings. Meals are prepared in an efficient kitchen that offers wrap-around counters and a preparation island and served in the dining room that opens to the backyard and has space enough for both casual and formal occasions. The two additional bedrooms share a bath but each has a separate vanity area. The master bedroom has a private bath and walk-in closet. The two-car garage connects to the plan through a laundry area. A half-bath is nearby.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

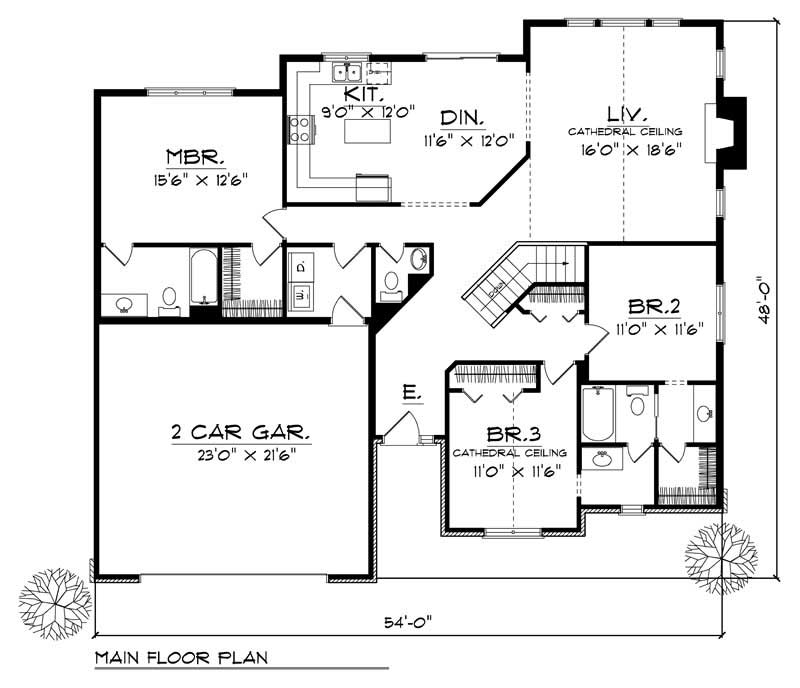

Home Plan: #101-1745 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1745
Home Plan: #101-1745 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1745
