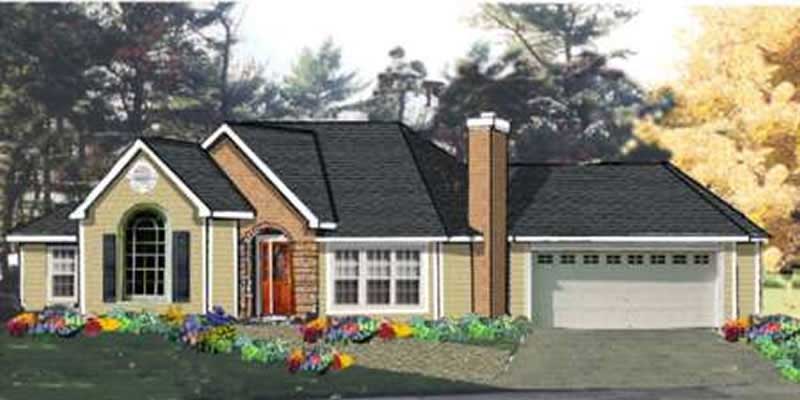

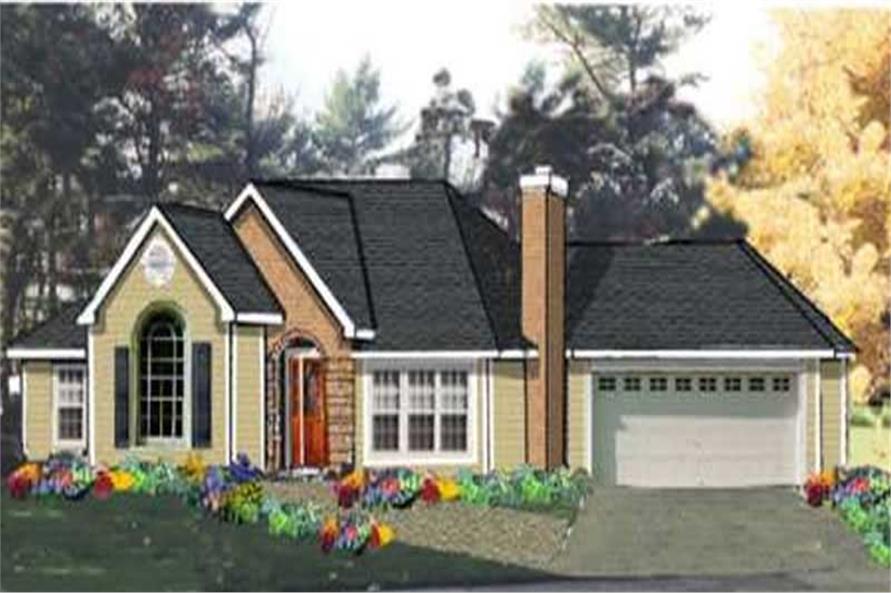

3-Bedroom, 1703 Sq Ft Ranch House Plan - 105-1047 - Front Exterior

About Plan # 105-1047

About Plan # 105-1047

1703 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 67' 0" WIDTH 49' 0" DEPTH 2 GARAGE BAY

Lots of glass, a sunny greenhouse and a large terrace make this elegant one-story perfect for indoor/outdoor living. The greenhouse at the rear of the home has glass walls and a sunroof. Sliding doors in the family room open to the greenhouse. The bayed dining nook overlooks the rear terrace, which is accessible from the greenhouse and the dinette. The kitchen is open to the family room and has a snack bar.

Each plan set includes the following:

  • Elevations
  • Sections - Include structural design & specifications
  • Kitchen cabinet elevations
  • Floor Plan
  • Roof Plan
  • Typical wall section
  • Construction & Specification notes
  • Special detail sections
  • Plumbing riser diagram
  • Window and door sizes
  • Structural design joists and beams
  • Electrical Layout
  • Special Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and location
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

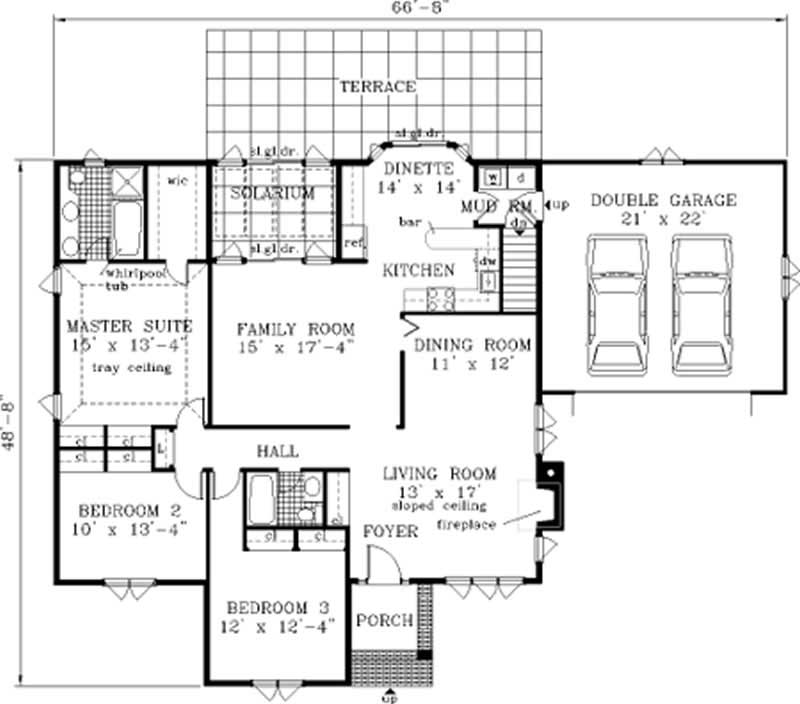

Home Plan: #105-1047 Floor Plan First Story - first Floor Plan First Story of Ranch Plan #105-1047
Home Plan: #105-1047 Floor Plan First Story - first Floor Plan First Story of Ranch Plan #105-1047
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 105-1047
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1703
Main Floor:
1703
Unfinished Sq Ft:

Dimensions

Width:
67' 0"
Depth:
49' 0"

Architectural Styles

Ranch
Traditional

Exterior Wall Material

Wood Siding

Special Feature

Family Room

Garage Type

Attached Garage

Exterior Wall Framing

2x4

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
