3-Bedroom, 1306 Sq Ft Log Cabin Plan with Kitchen Island

Main image for house plan # 9756
3-Bedroom, 1306 Sq Ft Log Cabin Home Plan - 105-1043 - Main Exterior

About Plan # 105-1043

About Plan # 105-1043

1306 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 25' 0" WIDTH 44' 0" DEPTH 1 GARAGE BAY

With its wraparound deck and soaring windows, this chalet-style home is ideal for recreational living and scenic sites. The living and dining rooms are combined to take advantage of the dramatic cathedral ceiling, the rugged stone fireplace and the view through the spectacular windows. A quaint balcony above adds to the warm country feeling of the living area, which extends to the expansive deck. The open kitchen features a bright corner sink and a nifty breakfast bar that adjoins the living area. The handy main-floor laundry area is close to two bedrooms and a full bath. The study is a feature rarely found in a home of this size and style. The master suite and a storage area encompass the upper floor. A cathedral ceiling, a whirlpool bath and sweeping views from the balcony give this space an elegant feel. The basement option includes a tuck-under garage, additional storage space and a separate utility area. A family room may be finished later.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes a typical wall section, special detail sections, and kitchen cabinet elevations.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and location
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

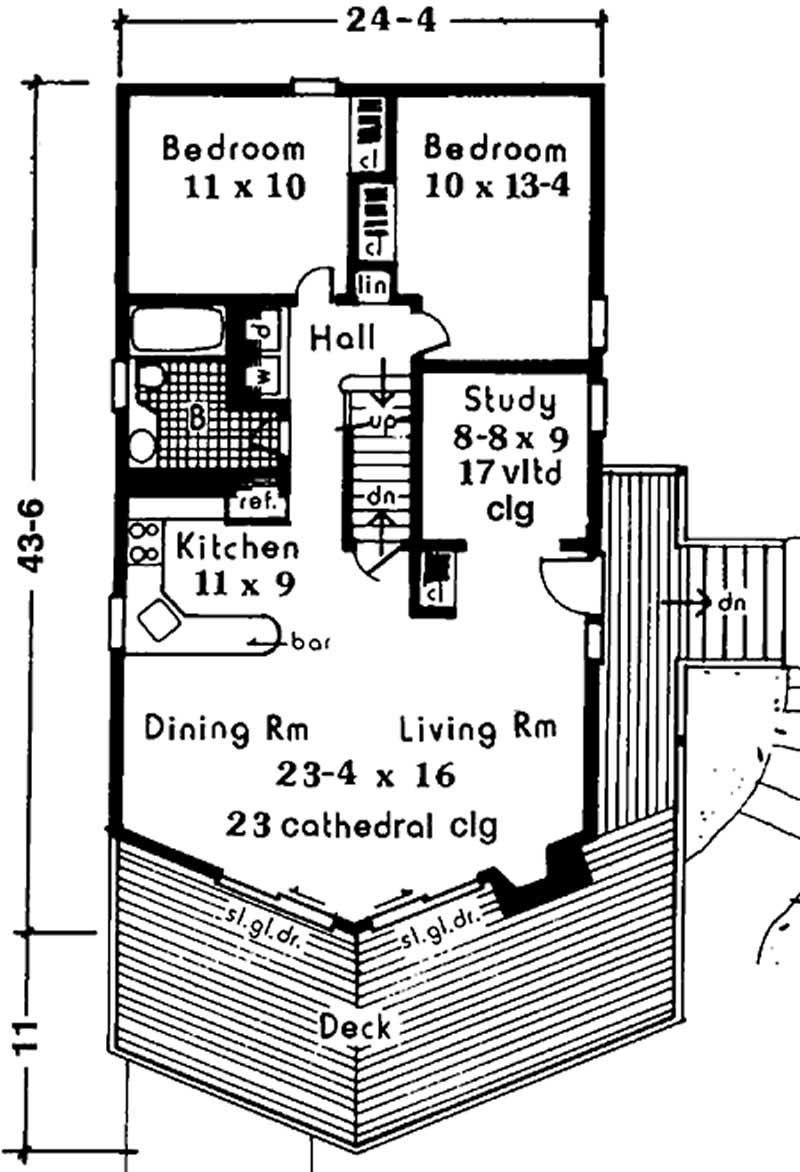

Home Plan: #105-1043 Floor Plan First Story - first Floor Plan First Story of Log Cabin Plan #105-1043

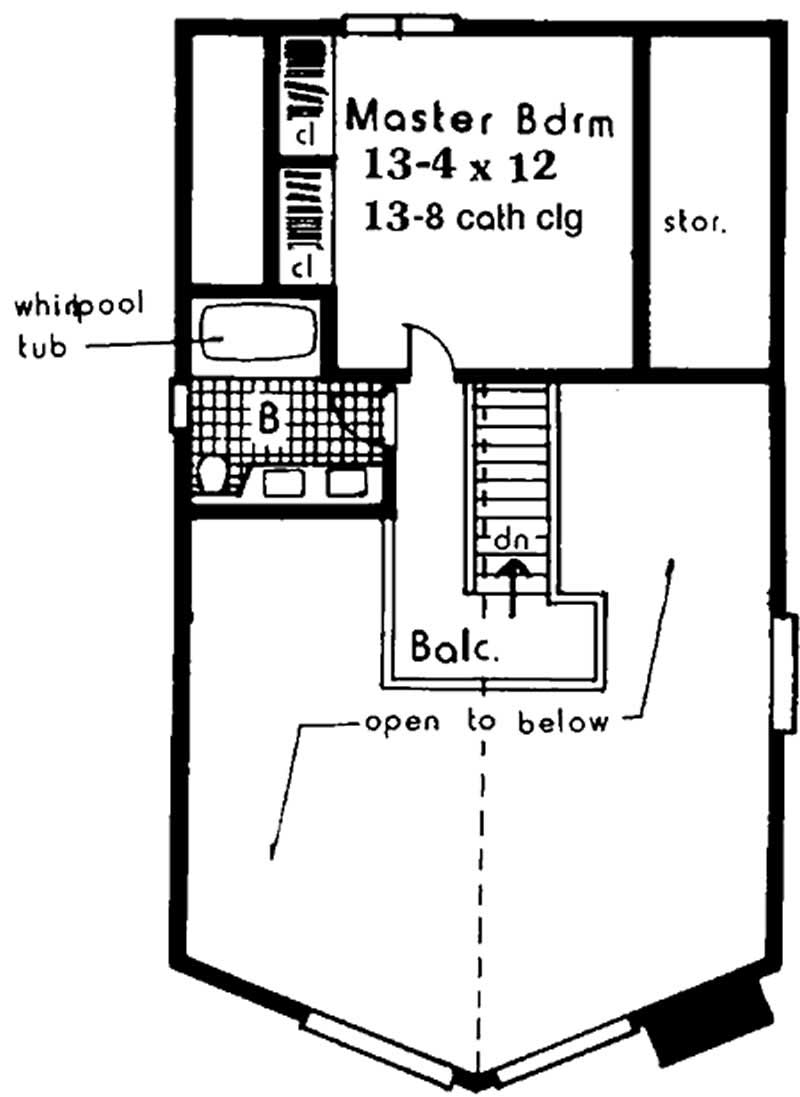

#105-1043 Floor Plan Second Story - second Floor Plan Second Story of Log Cabin Plan #105-1043
Home Plan: #105-1043 Floor Plan First Story - first Floor Plan First Story of Log Cabin Plan #105-1043
#105-1043 Floor Plan Second Story - second Floor Plan Second Story of Log Cabin Plan #105-1043
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 105-1043
Floors:
2
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1306
Main Floor:
974
Upper Floor:
332
Unfinished Sq Ft:
Garage :
350

Dimensions

Width:
25' 0"
Depth:
44' 0"

Architectural Styles

Log Cabin
Small House Plans
Vacation Homes

Exterior Wall Material

Wood Siding

Special Feature

Dining Room
Family Room
Fireplace

Garage Type

Attached Garage
Under Main Floor Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4
2x6

Building Lot Type

Narrow Lot Design

Additional Notes from Designer

Please note the study can be an optional fouth bedroom.

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
