3-Bedroom, 1640 Sq Ft Ranch Plan with Walk In Closet
Related House Plans
| 1640 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 74' 4" WIDTH | 48' 0" DEPTH | 3 GARAGE BAY |
This traditional ranch-style house plan makes excellent use of its 1640 square feet. The foyer of this home has a graceful vaulted ceiling that extends into the living room. The kitchen/dining room area boasts an island/eating bar and access to the covered patio, perfect for enjoy meals outdoors. The master bedroom features a walk-in closet and a private bath while two additional bedrooms share a full hallway bath. This plan also features a large laundry room that leads to the three-car garage.
Each plan set includes the following:
- Front, Back & Side Elevations
- Floor Plans
- Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
- Roof Plan (Birdseye view)
- Foundation Layout
- Wall & Stair Sections
- Cross Section
- Kitchen Layout
- General Notes
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and locations.
- Energy calculations - handled locally when required.
Write Your Own Review

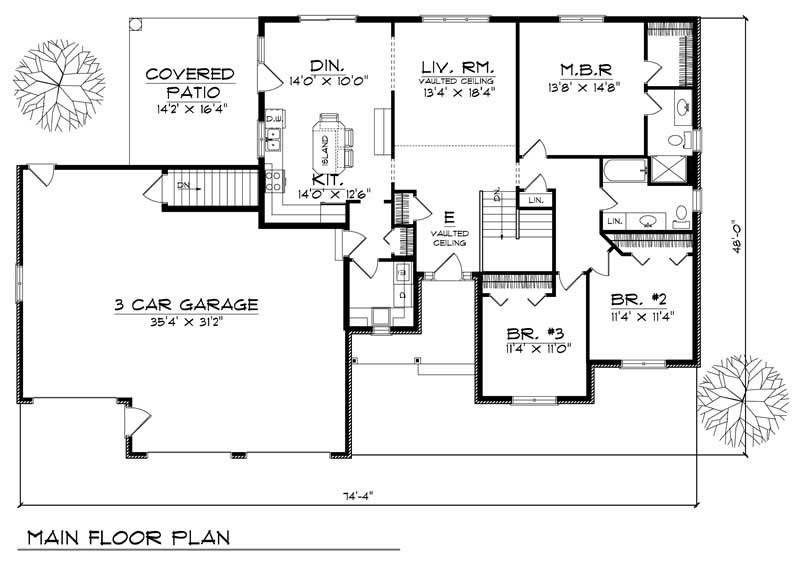

FLOOR PLANS Flip Images
