3-Bedroom, 1635 Sq Ft Acadian Plan with Covered Rear Porch

Acadian home plan (ThePlanCollection: House Plan #141-1066)

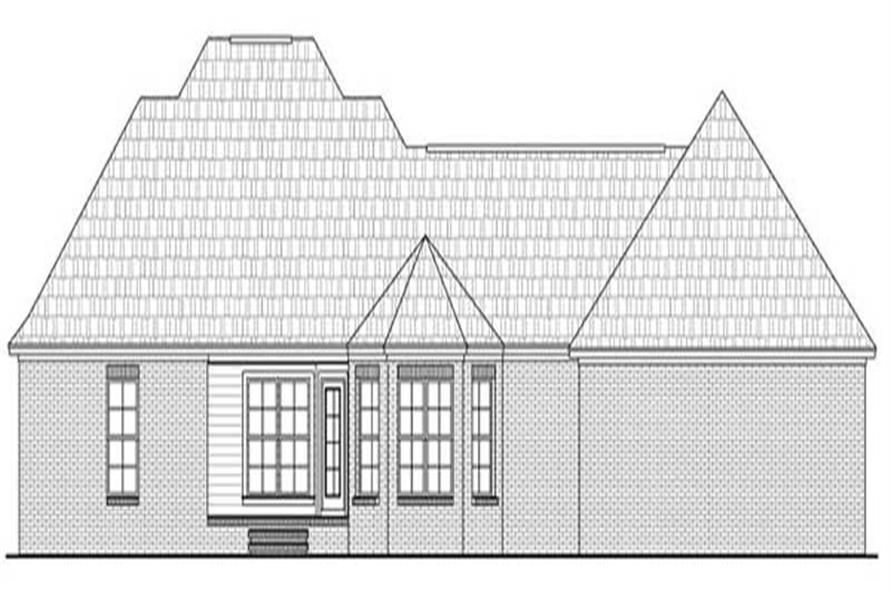

Home Plan Rear Elevation for HPG-1635B

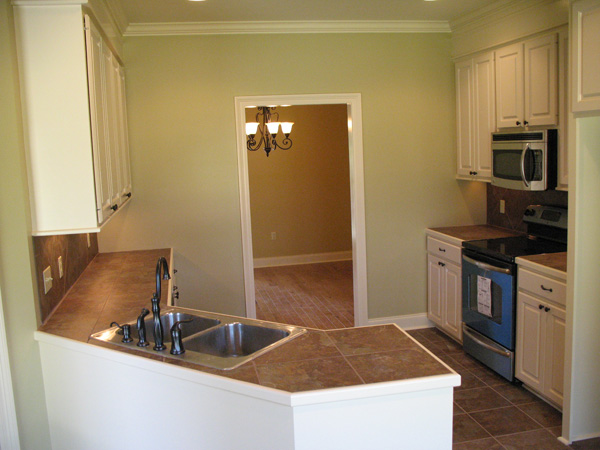

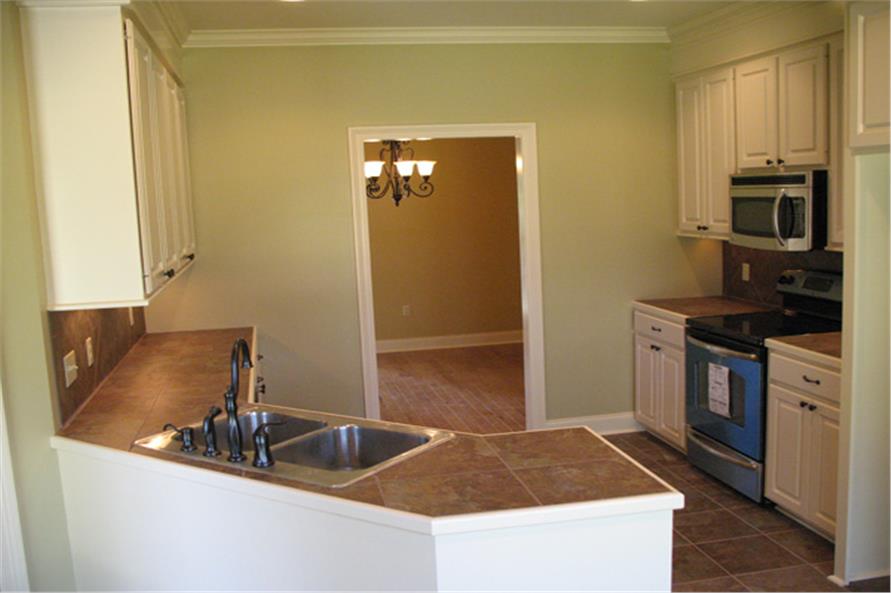

141-1066: Home Interior Photograph-Kitchen

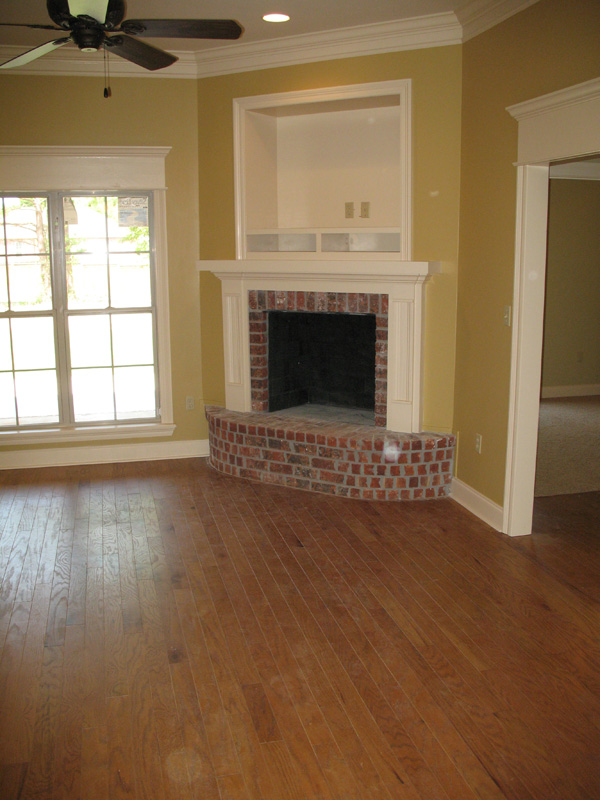

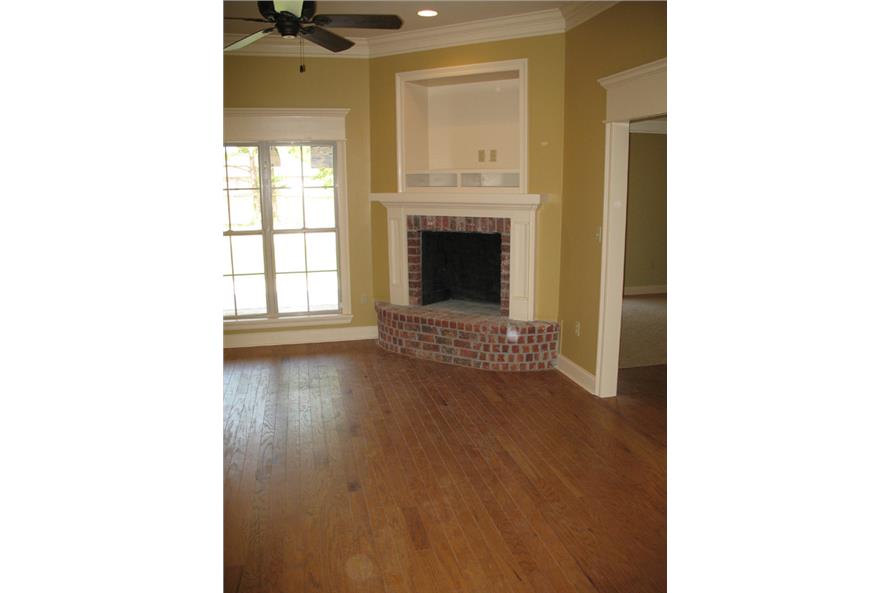

141-1066: Home Interior Photograph-Family Room

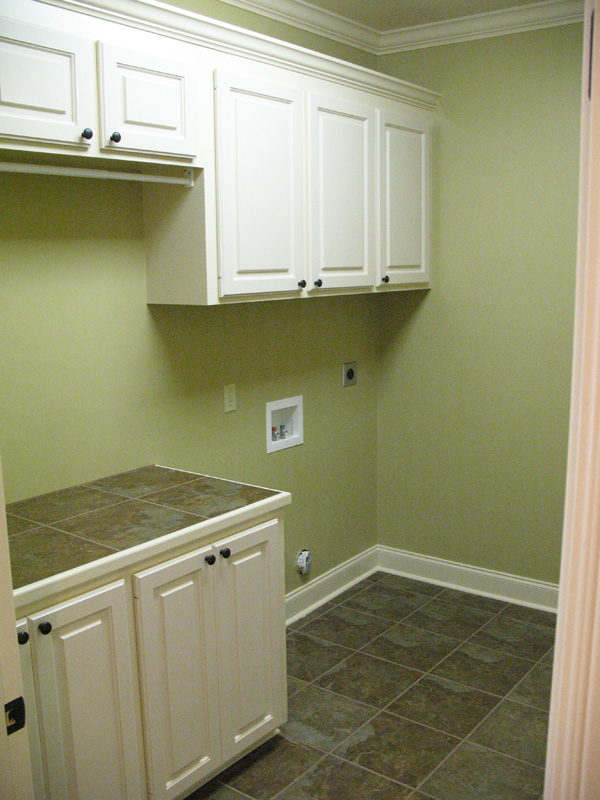

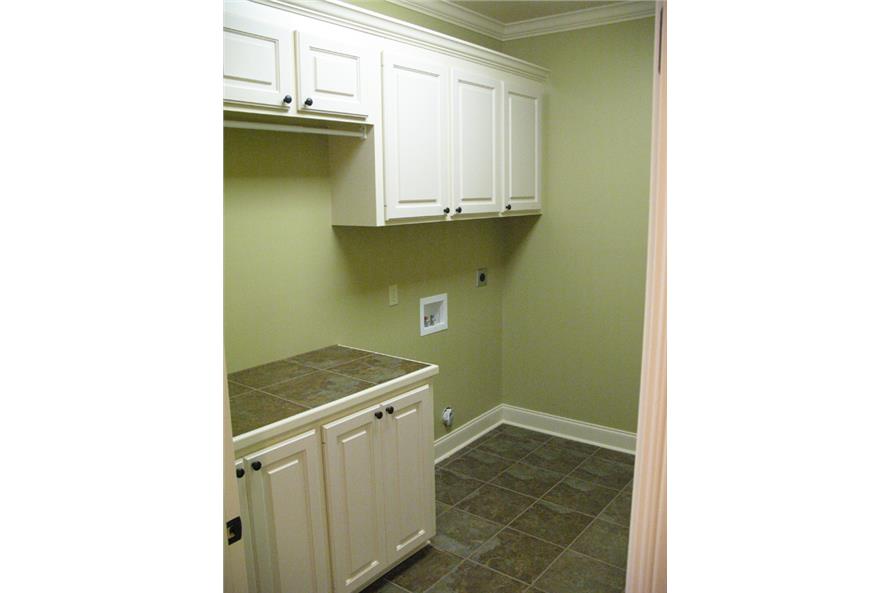

141-1066: Home Interior Photograph-Laundry Room
3-Bedroom, 1635 Sq Ft Acadian House Plan - 141-1066 - Front Exterior
Home Plan Rear Elevation for HPG-1635B
141-1066: Home Interior Photograph-Kitchen
141-1066: Home Interior Photograph-Family Room
141-1066: Home Interior Photograph-Laundry Room

About Plan # 141-1066

About Plan # 141-1066

1635 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 70' 8" WIDTH 53' 10" DEPTH 2 GARAGE BAY

This beautiful country house plan offers a very functional split floorplan layout. The great room features 10-foot ceilings and cozy fireplace with gas logs. Excellent views of the great room and back yard from kitchen. The expansive and well-appointed master suite includes a large walk-in closet, an oversized jet tub, separate shower, compartmentalized toilet and dual vanities. A large 2 car garage with separate storage is provided and the optional bonus room is an excellent space for a playroom and even has room for an extra bath. This home truly has the flexibility and features that your family wants!

Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:

  • COVER SHEET: Artist’s architectural rendering of the residence provides an idea of what the house would look like once built.
  • FLOOR PLAN(S): In general, each set includes floor plans at 1/4″ scale with a door and window schedule. Floor plans are typically drawn with 4″ exterior walls. However, details/sections for both 2″x4″ and 2″x6″ wall framing may also be included as part of the plans or purchased separately.
  • FOUNDATION PLAN & DETAILS: Dimensioned plan detailing the and construction of the foundation. Foundation types offered typically include:
    Slab: A type of foundation consisting of a structural concrete slab poured directly on the grade. No accessible space exists in slab construction. Slab foundations are popular in areas (i.e. the Southern United States) where there is a relatively high water table (i.e. the “water table” refers to the depth in the soil at which you find water). Traditionally, the slab foundation is the least expensive foundation type when building on a relatively flat lot.
    Crawlspace: A type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the homeowner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    Basement: A type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • ELECTRICAL PLAN: In general, each plan set includes an electrical plan with an electrical symbols legend which will show the locations of lights, receptacles, switches, etc.
  • ROOF DRAINAGE PLAN: In general, each plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • INTERIOR ELEVATIONS: Where applicable, each plan set includes relevant interior elevations, including cabinets, cabinet details, columns, and walls with unique conditions.
  • SECTIONS AND DETAILS: Explain certain special conditions more appropriately as needed.
  • SPECIFICATION FORM: In general, each plan set includes a blank short-form FHA/VA specifications document for your reference.
  • LICENSE TO BUILD: Each set of construction plans includes one license to build unless a multi-use license is otherwise purchased.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

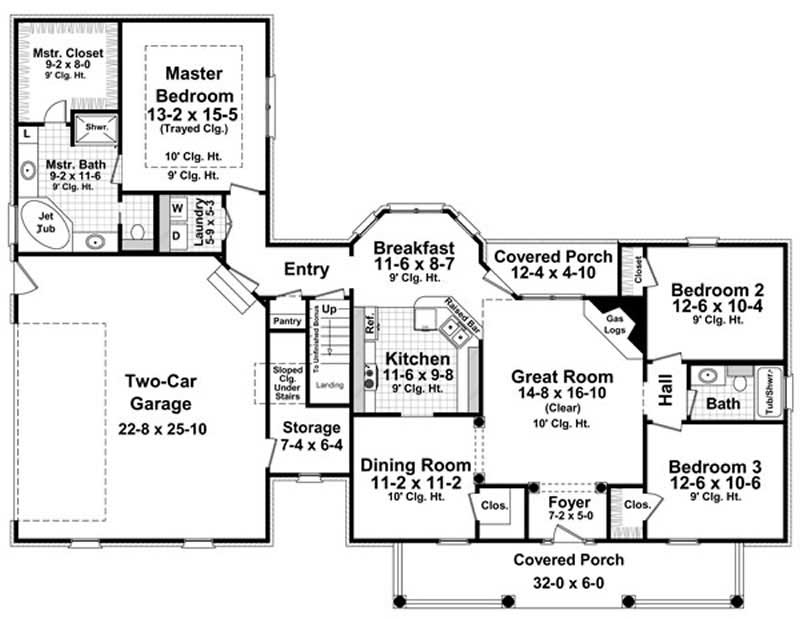

Home Plan: #141-1066 Floor Plan Fifth Story - fifth story Floor Plan Fifth Story of Acadian Plan #141-1066

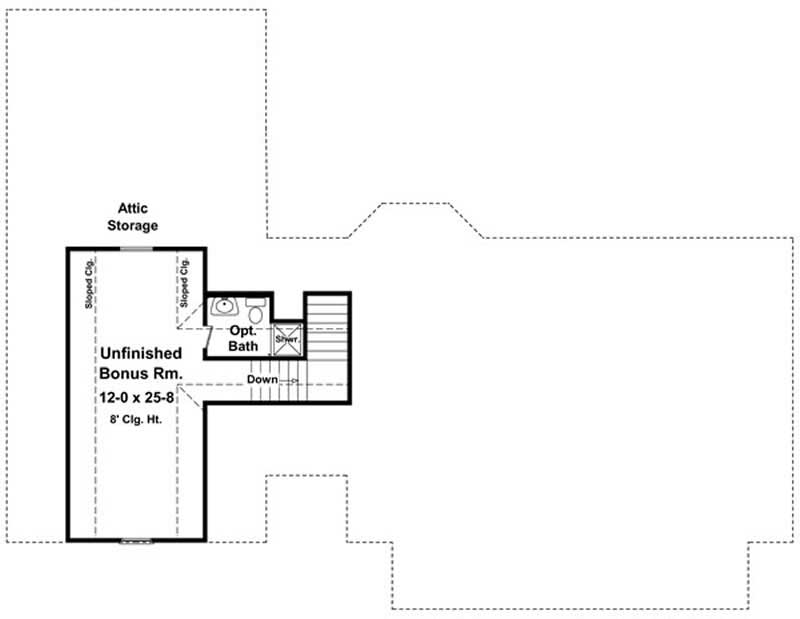

#141-1066 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Acadian Plan #141-1066
Home Plan: #141-1066 Floor Plan Fifth Story - fifth story Floor Plan Fifth Story of Acadian Plan #141-1066
#141-1066 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Acadian Plan #141-1066
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 141-1066
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1635
Main Floor:
1635
Unfinished Sq Ft:
Garage :
704
Porch :
247

Dimensions

Width:
70' 8"
Depth:
53' 10"
Ridge Height:
23' 11"

Architectural Styles

Acadian
Colonial
Country
European
Ranch
Traditional

Exterior Wall Material

Brick
Wood Siding

Roofing Type

Gable
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

10/12

Ceiling Height

9 Foot Ceiling

Special Feature

Bonus Room
Color Photos
Dining Room
Energy Efficient
Family Room
Fireplace
Interior Photos
Main Level Laundry
Open Floor Plan
Storage

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Corner Lot
Flat Site

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

Please Note! This designer does NOT ship paper copies to Canada. Please order your plans in electronic format (PDF or CAD)!

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
