3-Bedroom, 1633 Sq Ft Ranch Plan with Outdoor Kitchen

Main image for house plan # 13461

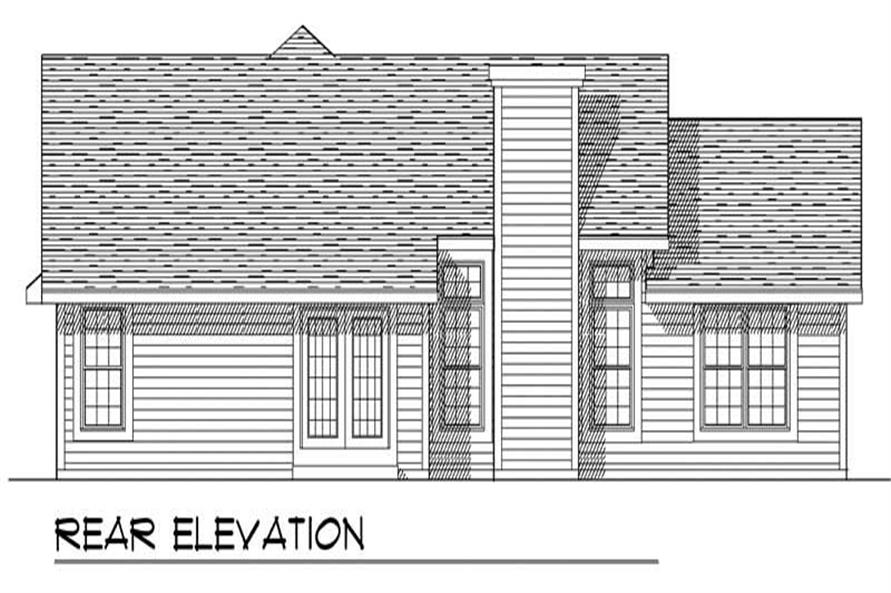

REAR ELEVATION

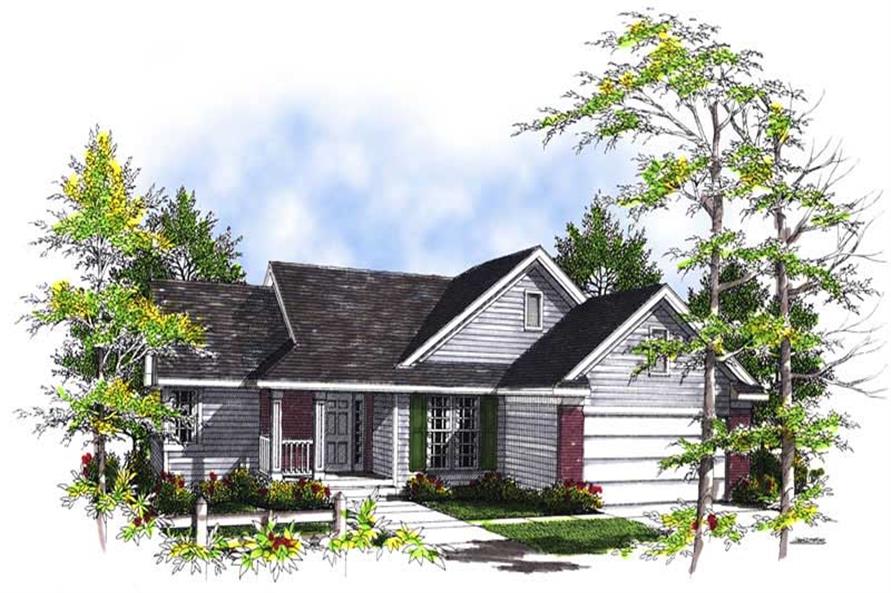

3-Bedroom, 1633 Sq Ft Ranch Home Plan - 101-1478 - Main Exterior
REAR ELEVATION

About Plan # 101-1478

About Plan # 101-1478

1633 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 53' 0" WIDTH 52' 0" DEPTH 2 GARAGE BAY
Horizontal wood siding and a quaint covered porch bring special appeal to this classically styled one-story plan. The main entry opens to a tiled foyer that leads to the formal dining room and the large great room, which features a fireplace surrounded by windows. Prepare meals in the well-appointed kitchen, which serves both the dining room and the tiled breakfast nook. Sliding glass doors in the nook open to the rear yard, perfect for outdoor dining. The two family bedrooms share a full bath and are separated from the master bath, which features a cathedral ceiling, a walk-in closet, and a luxurious bath with a whirlpool tub, separate shower, and dual vanities. A two-car garage connects to the main house through a laundry area.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

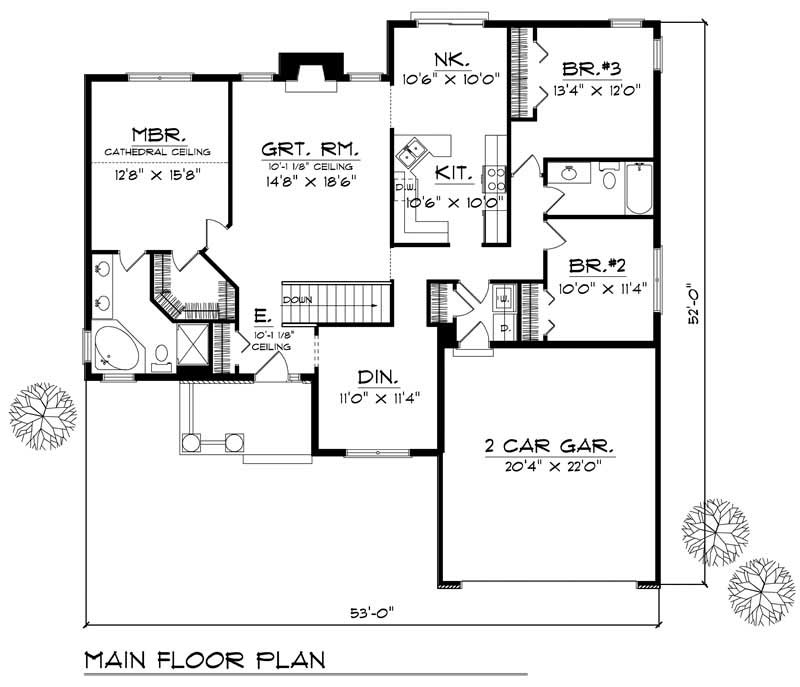

Home Plan: #101-1478 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1478
Home Plan: #101-1478 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1478
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 101-1478
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1633
Main Floor:
1633
Unfinished Sq Ft:

Dimensions

Width:
53' 0"
Depth:
52' 0"

Architectural Styles

Ranch
Traditional

Exterior Wall Material

Vinyl Siding

Roof Pitch

6/12

Ceiling Height

8 Foot Ceiling

Special Feature

Dining Room
Fireplace

Garage Type

Attached Garage

Exterior Wall Framing

2x6

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
