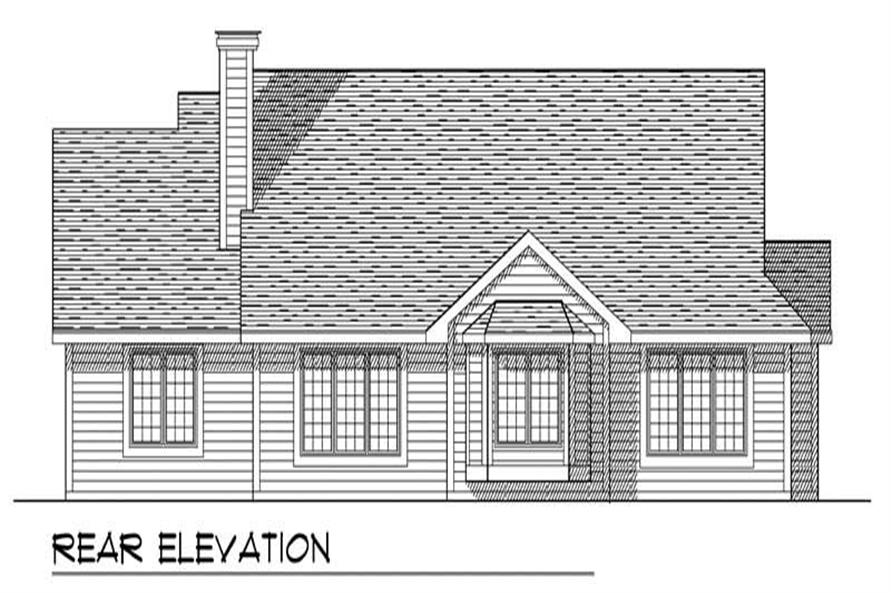

REAR ELEVATION
3-Bedroom, 1632 Sq Ft Ranch House Plan - 101-1254 - Front Exterior
REAR ELEVATION

About Plan # 101-1254

About Plan # 101-1254

1632 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 54' 0" WIDTH 53' 6" DEPTH 2 GARAGE BAY
Triple gables create an interesting exterior and usher you in to this comfortable and efficient floor plan. The vaulted great room features built-in cabinets and an elegant fireplace; it is open to the combined dining room and island kitchen that are connected by a breakfast bar. The master bedroom offers a walk-in closet and a large private bath. Two additional bedrooms on the other side of the plan have ample closet space and share a full bath with separated double vanities.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

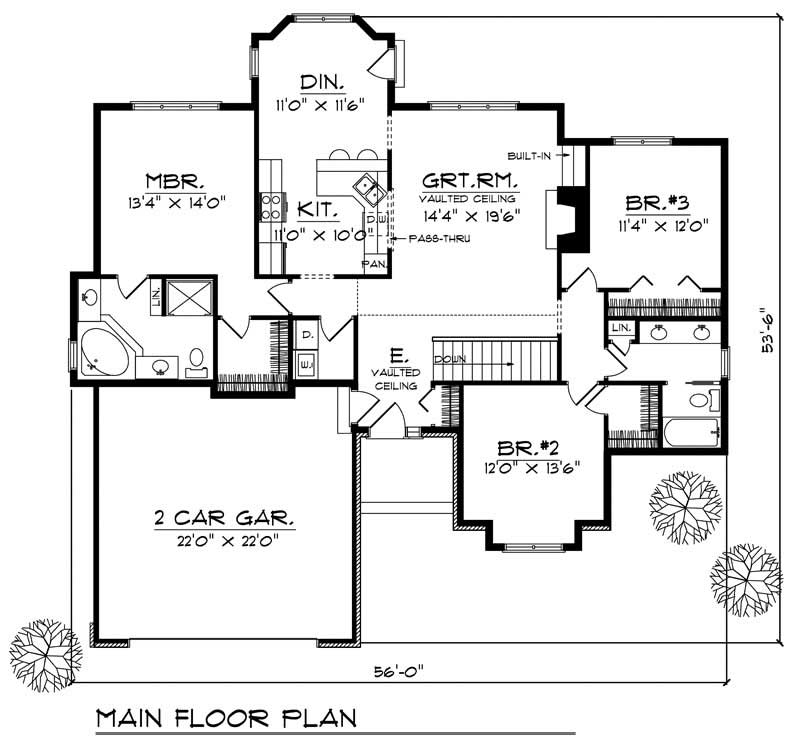

Home Plan: #101-1254 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1254
