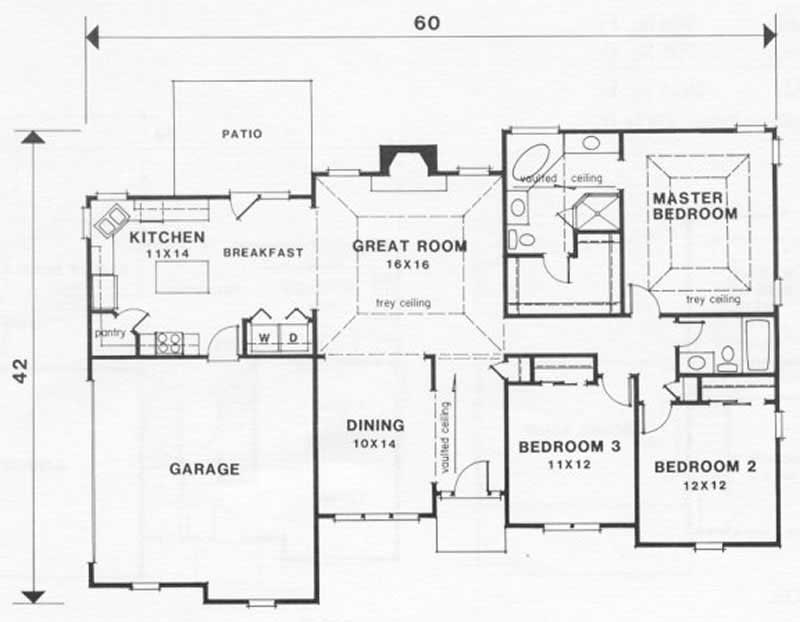

This home features an exterior patio, trey ceiling master bedroom with walk in closet, vaulted bath ceiling, dining room, walk-in pantry, main level laundry, 3 bedrooms, 2 baths, and an attached two-car garage. entry 6'-4" wide x 12'-0" deep master closet 10'-2" wide x 7'-0" at deepest dimension master bath 10'-0" wide x 11'-0" at deepest dimension laundry 6'-0' x 3'-0" hall bath 9'-0" x 5'-0" garage 20'-0" x 20'-0" breakfast 9'-4" wide x 11'-0" deep pantry 4'-0" x 4'-0" patio 12'-0" x 10'-0"
Each plan set includes the following:

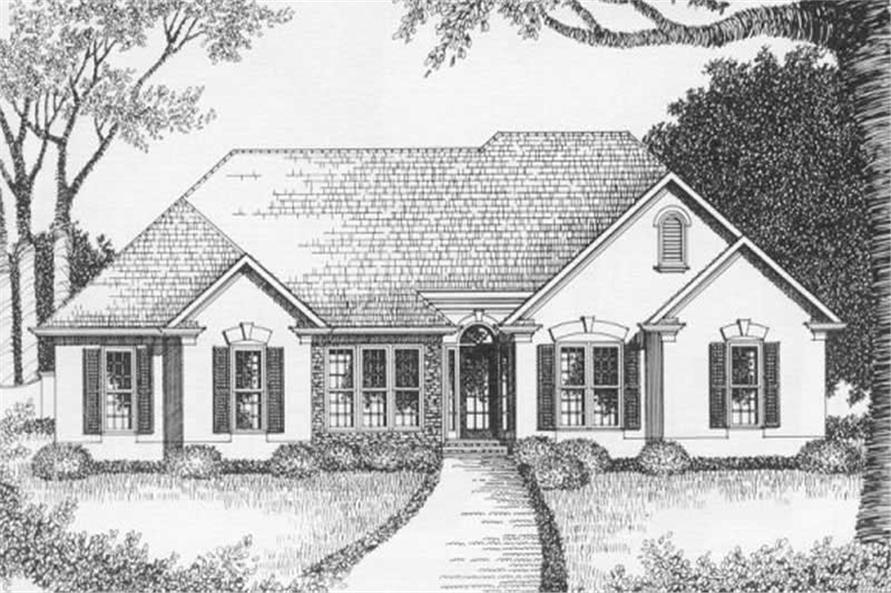

Front Elevation & Cabinet Details
Floor Plan with Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
Roof Plan (Birdseye view)
Foundation Plan & Details
Cross Sections & Details
Connection Details & Trim
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
