3-Bedroom, 1628 Sq Ft Traditional Plan with Second Level Laundry

Traditional home (ThePlanCollection: Plan #108-1939)

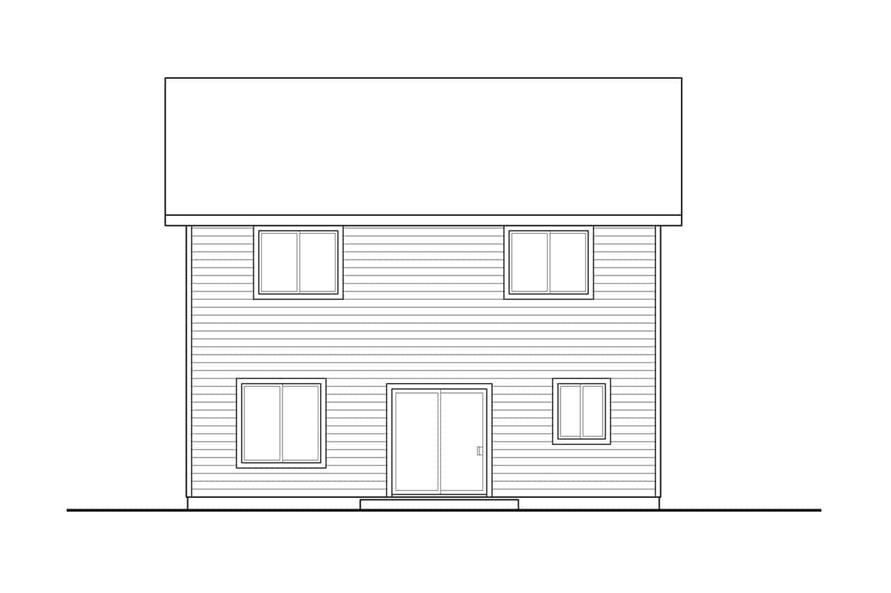

108-1939: Home Plan Rear Elevation

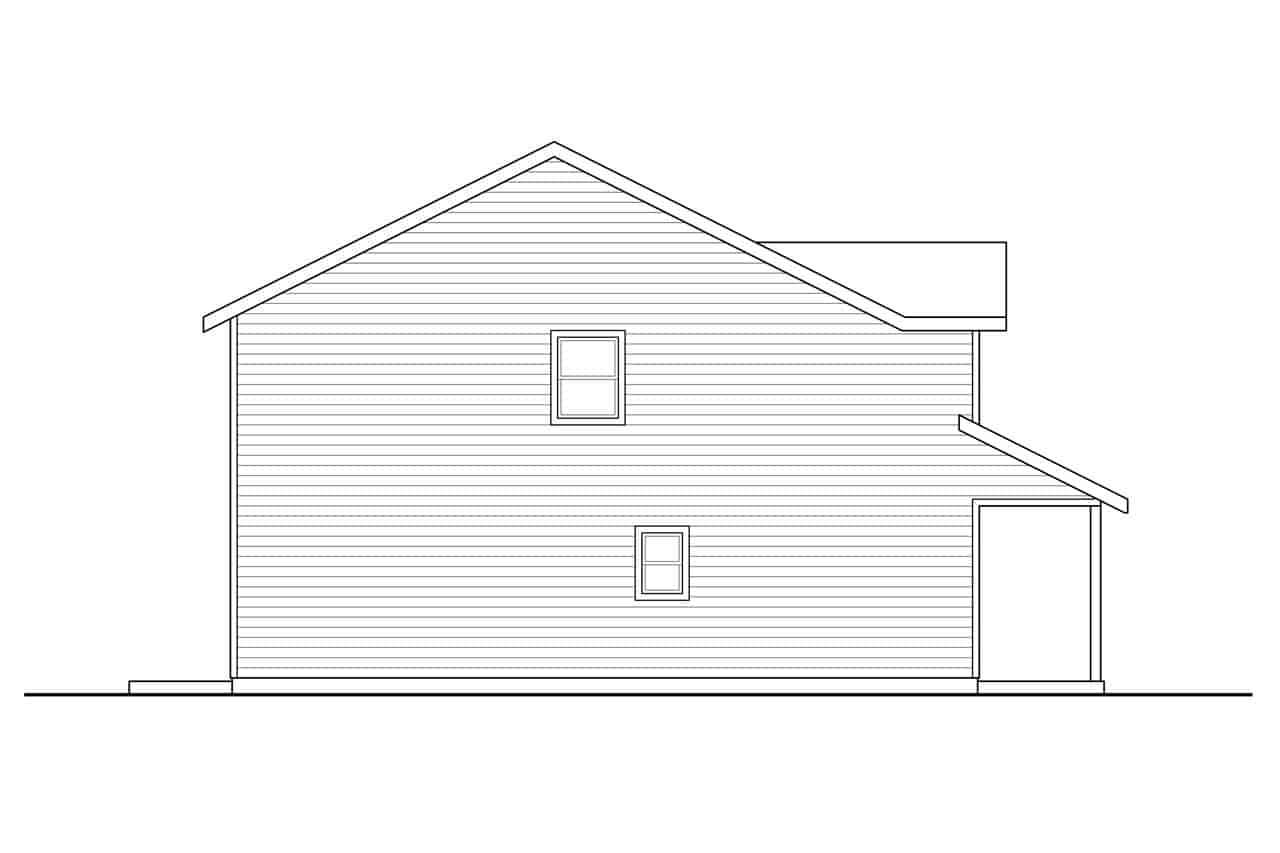

108-1939: Home Plan Left Elevation
108-1939: Home Plan Right Elevation
3-Bedroom, 1628 Sq Ft Traditional House - Plan #108-1939 - Front Exterior

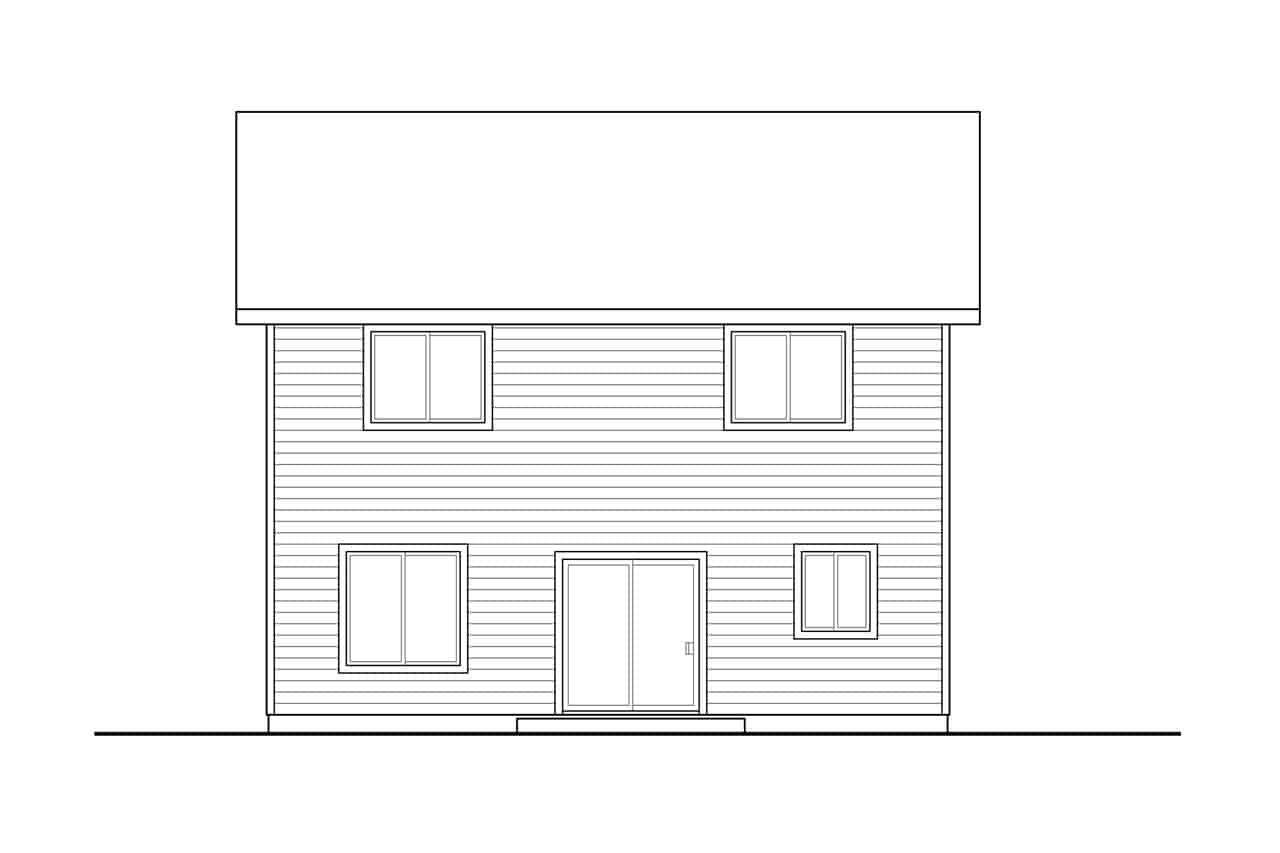

108-1939: Home Plan Rear Elevation
108-1939: Home Plan Left Elevation

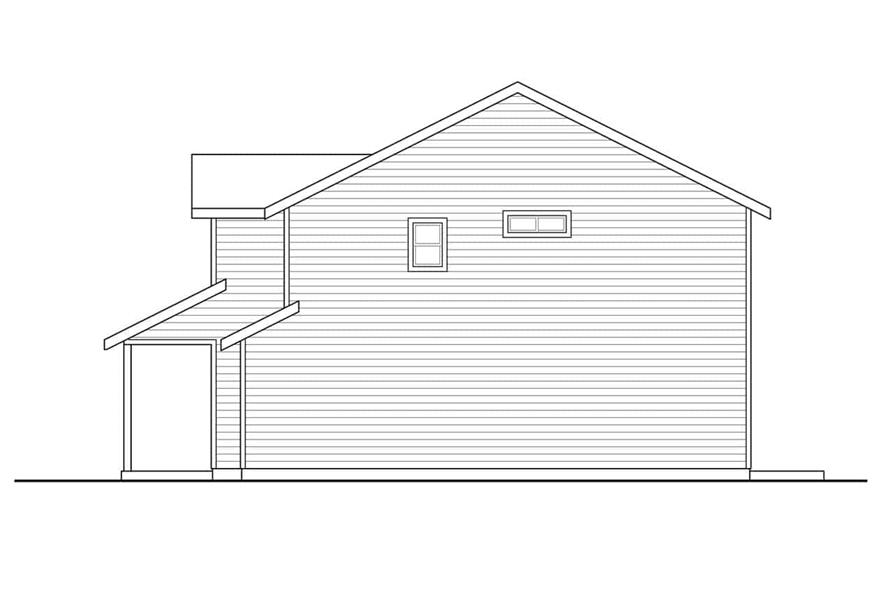

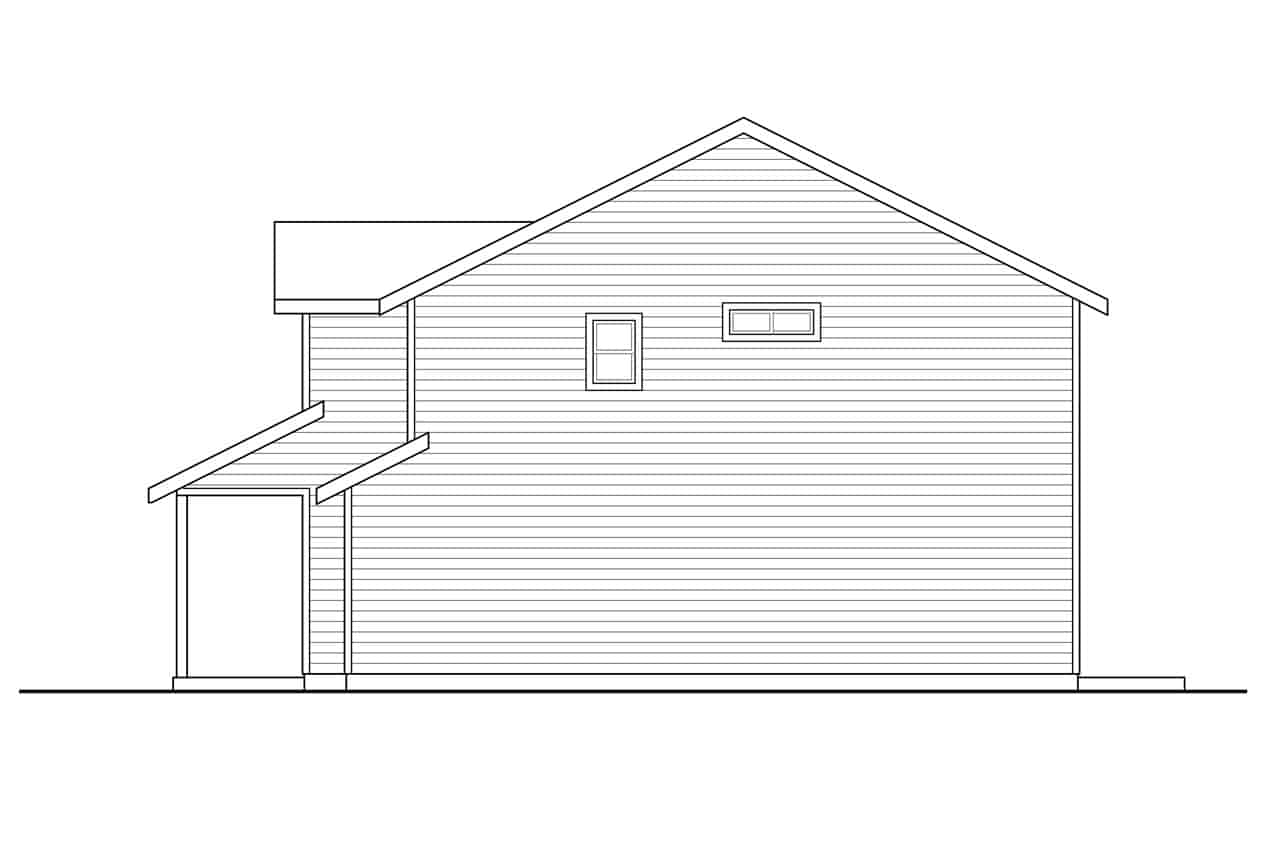

108-1939: Home Plan Right Elevation

About Plan # 108-1939

About Plan # 108-1939

1628 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 30' 0" WIDTH 43' 0" DEPTH 2 GARAGE BAY

The use of natural materials set on clean straight lines creates a cool, simple elegance in this traditional home and helps it  blend in with a surroundings. With a narrow floor plan, it is ideal for a narrow lot and would blend in well in a more developed community. The home with country details has 1628 square feet of living space and includes 3 bedrooms.

  • Open floor plan design.
  • Vaulted owners' suite.
  • Second floor laundry.

Each plan set includes the following:

  • ARTIST'S RENDERING: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Each plan set is drawn at 1/4"=1' scale. Showing the placement and dimensions of all walls, windows, and doors. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • SECOND FLOOR PLAN (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • FOUNDATION PLAN: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • ROOF FRAMING PLAN: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
  • SECTIONS AND DETAILS: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints. These details can be helpful for the contractor.
  • ELECTRICAL PLAN: A schematic layout of all lighting, switches, and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

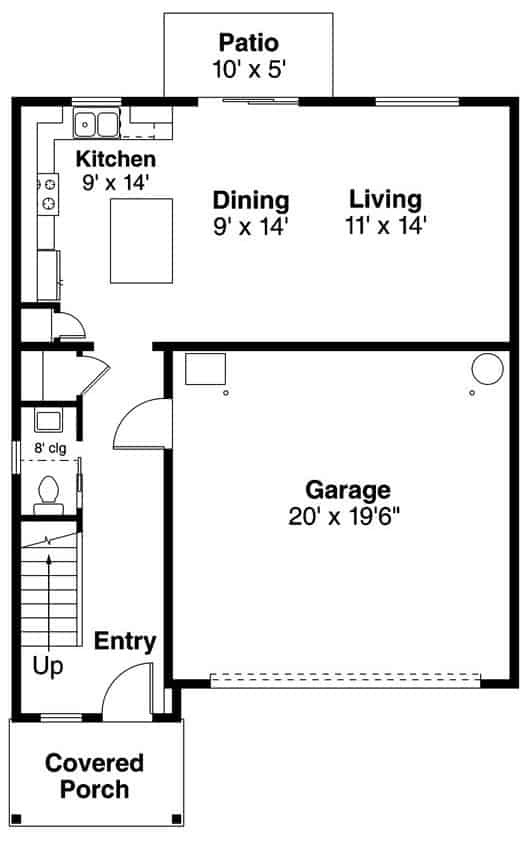

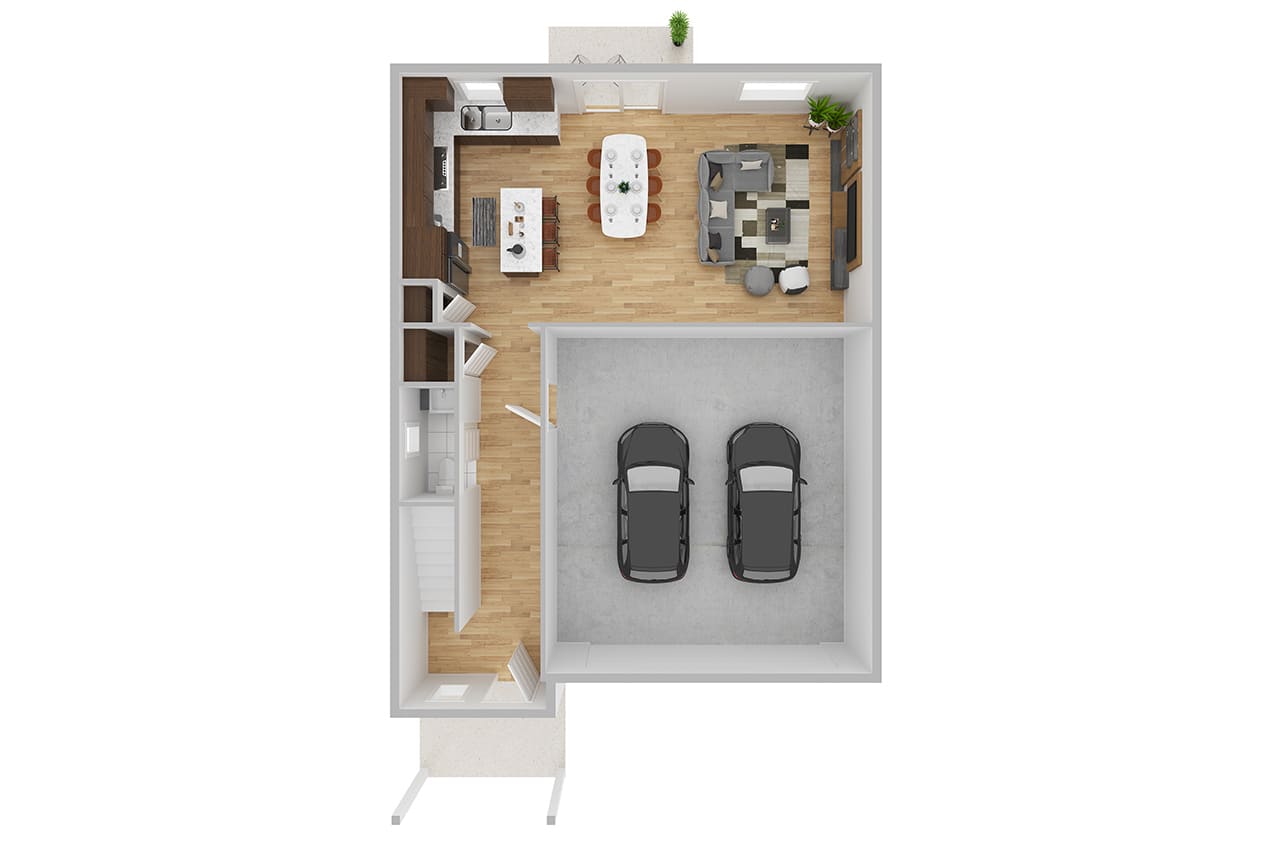

Home Plan: #108-1939 Floor Plan First Story - main level Floor Plan Main Level of Farmhouse Plan #108-1939

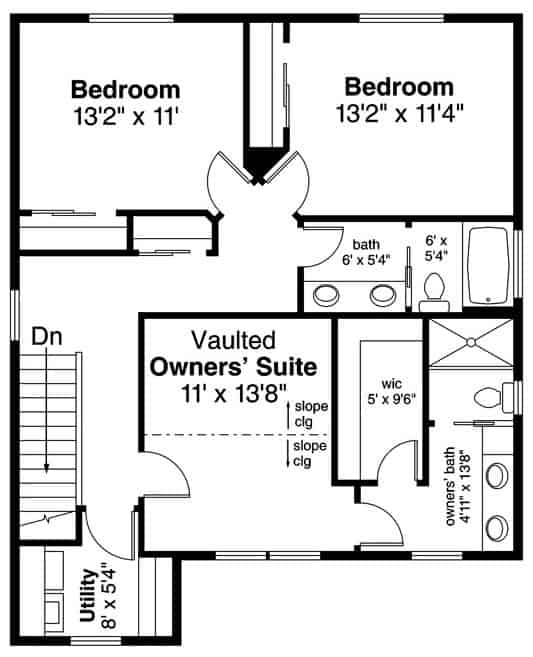

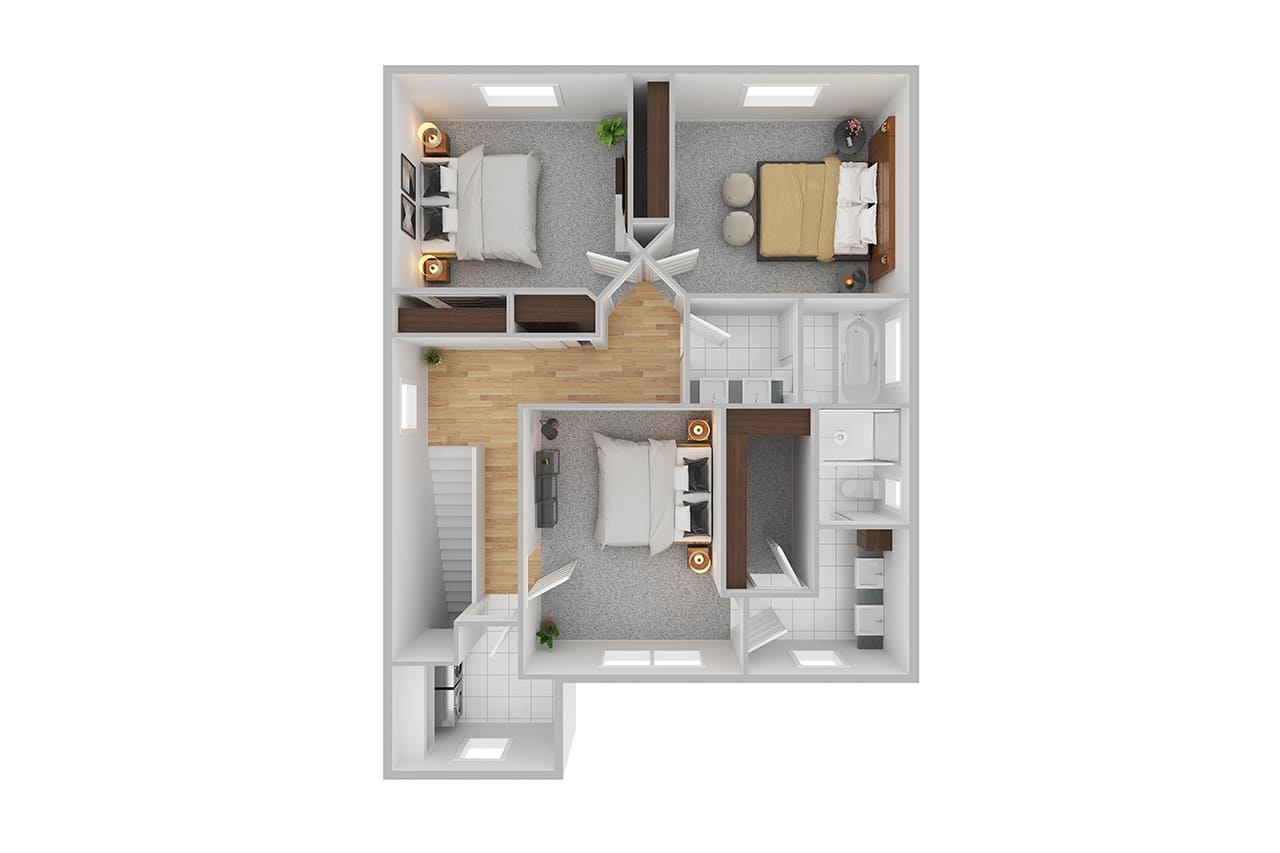

#108-1939 Floor Plan Second Story - upper level Floor Plan Upper Level of Farmhouse Plan #108-1939
