3-Bedroom, 1627 Sq Ft Ranch Plan with Walk-in Pantry
| 1627 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 50' 0" WIDTH | 60' 4" DEPTH | 3 GARAGE BAY |
This narrow ranch home packs many amenities into only 1627 square feet making it attractive yet affordable. Inside you’ll find tall ceilings throughout which only add to the overall feeling that this home is larger than it really is. The open floor plan was carefully crafted to make use of every square inch of living space. From the kitchen you can look into both the dining room and the great room, and you’ll love the breakfast bar that provides additional eating space for family and friends. The master suite includes a large walk-in closet, spacious bath with Jacuzzi tub, and step ceiling in the bedroom. On the opposite side of the home, you’ll find two additional bedrooms allowing for maximum privacy for mom and dad. This home also has a three-stall garage making it attractive to today’s buyer.
Each plan set includes the following:

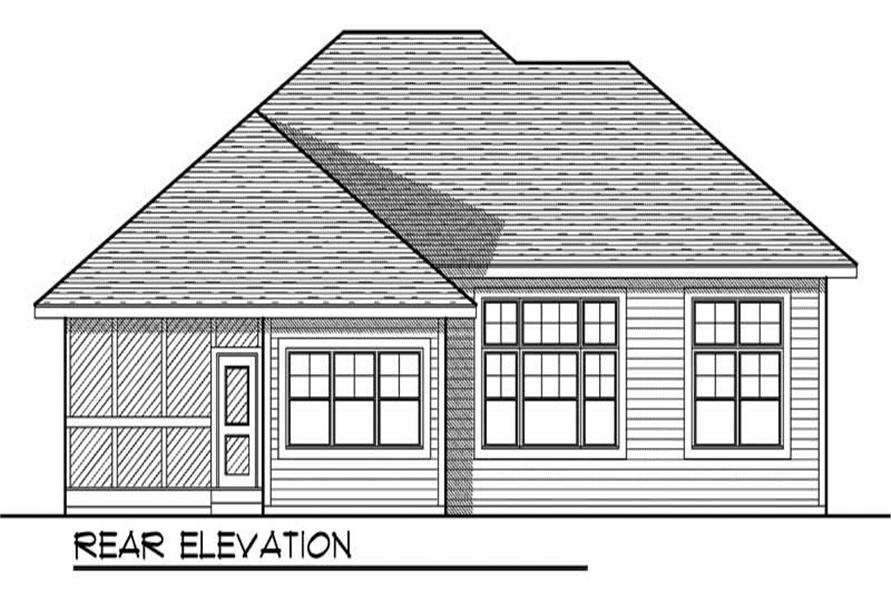

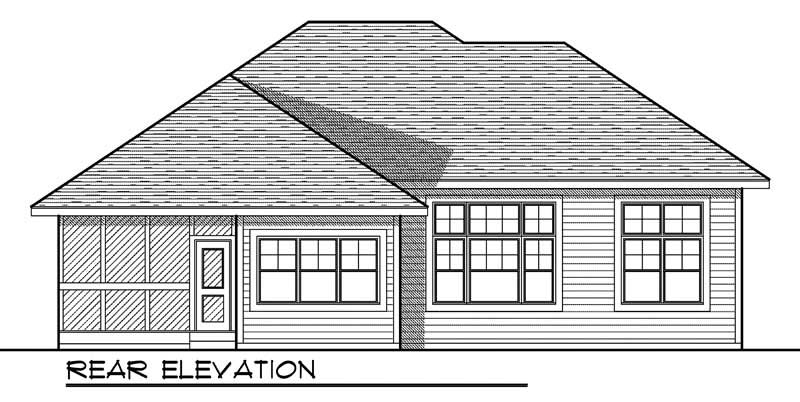

- Front, Back & Side Elevations
- Floor Plans
- Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
- Roof Plan (Birdseye view)
- Foundation Layout
- Wall & Stair Sections
- Cross Section
- Kitchen Layout
- General Notes
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and locations.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

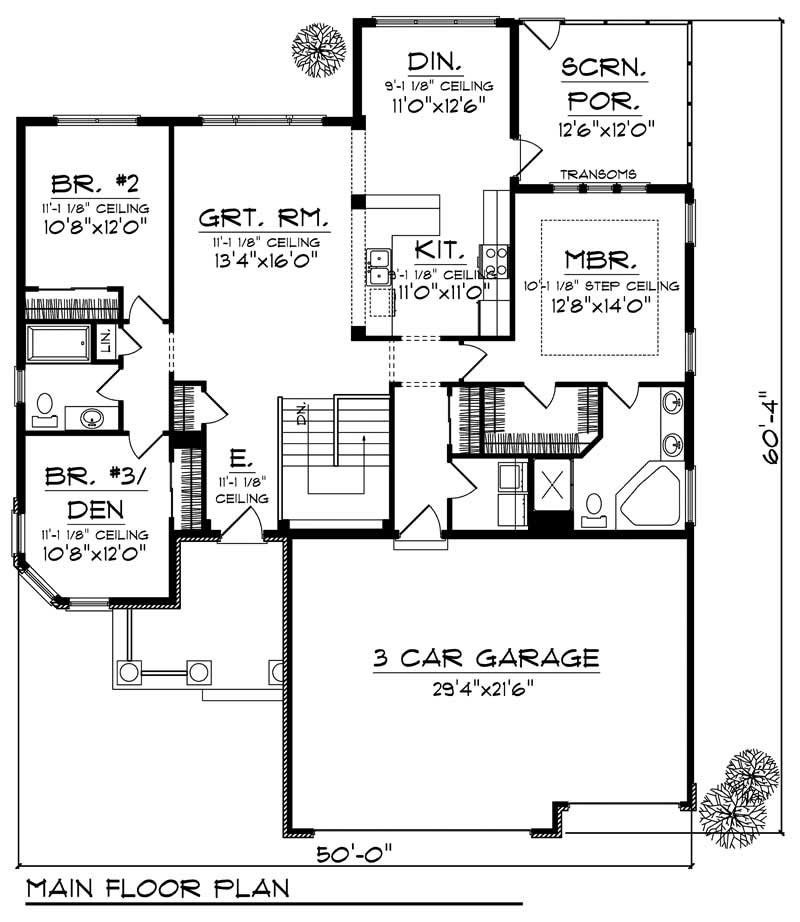

Home Plan: #101-1680 Floor Plan First Story
-
main
![Floor Plan First Story of Ranch Plan #101-1680]( "MAIN FLOOR PLAN")
Home Plan: #101-1680 Floor Plan First Story
-
main
![Floor Plan First Story of Ranch Plan #101-1680]( "MAIN FLOOR PLAN")
Special Offer
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Plan #:
# 101-1680
Floors:
1
Bedrooms:
3
Full Baths:
2
Square Footage
Heated Sq Feet:
1627
Main Floor:
1627
Unfinished Sq Ft:
Dimensions
Width:
50' 0"
Depth:
60' 4"
Architectural Styles
Ranch
Traditional
Exterior Wall Material
Rock/Stone
Shakes
Vinyl Siding
Roof Pitch
8/12
Ceiling Height
9 Foot Ceiling
Special Feature
Dining Room
Garage Type
Attached Garage
Exterior Wall Framing
2x6
Additional Notes from Designer
