3-Bedroom, 1605 Sq Ft Ranch Plan with Eating Bar
Related House Plans
| 1605 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 50' 0" WIDTH | 61' 8" DEPTH | 2 GARAGE BAY |

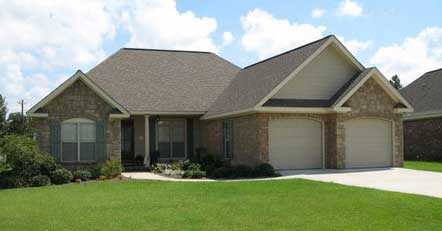

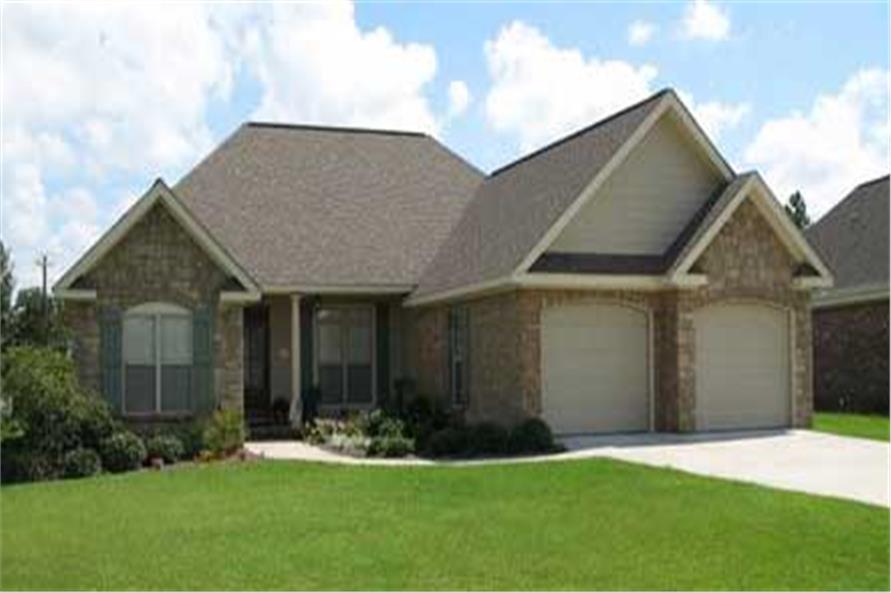

This 3-bedroom ranch home enjoys remarkable curb appeal while the interior is well-designed for casual living. From the covered front porch, enter the foyer and then into the spacious living room. The home feels much larger due to its open floor plan design. The kitchen and dining areas are open to the living room. The kitchen boasts a large island with a raised eating bar. If privacy is desired, there is an optional flex space. The split-bedroom layout provides privacy for the owners. The master suite is large with his-and-her walk-in closets. The en-suite master bathroom has dual sinks, a large shower, a garden tub, and a water closet. On the other side of the home are two additional bedrooms which share a bathroom. Ready to enjoy the outdoors? Head to the rear patio to relax or bar-b-que.
The basement version of this plan is 141-1221.
Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:
- Cover page with rendering
- foundation plan with typical details
- floor plans with ceiling framing notes

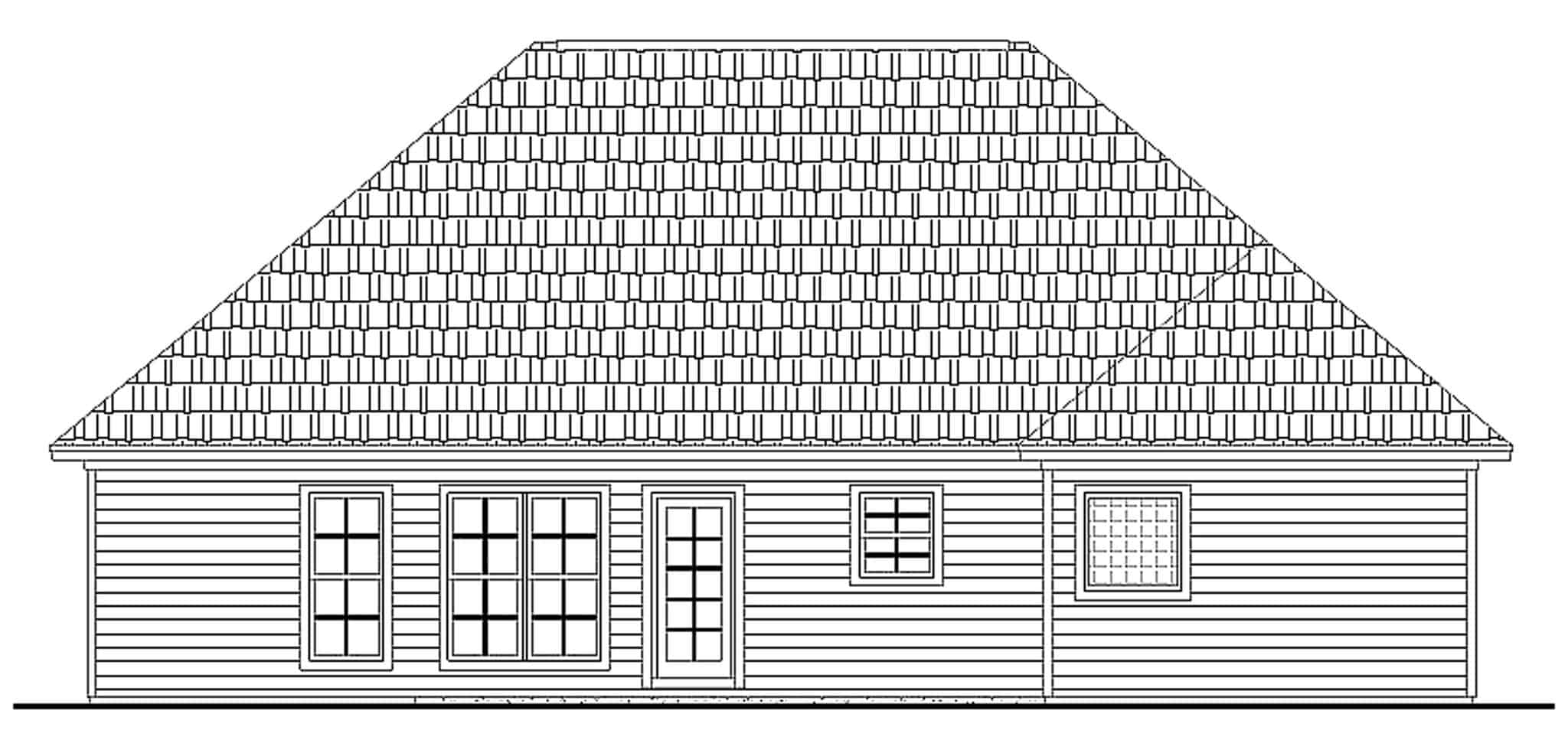

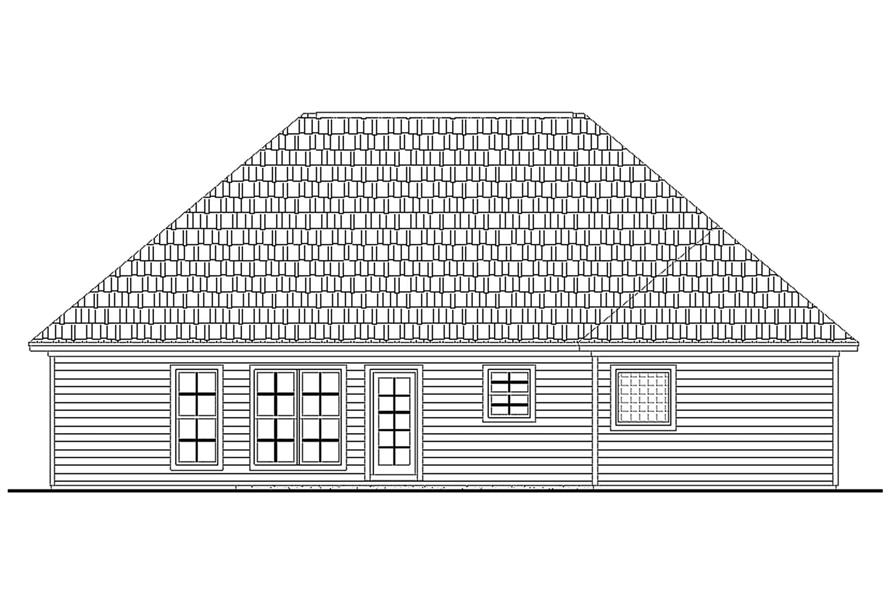

- four exterior views of exterior
- roof plan, and rafter layout plan
- full cross section through house, and typical wall sections
- stair section (if there are stairs)
- Bonus room/garage section if there is a bonus room/garage
- Interior cabinet drawings
- Misc. structural details
- Electrical plan with lighting, outlets, switches, etc..
Not Included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

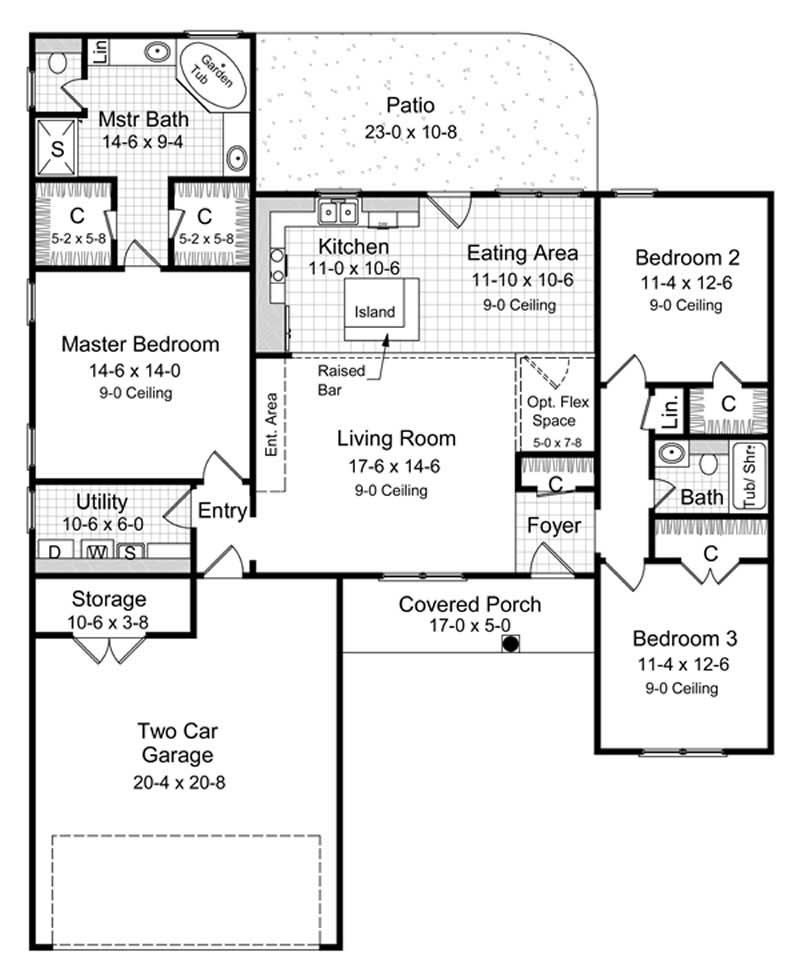

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Roof Pitch
Ceiling Height
Special Feature
Garage Type
Fireplaces
Exterior Wall Framing
Building Lot Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
How much will this plan cost to build?
