3-Bedroom, 1560 Sq Ft Craftsman Plan with Walk In Closet

Front elevation of Craftsman home (ThePlanCollection: House Plan #153-1469)
EXTEIOR ELEVATIONS
3-Bedroom, 1560 Sq Ft Craftsman House Plan - 153-1469 - Front Exterior
EXTEIOR ELEVATIONS

About Plan # 153-1469

About Plan # 153-1469

1560 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 52' 2" WIDTH 55' 8" DEPTH 2 GARAGE BAY

Cedar shake and brick are a wonderful combination for this home. The arched entry porch welcomes guests into an open great room viewing a formal dining room and accessing a large kitchen with breakfast room. The laundry room is located just steps from the kitchen for added convenience. Two bedrooms, one perfect for a home office, are located on the opposite side of the home and share a full bathroom. This split plan offers an elegant master suite with private access to the rear-grilling porch perfect for enjoying starlit evenings.

Each plan set includes the following:

  • FLOOR PLAN(S): Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.

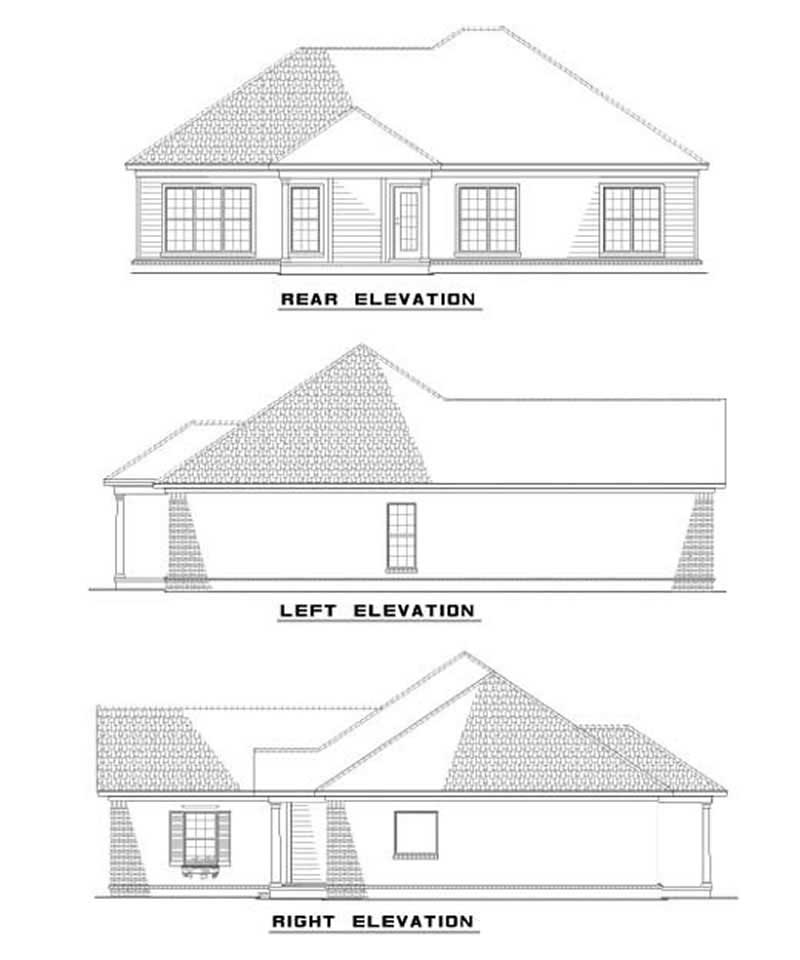

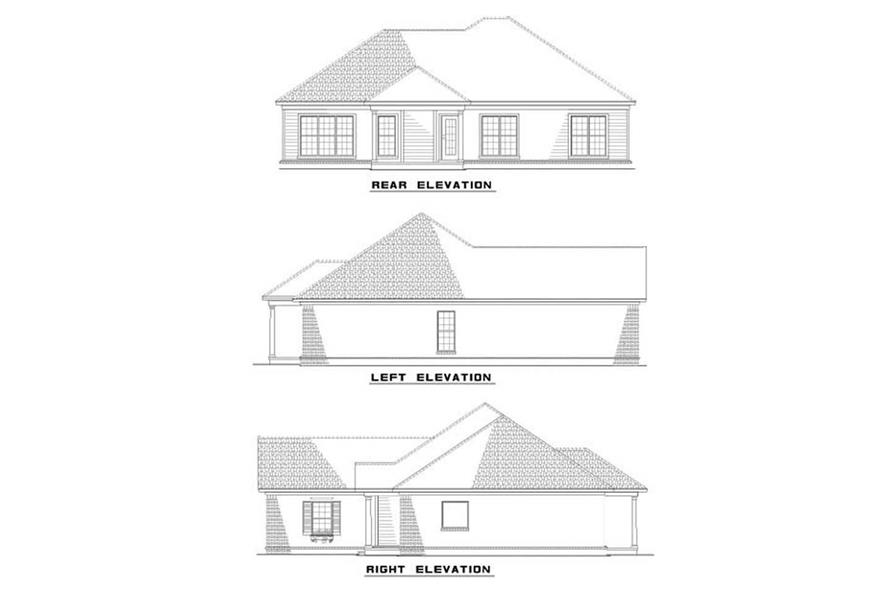

  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF OVERVIEW PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • BUILDING SECTIONS AND MISCELLANEOUS DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • KITCHEN AND BATH ELEVATIONS: Showing the kitchen and bath details such as cabinets.
  • ELECTRICAL DIAGRAM: Bird's-eye view of rooms defining the location of lights, fans, switches, etc.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

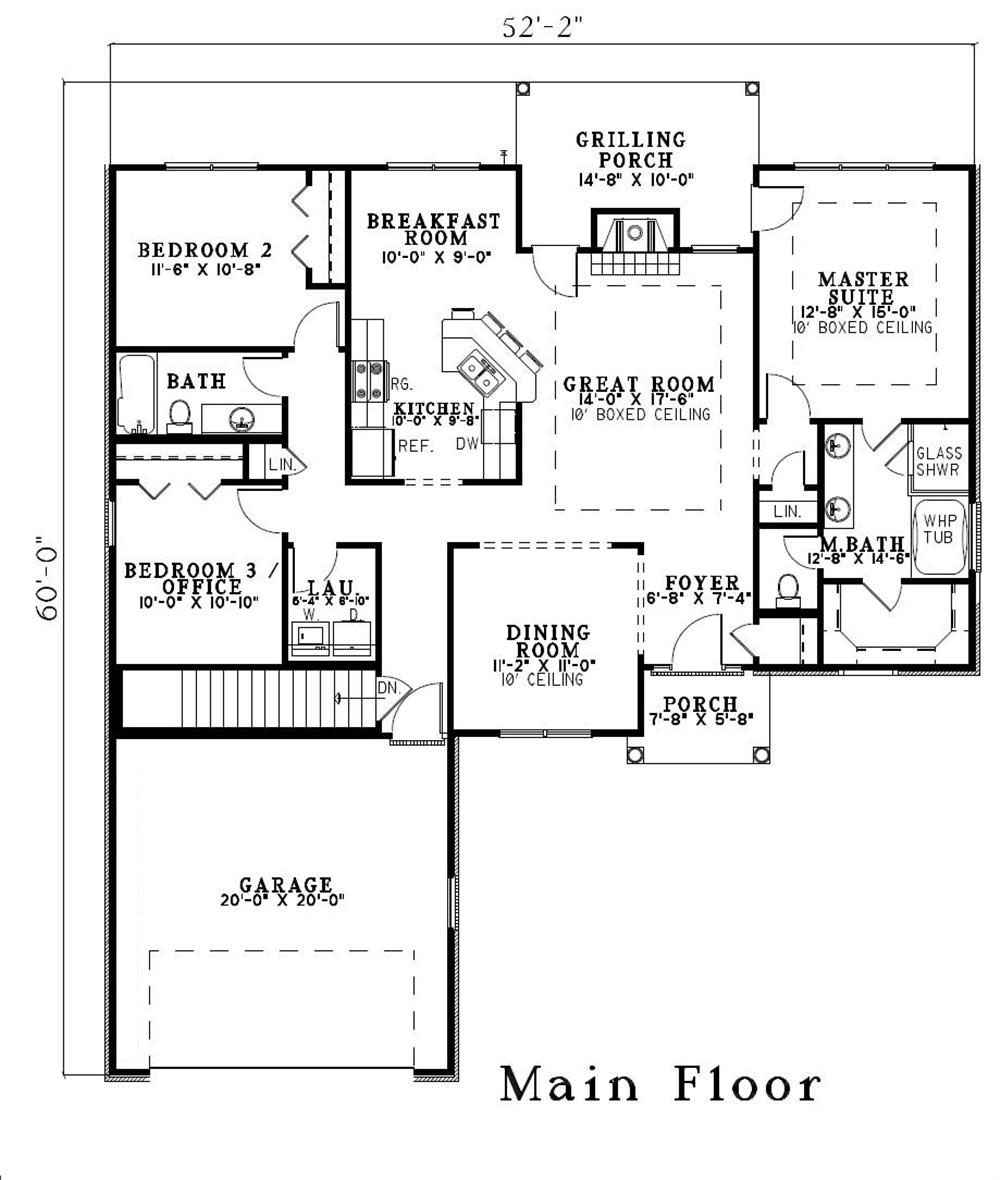

Home Plan: #153-1469 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #153-1469
Home Plan: #153-1469 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #153-1469
