3-Bedroom, 1463 Sq Ft Craftsman Home with Open Floor Plan
Related House Plans
| 1463 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 45' 0" WIDTH | 63' 4" DEPTH | 2 GARAGE BAY |

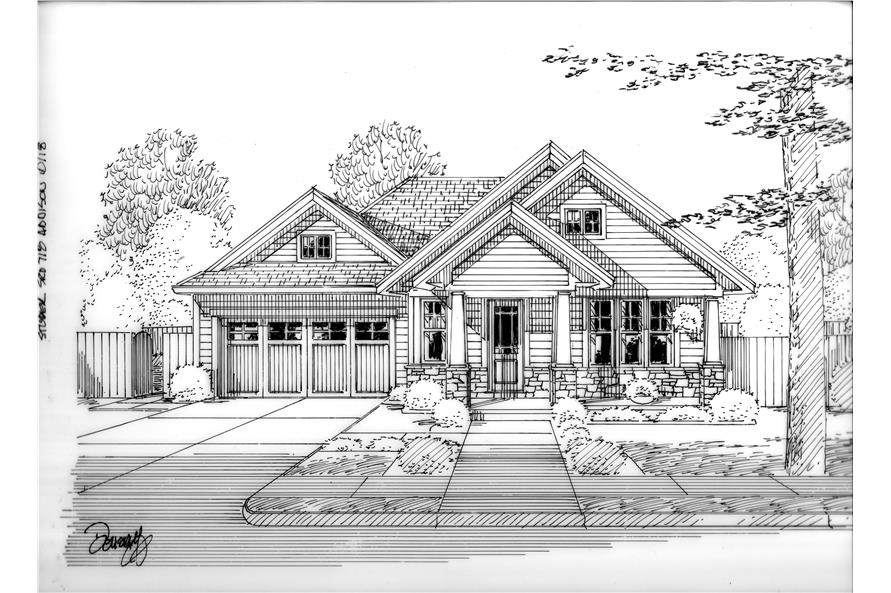

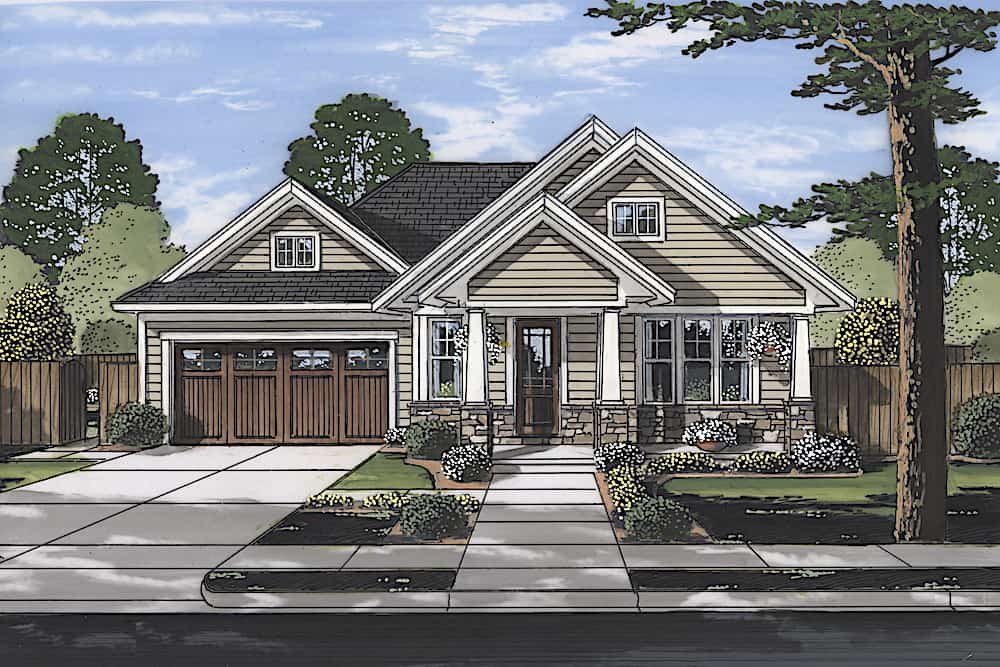

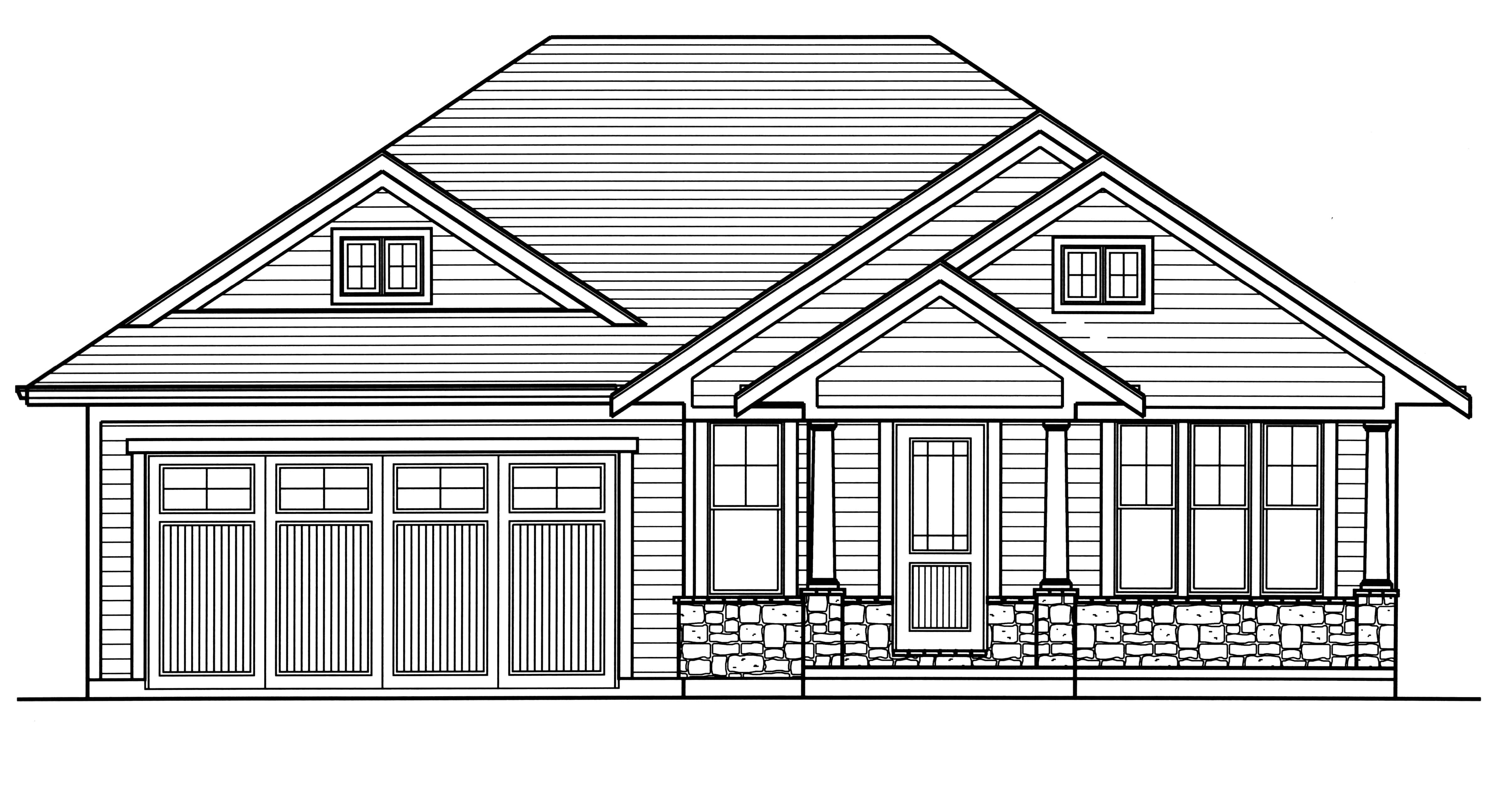

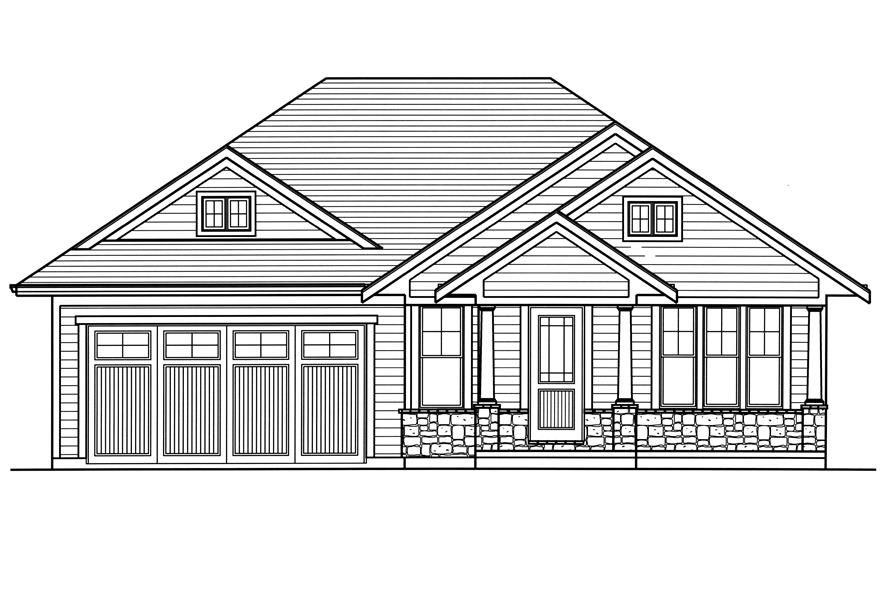

With 1463 square feet of living space, this attractive country Craftsman home enjoys remarkable curb appeal with its covered front porch and multiple gabled rooflines. The interior has an easy floor with an open concept floor plan connecting the living and dining areas to the kitchen with an oversized island. The primary suite faces the backyard for additional privacy and includes a primary bath with his-and-hers sinks as well as a walk-in closet. Two other bedrooms and one full bath complete the living space. In addition, there is a 2--car garage. For barbeques, there is a patio right off of the kitchen. With a width of 45 feet, the home would be suitable for a narrow lot.
Each plan set includes the following:
- General notes and specifications

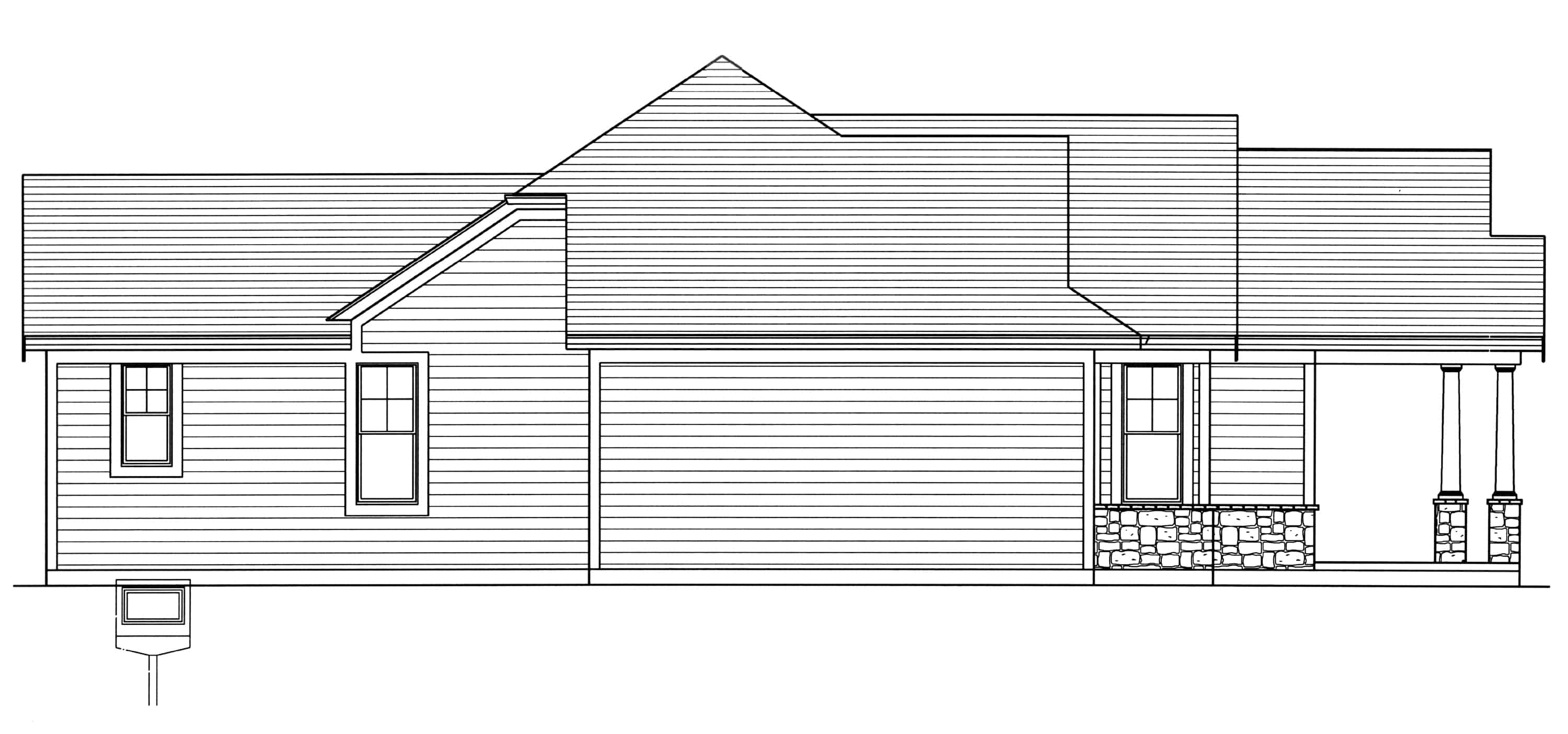

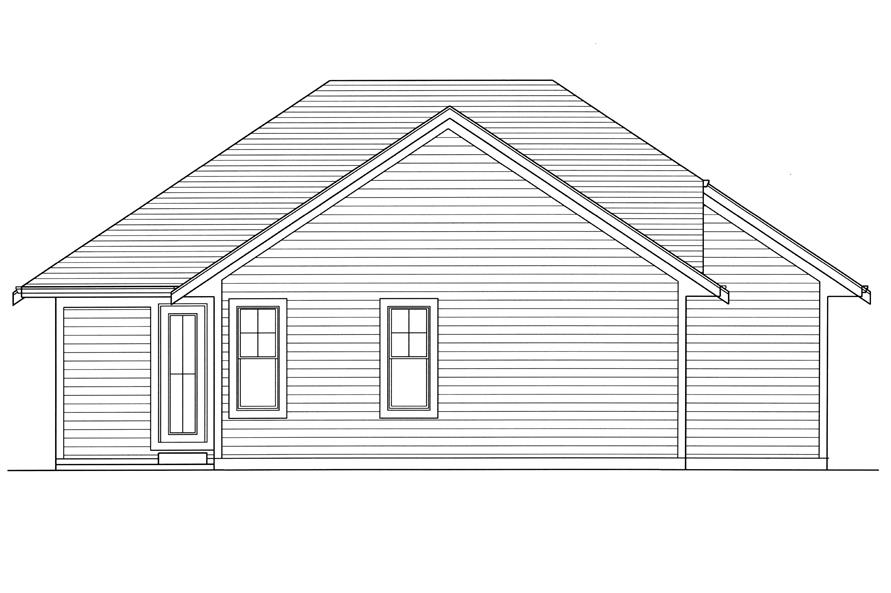

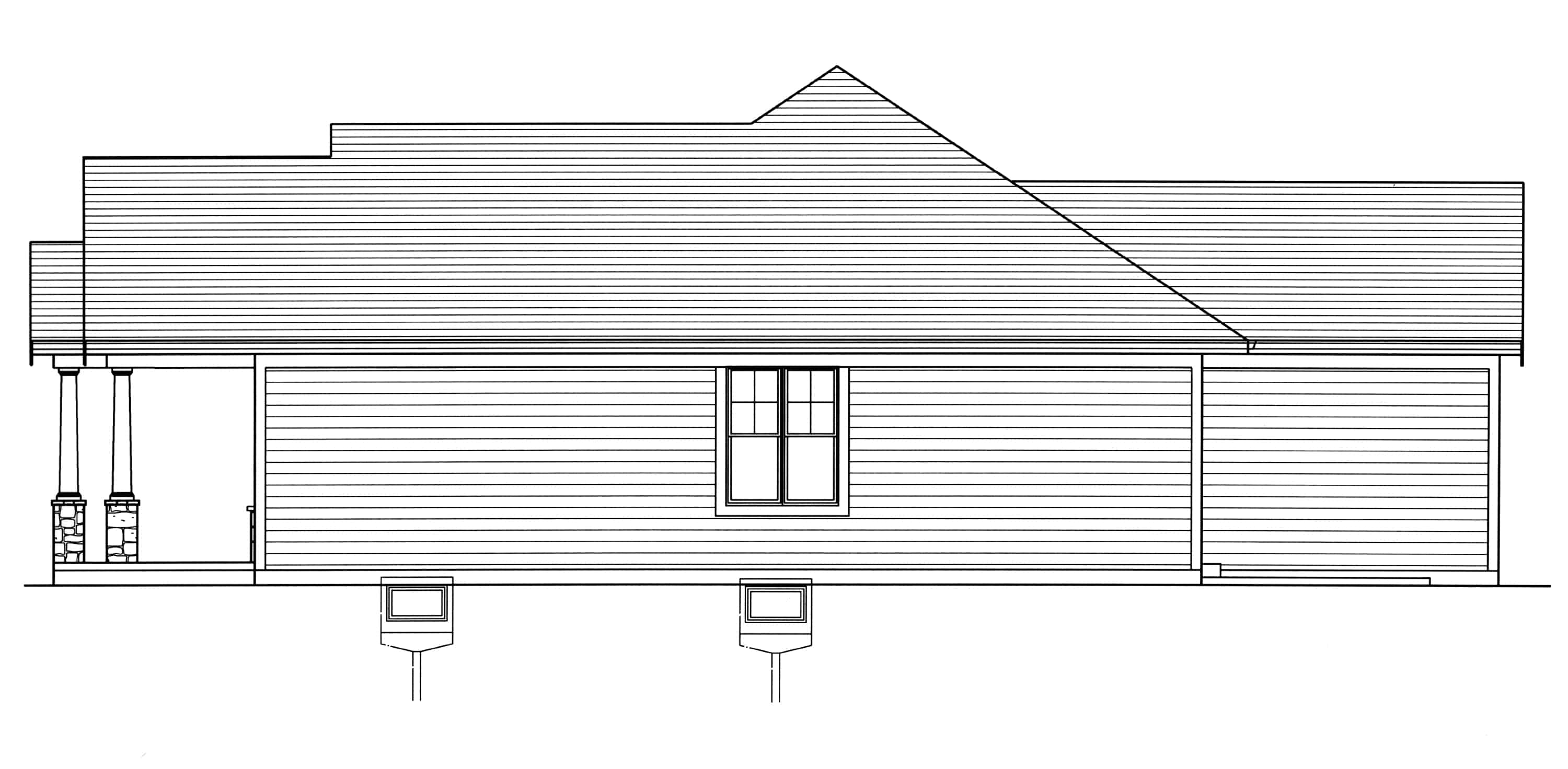

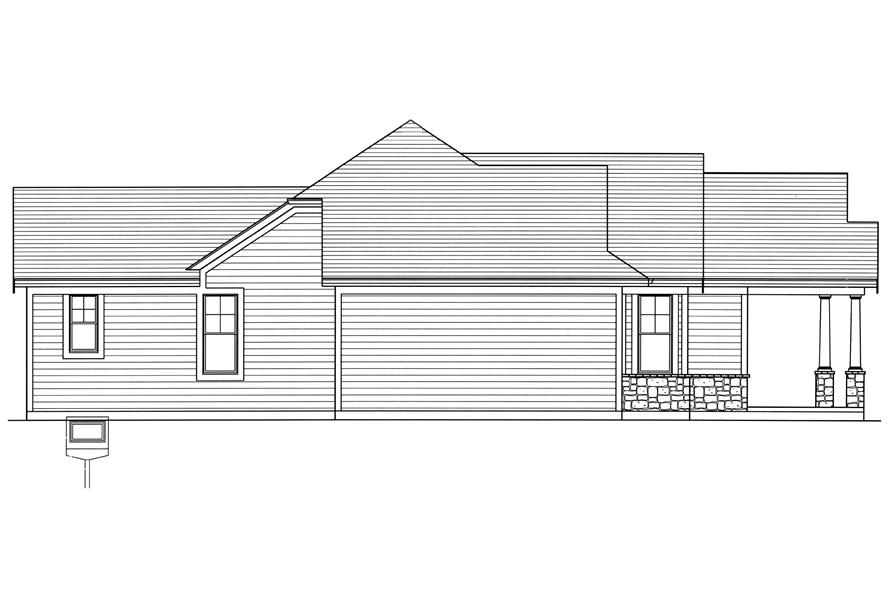

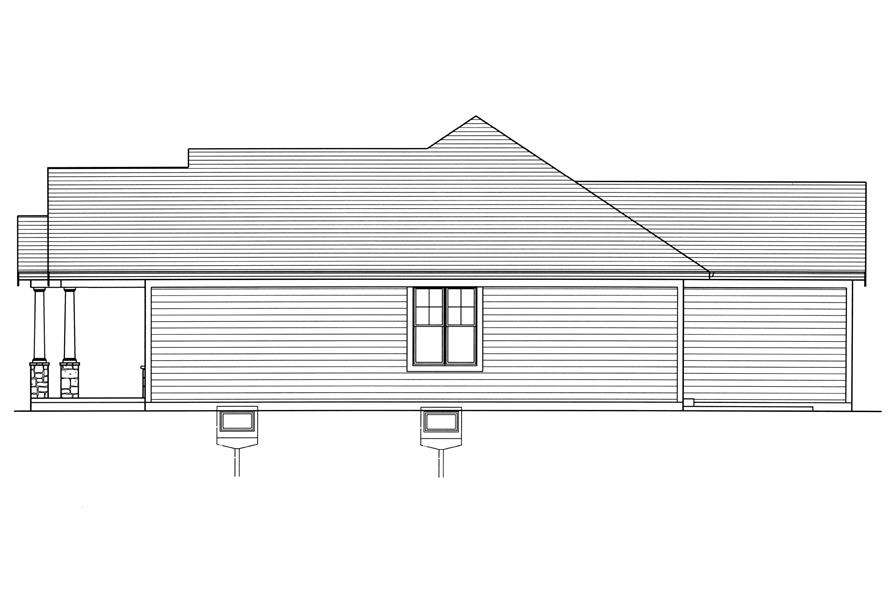

- Front, rear and side elevations (1/4" scale)

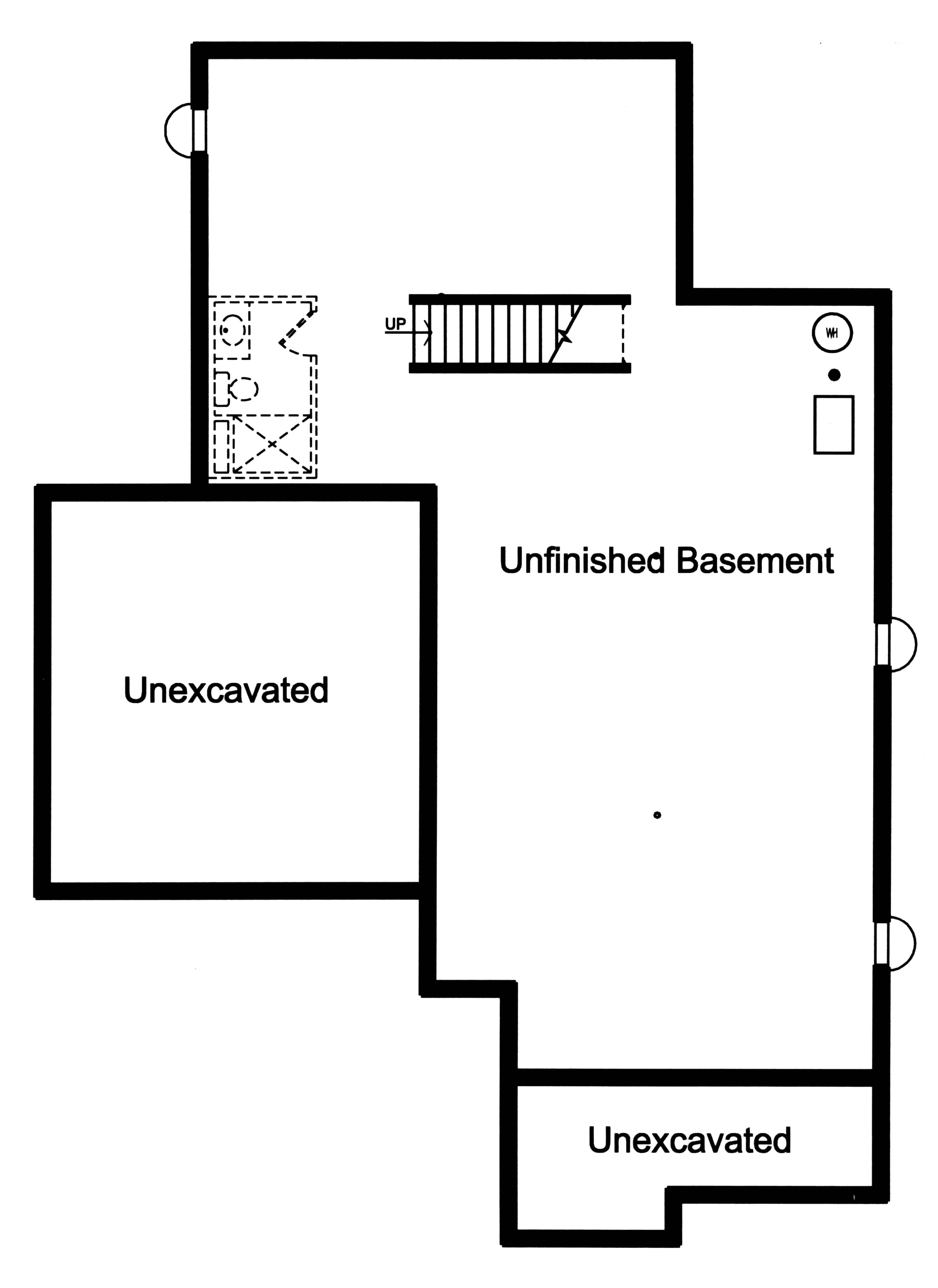

- Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
- Reinforced foundation and footing details
- First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
- Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction method
- Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

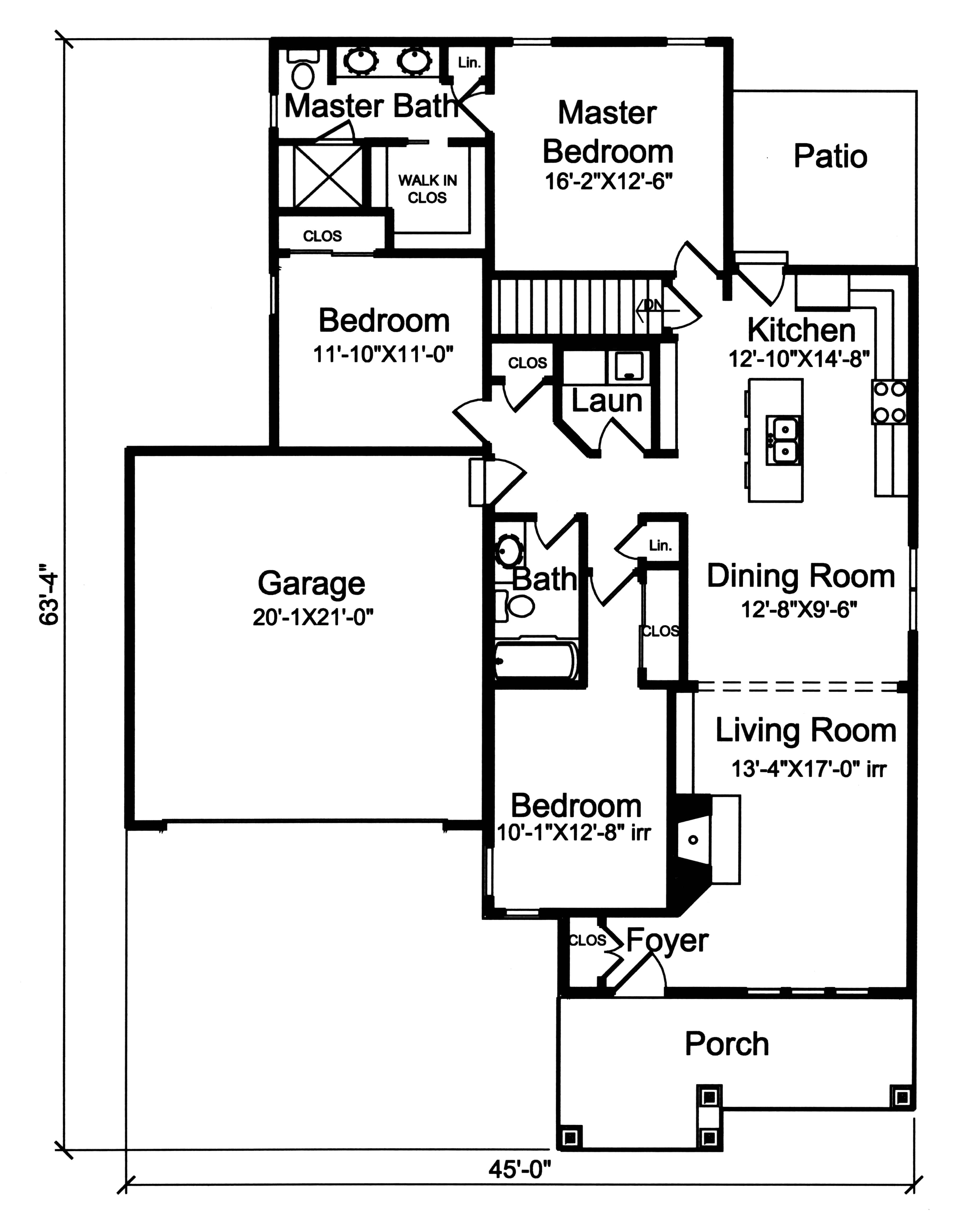

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Roof Pitch
Ceiling Height
Special Feature
Garage Type
Fireplaces
Exterior Wall Framing
Building Lot Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
