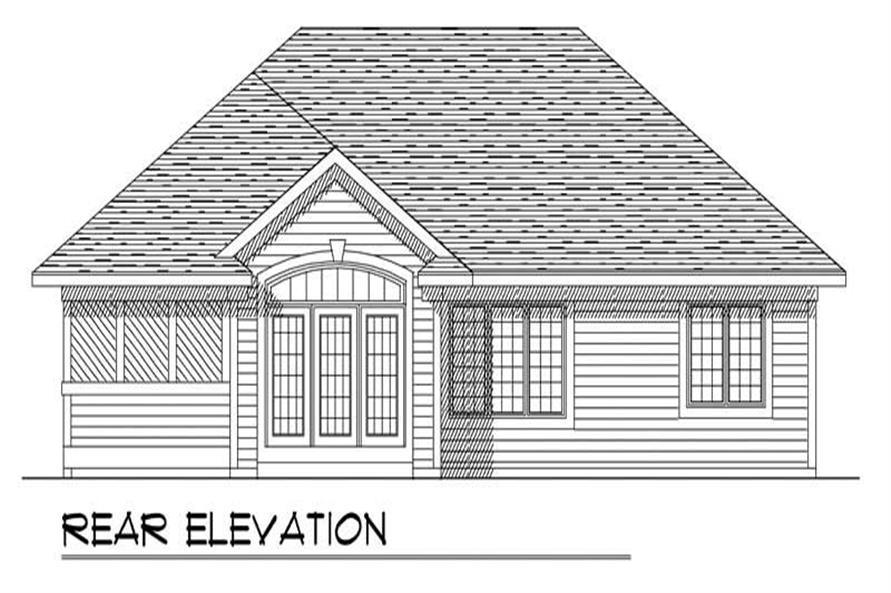

REAR ELEVATION
LEFT ELEVATION

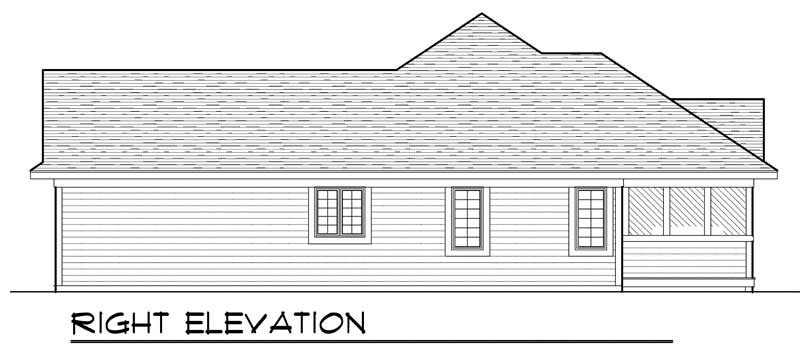

RIGHT ELEVATION
101-1792: Home Other Image-Front View
3-Bedroom, 1460 Sq Ft Craftsman Home Plan - 101-1792 - Main Exterior
REAR ELEVATION
LEFT ELEVATION
RIGHT ELEVATION
101-1792: Home Other Image-Front View

About Plan # 101-1792

About Plan # 101-1792

1460 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 48' 0" WIDTH 55' 4" DEPTH 2 GARAGE BAY
The careful use of space in this traditional ranch makes it a highly functional home that makes the most of only 1472 square feet. This adorable home features a kitchen, dining and great room space that all work together to provide a large functional space that doesn't give up design. From the corner fireplace and cathedral ceiling of the great room, to the arches over the breakfast bar, this floor plan is sure to please any family. The master suite not only features a walk-in closet, but it also has a Jacuzzi tub, perfect for relaxing after a hard day at work.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

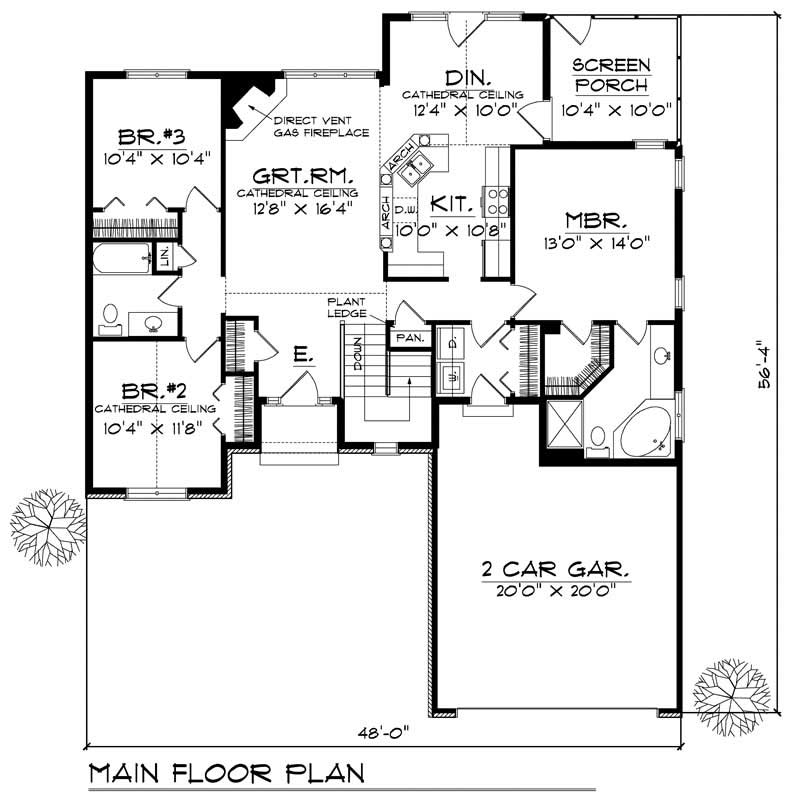

Home Plan: #101-1792 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #101-1792
