3-Bedroom, 1180 Sq Ft Country Plan with Nook/Breakfast Area

This is the colored front rendering for Ranch House Plan LS-B-92017
3-Bedroom, 1180 Sq Ft Country House Plan - 146-2950 - Front Exterior

About Plan # 146-2950

About Plan # 146-2950

1180 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 38' 0" WIDTH 36' 0" DEPTH 0 GARAGE BAY
Designed with special or changing family needs in mind, this affordably sized cottage is barrier-free. The inviting covered entrance opens to the vaulted living room, featuring corner windows and a fireplace. The adjoining kitchen also has a vaulted ceiling and boasts a cleverly designed serving counter with knee space below, and sliding glass doors to a large outdoor deck. The master suite includes an oversized walk-in closet and sitting area, and a handicapped accessible shower. Two secondary bedrooms share a full bath to complete this design.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

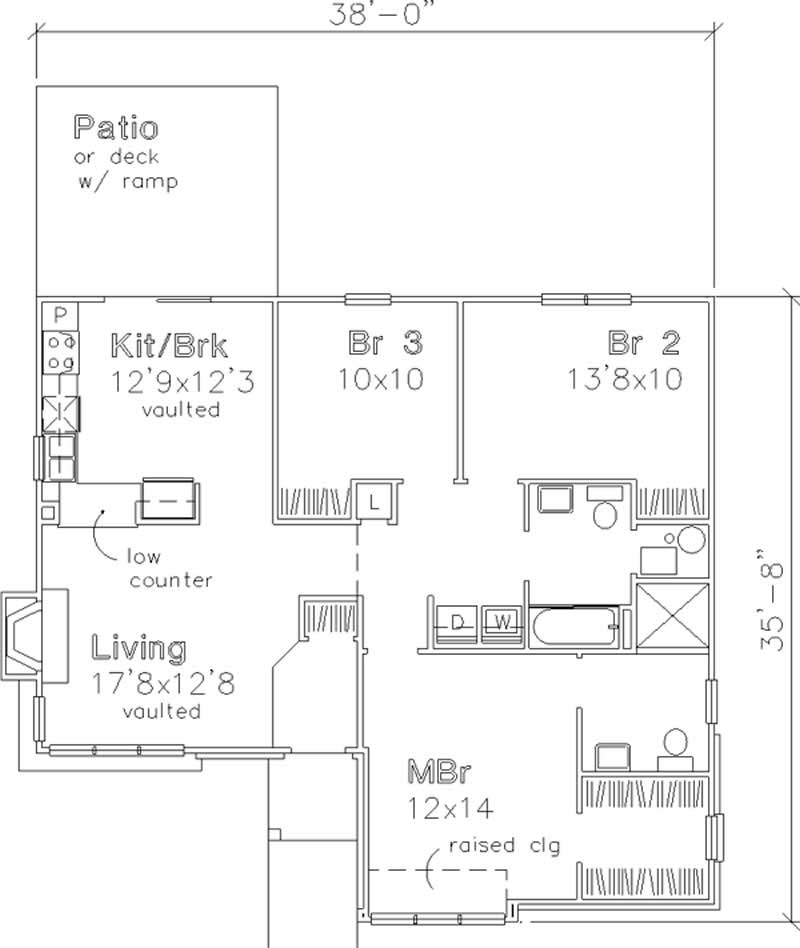

Home Plan: #146-2950 Floor Plan First Story - first story Floor Plan First Story of Country Plan #146-2950
Home Plan: #146-2950 Floor Plan First Story - first story Floor Plan First Story of Country Plan #146-2950
