3-Bedroom, 1602 Sq Ft European Home Plan - 141-1190 - Main Exterior

About Plan # 141-1190

About Plan # 141-1190

1602 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 50' 0" WIDTH 71' 0" DEPTH 2 GARAGE BAY

This open plan is certain to fulfill the needs and desires of owners and builders alike. The master suite is well appointed with a trayed ceiling, large his and her closets, garden tub, large shower, and dual lavatories. The layout of the open living area lends itself to our more casual style of life. A flex space is provided to better fill the unique needs of the owner. Large garage with open and closed storage space. Covered porch on rear for grilling out, reading the paper, and chatting with friends. A unique narrow lot design.

Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:

  • Cover page with rendering
  • foundation plan with typical details
  • floor plans with ceiling framing notes
  • four exterior views of exterior
  • roof plan, and rafter layout plan
  • full cross section through house, and typical wall sections
  • stair section (if there are stairs)
  • Bonus room/garage section if there is a bonus room/garage
  • Interior cabinet drawings
  • Misc. structural details
  • Electrical plan with lighting, outlets, switches, etc..

Not Included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

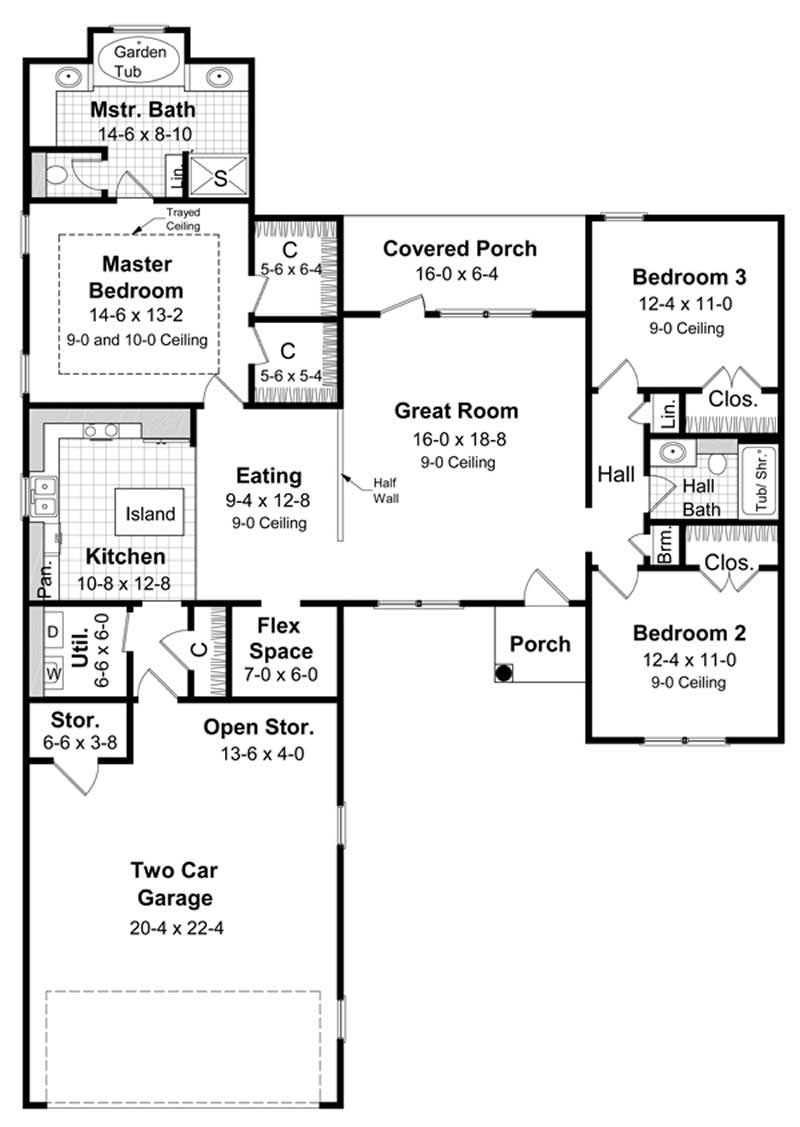

Home Plan: #141-1190 Floor Plan First Story Floor Plan First Story of European Plan #141-1190
Home Plan: #141-1190 Floor Plan First Story Floor Plan First Story of European Plan #141-1190
