Ranch Home - 4 Bedrms, 3 Baths - 2800 Sq Ft

Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.

About House Plan #204-1013

2800

Sq Ft

4

Bedrooms

3

Baths

0

Half Baths

3

Cars

1

Stories

84' 11'

Width

89

Depth

From$1295What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

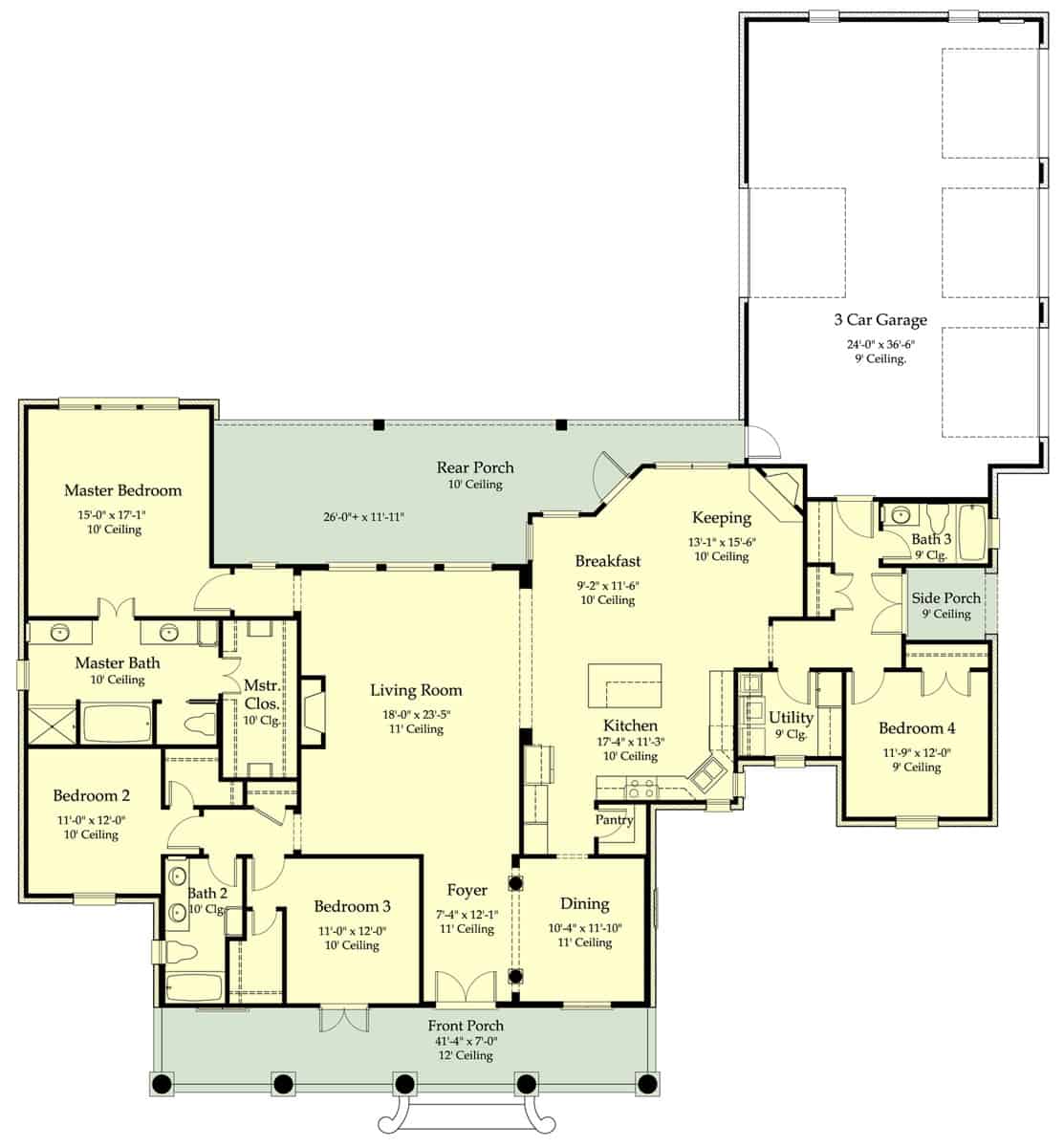

Floor Plan Main Level

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!

House Plan Description

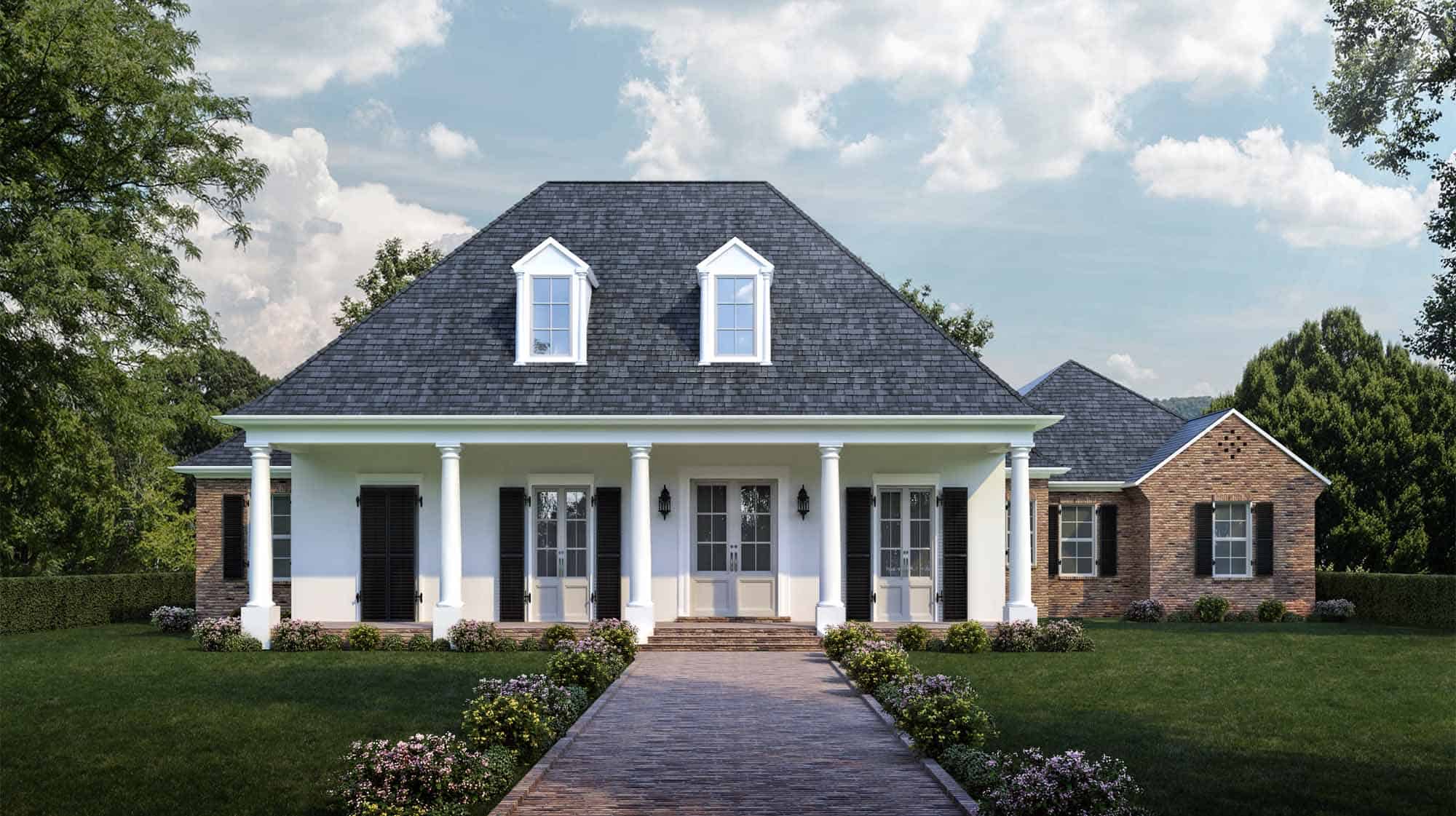

This Ranch house with Colonial characteristics is larger than it appears from the curb, with its 3-car side-loading garage tucked away in the back. The steep hip roof, front porch, and large windows give the home an interesting, stately character. The magnificent 1-story floor plan has 2800 square feet of heated-cooled...

Home Details

Summary

Plan #:204-1013

Floors:1

Bedrooms:4

Full Baths:3

Half Baths:0

Garage:

Square Footage

Heated Area::2800 Sq. Ft.

Main Floor:2800 Sq. Ft.

Dimensions

Width:84' 11''

Depth:89' 4''

Architectural Styles

Colonial Country Ranch Traditional

Exterior Wall Material

BrickStucco

Roofing Type

GableHip

Roofing Material

Asphalt Shingles

Roof Pitch

9/12

Ceiling Height

10 Foot Ceiling11 Foot Ceiling

Special Feature

FireplaceDining RoomFamily RoomMain Level LaundrySplit BathroomOpen Floor Plan

Garage Type

Attached GarageSide Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x4

Building Lot Type

Corner Lot

Kitchen Features

Kitchen IslandNook/Breakfast AreaWalk-in PantryPeninsula/Eating BarEat-In Kitchen

Porches and Exterior Features

Covered Front PorchCovered Rear PorchFriend's Entry

Master Suite Features

Main Floor MasterMaster BathroomWalk In Closet

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

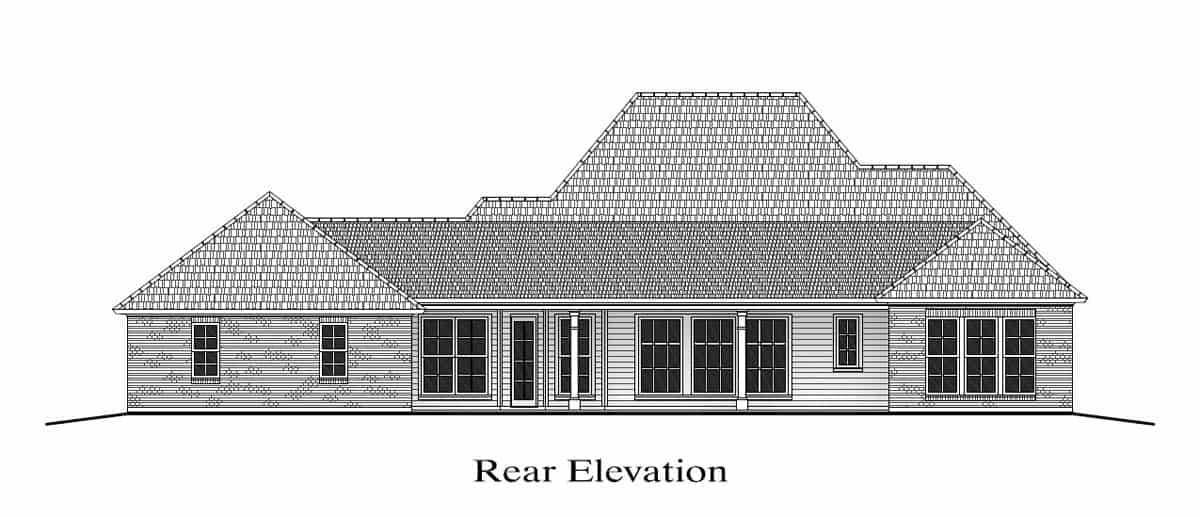

Exterior Elevations

Roof Plan

Floor Plan

Foundation Plan

Cabinet Elevations

Room Schedule

Window Schedule

Door Schedule

Electrical Plan

Wall Sections

General Notes

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
