4-Bedroom, 2073 Sq Ft Transitional Ranch Plan with High Ceilings

Transitional Ranch home (ThePlanCollection: Plan #204-1007)

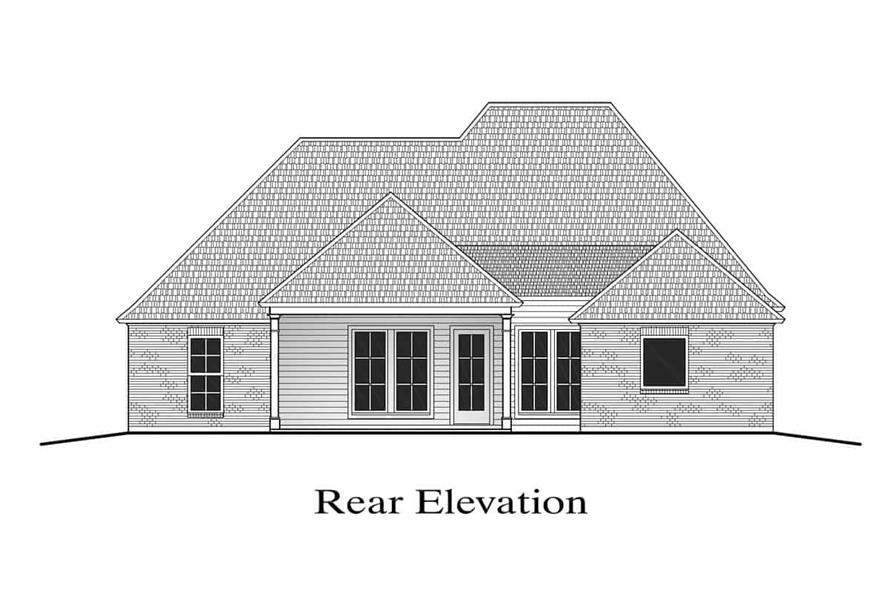

204-1007: Home Plan Rear Elevation
204-1007: Home Plan Rendering-Front View
4-Bedroom, 2073 Sq Ft Transitional Ranch Home - Plan #204-1007 - Main Exterior

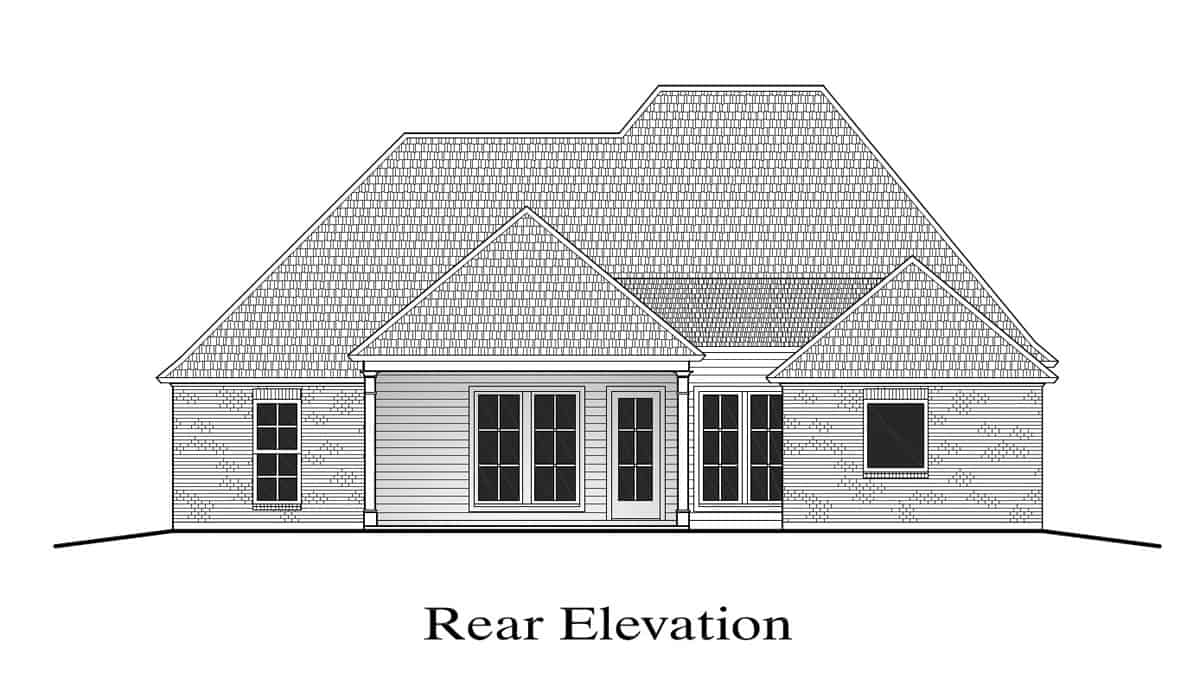

204-1007: Home Plan Rear Elevation
204-1007: Home Plan Rendering-Front View

About Plan # 204-1007

About Plan # 204-1007

2073 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 54' 0" WIDTH 80' 0" DEPTH 2 GARAGE BAY

This superb Transitional Ranch style home is sure to capture your attention with its classy design and looks. The steep hip roof with gable dormers, large multi-pane windows, graceful arches above the doors, and painted brick give the house its irresistible curb appeal. The splendid 1-story floor plan has 2073 square feet of conditioned living space and includes 4 bedrooms, 2 full bathrooms (one a split bathroom to serve 3 secondary bedrooms), an expansive open floor plan, and a home office.

Each plan set includes the following:

  • COVER SHEET & GENERAL NOTES
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes wall sections and cabinet elevations.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

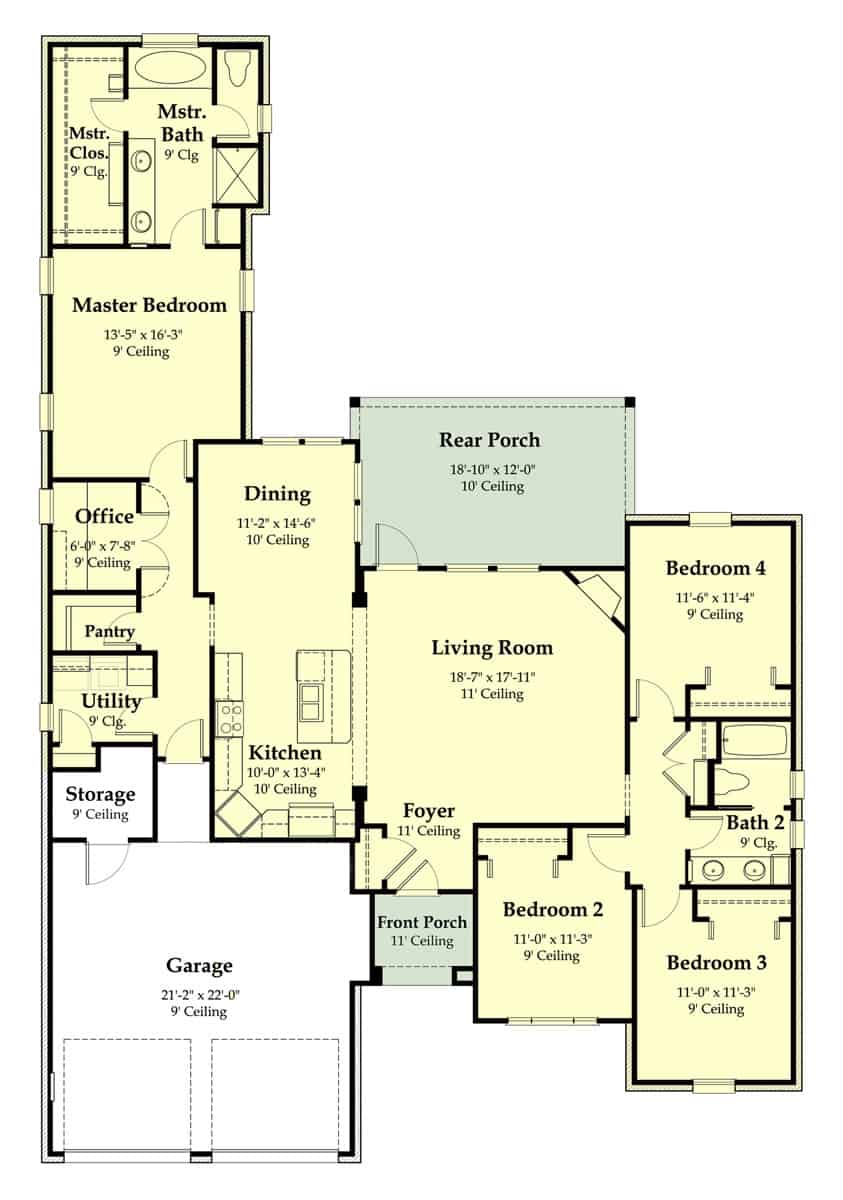

Home Plan: #204-1007 Floor Plan First Story - main level Floor Plan Main Level of Southern Plan #204-1007
