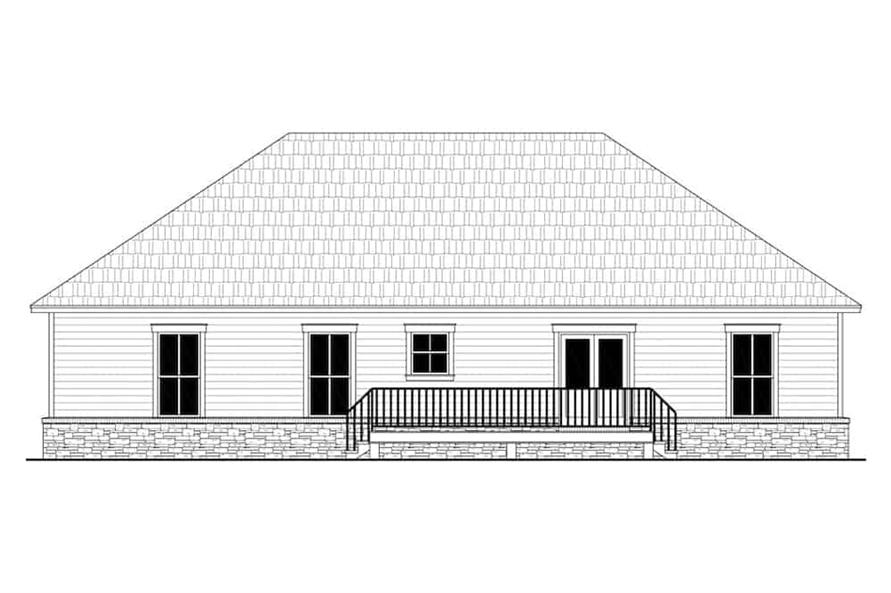

141-1316: Home Plan Rear Elevation
3-Bedroom, 1600 Sq Ft Ranch House - Plan #141-1316 - Front Exterior

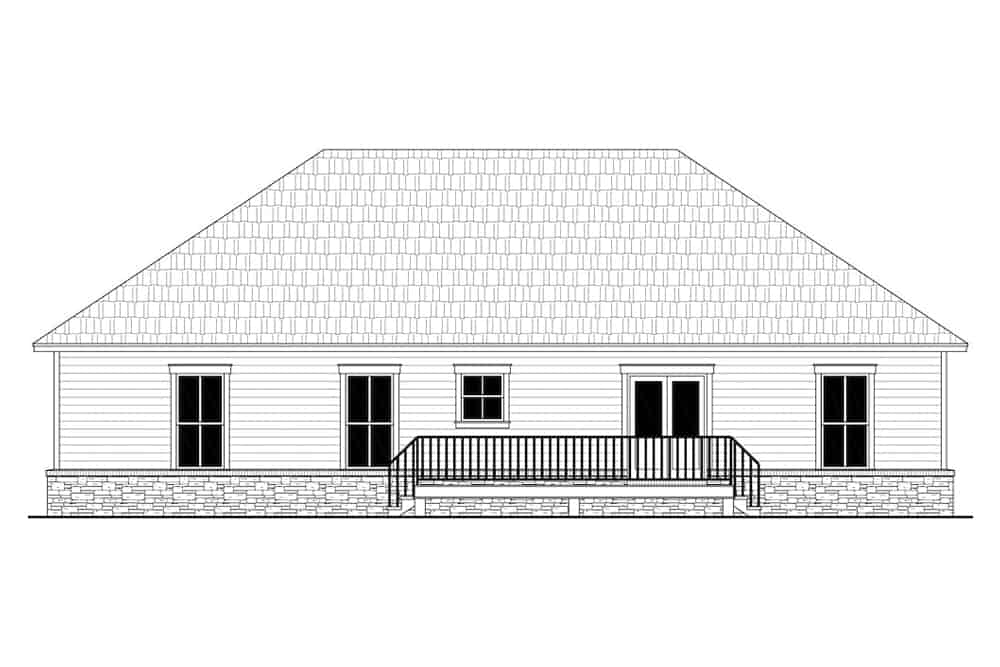

141-1316: Home Plan Rear Elevation

About Plan # 141-1316

About Plan # 141-1316

1600 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 56' 0" WIDTH 62' 4" DEPTH 2 GARAGE BAY

This single-story traditional ranch home is a good investment. As it provides a very functional split floor plan layout with many of the features that your family desires. The great combination of stone and siding material adds its positive appeal. This house has a total finished and unfinished area of 2,327 square feet with 1,600 square feet of living space.

Upon stepping in front of the house, a nice covered porch protects the main entrance door that ushers you into the Great Room, dining room, and kitchen. It has a large open floor plan with a vaulted ceiling over the kitchen and Great Room. The front and rear covered porches is a good expansion space on special occasions or gatherings making the living areas bigger.

The 2-car garage at the front has an ample amount of storage space and a back entrance that provides private access to the master bedroom. The house plan has an expansive master suite with a bathroom and plenty of storage space in the large master walk-in closet. On its opposite side are the other two bedrooms and a shared bathroom with a nice hallway giving importance to the privacy of the residents.

Other amenities provided by this house include the laundry room, staircase allotment for an optional basement foundation, mechanical storage room, and a coat cabinet storage. This house definitely is a great value with a wide variety of innovative features. Make this your home today!

Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:

  • Cover page with rendering
  • foundation plan with typical details
  • floor plans with ceiling framing notes
  • four exterior views of exterior
  • roof plan, and rafter layout plan
  • full cross section through house, and typical wall sections
  • stair section (if there are stairs)
  • Bonus room/garage section if there is a bonus room/garage
  • Interior cabinet drawings
  • Misc. structural details
  • Electrical plan with lighting, outlets, switches, etc..

Not Included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

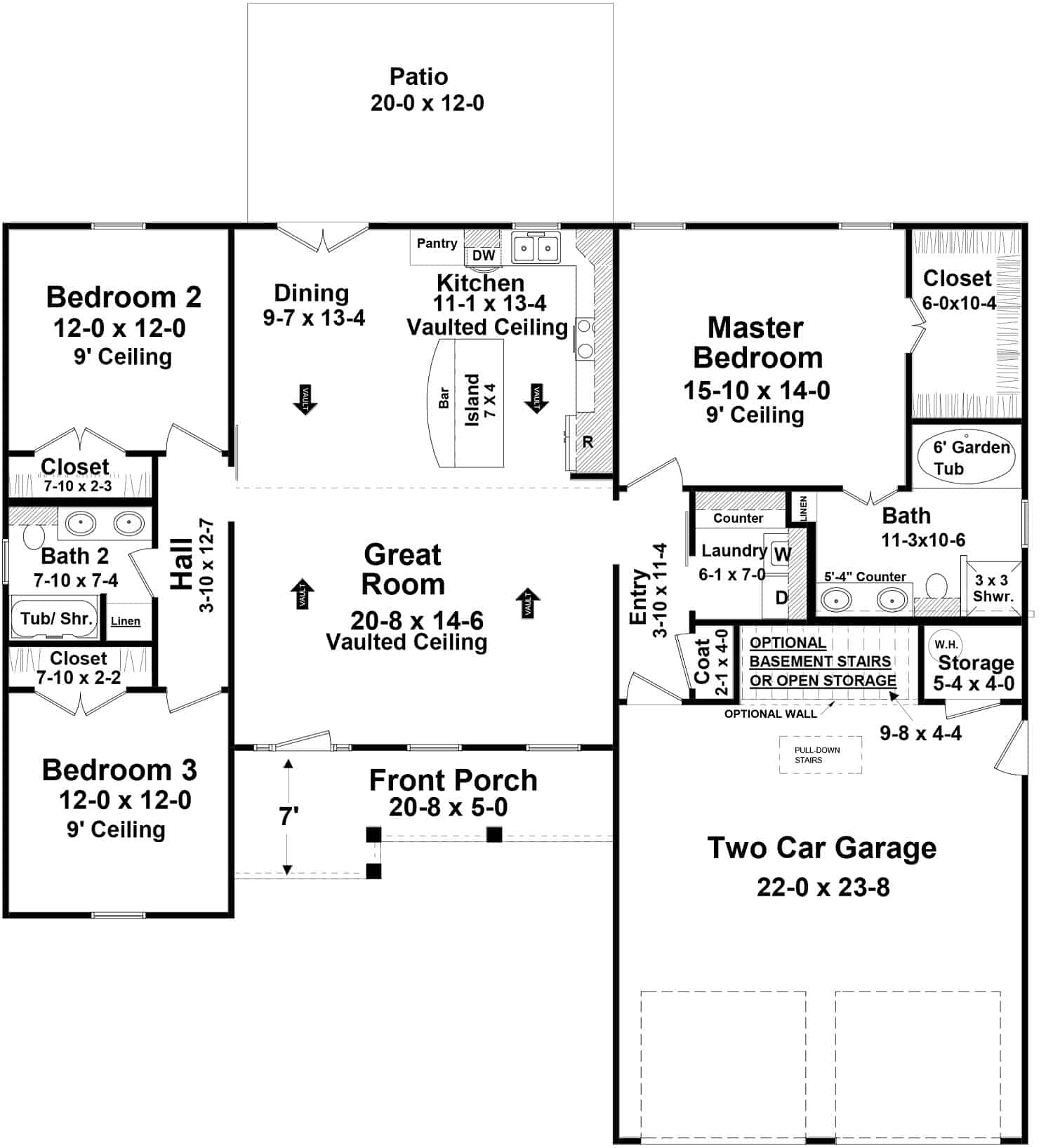

Home Plan: #141-1316 Floor Plan First Story - first story Main Level of Ranch Plan #141-1316
