2-Bedroom, 1719 Sq Ft Vacation Plan with Vaulted Ceilings

Front elevation of Vacation home (ThePlanCollection: House Plan #150-1010)
150-1010 rear view
2-Bedroom, 1719 Sq Ft Vacation House Plan - 150-1010 - Front Exterior
150-1010 rear view

About Plan # 150-1010

About Plan # 150-1010

1719 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 48' 1" WIDTH 43' 9" DEPTH 0 GARAGE BAY

This charismatic vacation home catches your attention with its multiple porches, bold rooflines, and mix of exterior materials. Step inside the foyer and into the open, vaulted living and dining space. The efficiently-designed kitchen has a peninsula with snack bar and a walk-in pantry. The bedroom on the first floor enjoys a vaulted ceiling as well and is steps away from the full bathroom. Upstairs is the owners' retreat. It boasts vaulted ceilings, a sitting area, and access to two porches. There is also a huge walk-in closet and a large bathroom — with a laundry chute down to the first-floor utility room. In all, there are 1719 square feet of living space, two bedrooms, and two bathrooms, making this the perfect getaway vacation home!

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

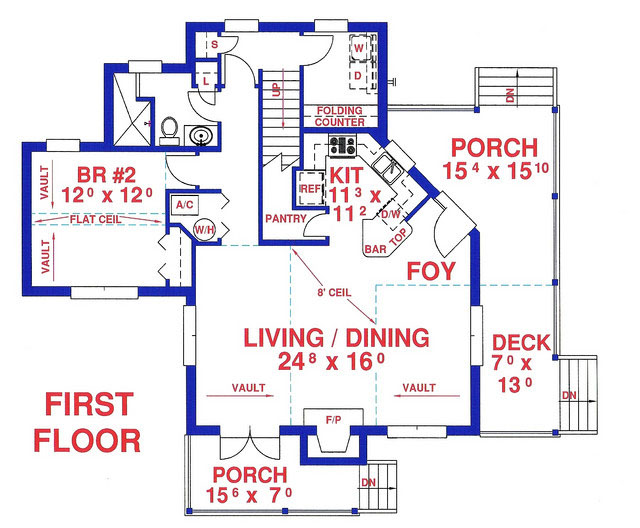

Home Plan: #150-1010 Floor Plan First Story - 150-1010 main level Floor Plan First Story of Vacation Homes Plan #150-1010

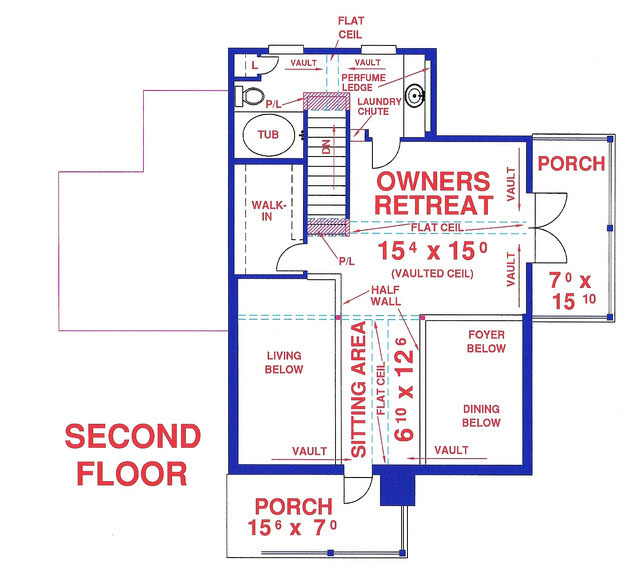

#150-1010 Floor Plan Second Story - 150-1010 2nd floor Floor Plan Second Story of Vacation Homes Plan #150-1010
