3-Bedroom, 3605 Sq Ft Country Plan with Eat-In Kitchen

This is a computer rendering of these Craftsman Home Plans.

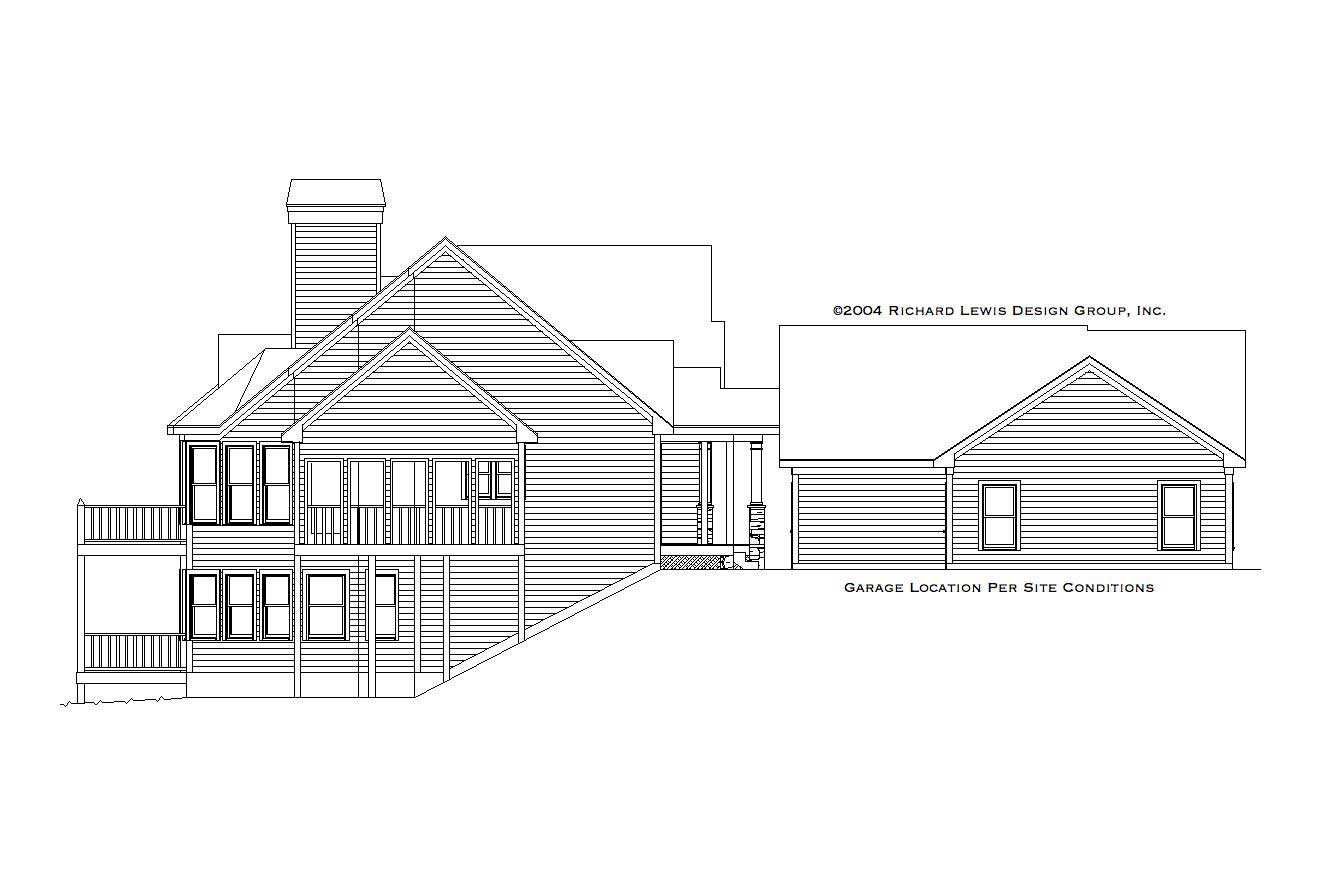

Home Plan Left Elevation

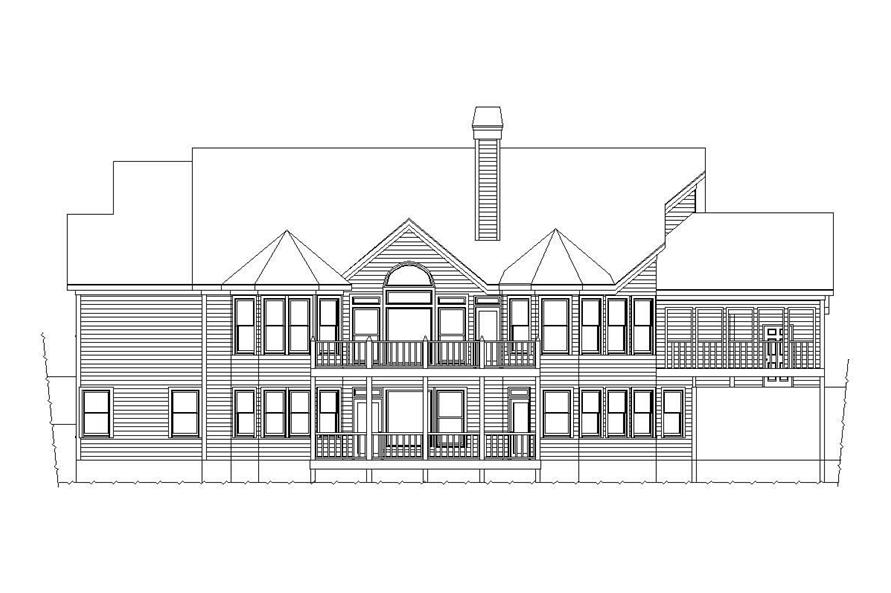

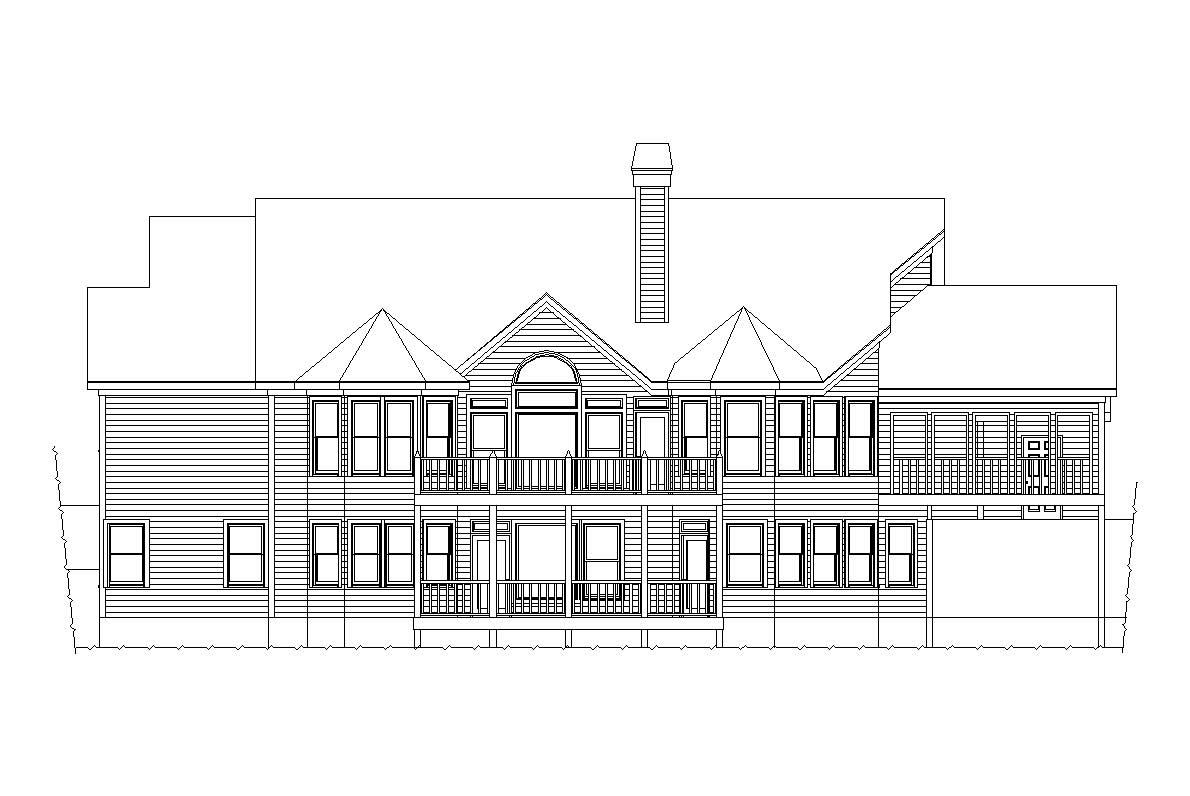

Home Plan Rear Elevation

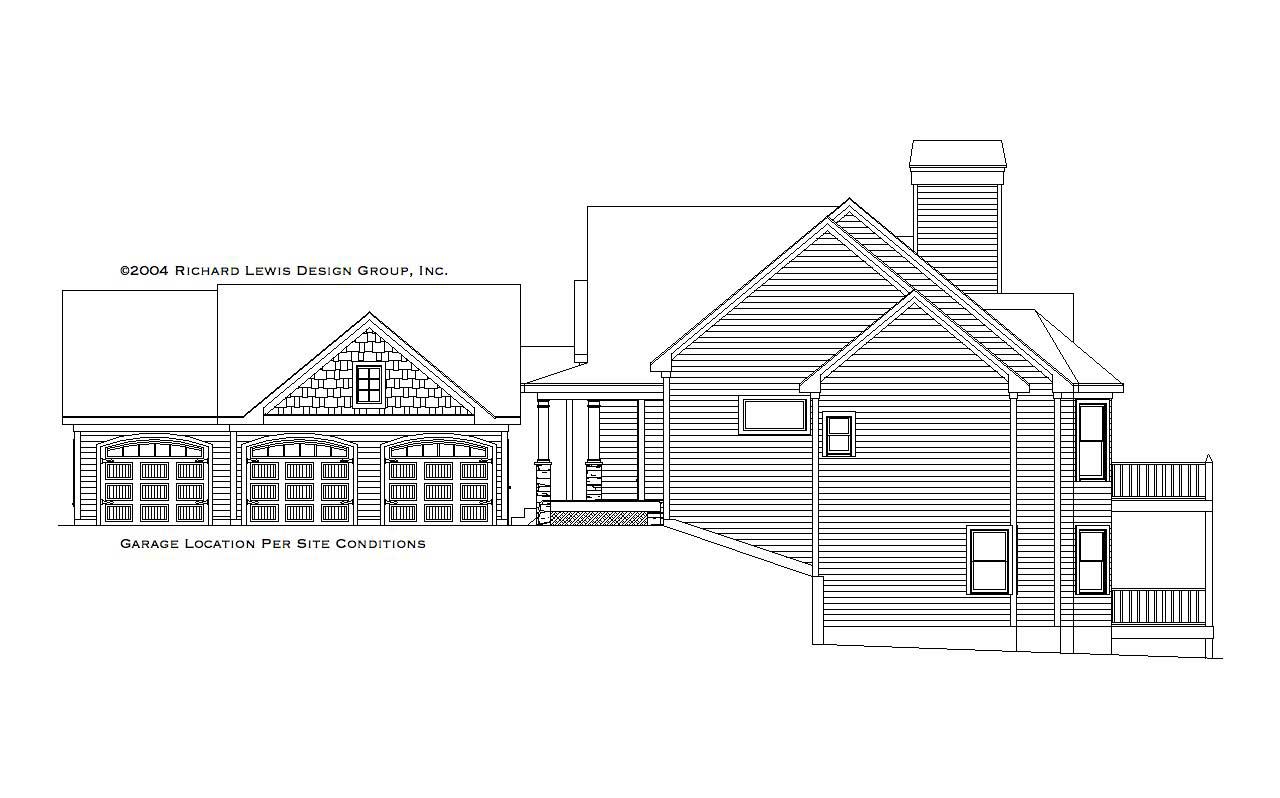

Home Plan Right Elevation
3-Bedroom, 3605 Sq Ft Country House Plan - 163-1035 - Front Exterior
Home Plan Left Elevation
Home Plan Rear Elevation

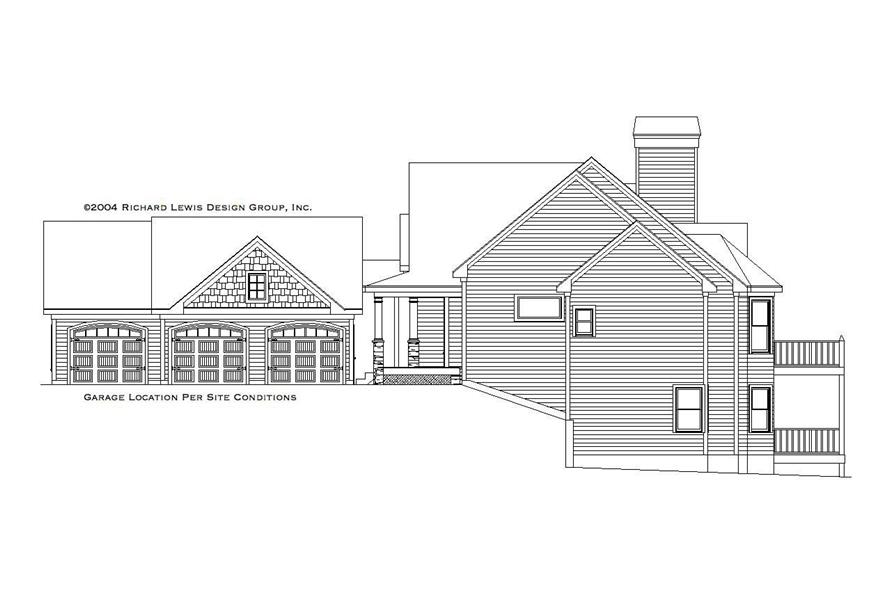

Home Plan Right Elevation

About Plan # 163-1035

About Plan # 163-1035

3605 SQUARE FEET 3 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 67' 6" WIDTH 45' 6" DEPTH 3 GARAGE BAY
The heart of this home is truly the kitchen - don't miss the dramatic keeping room/breakfast area with its access to both the screened porch and the deck. Also note the angled cooking island and the huge walk-in pantry. The adjoining vaulted great room with its wall of windows and fireplace and a formal dining room make this the perfect home for entertaining in a beautiful setting. The master suite, a powder room and a large laundry room complete the main level. The terrace level is what makes our mountain plans work on those steep lots. This space can be finished as desired and has the advantage of the same views as the main level. The angled room designated as an office could be used in many different ways; 2 bedrooms and baths, a rec room, additional work space or workout area and plenty of storage complete the terrace level.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

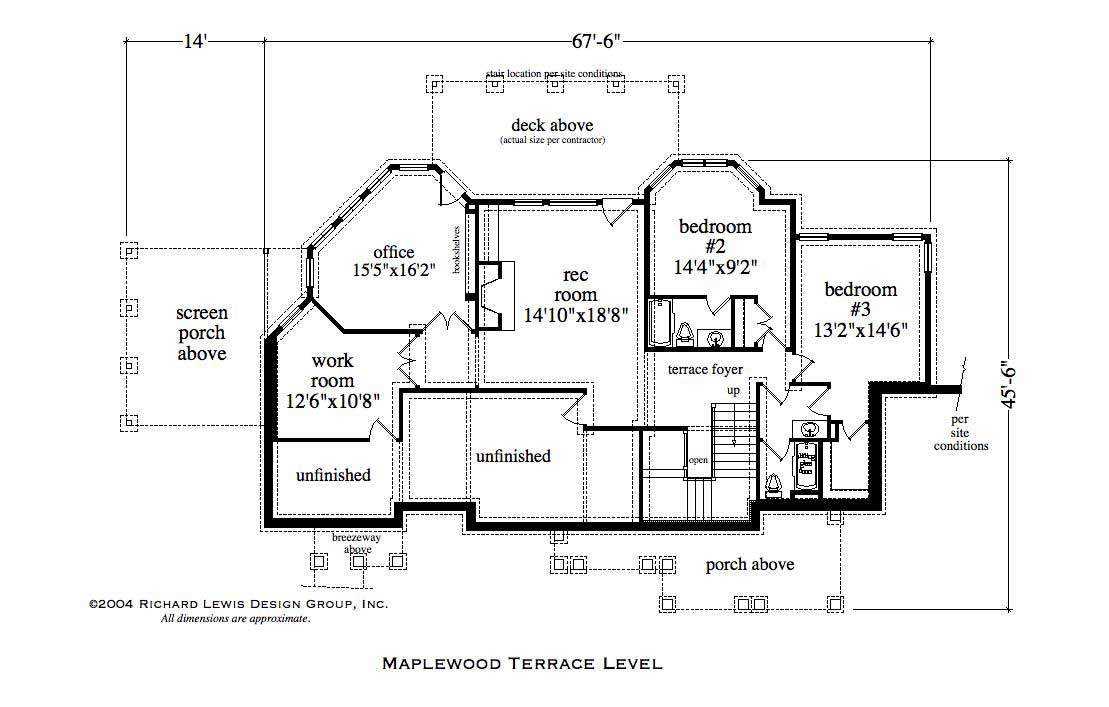

Home Plan: #163-1035 Floor Plan Basement - basement Floor Plan Basement of Country Plan #163-1035

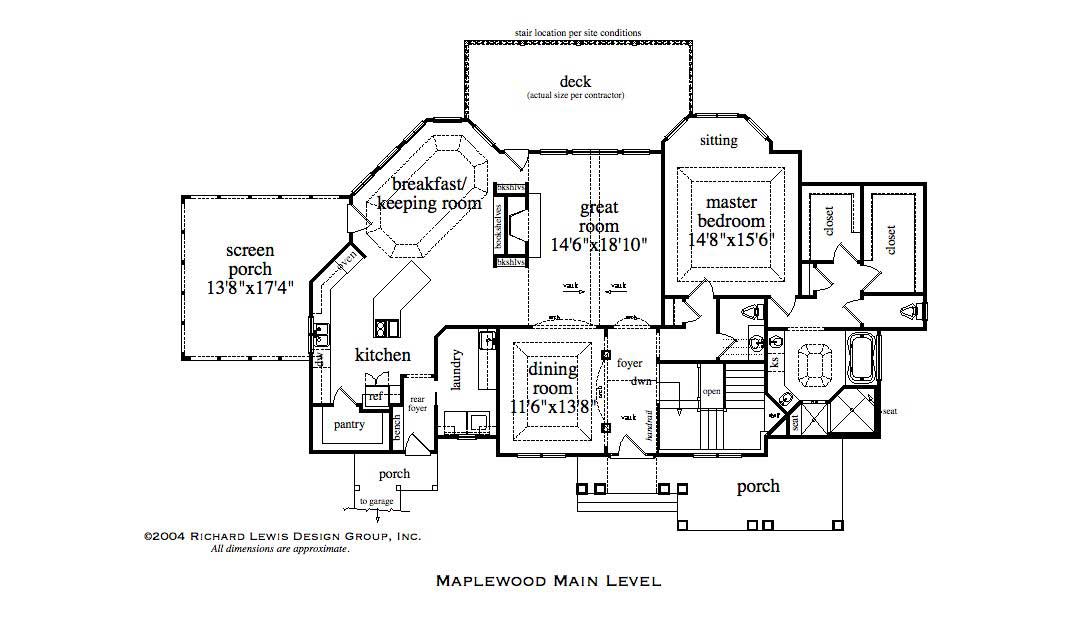

#163-1035 Floor Plan First Story - first story Floor Plan First Story of Country Plan #163-1035
Home Plan: #163-1035 Floor Plan Basement - basement Floor Plan Basement of Country Plan #163-1035
#163-1035 Floor Plan First Story - first story Floor Plan First Story of Country Plan #163-1035
