6-Bedroom, 8205 Sq Ft Luxury Plan with Peninsula/Eating Bar

Luxury House Plans 117-1053 color rendering.
Home Plan Rear Elevation
6-Bedroom, 8205 Sq Ft Luxury House Plan - 117-1053 - Front Exterior
Home Plan Rear Elevation

About Plan # 117-1053

About Plan # 117-1053

2 FLOOR 160' 0" WIDTH 109' 6" DEPTH 4 GARAGE BAY

This Luxury House Plan is spectacular two story home with 8205 total square feet! Some of the special features of this luxury house plans include an Exuberant Front Courtyard, second floor dining area, and a second floor game room.

Each plan set includes the following:

  • FLOOR PLANS: ¼”=1’-0” scale floor plan indicating the location of frame and masonry walls, support members, doors, windows, plumbing fixtures, kitchen appliance locations, cabinet locations, tags to cross-section details, shelving, ceiling conditions, and notes deemed relevant to this plan.
  • EXTERIOR ELEVATIONS: All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate the overall configuration of the home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and the extent to which they are used, and enlargement of any details deemed necessary to explain the construction.
  • BUILDING SECTIONS: ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
  • FOUNDATION PLAN: ¼” = 1’-0” scale foundation plans. The slab foundation comes with both interior and exterior beams. Dimensioned and noted foundation layout, including references to support walls, excavated and unexcavated areas. Basement foundation plans may show additional walls, grade beams, reinforcing steel, and structural columns. Structural information for all foundation types should be obtained by a locally licensed engineer for your specific site location.
  • FRAMING PLANS: ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted. Includes floor, ceiling, and roof framing schematics.
  • CABINET ELEVATIONS: 3/8” = 1’-0” scale elevations indicating the configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, and appliances.
  • ELECTRICAL PLAN: ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched. Plans do not include circuiting or wire sizing. Plans will also include specialty items such as hose bibbs, gas connections, location of A/C equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

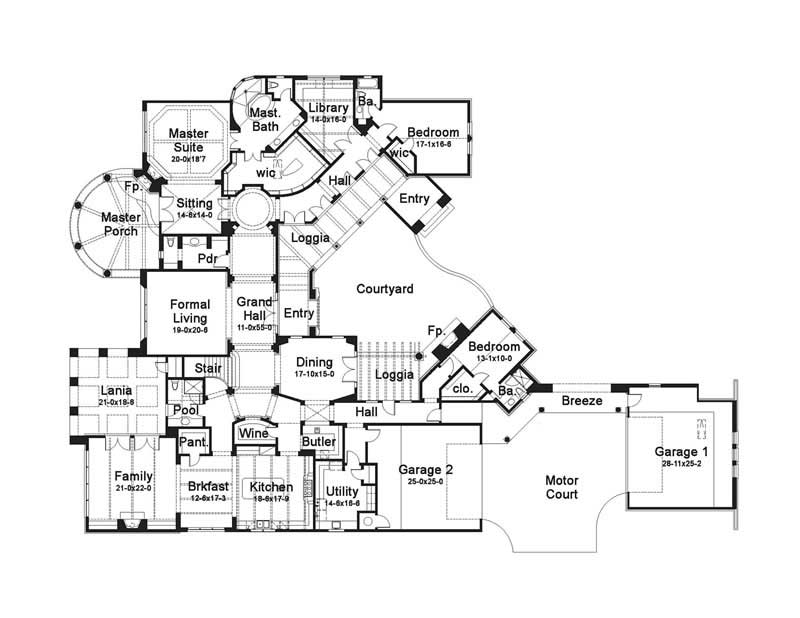

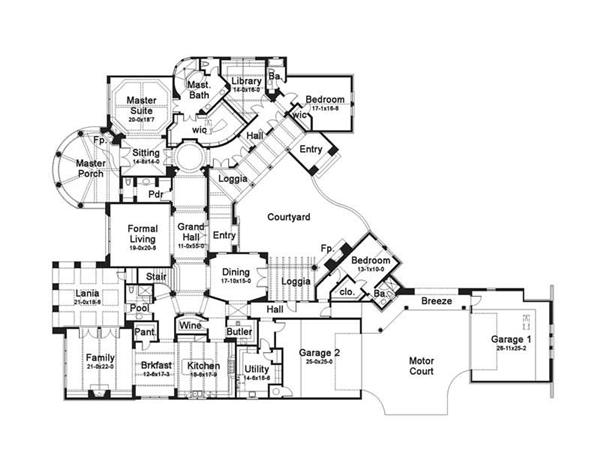

Home Plan: #117-1053 Floor Plan First Story - main Floor Plan First Story of Luxury Plan #117-1053

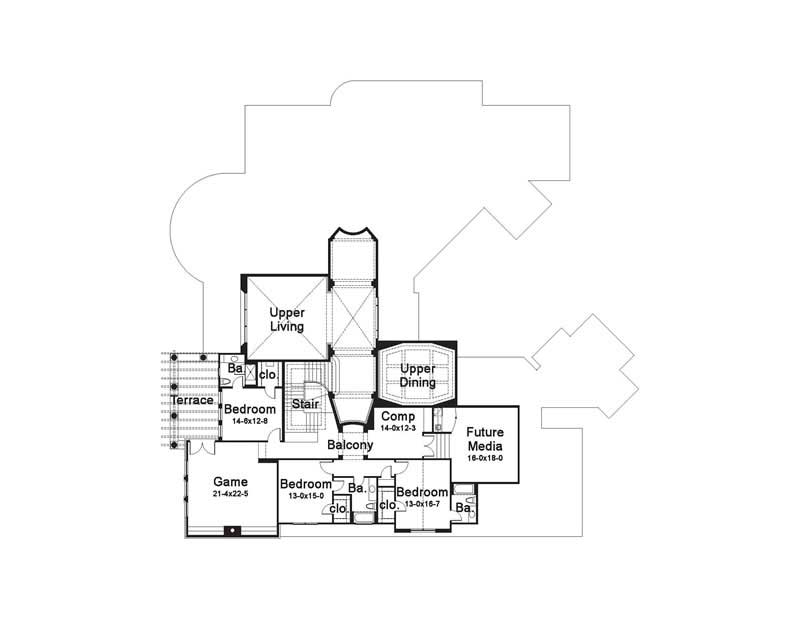

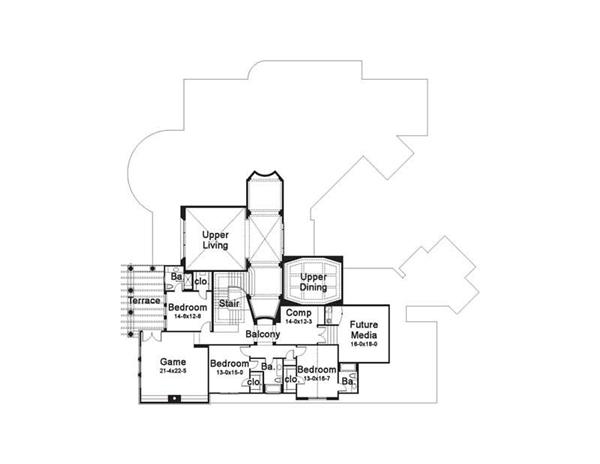

#117-1053 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #117-1053
Home Plan: #117-1053 Floor Plan First Story - main Floor Plan First Story of Luxury Plan #117-1053
#117-1053 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #117-1053
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 117-1053
Full Baths:
Half Baths:

Square Footage

Heated Sq Feet:
Main Floor:
Upper Floor:
Unfinished Sq Ft:


160' 0"
109' 6"
Ridge Height:
32' 7"

Architectural Styles

Texas Style

Special Feature

Mother in law apartment
Dining Room
Family Room
Game Room
Main Level Laundry
Media Room
Wine Cellar

Garage Type

Attached Garage
Courtyard Entry
Side Entry

Exterior Wall Framing


Kitchen Features

Kitchen Island
Butler's Pantry
Nook/Breakfast Area

Porches and Exterior Features

Covered Rear Porch
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Sitting Area
Private Deck


A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.


All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
