About Plan # 107-1074

About Plan # 107-1074

6904 SQUARE FEET 6 BEDROOMS 7 FULL BATH 2 HALF BATH
2 FLOOR 129' 3" WIDTH 99' 9" DEPTH 5 GARAGE BAY
You’ll love every inch of this vast design. This quintessential Florida coastal home plan is derived from traditional Spanish heritage. The grand style of this luxurious six bedroom home brings elegance and grace to perfection. Contemporary construction and generous modern amenities combine with the classic charm of elaborate detail to display an aura of grandeur, making this home the ultimate regal residence. This magnificent manor offers an enormous amount of living space, that will make living in this spacious home a true pleasure for the whole family. This house deserves a large lot with a great view. These luxury house plans are perfect for those who appreciate their privacy but love to entertain. The various covered patios and breezeways with bar and bar-b-queue grill make hosting parties a joy. The Library, formal Dining Room and Billiard Room make spending time with guests more personal. This well though out floor plan makes efficient use of every inch of floor space and provides such special features as a covered breezeway that leads to a secluded Guest Suite, and plenty of parking and storage.

Each plan set includes the following:

  • FLOOR PLAN: Fully dimensioned floor plan indicating the size and location of all walls, doors, windows, and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Aerial view showing the elements that make up the roof, including roof slopes, ridges, hips, and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing, and layout of all roof structural members.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes kitchen and bath layout.
  • KITCHEN & BATH LAYOUTS: The general layout of kitchens and baths is shown on the floor plan and includes fixtures and cabinetry.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

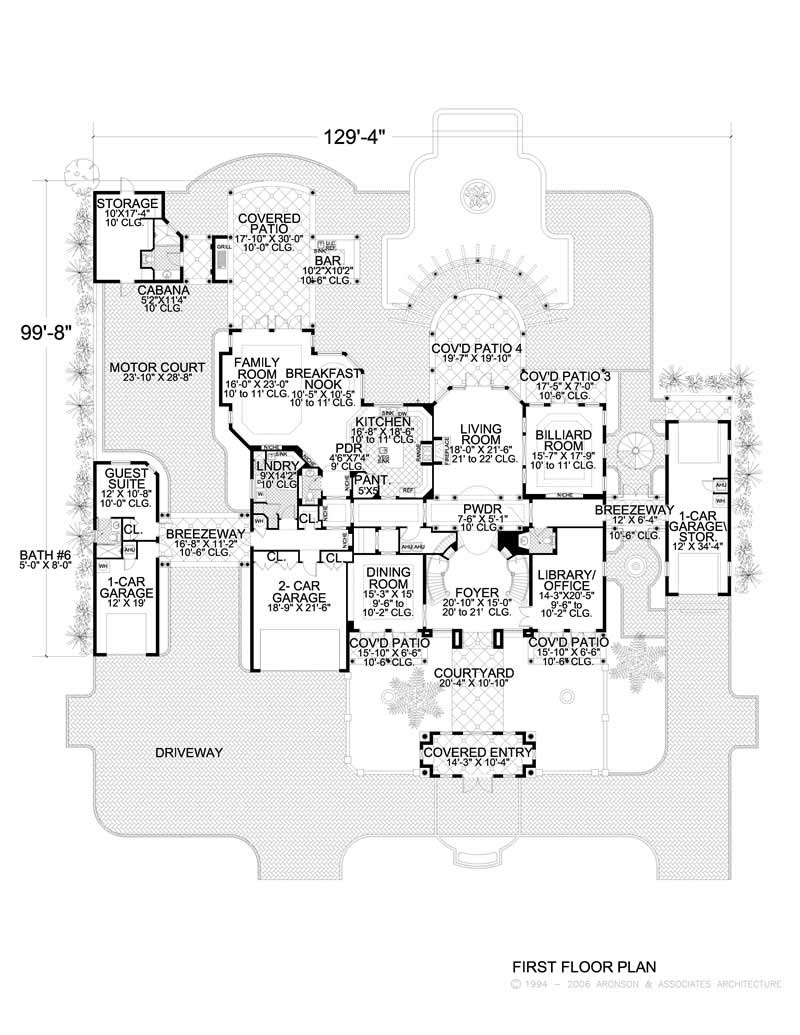

Home Plan: #107-1074 Floor Plan First Story - main level Floor Plan First Story of Coastal Plan #107-1074

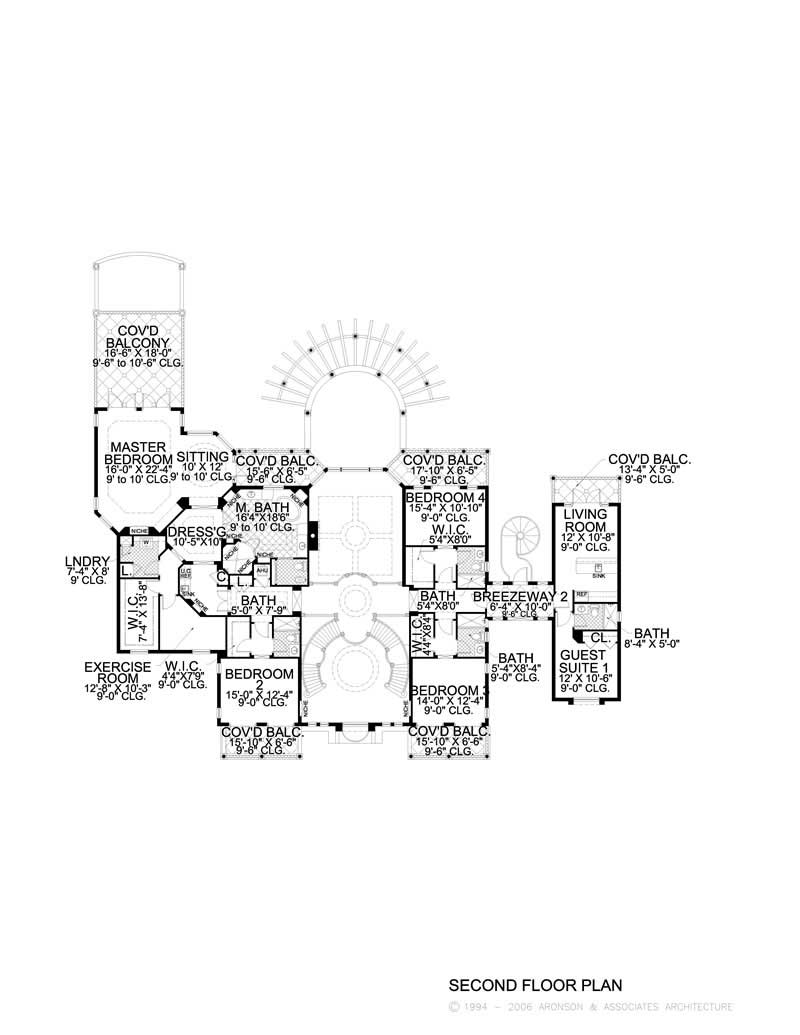

#107-1074 Floor Plan Second Story - second level Floor Plan Second Story of Coastal Plan #107-1074
