5-Bedroom, 6095 Sq Ft Spanish Plan with Walk-in Pantry

Color rendering of Spanish/Mediterranean Luxury House Plan #107-1020
107-1020: Home Plan Rendering-Pool
107-1020: Home Plan Rendering
5-Bedroom, 6095 Sq Ft Spanish House Plan - 107-1020 - Front Exterior
107-1020: Home Plan Rendering-Pool
107-1020: Home Plan Rendering

About Plan # 107-1020

About Plan # 107-1020

6095 SQUARE FEET 5 BEDROOMS 5 FULL BATH 0 HALF BATH
1 FLOOR 86' 8" WIDTH 147' 6" DEPTH 3 GARAGE BAY

This immaculate, 6095-total-living-square-foot home plan boasts the Spanish or Mediterranean design in every way. As you enter this 5 bedroom, 5 bathroom house plan, your eyes are greeted by the ever-spacious living room. To the left of the living room is the pantry, kitchen, family room, and guest room. To the right of the living room is the master bedroom and suite, an exercise room, and a study. This home plan boasts elegance through raising the standard of living in every aspect. If you are in love with luxurious, Spanish/Mediterranean Style house plans look no further than #107-1020.

Each plan set includes the following:

  • FLOOR PLAN: Fully dimensioned floor plan indicating the size and location of all walls, doors, windows, and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Aerial view showing the elements that make up the roof, including roof slopes, ridges, hips, and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing, and layout of all roof structural members.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes kitchen and bath layout.
  • KITCHEN & BATH LAYOUTS: The general layout of kitchens and baths is shown on the floor plan and includes fixtures and cabinetry.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

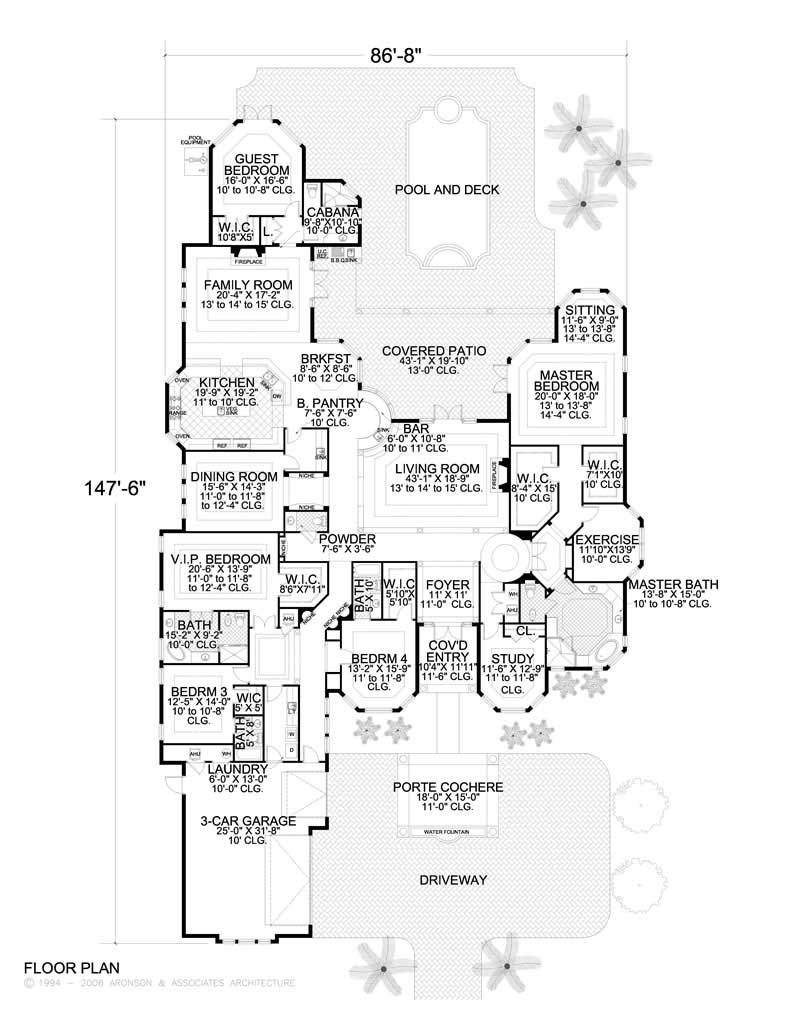

Home Plan: #107-1020 Floor Plan First Story Floor Plan First Story of Spanish Plan #107-1020
Home Plan: #107-1020 Floor Plan First Story Floor Plan First Story of Spanish Plan #107-1020
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 107-1020
Floors:
1
Bedrooms:
5
Full Baths:
5

Square Footage

Heated Sq Feet:
6095
Main Floor:
6095
Unfinished Sq Ft:
Garage :
807

Dimensions

Width:
86' 8"
Depth:
147' 6"
Ridge Height:
28'10' 0"

Architectural Styles

California Style
Florida Style
Luxury
Mediterranean
Spanish

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Other Composites

Roof Pitch

5/12

Special Feature

Dining Room
Family Room
Fireplace
Guest Room
In Home Gym
Library
Main Level Laundry
Swimming Pool
Vaulted Ceilings

Garage Type

Attached Garage
Courtyard Entry
Side Entry

Fireplaces

Two Fireplaces

Building Lot Type

Flat Site

Kitchen Features

Butler's Pantry
Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Courtyard
Covered Front Porch
Covered Rear Porch
Porte-Cochere
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Sitting Area
Split Master Bedroom
Two or More Master Suites
Walk In Closet

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
