5-Bedroom, 6105 Sq Ft Luxurious Rustic Floor Plan

This image shows the beauty of this rustic Luxury House Plan.

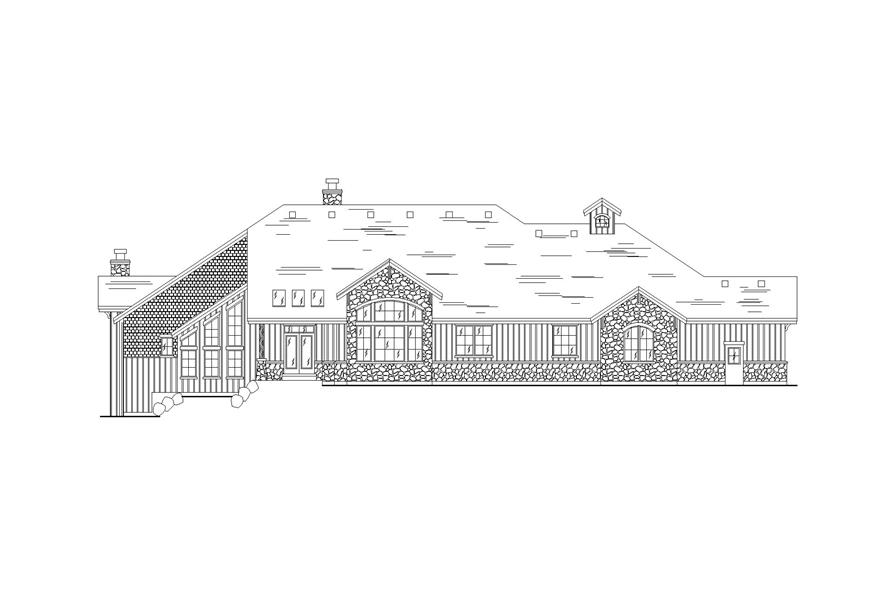

135-1297: Home Plan Rear Elevation

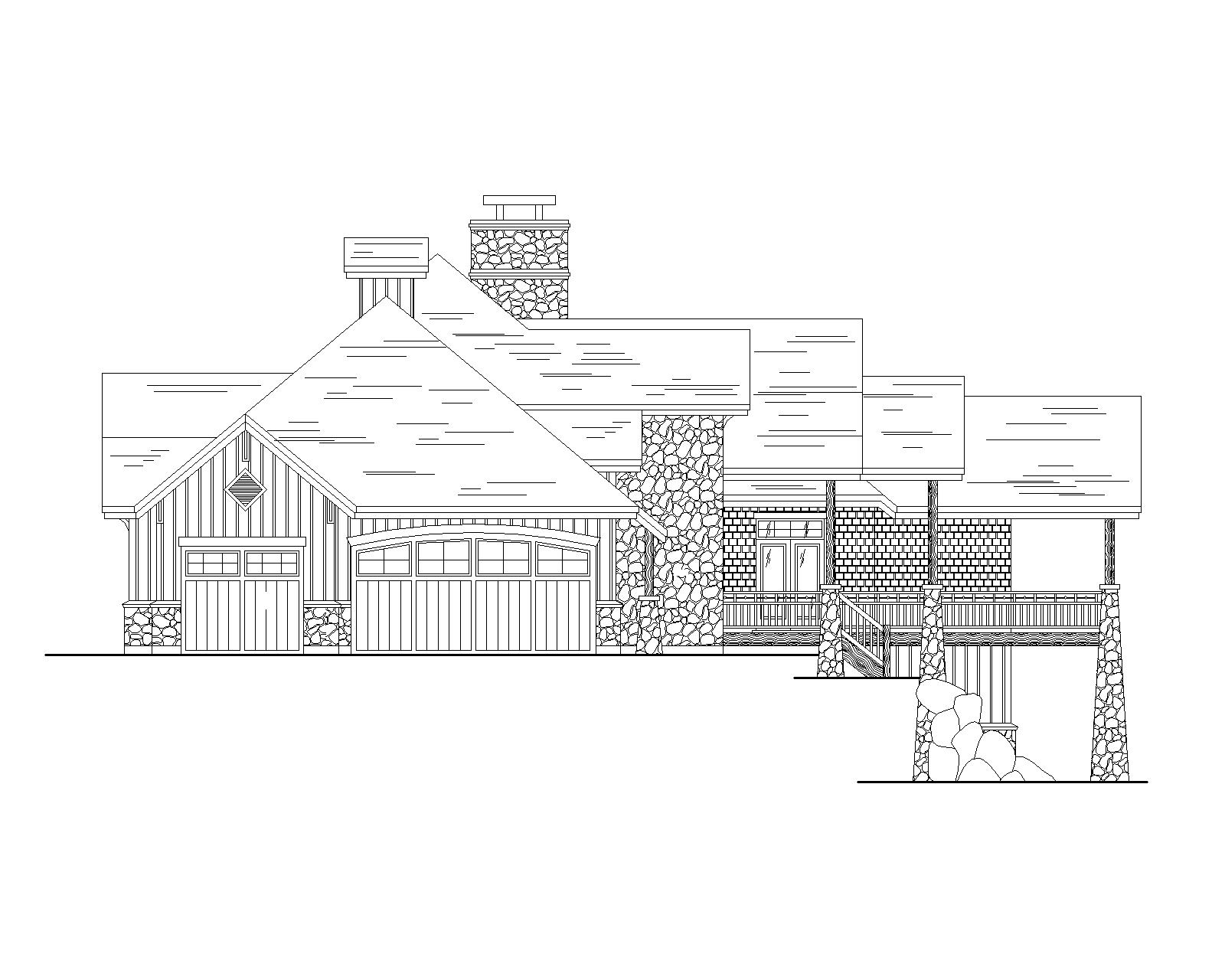

135-1297: Home Plan Left Elevation

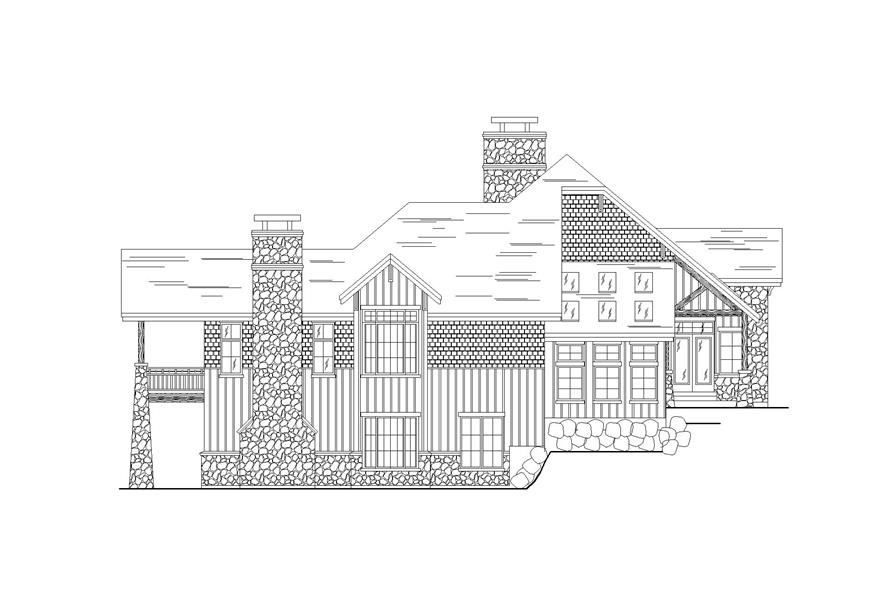

135-1297: Home Plan Right Elevation
5-Bedroom, 6105 Sq Ft Country House Plan - 135-1297 - Front Exterior

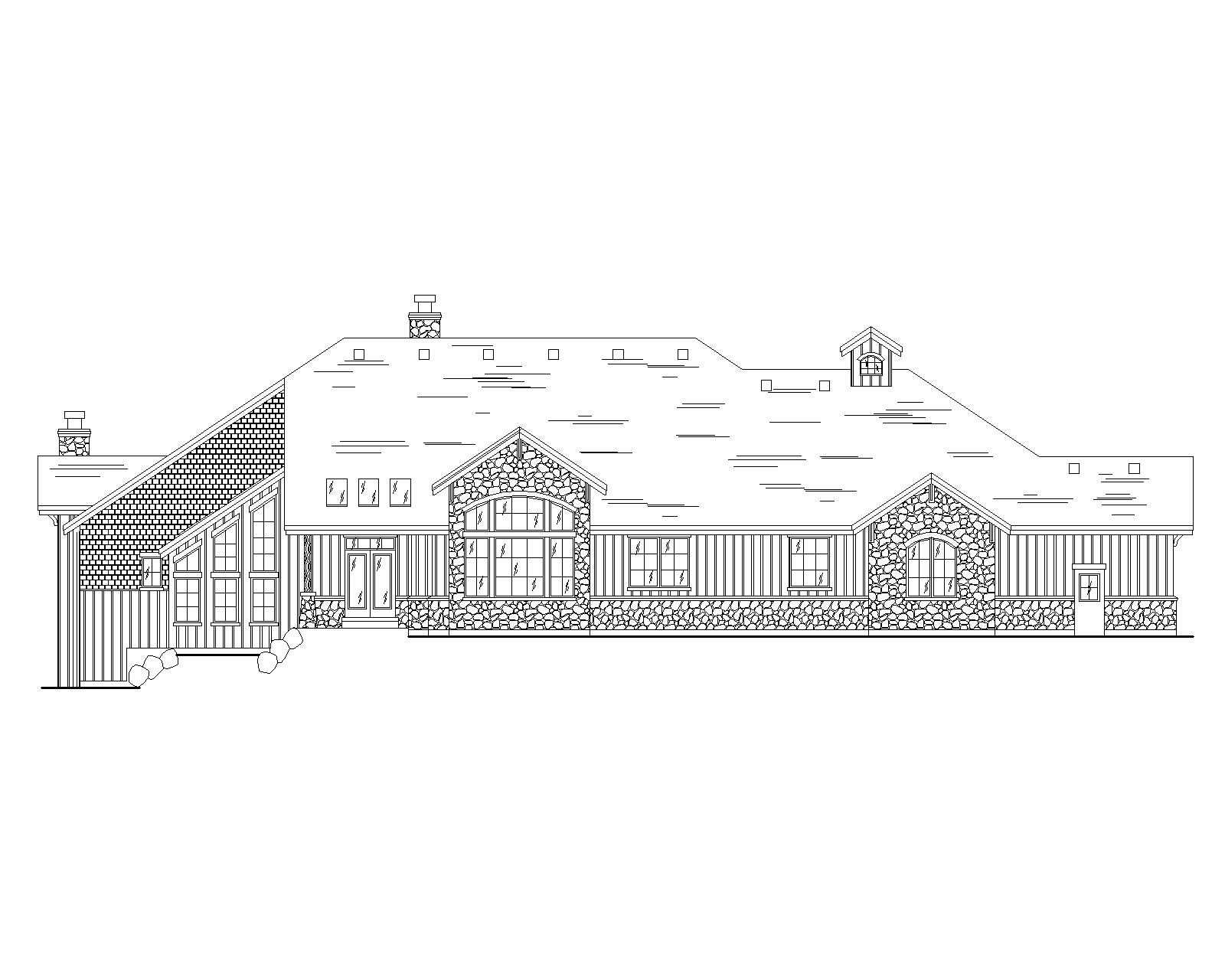

135-1297: Home Plan Rear Elevation

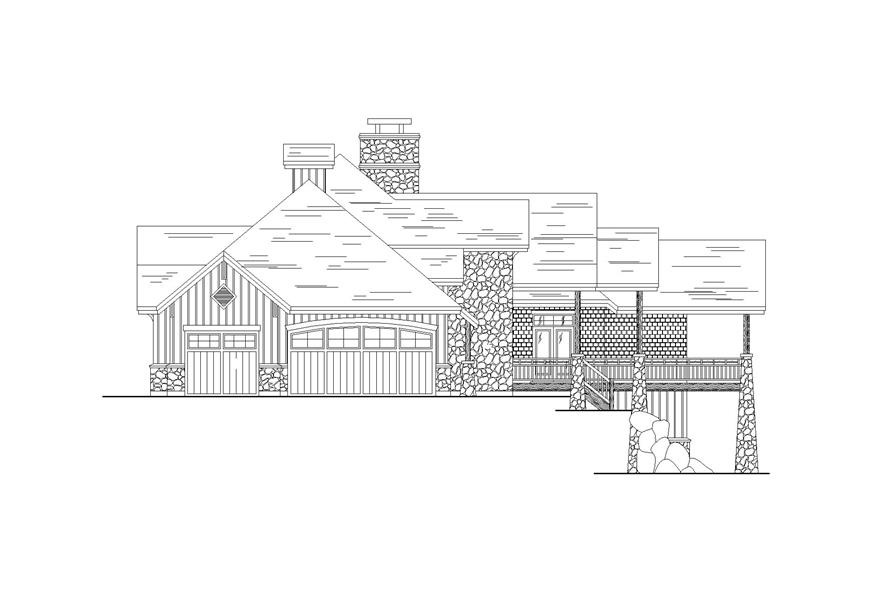

135-1297: Home Plan Left Elevation

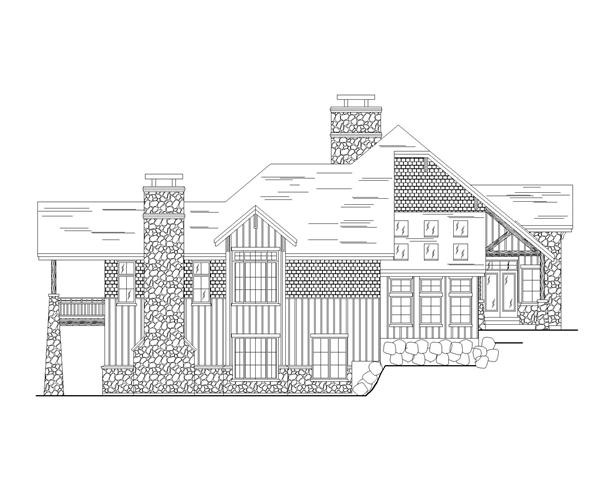

135-1297: Home Plan Right Elevation

About Plan # 135-1297

About Plan # 135-1297

6105 SQUARE FEET 5 BEDROOMS 5 FULL BATH 1 HALF BATH
1 FLOOR 111' 0" WIDTH 65' 5" DEPTH 3 GARAGE BAY

Rustic. Timber style. Mountain living. This luxury home has all of that and more. Enter from the covered deck into the foyer and the spiral staircase quickly catches your eye. With a rambler floor plan layout, the gathering room is the hub of the home. Steps away are the dining nook and kitchen with its large island. Need to get some work done? Enjoy the den. A workout? Check out the exercise room. After that workout? Head to the spa room. Time to retire for the evening? The master suite has a fireplace, access to a covered deck, a large master bath, and a walk-in closet. There is also a guest room on the main floor.

Something else that is amazing about this home? The walkout basement. With the lower level, the house expands to have a recreation area, home theater, game area, second kitchen, and three more bedrooms.

Each plan set includes the following:

  • FLOOR FRAMING PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF FRAMING PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

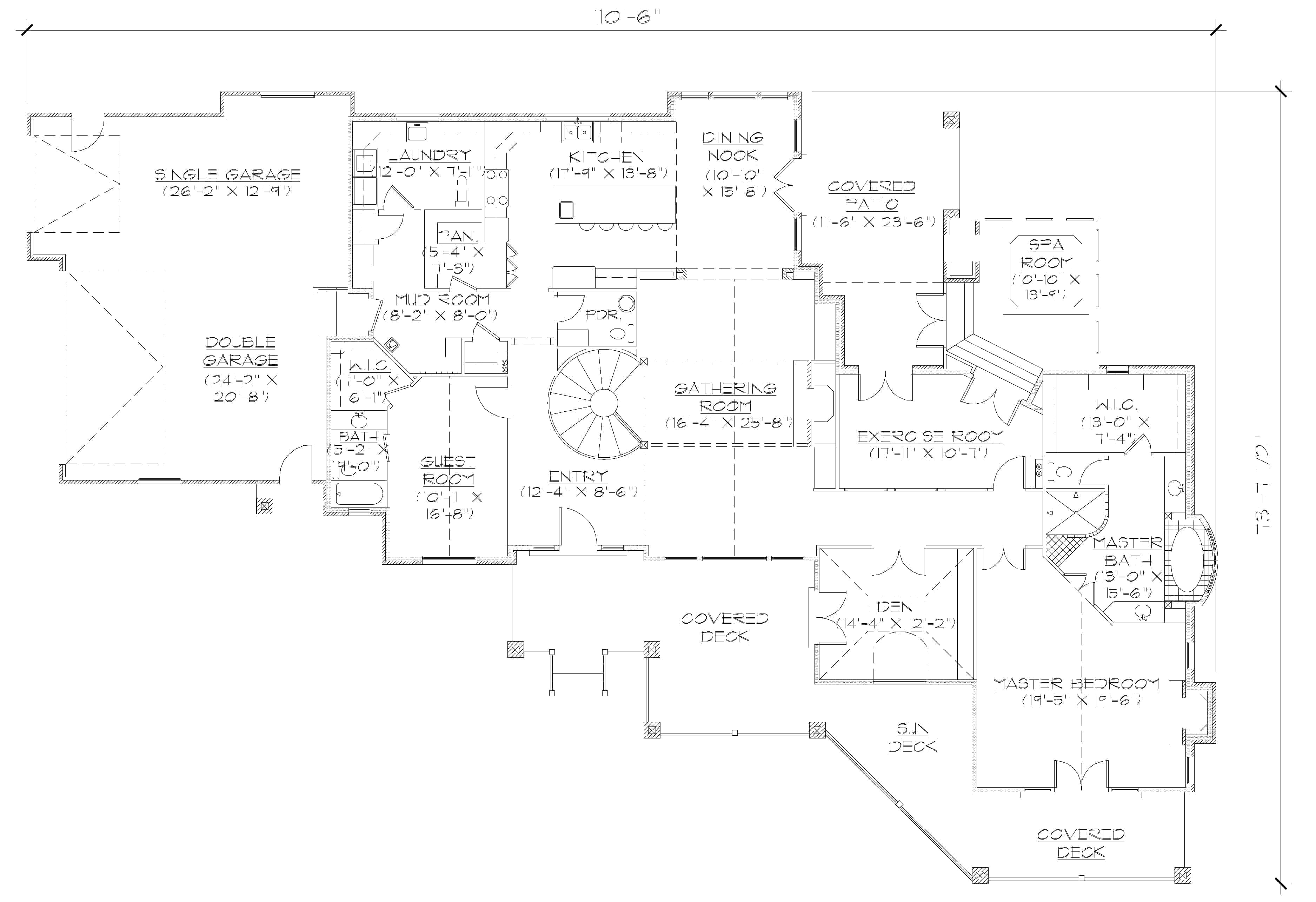

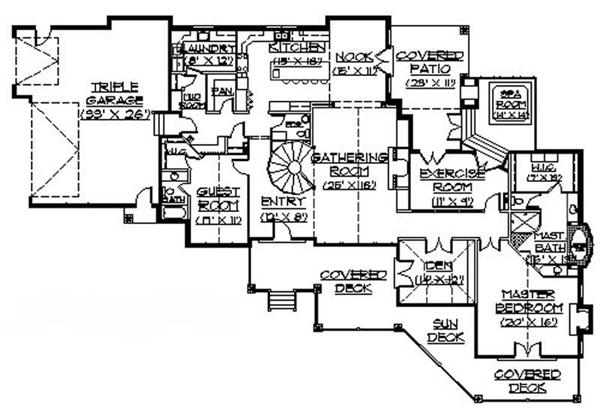

Home Plan: #135-1297 Floor Plan First Story - main level Floor Plan Main Level of Country Plan #135-1297

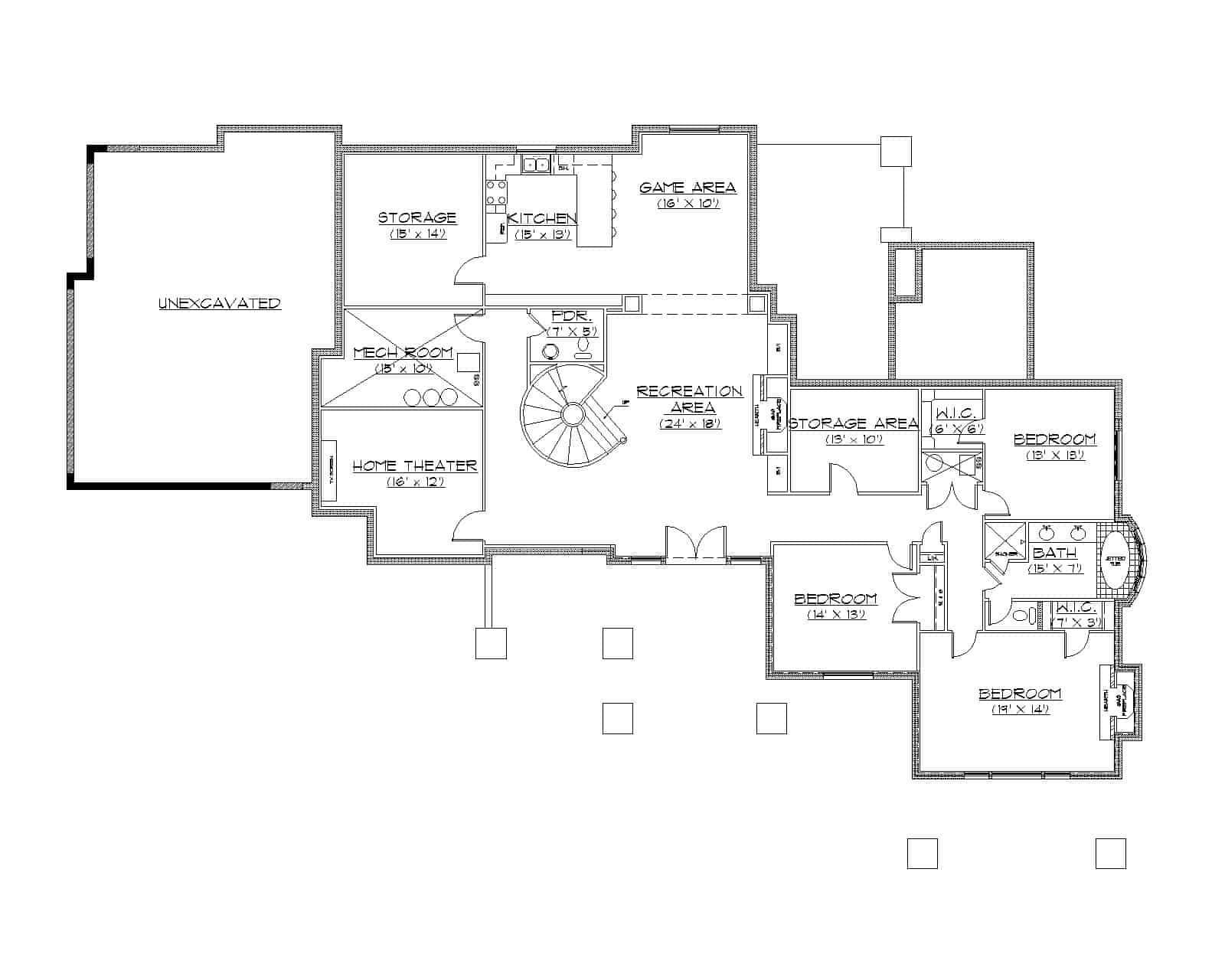

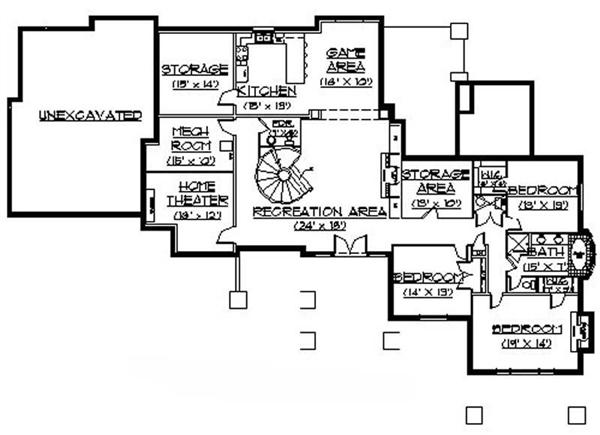

#135-1297 Floor Plan Basement - lower level Floor Plan Basement of Country Plan #135-1297
Home Plan: #135-1297 Floor Plan First Story - main level Floor Plan Main Level of Country Plan #135-1297
#135-1297 Floor Plan Basement - lower level Floor Plan Basement of Country Plan #135-1297
