5-Bedroom, 6690 Sq Ft Country Plan with Billiards Room

Country home (ThePlanCollection: Plan #165-1077)
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
Home Exterior Photograph
Home Exterior Photograph
Home Exterior Photograph
Home Interior Photograph

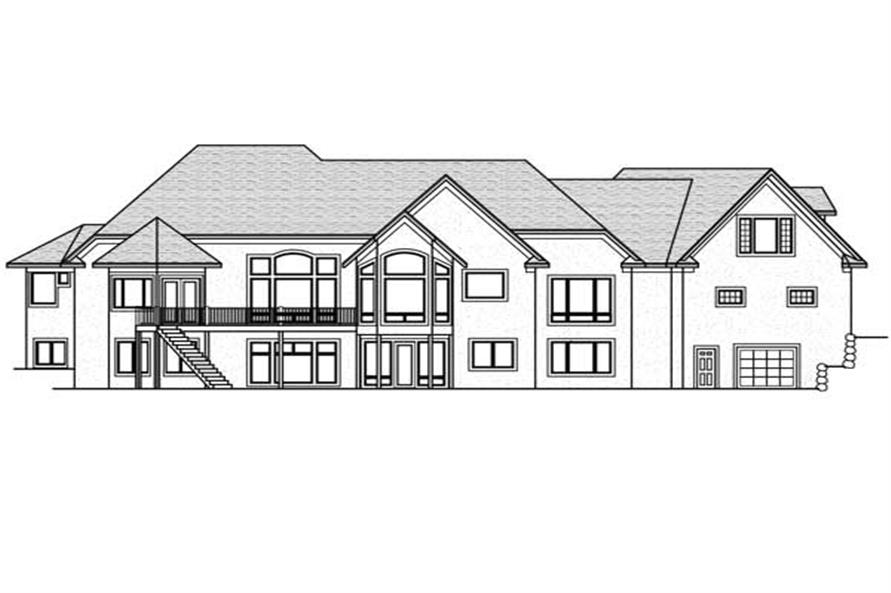

Home Plan Rear Elevation
165-1077: Home Exterior Photograph-Front Door
5-Bedroom, 6690 Sq Ft Country Home - Plan #165-1077 - Main Exterior
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
Home Interior Photograph
Home Exterior Photograph
Home Exterior Photograph
Home Exterior Photograph
Home Interior Photograph
Home Plan Rear Elevation
165-1077: Home Exterior Photograph-Front Door

About Plan # 165-1077

About Plan # 165-1077

6690 SQUARE FEET 5 BEDROOMS 5 FULL BATH 0 HALF BATH
1 FLOOR 119' 10" WIDTH 85' 0" DEPTH 4 GARAGE BAY

This attractive Country style home with Luxury aspects (Plan #165-1077) has 6690 square feet of living space. The 1-story floor plan includes 5 bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

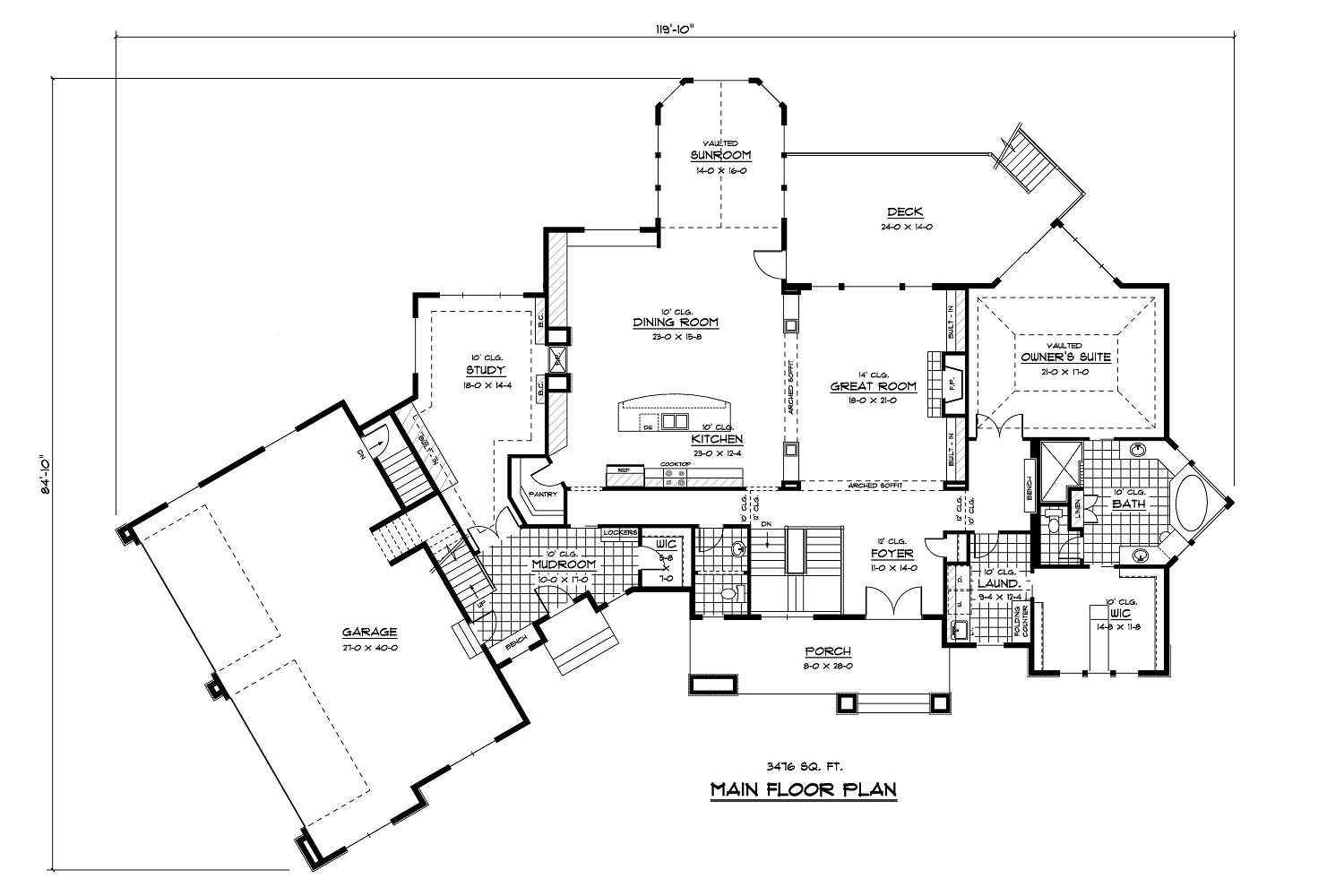

Home Plan: #165-1077 Floor Plan First Story - main level Floor Plan First Story of Country Plan #165-1077

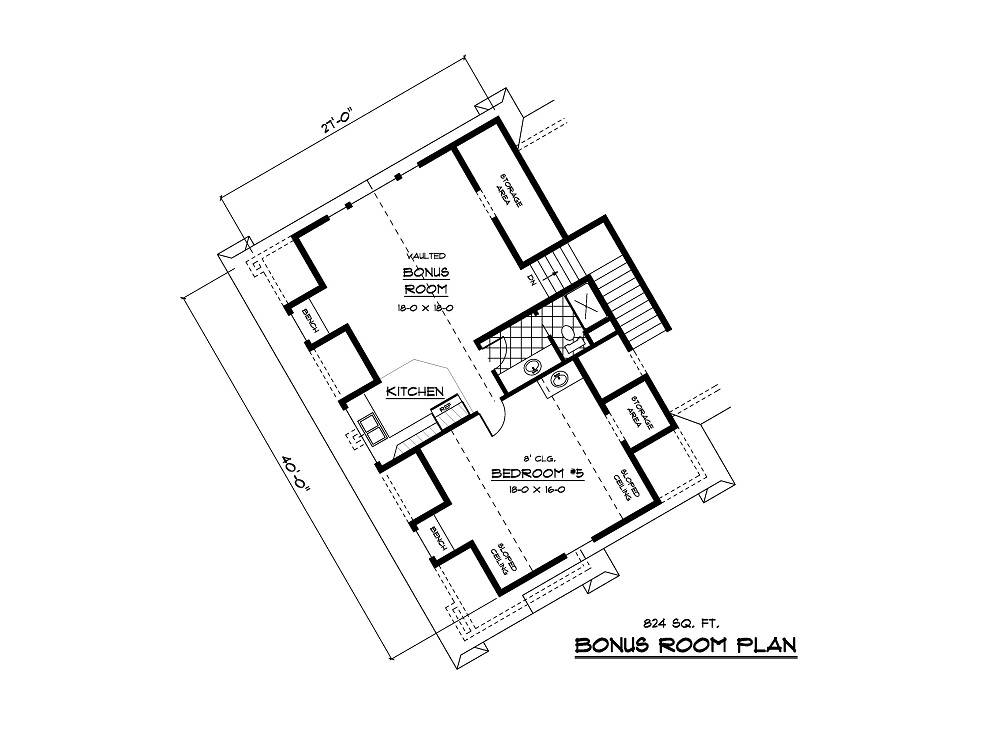

#165-1077 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Country Plan #165-1077

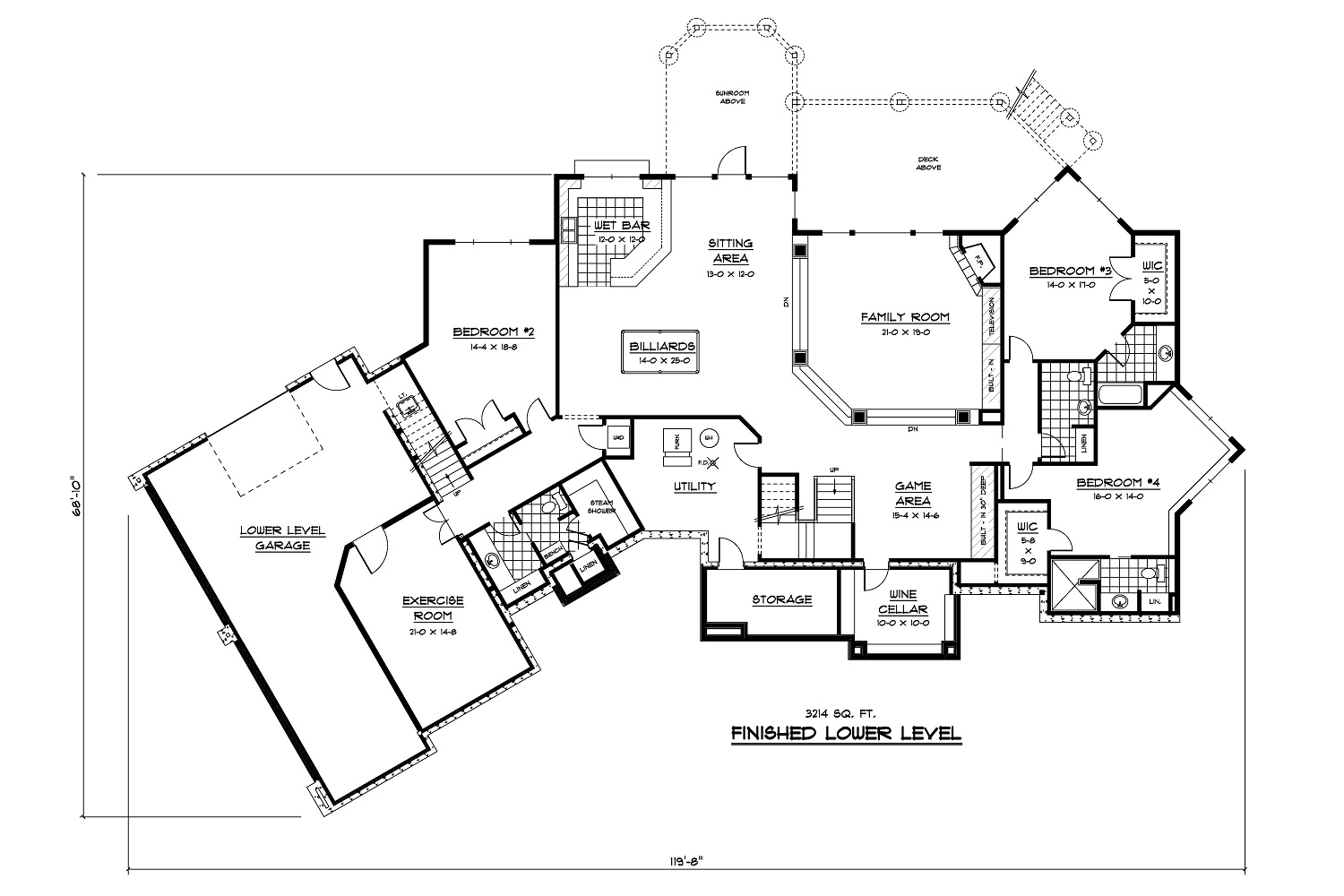

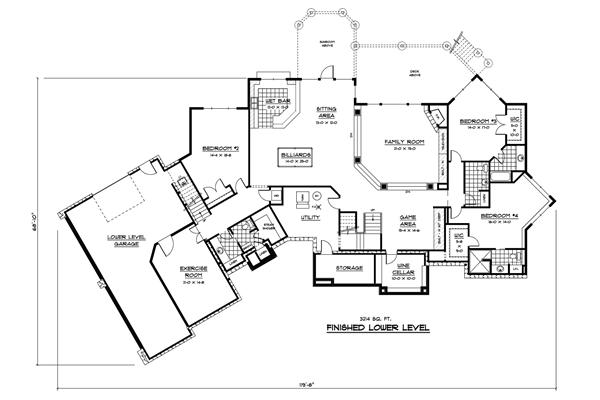

#165-1077 Floor Plan Basement - lower level Floor Plan Basement of Country Plan #165-1077
Home Plan: #165-1077 Floor Plan First Story - main level Floor Plan First Story of Country Plan #165-1077
#165-1077 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Country Plan #165-1077
#165-1077 Floor Plan Basement - lower level Floor Plan Basement of Country Plan #165-1077
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 165-1077
Floors:
1
Bedrooms:
5
Full Baths:
5
Garage :
4

Square Footage

Heated Sq Feet:
6690
Main Floor:
3476
Unfinished Sq Ft:
Lower Floor:
3214
Bonus Room:
824
Garage :
1106

Dimensions

Width:
119' 10"
Depth:
85' 0"
Ridge Height:
24' 6"

Architectural Styles

1 1/2 Story
Cottage
Country
European
Luxury
Transitional

Exterior Wall Material

Rock/Stone
Stucco

Roofing Type

Gable/Dormer
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

10/12

Ceiling Height

10 Foot Ceiling

Special Feature

Bonus Room
Color Photos
Dining Room
Exercise Room
Family Room
Fireplace
Game Room
Library
Main Level Laundry
Mother in law apartment
Mud Room
Open Floor Plan
Split Bathroom
Storage
Vaulted Ceilings
Wine Cellar
Workshop

Garage Type

Attached Garage
Side Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6

Building Lot Type

Corner Lot
Down Site

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Secondary Kitchen
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Screened Porch/Sunroom
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Private Deck
Sitting Area
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: Materials Lists are based on the STOCK plan ONLY without modifications! Custom materials lists are available if you modify a plan. Please ask for a quote.
