5-Bedroom, 4762 Sq Ft Mediterranean Plan with Covered Front Porch

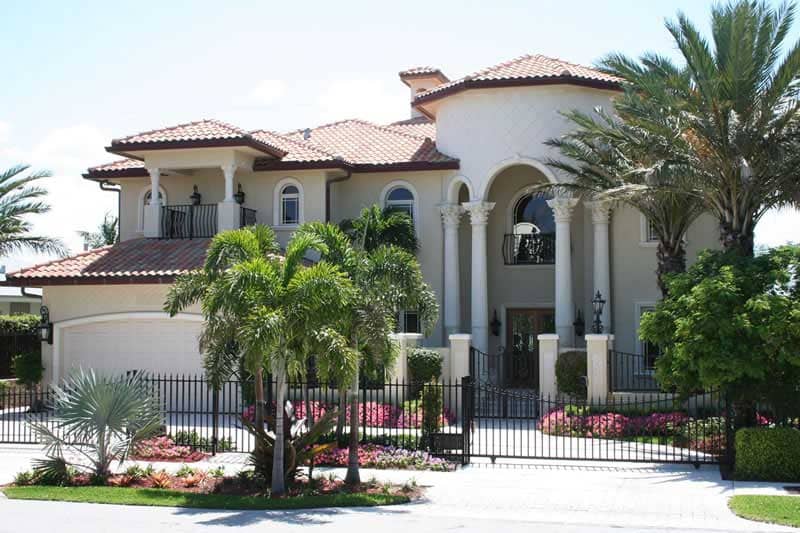

Main image for house plan # 18963

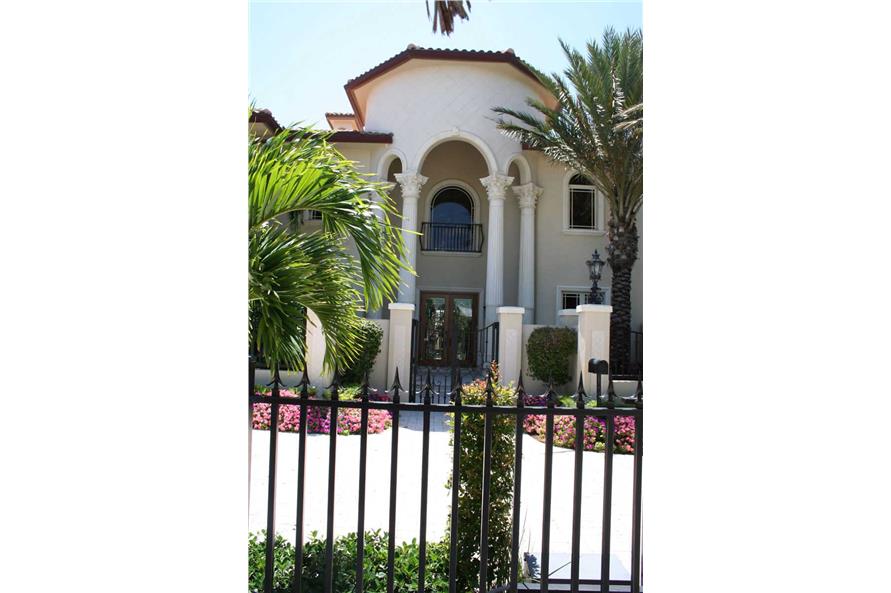

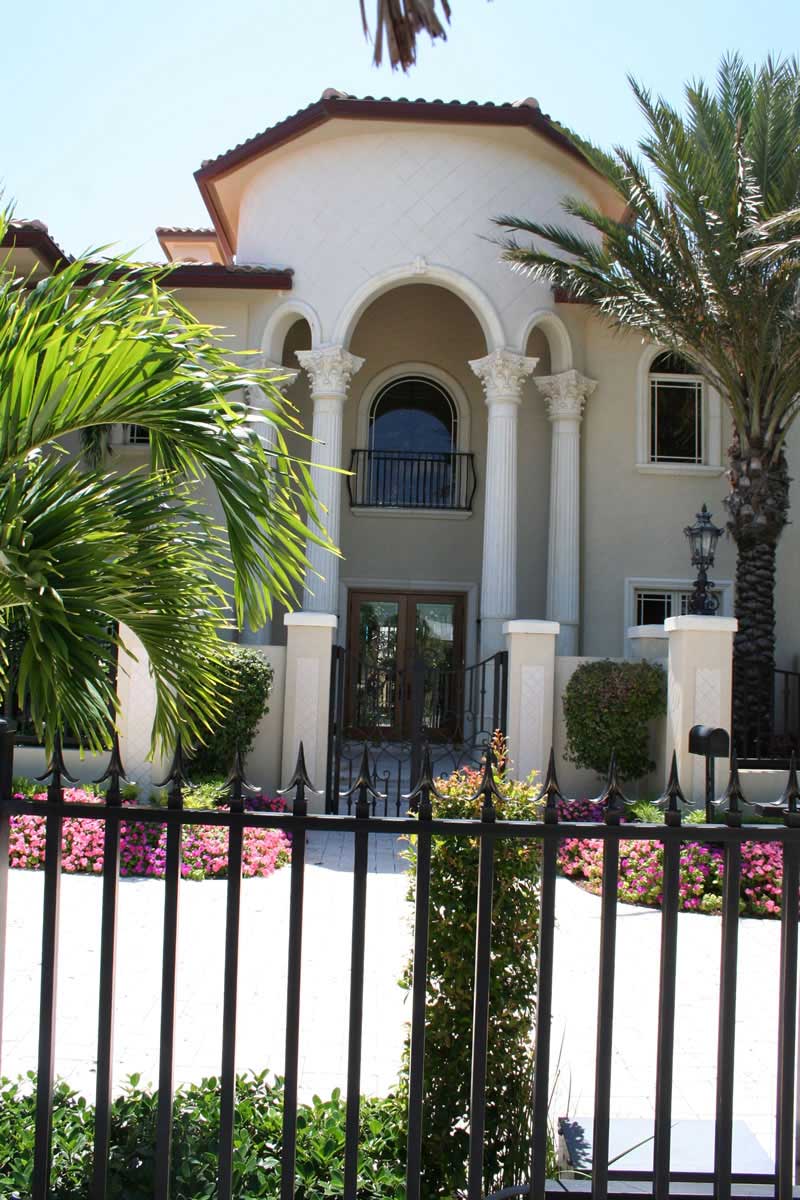

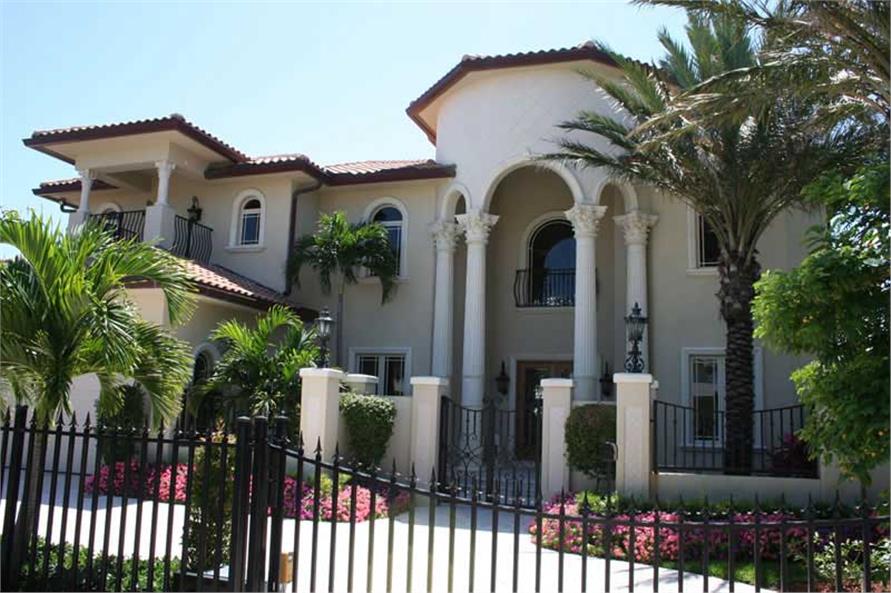

Front Exterior Image #1
Front Exterior Image #2

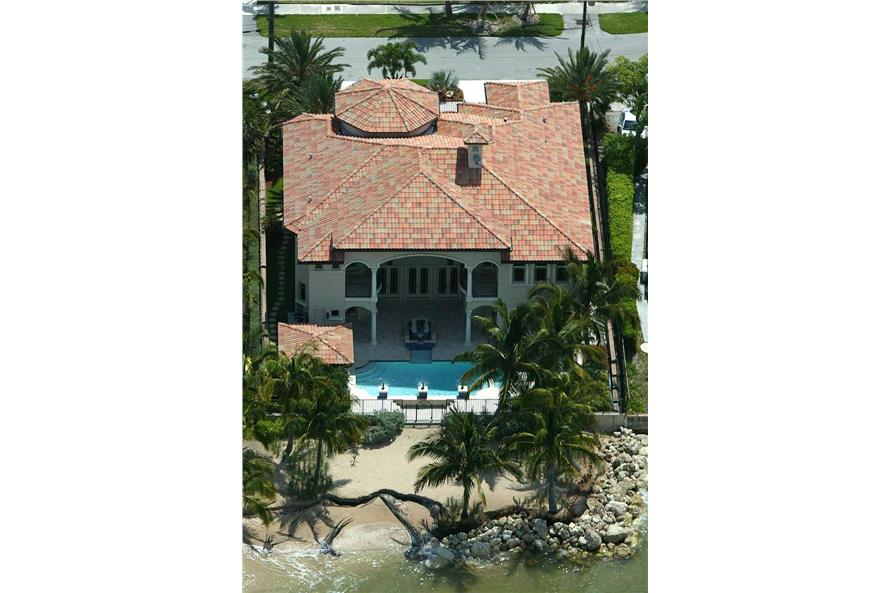

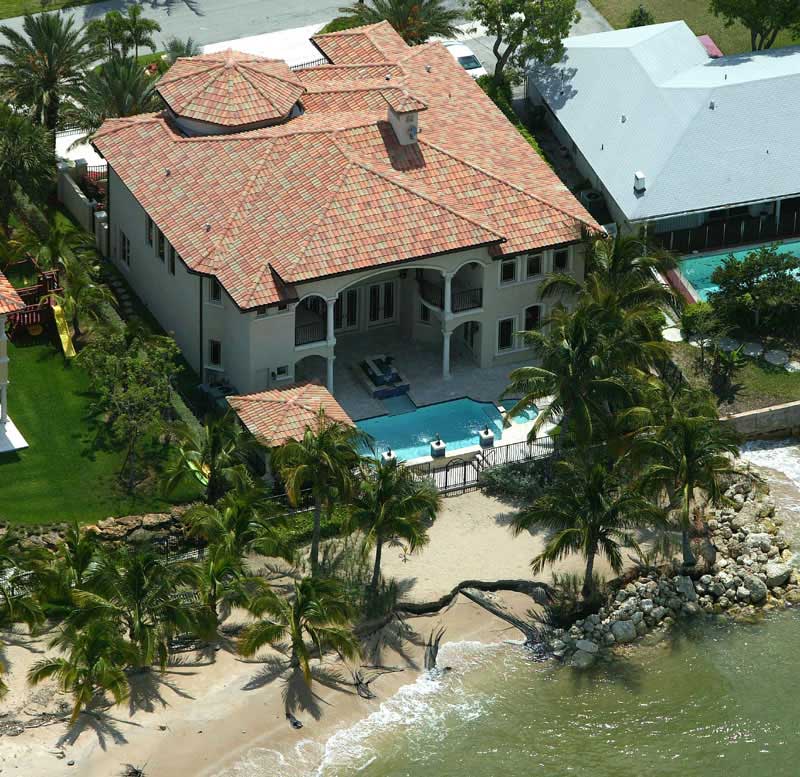

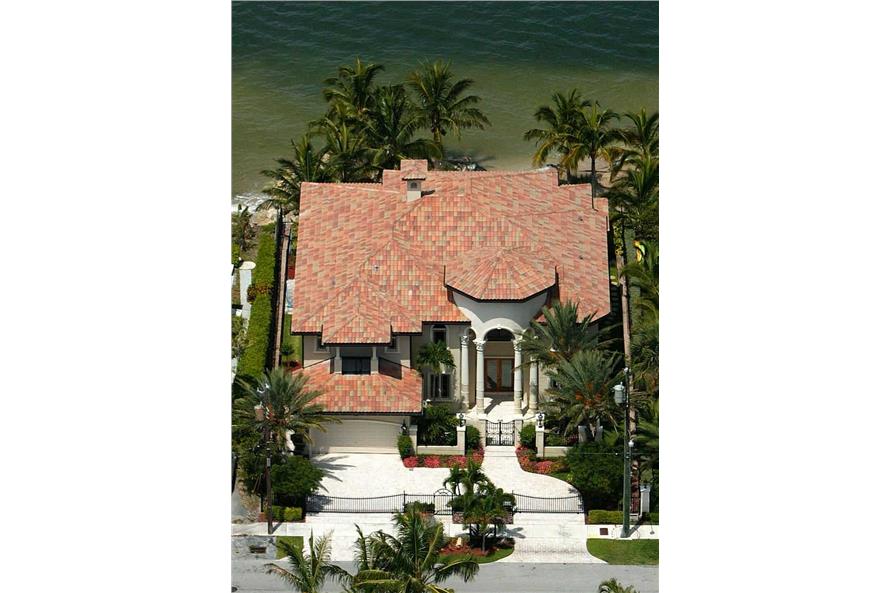

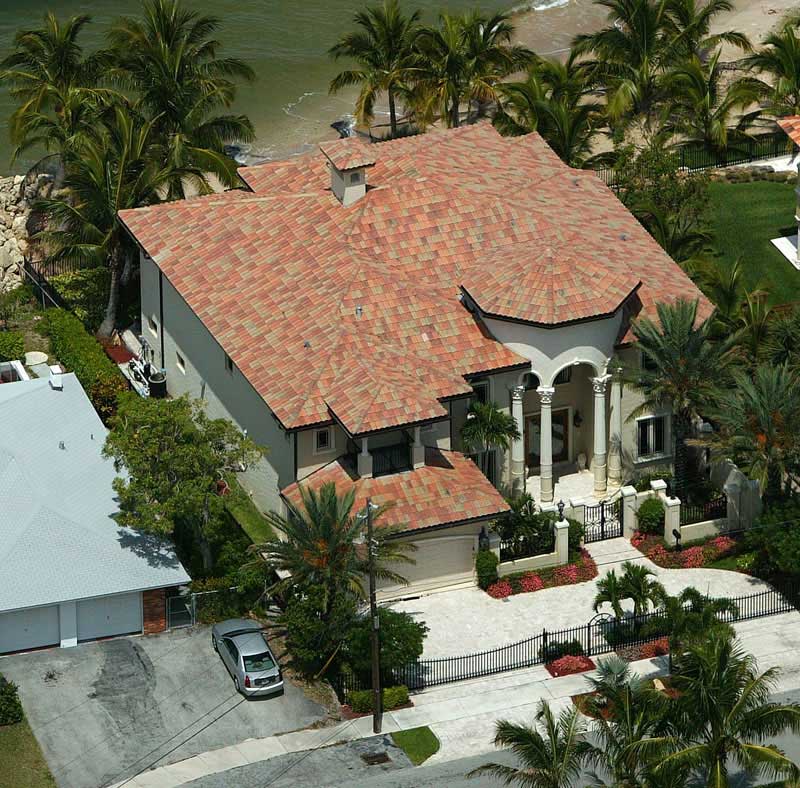

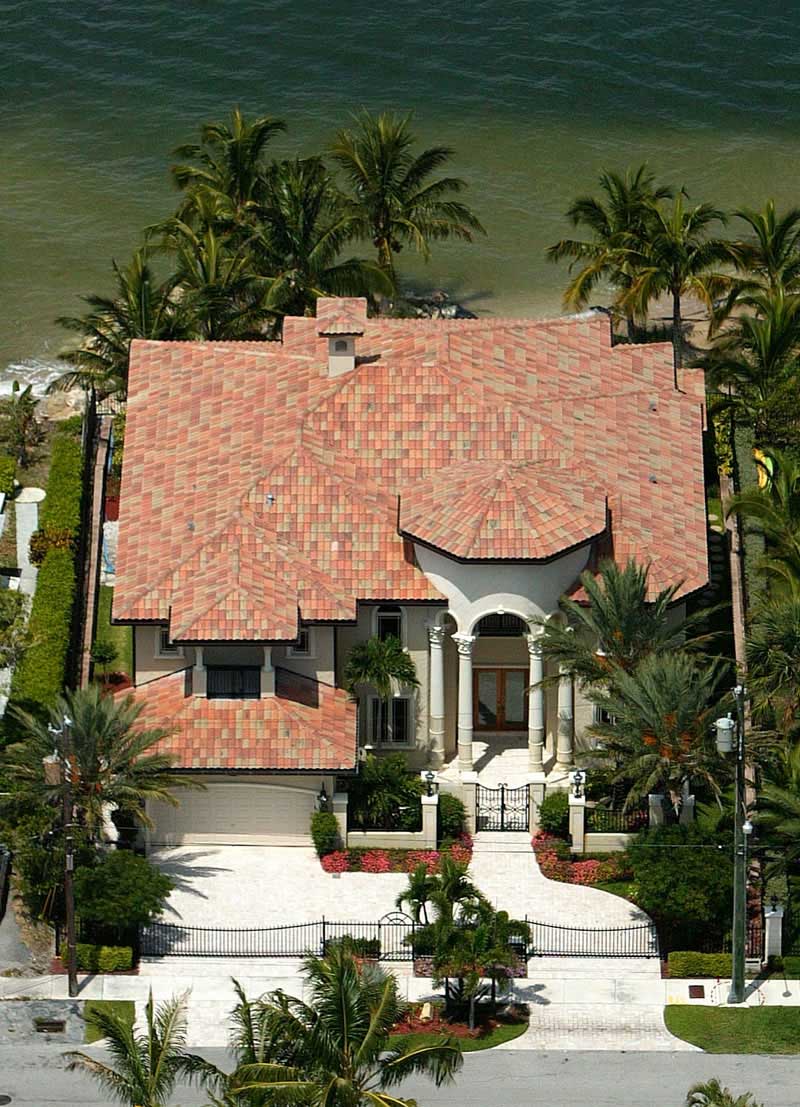

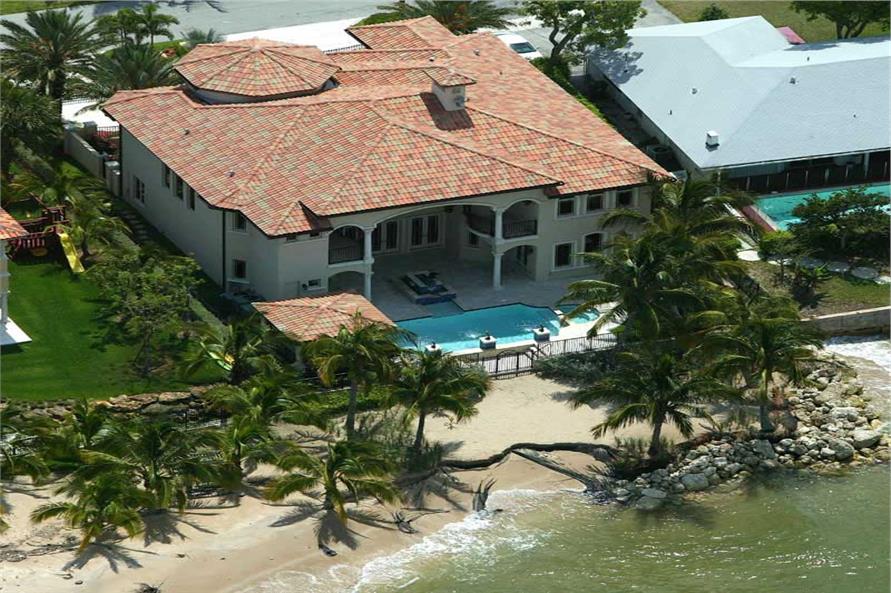

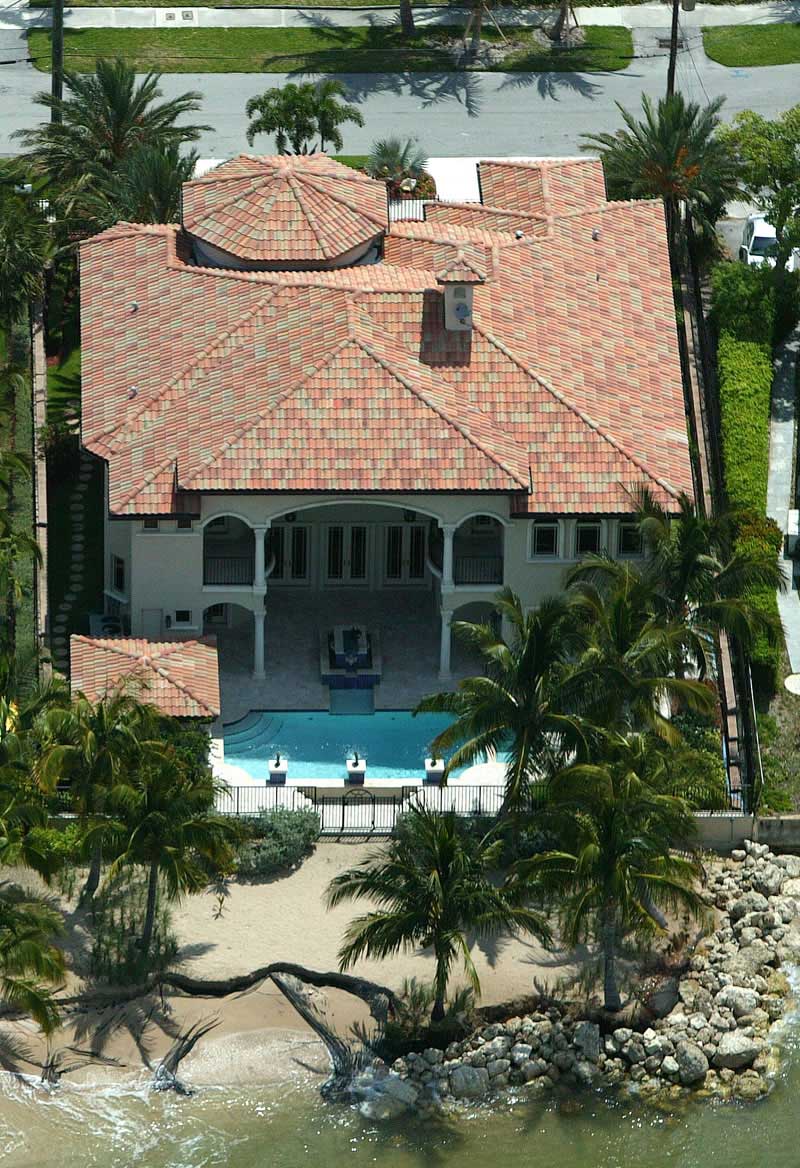

Aerial View #1
Aerial View #2
Aerial View #3
Aerial View #4

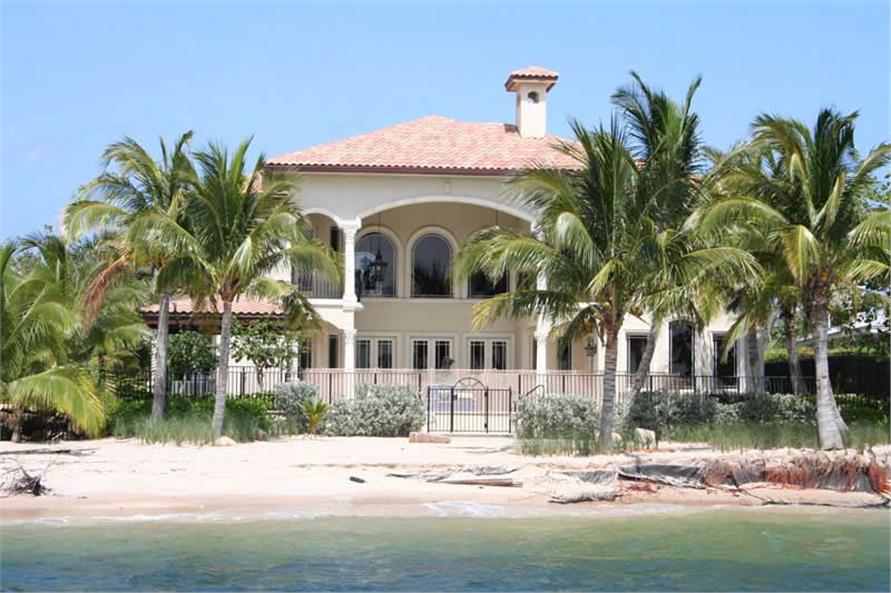

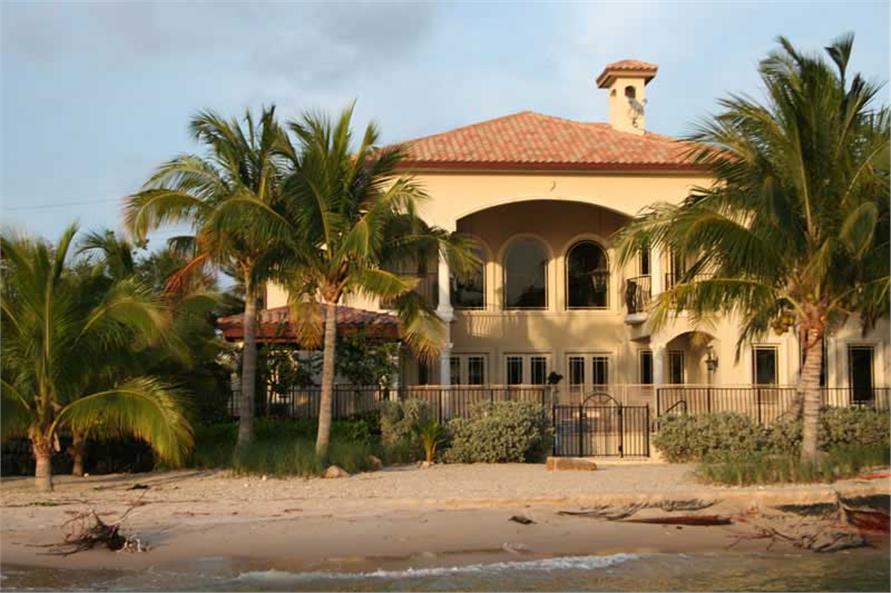

Water View #1
Water View #2
AA HOMEPLAN OF HOUSEPLANS
HOUSE PLAN AA
5-Bedroom, 4762 Sq Ft Mediterranean Home Plan - 107-1026 - Main Exterior
Front Exterior Image #1
Front Exterior Image #2
Aerial View #1
Aerial View #2
Aerial View #3
Aerial View #4
Water View #1
Water View #2
AA HOMEPLAN OF HOUSEPLANS
HOUSE PLAN AA

About Plan # 107-1026

About Plan # 107-1026

4762 SQUARE FEET 5 BEDROOMS 5 FULL BATH 1 HALF BATH
1 FLOOR 59' 8" WIDTH 73' 2" DEPTH 2 GARAGE BAY
Two Story Four Bedrooms Four and a half Bathrooms plus a Cabana Two car Garage with additional storage area Classic Mediterranean style Towering Covered Entrance Covered balconies and covered terraces with summer kitchen First Floor VIP Suite with private entrance Residential elevator and web cellar Media Room Columns and arches provide strong curb appeal Huge island Kitchen with eating bar, Butler’s Pantry, opens to the Family Room The ultimate master Suite dominates and entire wing of the second floor, and features enormous Walk-In-Closets with dressing area, exercise room, separate steam and sauna, a morning kitchen, tray ceilings, sitting area, and a luxurious master Bath with additional storage areas opens to private balcony Large Living Room with 2 story coffered ceiling features a wet brand fireplace

Each plan set includes the following:

  • FLOOR PLAN: Fully dimensioned floor plan indicating the size and location of all walls, doors, windows, and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Aerial view showing the elements that make up the roof, including roof slopes, ridges, hips, and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing, and layout of all roof structural members.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes kitchen and bath layout.
  • KITCHEN & BATH LAYOUTS: The general layout of kitchens and baths is shown on the floor plan and includes fixtures and cabinetry.

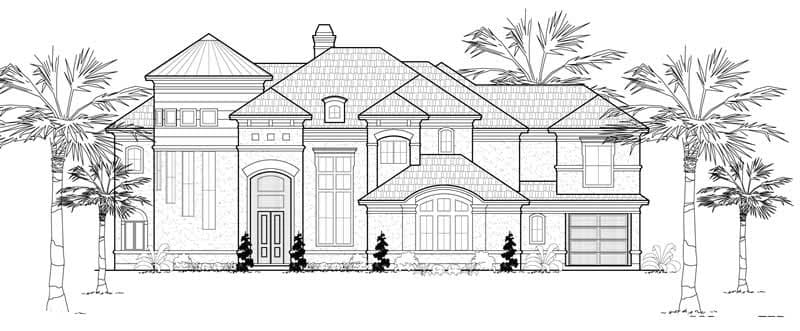

  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

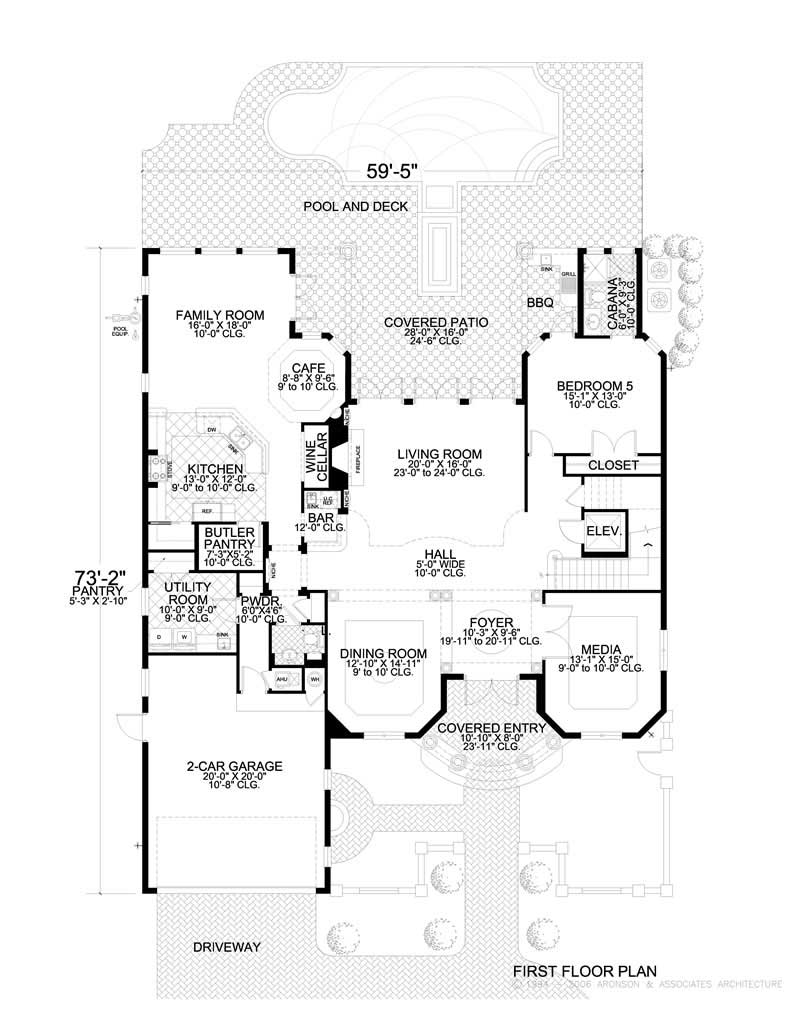

Home Plan: #107-1026 Floor Plan First Story - main Floor Plan First Story of Mediterranean Plan #107-1026

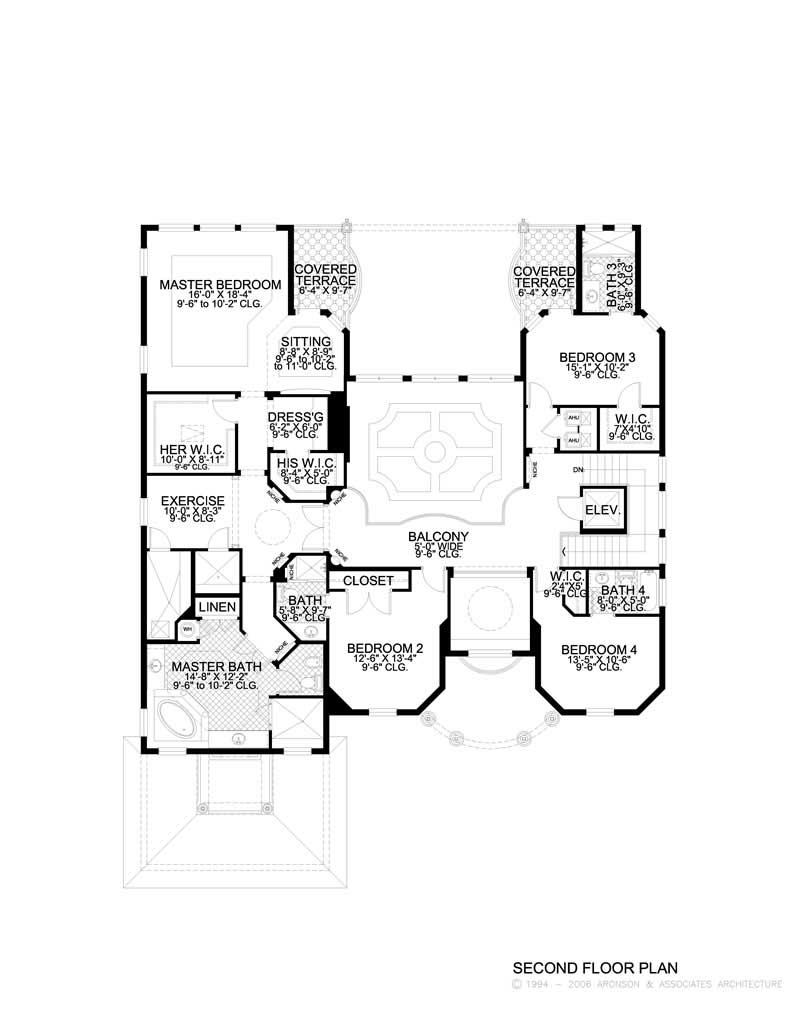

#107-1026 Floor Plan Second Story - second Floor Plan Second Story of Mediterranean Plan #107-1026
Home Plan: #107-1026 Floor Plan First Story - main Floor Plan First Story of Mediterranean Plan #107-1026
#107-1026 Floor Plan Second Story - second Floor Plan Second Story of Mediterranean Plan #107-1026
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 107-1026
Floors:
1
Bedrooms:
5
Full Baths:
5
Half Baths:
1

Square Footage

Heated Sq Feet:
4762
Main Floor:
2529
Upper Floor:
2233
Unfinished Sq Ft:
Garage :
578

Dimensions

Width:
59' 8"
Depth:
73' 2"
Ridge Height:
32'4' 0"

Architectural Styles

Mediterranean

Exterior Wall Material

Stucco

Roofing Type

Hip

Roof Pitch

5/12

Special Feature

Fireplace
Family Room
Media Room

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
