6-Bedroom, 10178 Sq Ft Luxury Plan with Kitchen Island

This is an artist's version of the front of this set of Luxury House Plans.
6-Bedroom, 10178 Sq Ft Luxury Home Plan - 175-1035 - Main Exterior

About Plan # 175-1035

About Plan # 175-1035

10178 SQUARE FEET 6 BEDROOMS 7 FULL BATH 2 HALF BATH
2 FLOOR 127' 0" WIDTH 120' 8" DEPTH 6 GARAGE BAY

This Tuscan house plan will create a tremendous curiosity and curbside appeal from its secretly hidden motor court and six-car garage to the elegance of the massive entry system embellished with stone and rod iron. This home plan is appointed with the finest of details from its massive rooms with spectacular ceiling designs to its built-in bookshelves, archways, niches and entertainment systems. The formal living and dining rooms are adorned with detail and grace, such as the beautifully appointed walk-in wet bar and see through wine humidor. The master suite in this Tuscan house plan has a built-in fireplace and archway, and a large circular sitting area with view of the pool. This suite also has very large walk-in closets and bath featuring garden tub, walk-in shower and separate vanities. The family room with corner pocket sliding glass doors, dinette, and gourmet kitchen are perfect for family gatherings. Entering the lanai, you will find yourself in your own backyard paradise. The pool has an array of water features that are sure to put your mind at ease. The covered lanai also hosts a large bar and grill perfect for entertaining your family and friends. Take either the elevator or the circular stair of this floor plan to the second floor. Upstairs you will find a fully automated theater room, 5 bedrooms 5.5 bathrooms and a game room with a wet-bar overlooking the family room. A true luxury house plan for the most discriminating buyer. A Tuscan House Plan at it's best.....

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size (if applicable), and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. Typical wall sections are also included. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

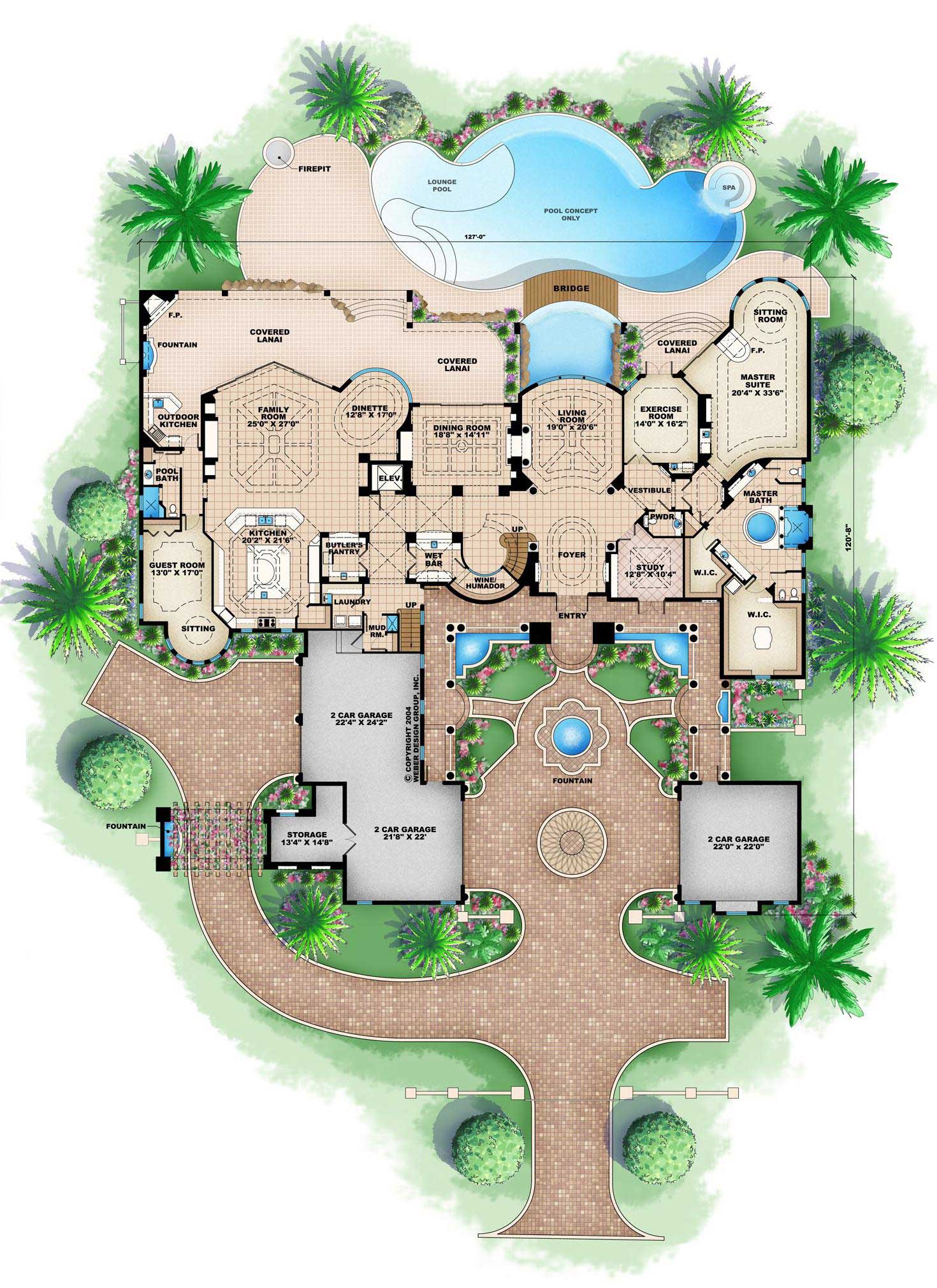

Home Plan: #175-1035 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #175-1035

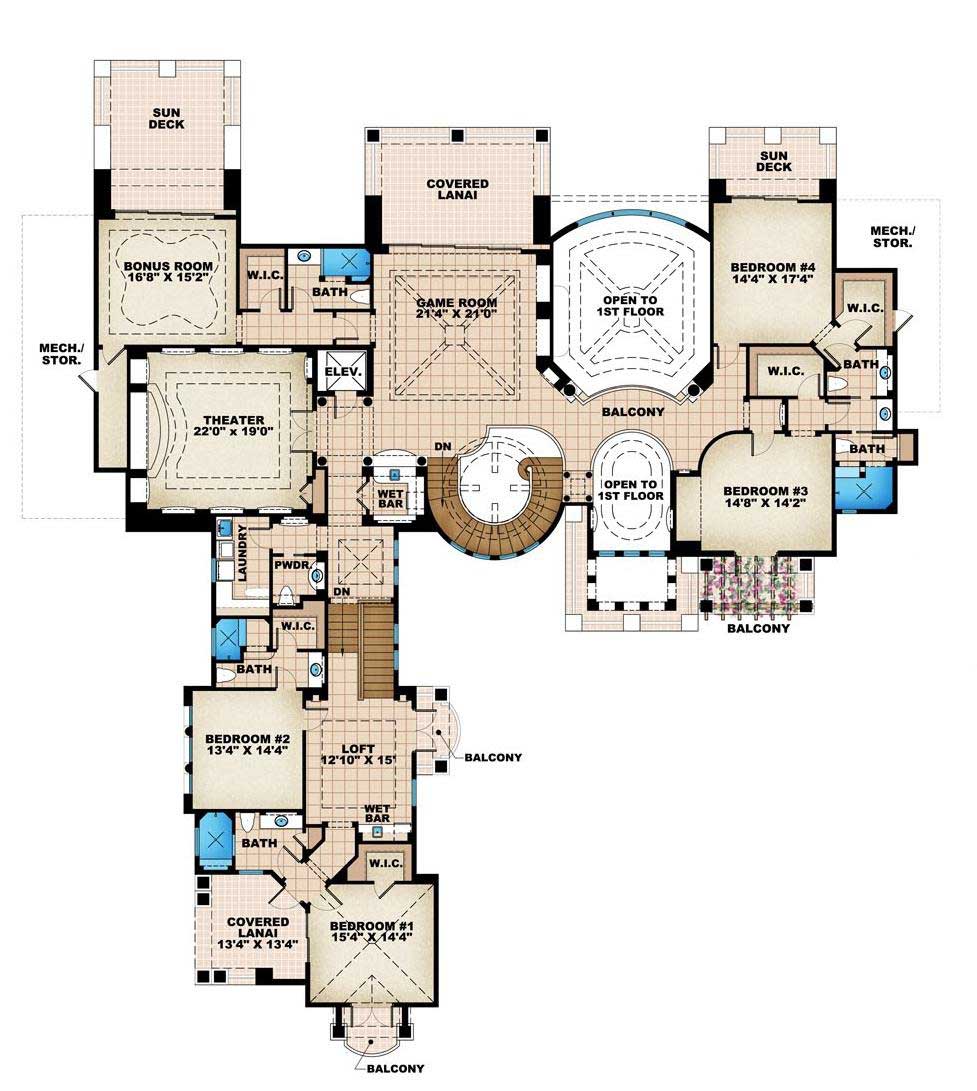

#175-1035 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #175-1035
Home Plan: #175-1035 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #175-1035
#175-1035 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #175-1035
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1035
Floors:
2
Bedrooms:
6
Full Baths:
7
Half Baths:
2

Square Footage

Heated Sq Feet:
10178
Main Floor:
6039
Upper Floor:
4139
Unfinished Sq Ft:

Dimensions

Width:
127' 0"
Depth:
120' 8"
Ridge Height:
30' 0"

Architectural Styles

Luxury
Mediterranean
Tuscan

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Tiles

Roof Pitch

8/12

Special Feature

Balcony
Bonus Room
Den
Dining Room
Exercise Room
Family Room
Fireplace
Game Room
Guest Room
Home Theater
Loft
Main Level Laundry
Mud Room
Split Bathroom
Storage
Swimming Pool
Vaulted Ceilings
Wine Cellar

Garage Type

Attached Garage
Courtyard Entry
Side Entry

Building Lot Type

Flat Site

Kitchen Features

Butler's Pantry
Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Outdoor Kitchen
Peninsula/Eating Bar
Secondary Kitchen
Walk-in Pantry

Porches and Exterior Features

Courtyard
Covered Front Porch
Covered Lanai
Covered Rear Porch
Sundeck

Master Suite Features

Fireplace in Master
Main Floor Master
Master Bathroom
Private Deck
Second Floor Master
Sitting Area
Two or More Master Suites
Walk In Closet

Additional Notes from Designer
