3-Bedroom, 3057 Sq Ft Log Cabin Plan with Courtyard

Main image for house plan # 18646

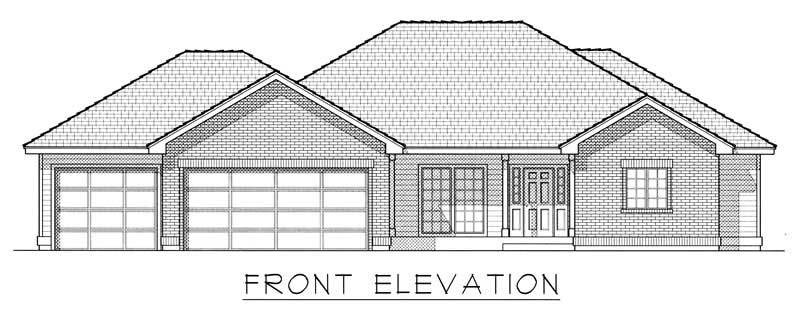

House Plan RDI-2017R1-DB Front Elevation
3-Bedroom, 3057 Sq Ft Log Cabin Home Plan - 162-1018 - Main Exterior
House Plan RDI-2017R1-DB Front Elevation

About Plan # 162-1018

About Plan # 162-1018

3057 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 70' 0" WIDTH 68' 6" DEPTH 3 GARAGE BAY
Home RDI-2017R1-DB has a balanced floor plan with an open feel. A unique feature about this home is bringing the outdoors in. The great room enjoys large windows and the house boasts a vaulted sun room at the rear. The walkout basement continues the theme giving continual access to the great outdoors.

Each plan set includes the following:

  • Exterior Elevations
  • Floor Plans
  • Foundation Plan
  • Roof Framing Plan
  • Building Sections
  • Wall Sections
  • Stair Detail
  • Cabinet Elevations
  • Notes
  • Electrical Layout
  • Door & Window Sizes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

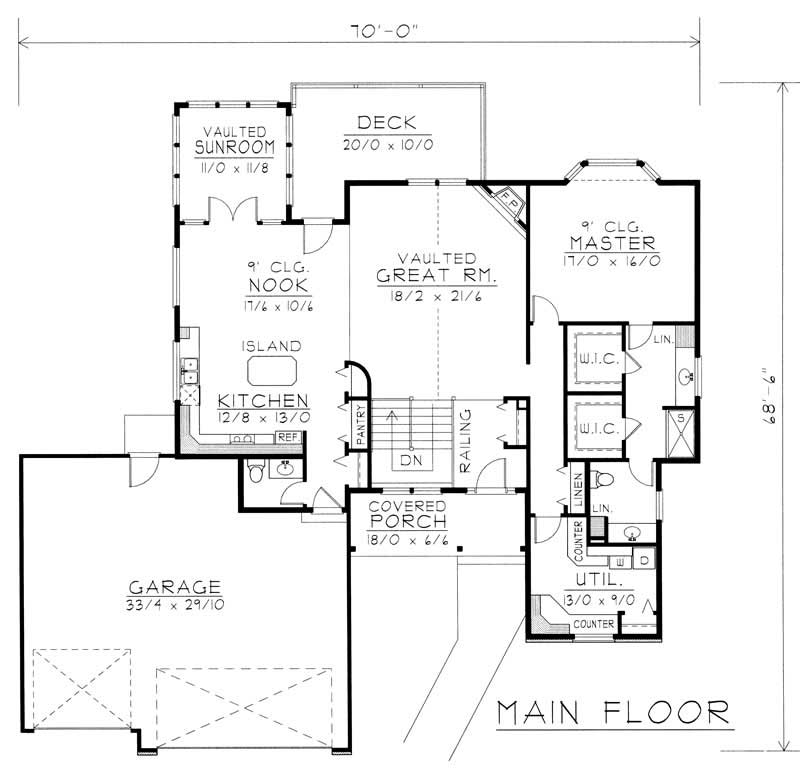

Home Plan: #162-1018 Floor Plan First Story - main Floor Plan First Story of Log Cabin Plan #162-1018

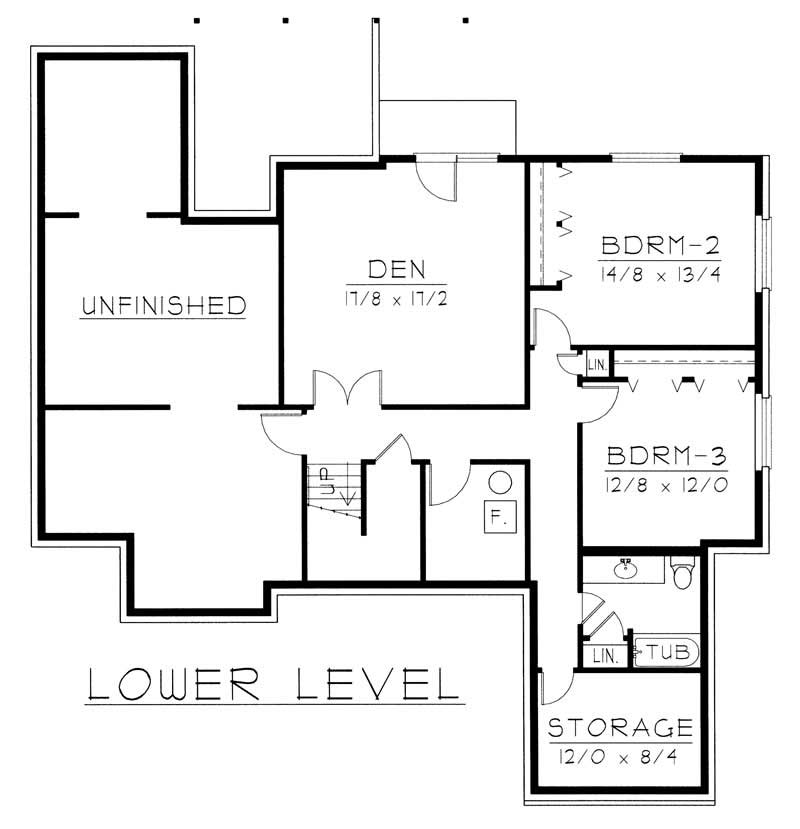

#162-1018 Floor Plan Basement - basement Floor Plan Basement of Log Cabin Plan #162-1018
