3-Bedroom, 1732 Sq Ft Ranch Plan with Kitchen Island
| 1732 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 55' 0" WIDTH | 55' 0" DEPTH | 2 GARAGE BAY |
Home Plan #104-1014 is an affordable 1,732 sq. ft. home with plenty of room for expansion. The home comes with and unfinished basement and an unfinished bonus room above the garage. The main rooms are large and spacious for an open feel. Also see plan 104-1013
Each plan set includes the following:
- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The first sheet will typically be the front elevation at 1/4" scale with rafter framing details and exterior details. The second sheet will typically be the sides and rear elevation with roof plan, all at 1/8" scale. Sometimes Sheet A1.1 and Sheet A1.2 will be combined.
- FOUNDATION PLAN: The third sheet will be the foundation page at 1/4" scale. A dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
- FLOOR PLAN:S The fourth sheet will be the 1st-floor plan at 1/4" scale with general notes. The fifth sheet will be the 2nd-floor plan at 1/4" scale. With a ranch plan, this sheet will be eliminated. Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
- ELECTRICAL LAYOUT: The sixth sheet will include the electrical layout (placement of fixtures, switches, etc.) at 3/16" scale and kitchen and bath elevations at 1/4" scale. This sheet will sometimes include interior elevations and details.
- CROSS SECTIONS AND INTERIOR DETAILS: The last sheet explains certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and locations.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

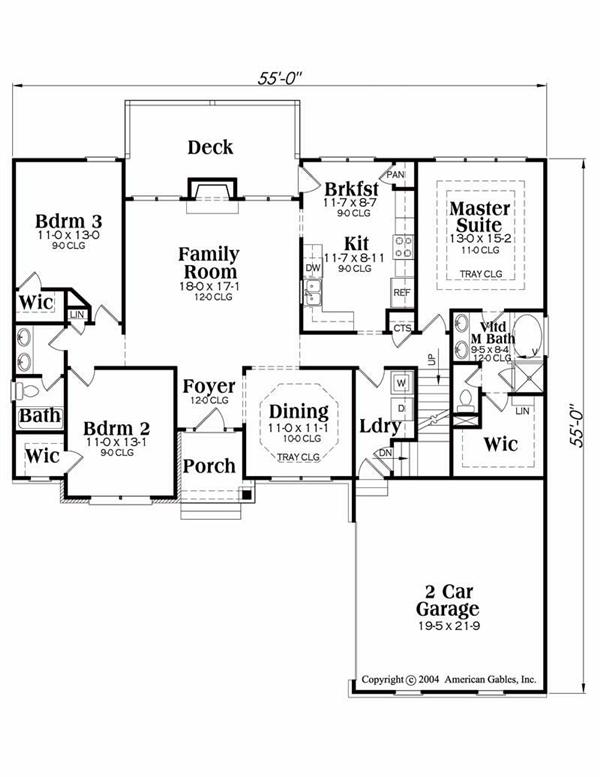

Home Plan: #104-1014 Floor Plan First Story
-
main level
![Floor Plan First Story of Ranch Plan #104-1014]( "104-1014: Floor Plan Main Level")

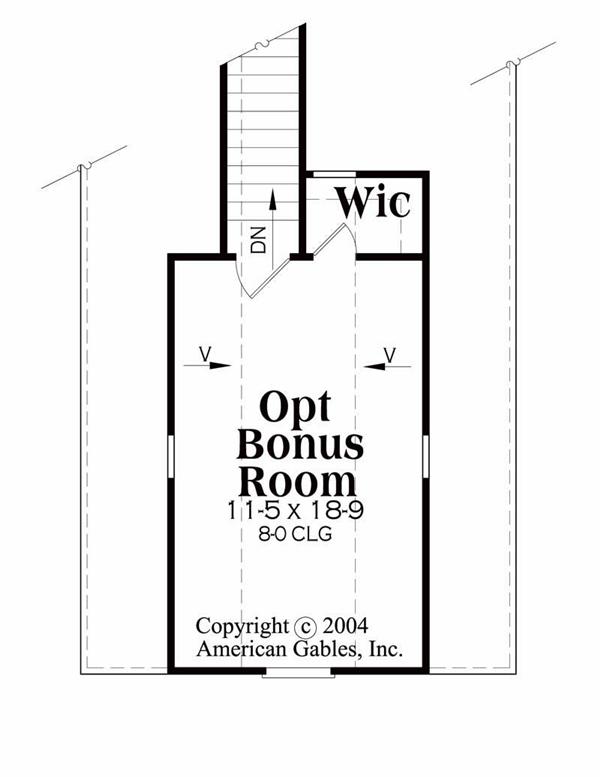

#104-1014 Floor Plan Second Story
-
upper level
![Floor Plan Second Story of Ranch Plan #104-1014]( "104-1014: Floor Plan Upper Level")
Home Plan: #104-1014 Floor Plan First Story
-
main level
![Floor Plan First Story of Ranch Plan #104-1014]( "104-1014: Floor Plan Main Level")
#104-1014 Floor Plan Second Story
-
upper level
![Floor Plan Second Story of Ranch Plan #104-1014]( "104-1014: Floor Plan Upper Level")
Special Offer
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Plan #:
# 104-1014
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2
Square Footage
Heated Sq Feet:
1732
Main Floor:
1732
Unfinished Sq Ft:
Lower Floor:
1732
Bonus Room:
254
Garage :
440
Dimensions
Width:
55' 0"
Depth:
55' 0"
Ridge Height:
22'7' 0"
Architectural Styles
Bungalow
Country
Ranch
Traditional
Exterior Wall Material
Rock/Stone
Wood Siding
Roofing Type
Gable
Roofing Material
Asphalt Shingles
Roof Pitch
9/12
Ceiling Height
9 Foot Ceiling
Special Feature
Bonus Room
Family Room
Fireplace
Main Level Laundry
Garage Type
Attached Garage
Courtyard Entry
Fireplaces
One Fireplace
Exterior Wall Framing
2x4
Kitchen Features
Eat-In Kitchen
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry
Porches and Exterior Features
Covered Front Porch
Master Suite Features
Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet
PRICING OPTIONS
A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.
Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.
A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
