5-Bedroom, 5083 Sq Ft Colonial Plan with Peninsula/Eating Bar
Related House Plans
| 5083 SQUARE FEET | 5 BEDROOMS | 5 FULL BATH | 2 HALF BATH |
| 2 FLOOR | 87' 0" WIDTH | 71' 0" DEPTH | 3 GARAGE BAY |

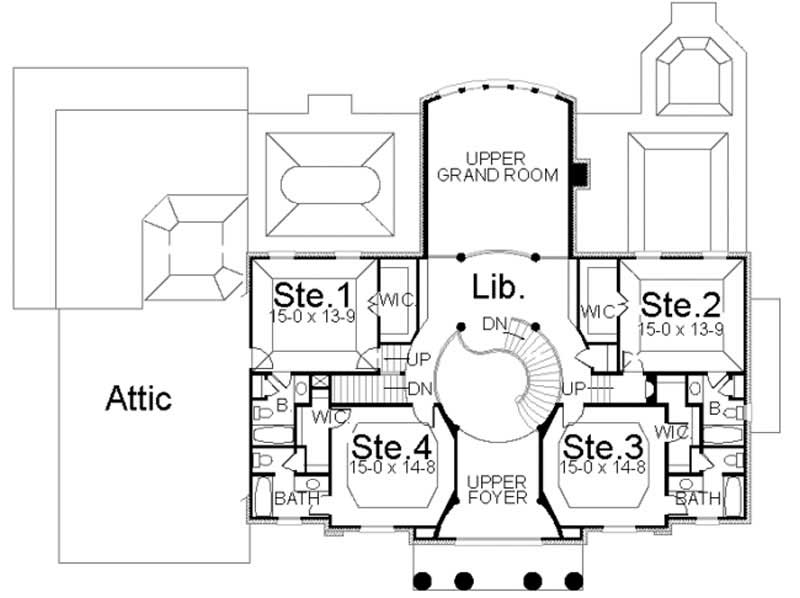

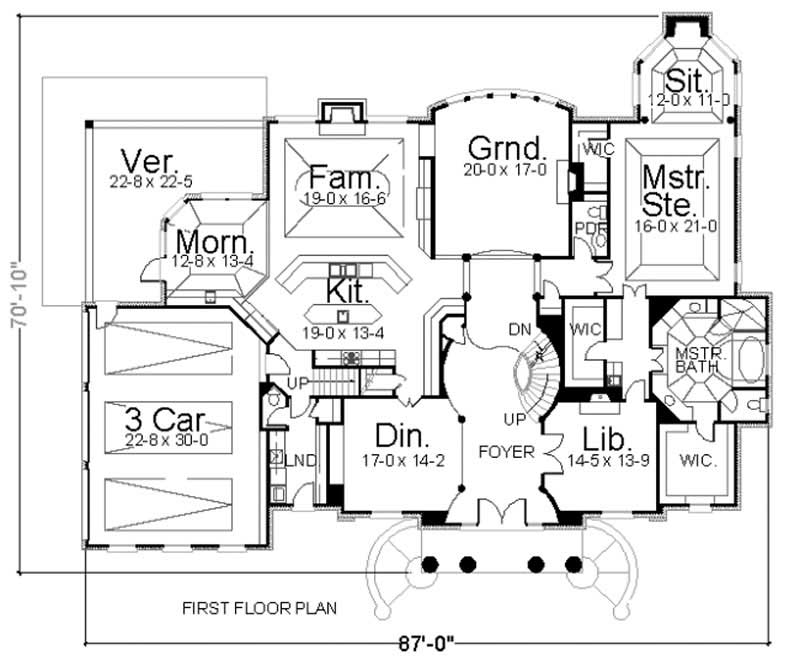

This home has a very beautiful floor design. On the main floor there is a beautiful grand room. And the kitchen/family room are open to each other with a great morning room close by. The foyer is open and looks at the grand staircase. Upstairs there are four bedrooms that are the perfect size, each with a personal bath.
Each plan set includes the following:
- Foundation Plan
- Floor plans
- Electrical layout
- Exterior elevations
- Cross-section
- Typical Call detail
- Typical footing detail
- Miscellaneous details
- Window/Door sizes
- Roof plan
These items are NOT included:
- Framing.
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Special Feature
Garage Type
Fireplaces
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
