4-Bedroom, 4586 Sq Ft Southwest Plan with Kitchen Island
Related House Plans
Photographs may reflect modified designs. Copyright held by designer.
| 4586 SQUARE FEET | 4 BEDROOMS | 3 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 100' 0" WIDTH | 77' 0" DEPTH | 3 GARAGE BAY |
This Southwest-inspired home will make your life a lot more comfortable. WIth standard frame construction, this house has 4 bedrooms and 3 bathrooms. Fireplaces are in both the living and family rooms. For quite time there is the den/library. The master suite also has its own fireplace and walk-in closets to store all of your clothes while staying organized! And if that isn't enough for you, you can either work at the raised eating bar or relax while on the lookout for mooching possums from the den!
Each plan set includes the following:

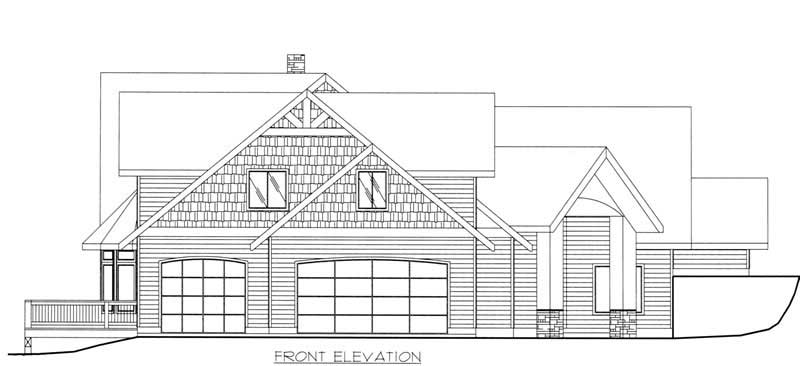

- Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
- Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.
- Foundation plan: shows footing, stem wall, and slab placement, including all connection details.
- Floor and roof framing plans show truss/rafter placements, including all beams/connection details.
- Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.
- Electrical layout
- General notes/details to cover the entirety of the project
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

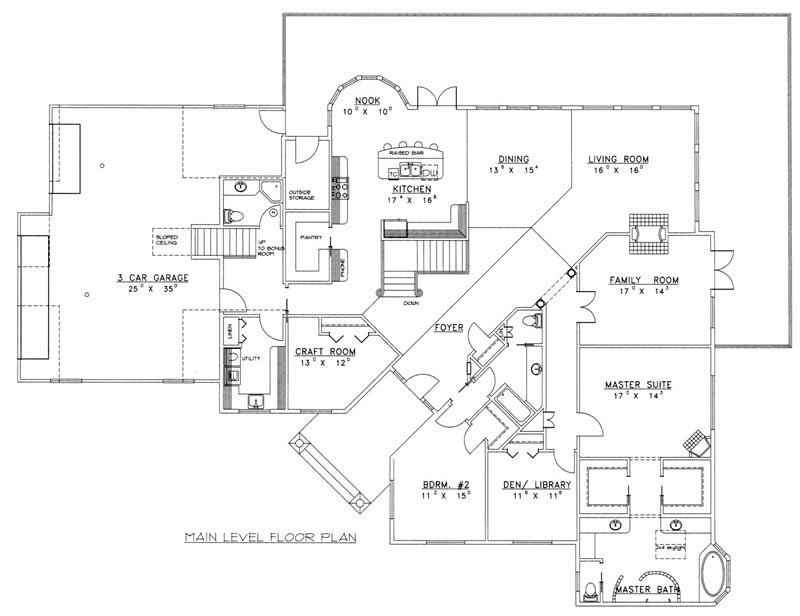

Home Plan: #132-1238 Floor Plan First Story
-
main
![Floor Plan First Story of Southwest Plan #132-1238]()

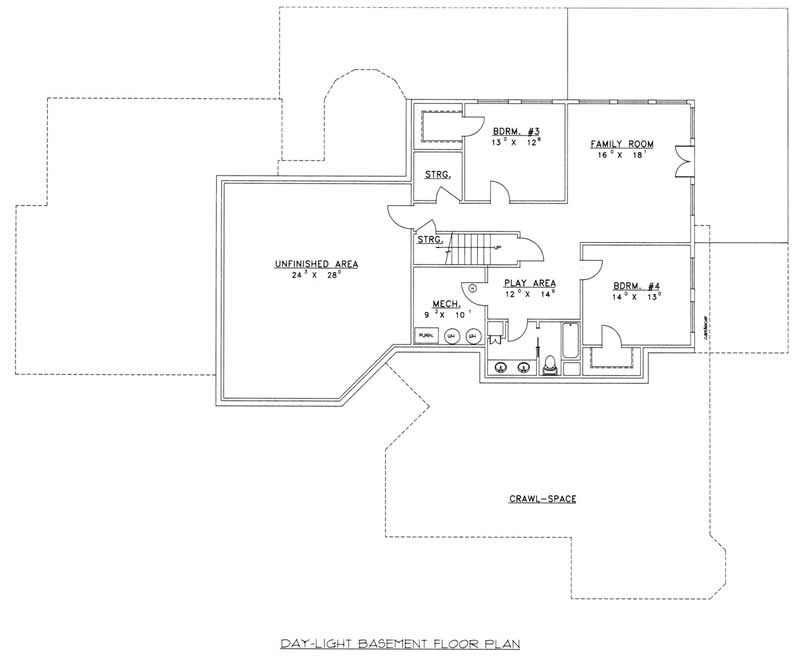

#132-1238 Floor Plan Basement
-
basement
![Floor Plan Basement of Southwest Plan #132-1238]()

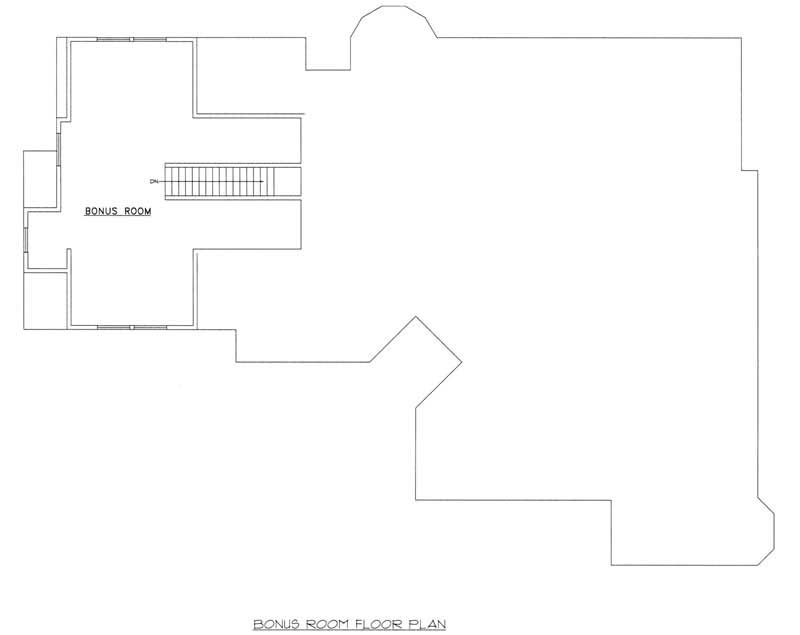

#132-1238 Floor Plan Second Story
-
