About Plan # 132-1187

About Plan # 132-1187

3971 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 76' 0" WIDTH 49' 2" DEPTH 3 GARAGE BAY
*Standard Frame Construction *Boat Garage/Storage *Large Master Suite With Fireplace *Office *Kitchen With Island *Covered Deck *Large Master Suite With Walk-In Closet *Large Master Bath With Double Sinks *Large Great Room With Double-Sided Fireplace *Large Recreation Room *Vacation/Ranch Style house plan

Each plan set includes the following:

  • Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
  • Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.
  • Foundation plan: shows footing, stem wall, and slab placement, including all connection details.
  • Floor and roof framing plans show truss/rafter placements, including all beams/connection details.
  • Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.
  • Electrical layout
  • General notes/details to cover the entirety of the project

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

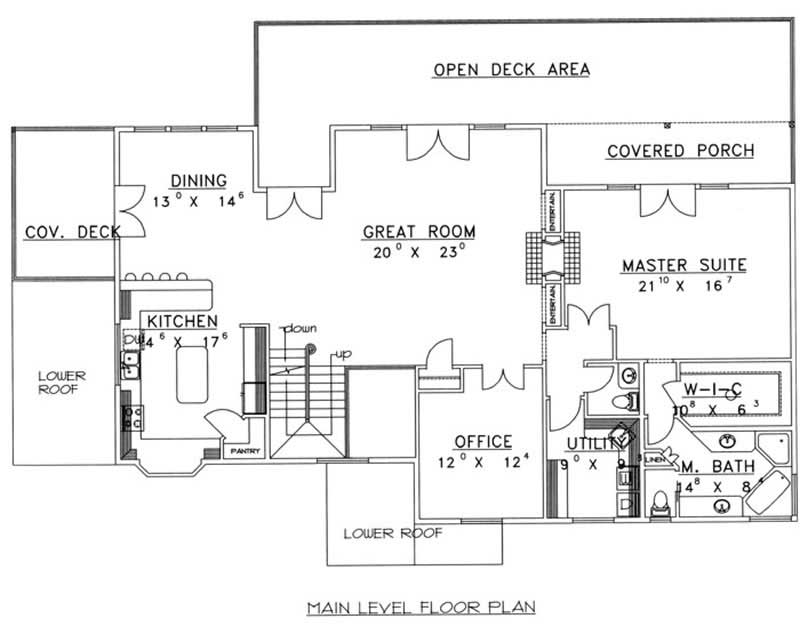

Home Plan: #132-1187 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #132-1187

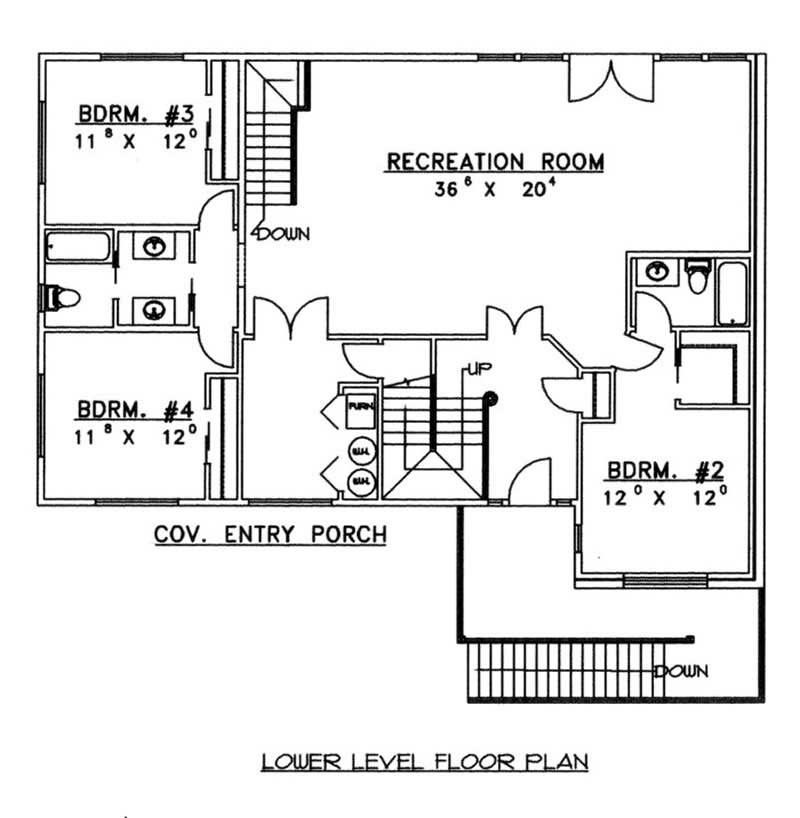

#132-1187 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #132-1187
Home Plan: #132-1187 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #132-1187
#132-1187 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #132-1187
