4-Bedroom, 3076 Sq Ft Ranch Plan with Oversized Kitchen Island

Ranch home (ThePlanCollection: Plan #142-1216)

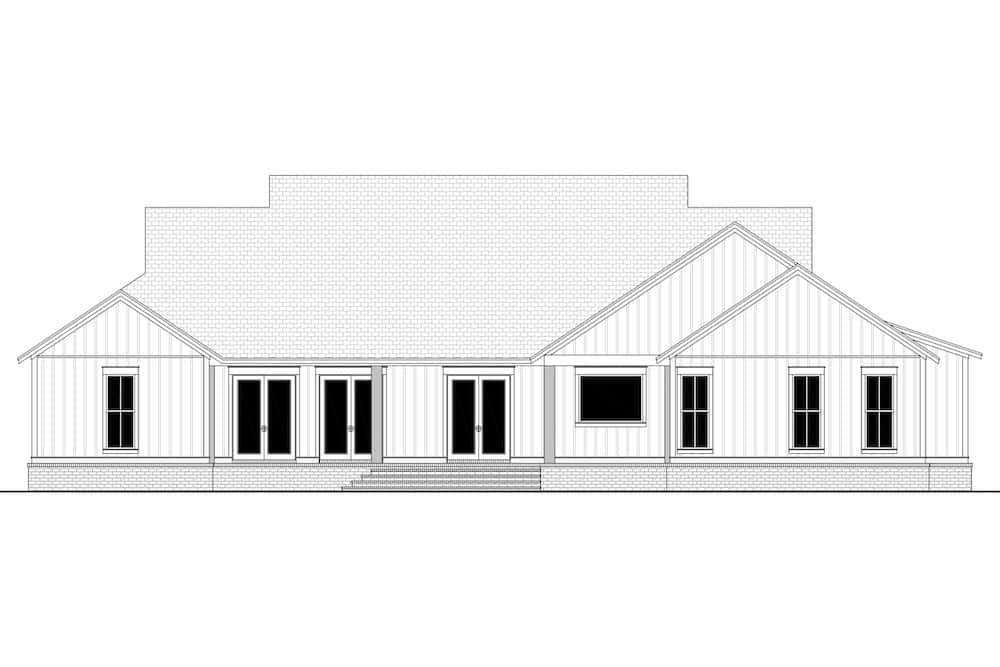

142-1216: Home Plan Rear Elevation

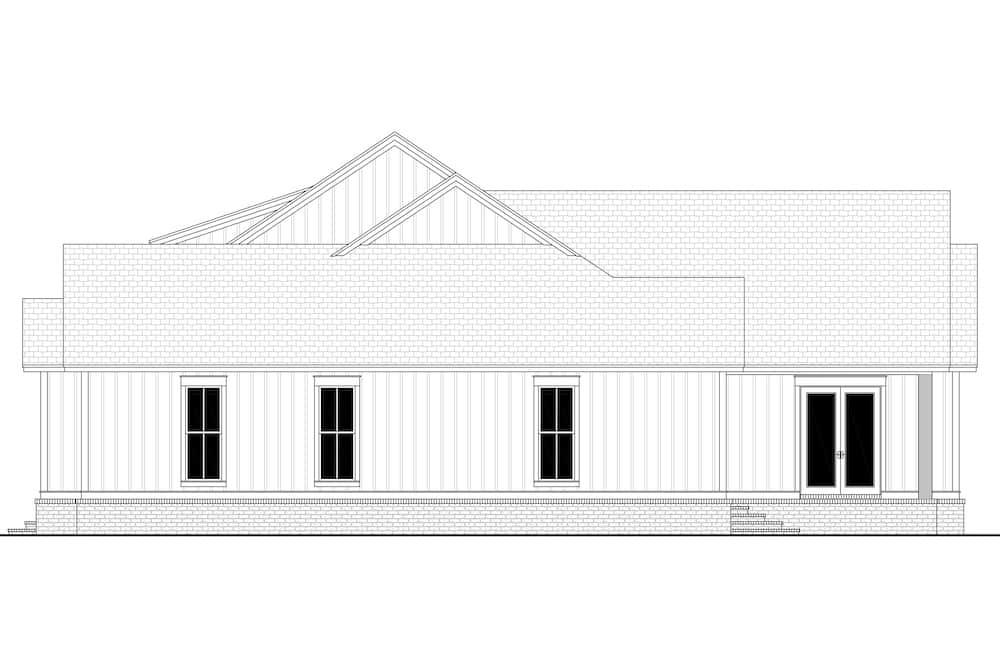

142-1216: Home Plan Left Elevation

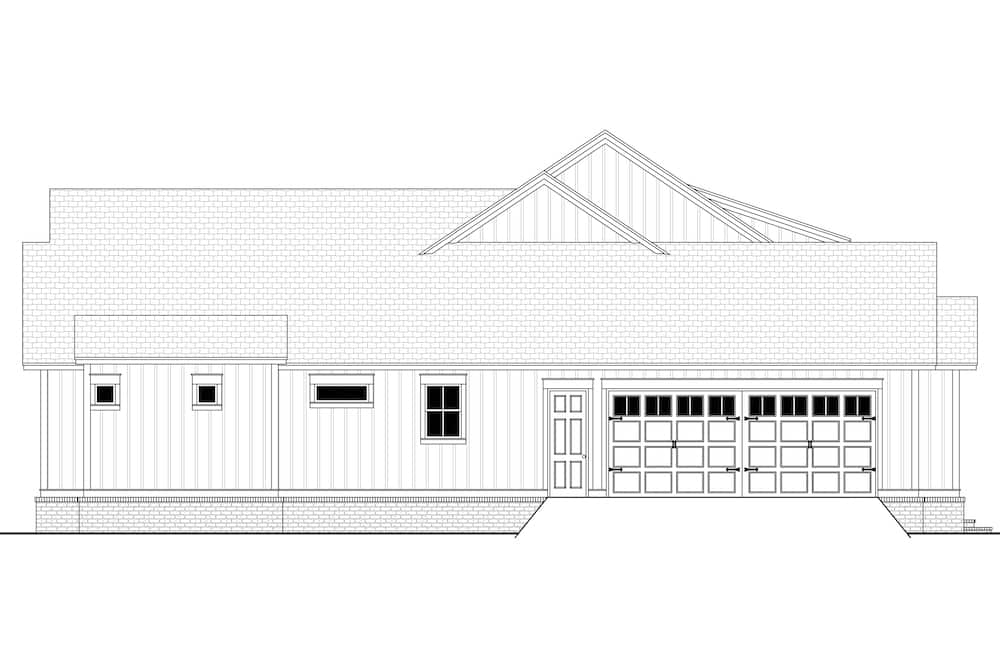

142-1216: Home Plan Right Elevation

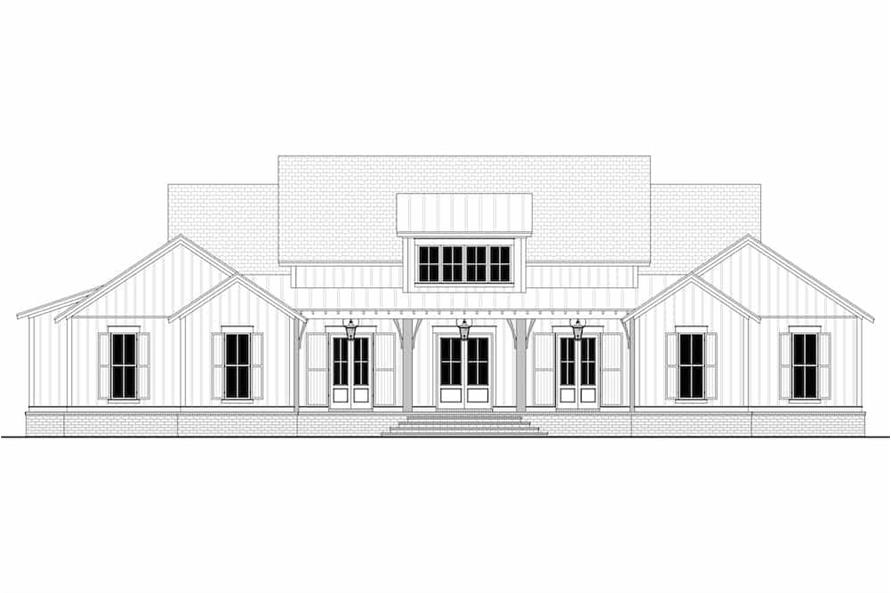

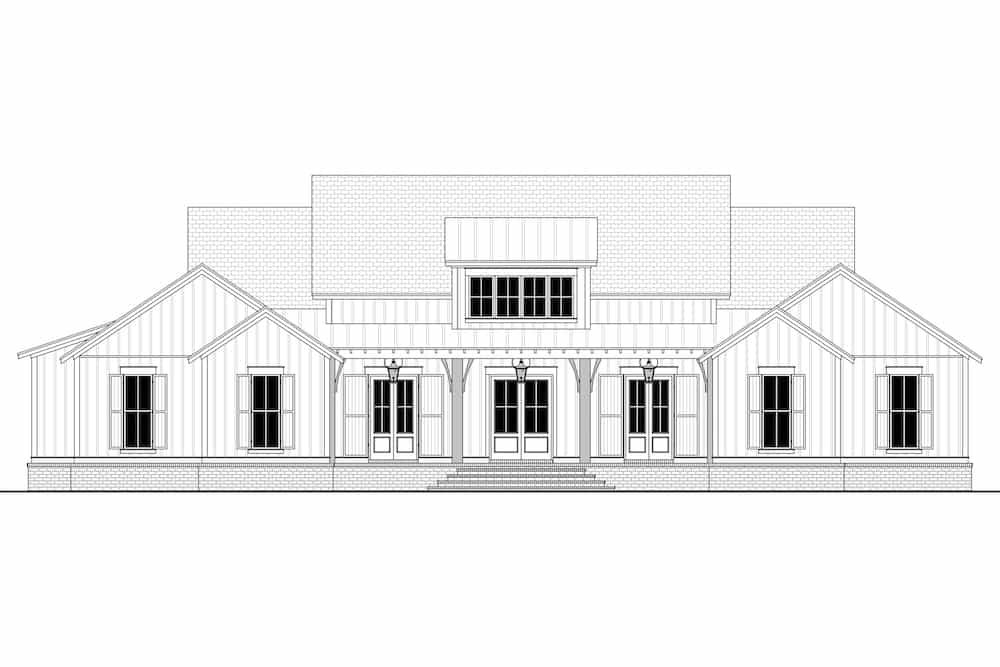

142-1216: Home Plan Front Elevation
142-1216: Home Plan Rendering-Front View
4-Bedroom, 3076 Sq Ft Ranch House - Plan #142-1216 - Front Exterior
142-1216: Home Plan Rear Elevation
142-1216: Home Plan Left Elevation
142-1216: Home Plan Right Elevation
142-1216: Home Plan Front Elevation
142-1216: Home Plan Rendering-Front View

About Plan # 142-1216

About Plan # 142-1216

3076 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 88' 0" WIDTH 67' 8" DEPTH 2 GARAGE BAY

You will definitely feel revitalized by the sight of this awesome Country-Ranch home because of its majestic ambiance both inside and out. WIth 3076 square feet of living space, walk up to the front porch and enter through the double doors into the folyer. Inside, you will be wowed by:

  • Open floor plan layout creating a spacious main area joining the great room, the dining area and the kitchen.
  • Grand dining room area iwth raised ceiling and double doors to the rear porch.
  • Chef-worthy kitchen with over-sized island, eating bar, and huge walk-in pantry.
  • Priavate office off the great room which is ideal for working from home.
  • Great room has 12-foot ceiling, a fireplace and two pairs of double doors leading to the rear porch.
  • Split bedroom layout providing for plenty of privacy for the home owners.
  • Master bedroom suite with vaulted ceilings in the bedroom, a spa-like master bath with his-and-her sink vanities.
  • A spacious master walk-in closet with access to the utility/laundry room.
  • Three more bedrooms on the other side of the home — each wth walk-in closets.
  • Bedroom #2 enjoys its own ensuite bathroom.
  • Bedroom #3 and #4 share a Jack-and-Jill bathroom.
  • Expansive rear porch with an outdoor kitchen — perfect for grilling and entertaining.

Each plan set includes the following:

  • COVER SHEET: Artist’s rendering of the residence to provide an idea of what the house would look like once built. May include index and definitions.
  • FOUNDATION PLAN: Dimensioned foundation plan detailing the location and size of footings and construction details.
  • FLOOR PLAN(S): Showing all dimensions, window and door locations, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • ROOF PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Displays lighting fixtures, outlets, and other necessary electrical items. These items may be shown on the floor plan(s). Switches are NOT shown and should be located by the contractor on site.
  • WALL SECTION(S): Detail of wall materials and assembly.
  • BUILDING SECTION(S): Section through the home displaying necessary information about framing and other miscellaneous data. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • CABINET ELEVATIONS: Displays the interior kitchen cabinet views.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
  • No Framing

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

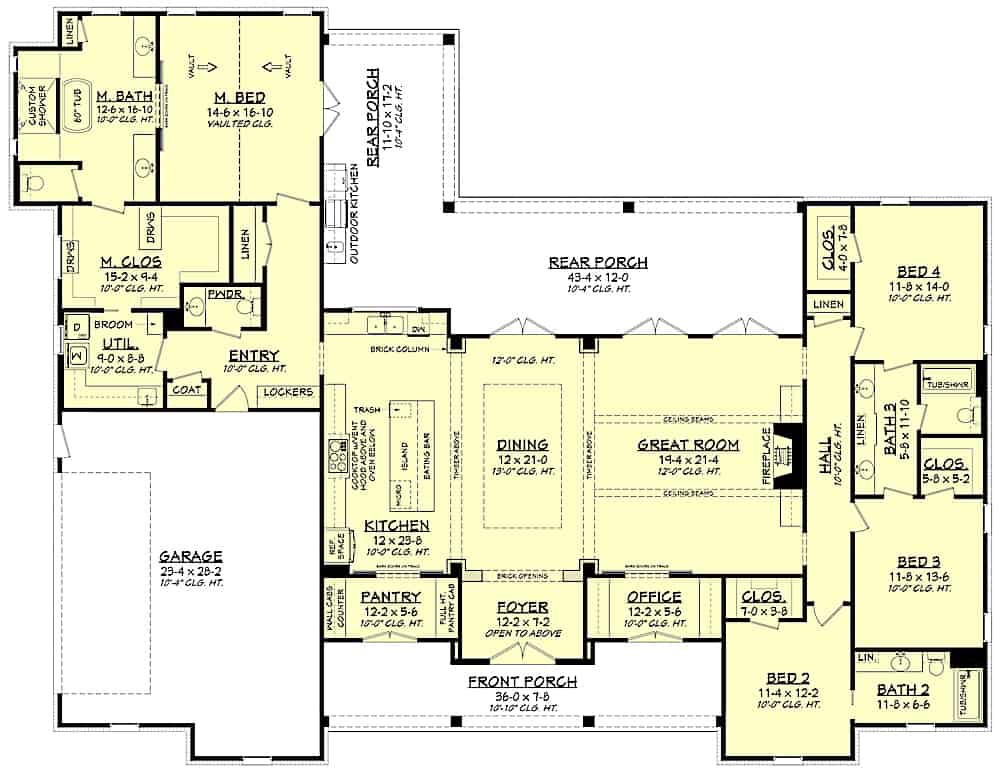

Home Plan: #142-1216 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #142-1216

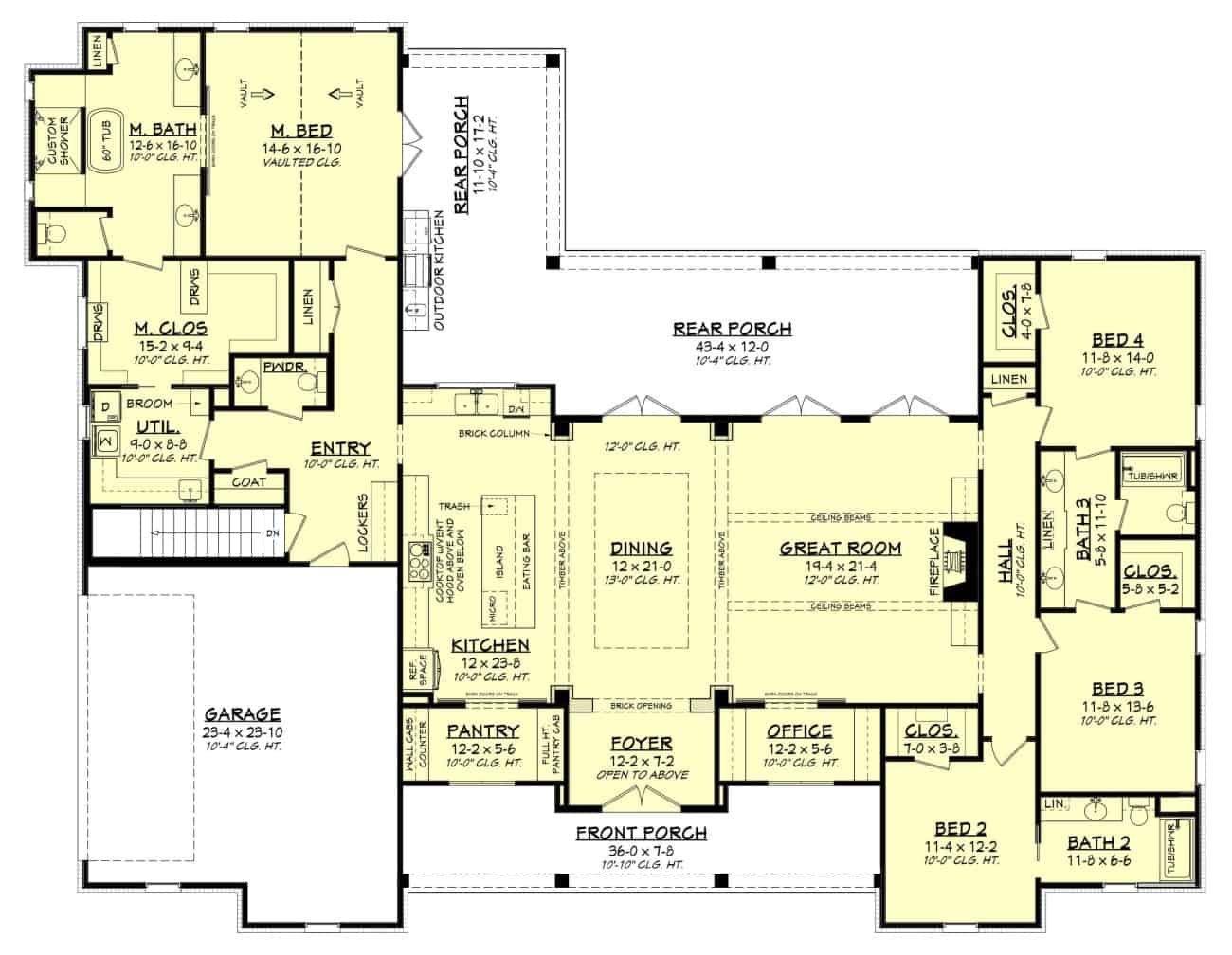

#142-1216 Floor Plan First Story - basement option stair location Floor Plan Main Level of Ranch Plan #142-1216
