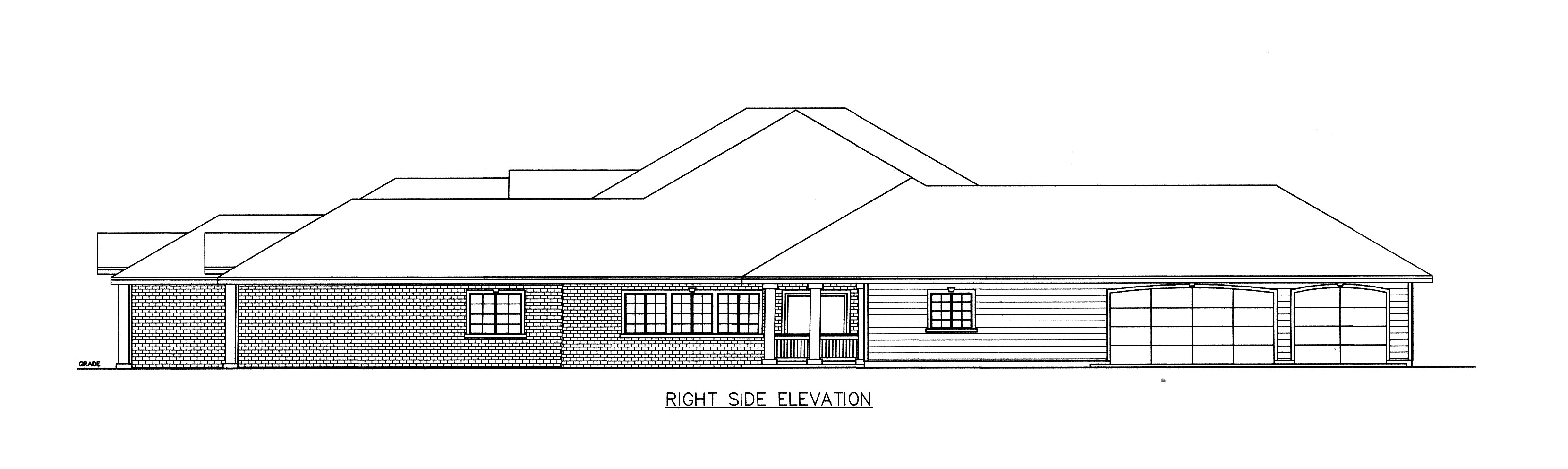

132-1540: Home Plan Right Elevation
132-1540: Home Plan Front Elevation
132-1540: Home Other Image-Front View
10-Bedroom, 6005 Sq Ft Traditional Home Plan - 132-1540 - Main Exterior
132-1540: Home Plan Rear Elevation
132-1540: Home Plan Left Elevation
132-1540: Home Plan Right Elevation
132-1540: Home Plan Front Elevation
132-1540: Home Other Image-Front View

About Plan # 132-1540

About Plan # 132-1540

6005 SQUARE FEET 10 BEDROOMS 6 FULL BATH 1 HALF BATH
1 FLOOR 125' 0" WIDTH 124' 10" DEPTH 3 GARAGE BAY
This beautiful traditional home has 6005 square feet of living space. The one-story floor plan includes 10 bedrooms and 6.5 bathrooms. The exterior of this home has an appealing courtyard. Inside, this house design's floor plan includes an attractive main floor master.

Each plan set includes the following:

  • Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
  • Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.
  • Foundation plan: shows footing, stem wall, and slab placement, including all connection details.
  • Floor and roof framing plans show truss/rafter placements, including all beams/connection details.
  • Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.
  • Electrical layout
  • General notes/details to cover the entirety of the project

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

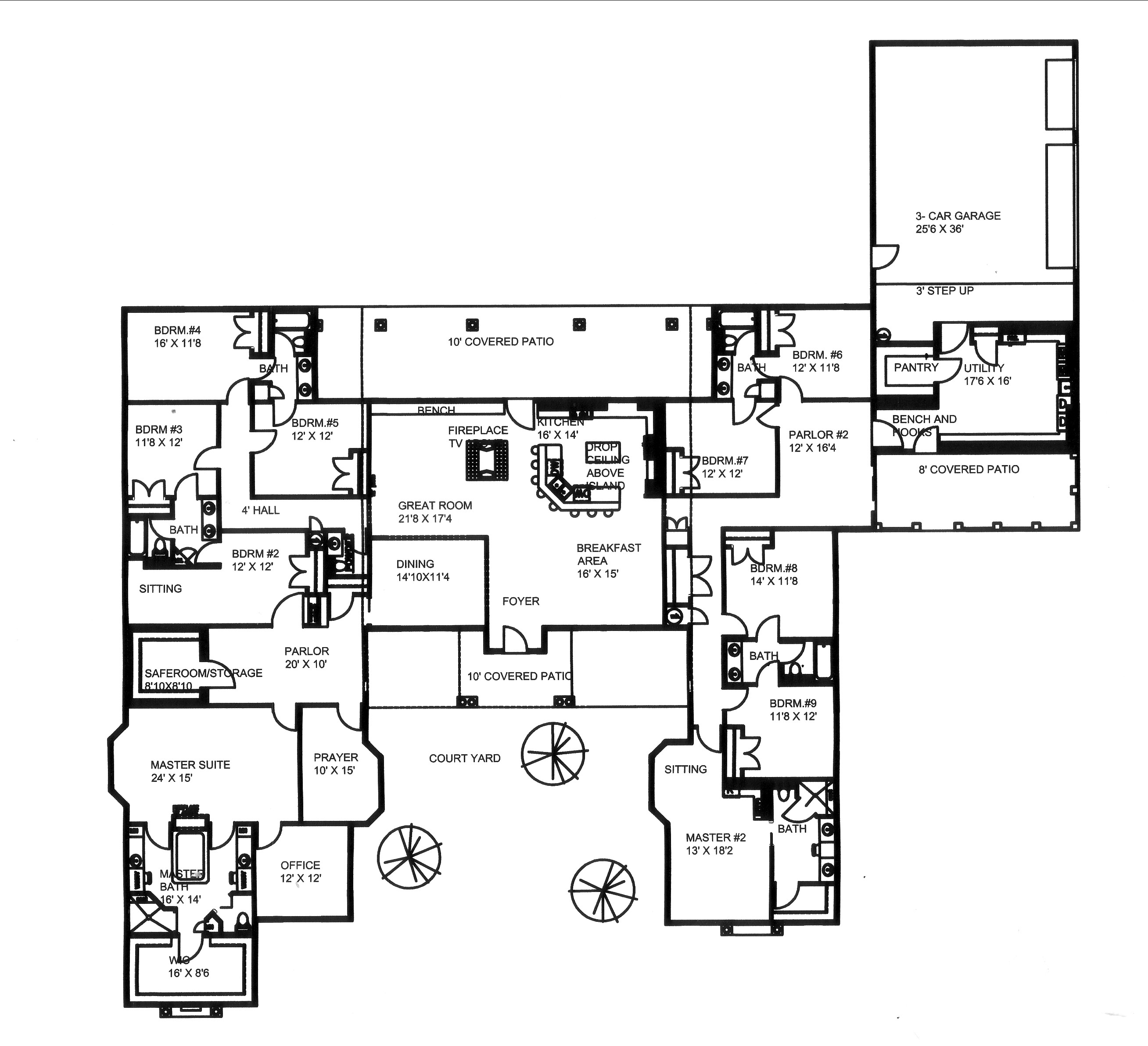

Home Plan: #132-1540 Floor Plan First Story - main level Floor Plan First Story of Traditional Plan #132-1540
